Shift Lock System: Inspection

Using a voltmeter, measure the voltage at each terminal.

HINT:

Do not disconnect the shift lock control unit assembly connector.

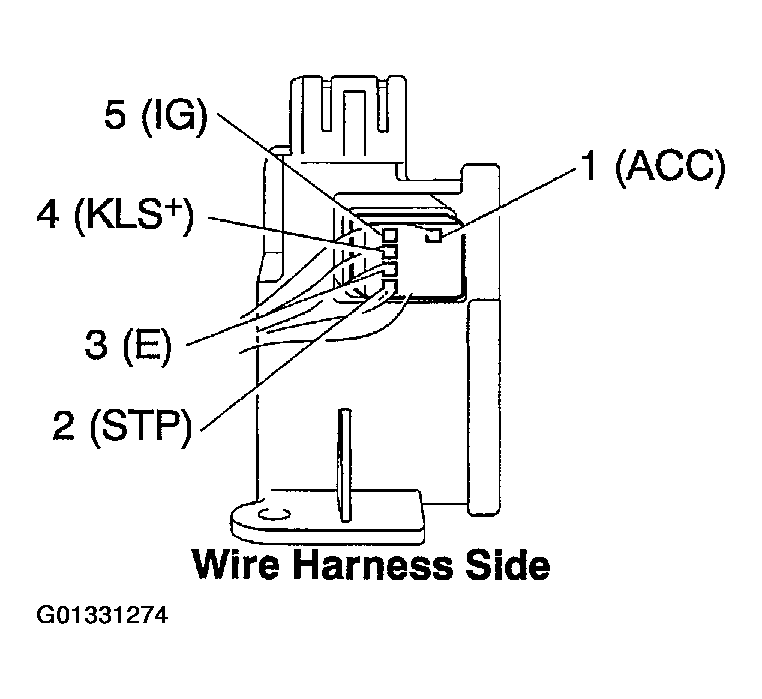

Fig 1: Inspecting Shift Lock Control Unit Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

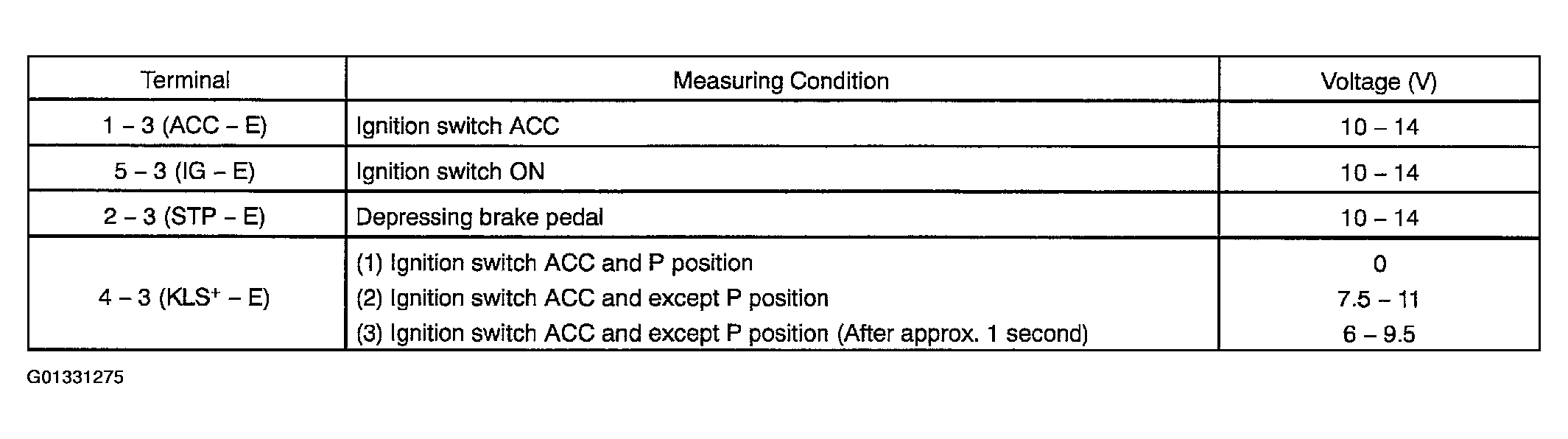

Fig 2: Voltage Measuring Condition Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the solenoid connector.
2. Using an ohmmeter, measure resistance between terminals.
   1. Standard resistance: 12.5 - 16.5 Ω

   If resistance value is not as specified, replace the solenoid.

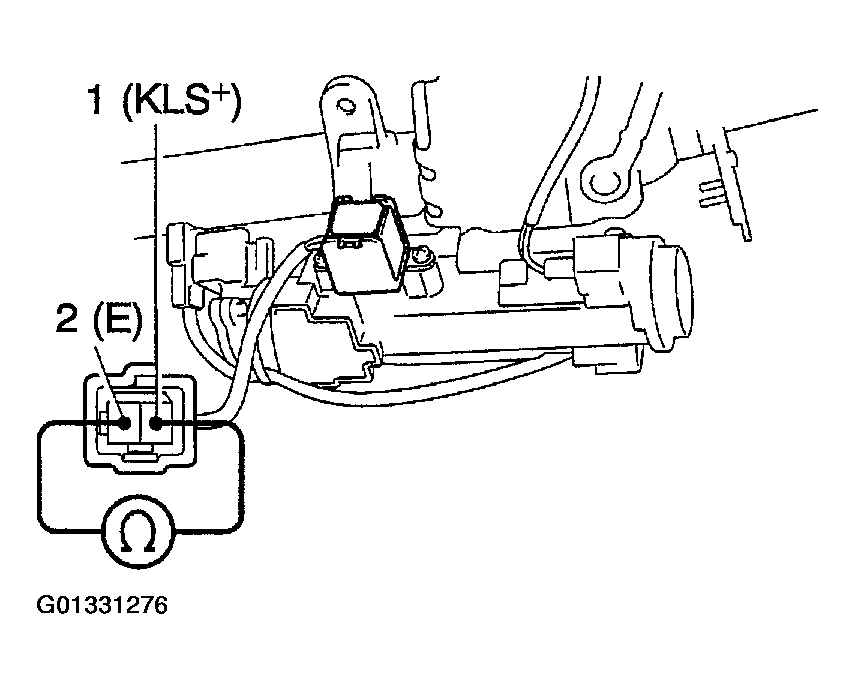

   Fig 3: Measuring Resistance Between Key Interlock Solenoid Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

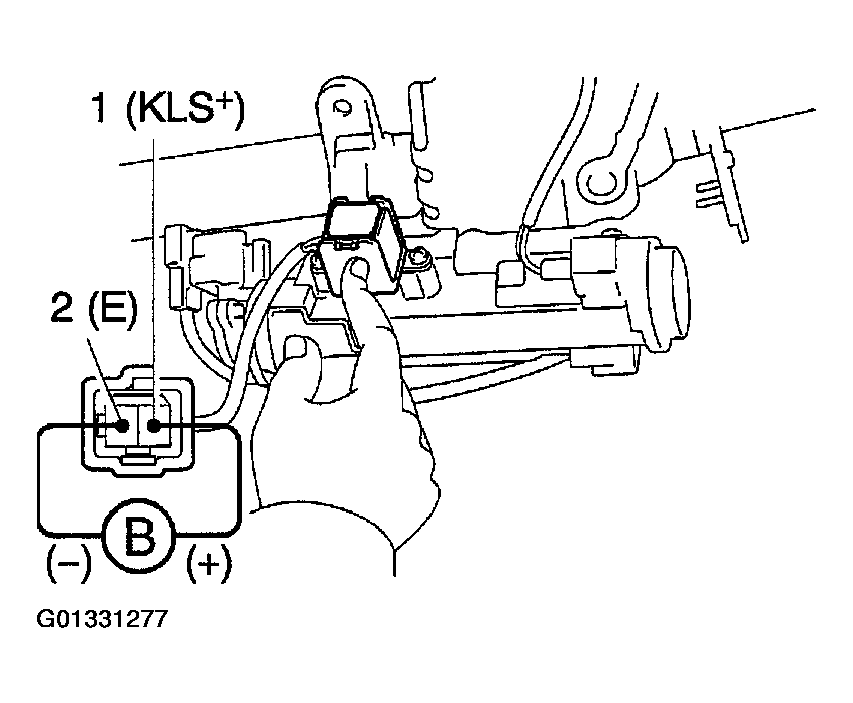

3. Apply battery positive voltage between terminals. Check that an operation noise can be heard from the solenoid
   Fig 4: Checking That An Operation Noise

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the solenoid does not operated, replace the solenoid.
