Vehicle Identification And Engine Serial Number

The vehicle identification number is stamped on the vehicle identification number plate and the certification label, as shown in the illustration.

1. Vehicle Identification Number Plate
2. Certification Label

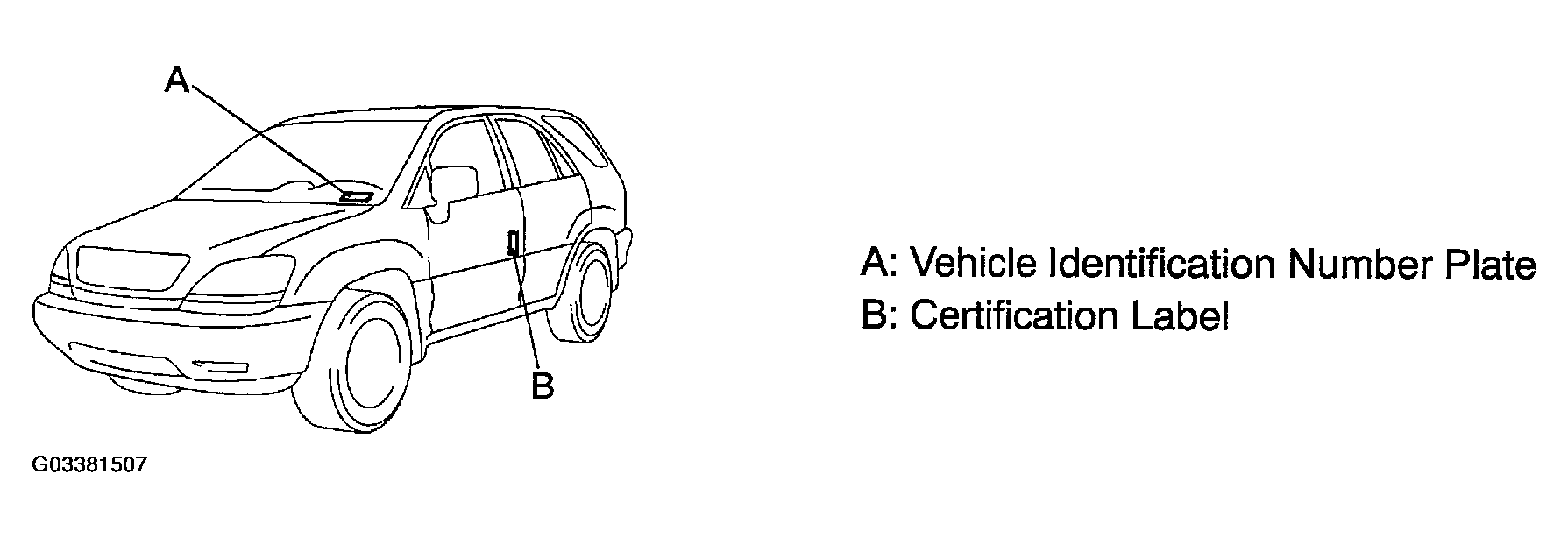

   Fig 1: Identifying Vehicle Identification Number Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The frame number is stamped on the front floor pan under the frame number cover.

Remove the frame number cover.

Insert a screwdriver between the frame number cover and the carpet to push the claw (A) and disengage the claw on the side of (1), then slide the frame number cover to (B) direction to disengage the claw on the side of (2).

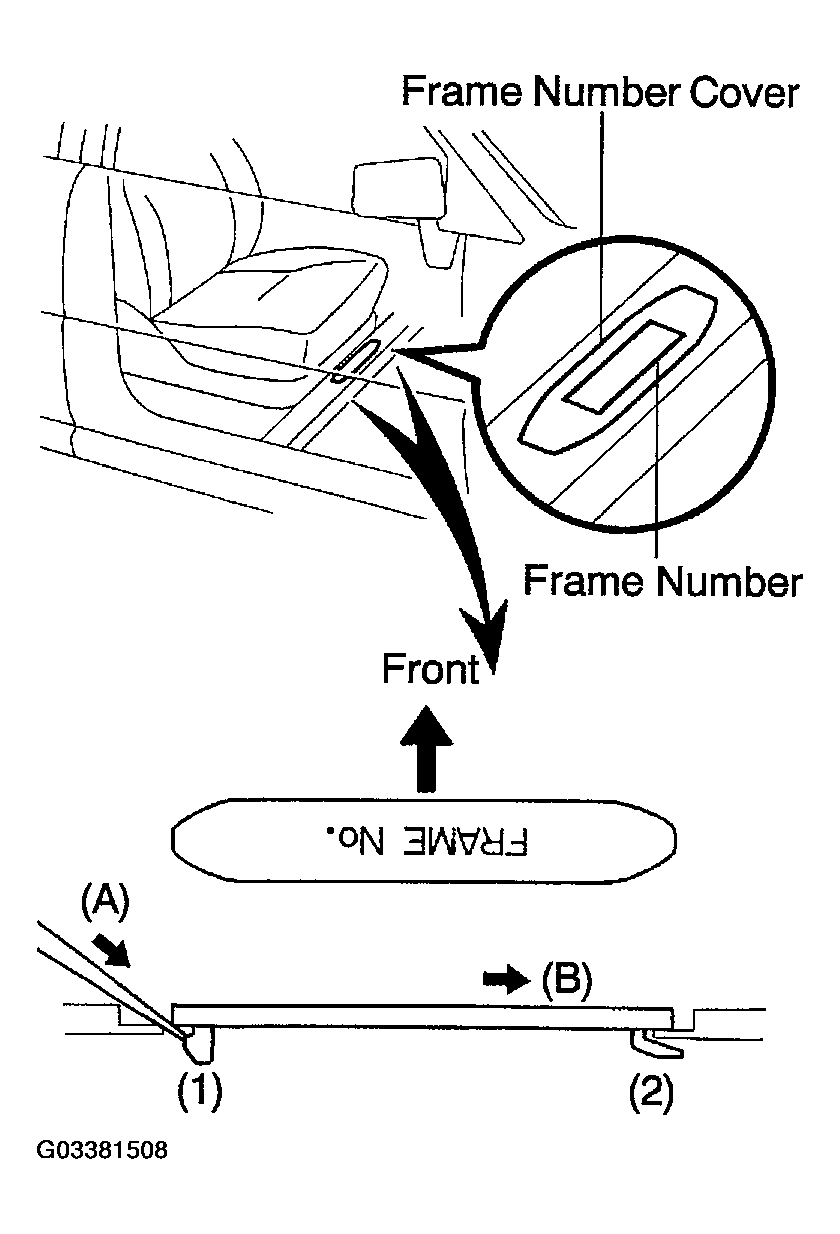

Fig 2: Identifying Frame Identification Number

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The engine serial number is stamped on the engine block, as shown in the illustration.

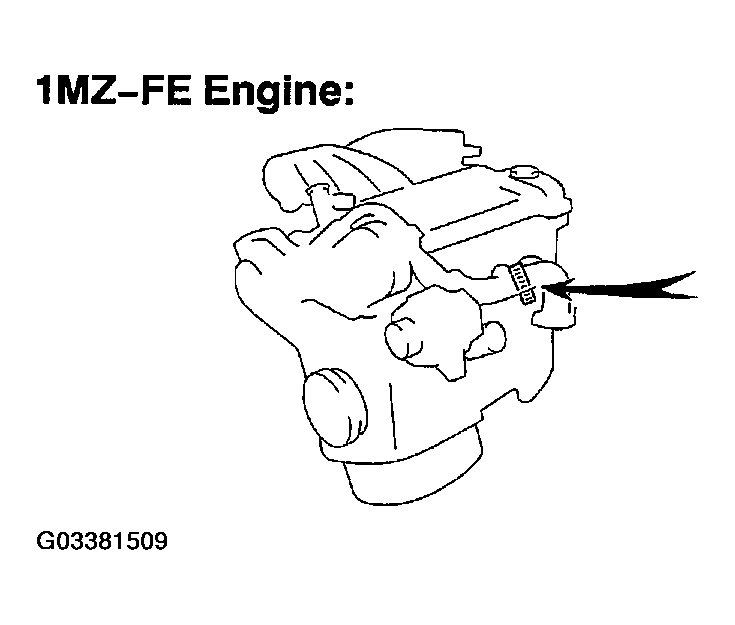

Fig 3: Identifying Engine Serial Number

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
