Ignition Switch: Inspection

  1. INSPECT IGNITION OR STARTER SWITCH ASSY

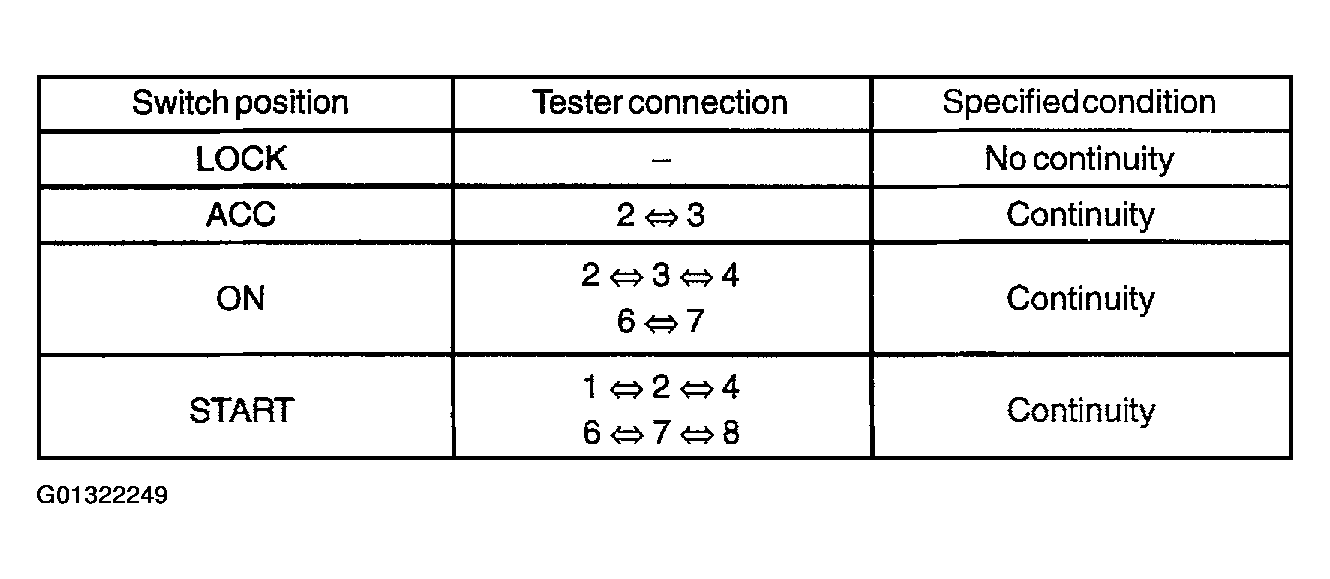

    Fig 1: Inspecting Ignition Or Starter Switch Assembly
    G01322249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

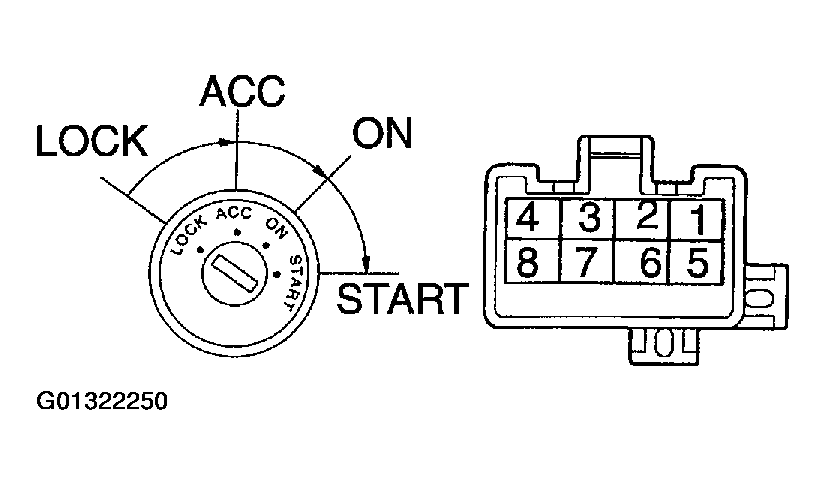

    Fig 2: Ignition Or Starter Switch Assembly Inspection Chart & Terminal Identification
    G01322250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the continuity is not as specified, replace the switch.
