Inspection Procedure

1. Check that the DTC B1221 is output when power window master switch is operated.

HINT:

• If B1221 is output when the switch is not operated, it is detected the switch sticking.
• If B1221 is not output when switch is operated, it is detected that the switch contact condition is bad.

1. NG: GO TO FLOW CHART (See  DTC B1221 POWER WINDOW SWITCH CIRCUIT ON DRIVER DOOR  )
2. OK: GO TO NEXT STEP

1. Check the power window master switch condition by the data monitor.

   Standard: (Driver door ECU)

   DRIVER WINDOW SWITCH OPERATION



   Item	Driver window switch operation	Hand-held tester indication
   P/W AUTO SW	OFF <--> Operated	OFF <--> ON

1. OK to step 5
2. NG: GO TO NEXT STEP

1. Remove the power window master switch.
2. Check the continuity between the terminals when the power window switch for driver door is operated.

   Standard:

   CONTINUITY CONDITIONS REFERENCE



   Switch position	Terminal No.	Specified condition
   Auto-up	6 <--> 20 <--> 16	Continuity
   Manual-up	6 <--> 20	Continuity
   Off	-	No continuity
   Manual-down	6 <--> 11	Continuity
   Auto-down	6 <--> 11 <--> 16	Continuity

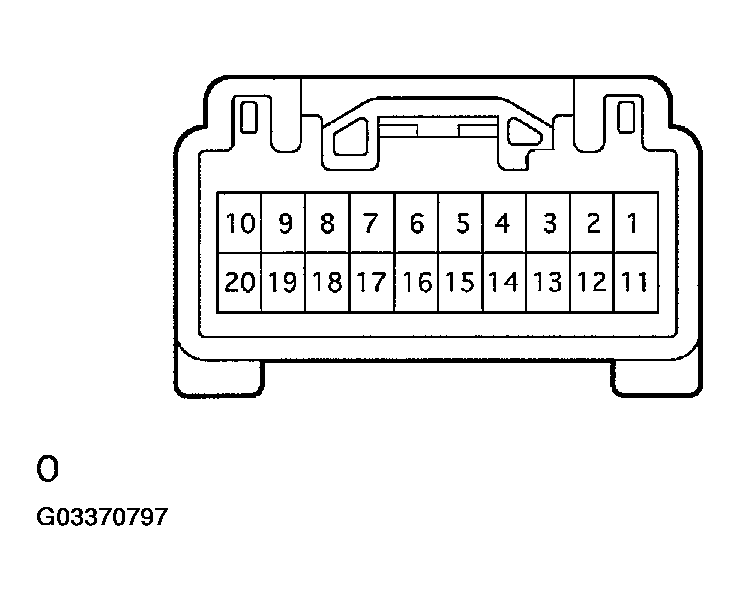

   Fig 1: Checking Power Window Regulator Master Switch Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
2. OK: GO TO NEXT STEP

1. Disconnect the master switch and D17 ECU connectors.

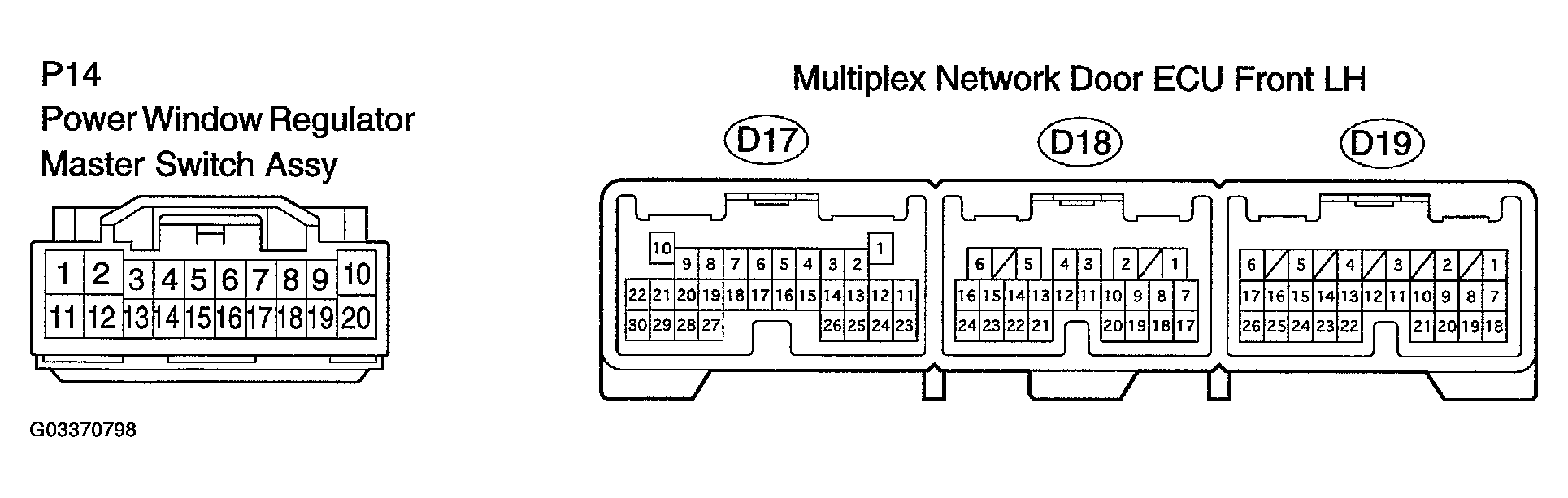

   Fig 2: Checking Wire Harness (Power Window Master Switch)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the continuity between the connector terminals of master switch and ECU.

   Standard:

   CONTINUITY CONDITIONS REFERENCE



   Terminal No.	Specified condition
   P14-6 <--> D17-21	Continuity
   P14-10 <--> D17-29
   P14-16 <--> D17-2
   P14-20 <--> D17-23
   P14-11 <--> D17-25

1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: REPLACE MULTIPLEX NETWORK DOOR ECU FRONT LH

1. Check the power window operation by the active test.

   Standard: (Driver)

   CONTINUITY CONDITIONS REFERENCE



   Item	Hand-held tester operation
   Power window	UP/DOWN

1. OK: REPLACE MULTIPLEX NETWORK DOOR ECU FRONT LH
2. NG: GO TO NEXT STEP

1. Check that the motor operates smoothly when the battery voltage is applied to each terminal of the connector.

   Standard:

   MEASURING OPERATIONAL CONDITIONS REFERENCE



   Measuring condition	Operational direction
   Battery positive <--> terminal 4 Battery negative <--> terminal 1	Clockwise rotation toward driving axis
   Battery positive <--> terminal 1 Battery negative <--> terminal 4	Counterclockwise rotation toward driving axis

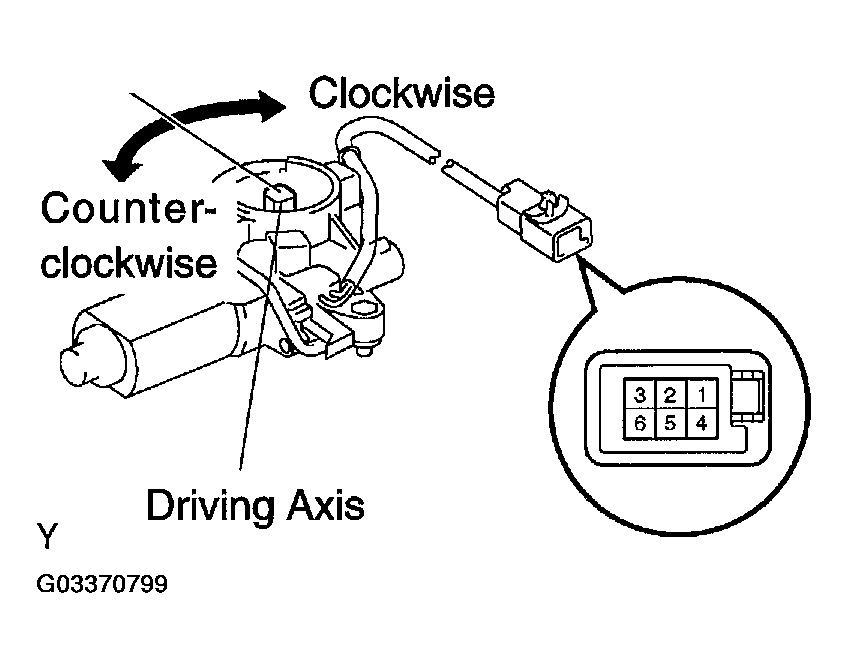

   Fig 3: Checking Power Window Regulator Motor Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Set the electrical tester and DC400A probe to the wire harness of terminal 1 or 4.

   SST 09083-00350

3. Close the door glass fully.
4. Inspection of current cut-off:

   When approximately 60 seconds has elapsed after the door glass fully closed, check the changing time of the current, from 16 - 34 A into 1 A, when the power window regulator switch turned UP once again.

   Standard: Approximately 4-90 seconds

5. When approximately 60 seconds has elapsed after the inspection of the current cut-off, check that the door glass goes down when the power window regulator switch turned DOWN.

1. NG: REPLACE POWER MOTOR WINDOW REGULATOR ASSY LH
2. OK: GO TO NEXT STEP

1. Disconnect the motor and D19 ECU connectors.

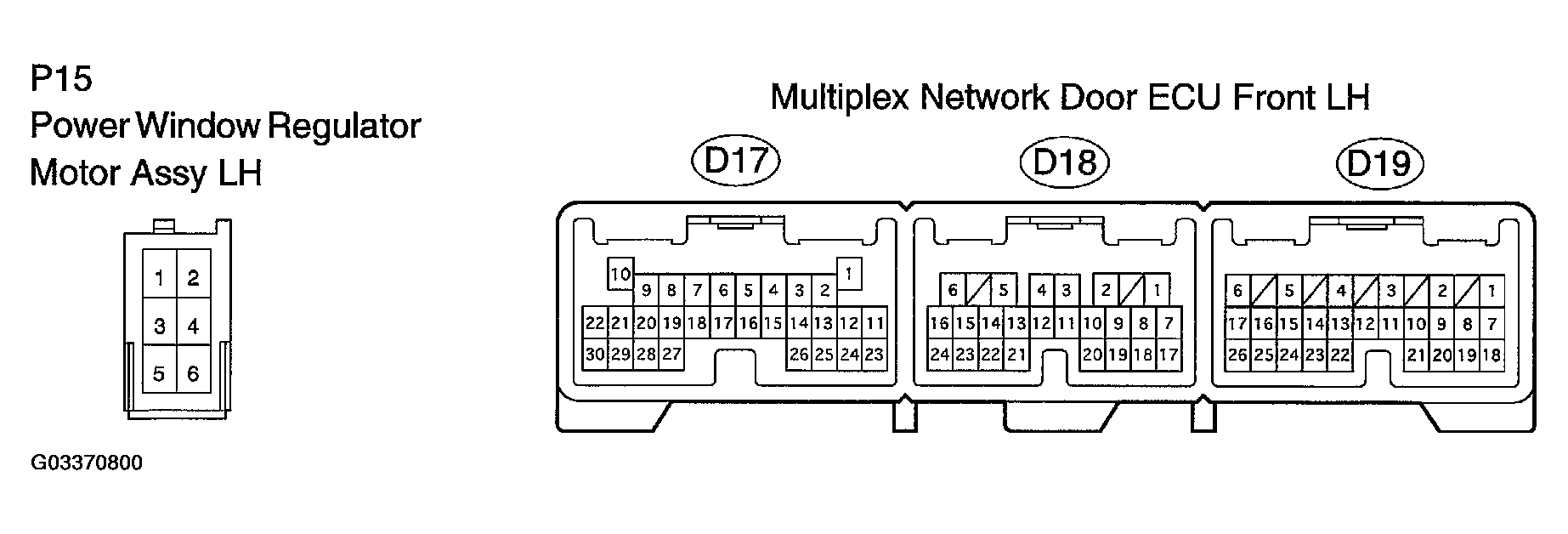

   Fig 4: Checking Wire Harness (Power Window Motor LH)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the continuity between the connector terminals of motor and ECU.

   Standard:

   CONTINUITY CONDITIONS REFERENCE



   Terminal No.	Specified condition
   P15-2 <--> D19-3	Continuity
   P15-1 <--> D19-2

1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: REPLACE MULTIPLEX NETWORK DOOR ECU FRONT LH
