Testing Procedure

For wiring diagram see Fig 1. For testing procedure see Fig 2.

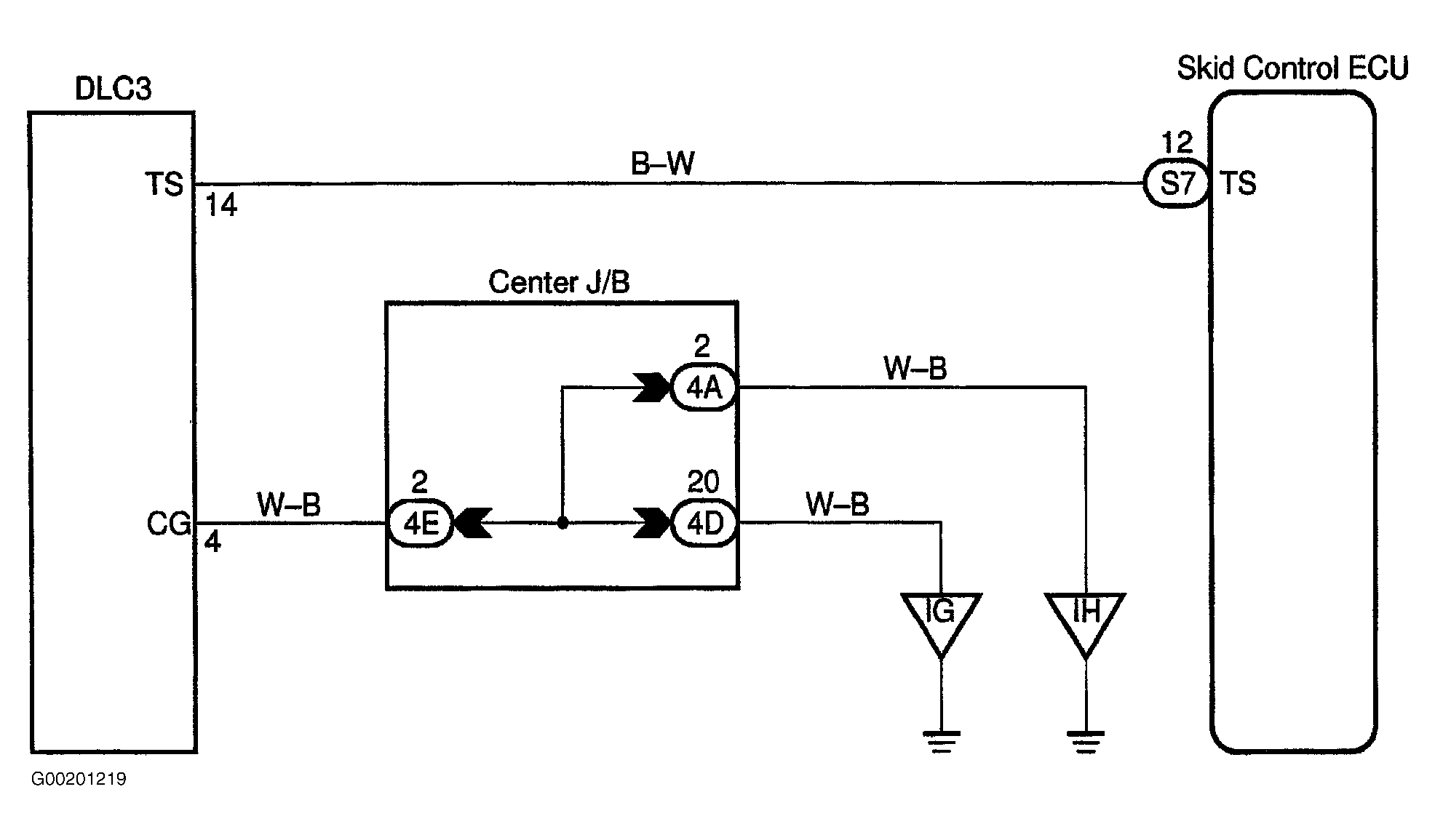

Fig 1: Wiring Diagram Ts Terminal Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

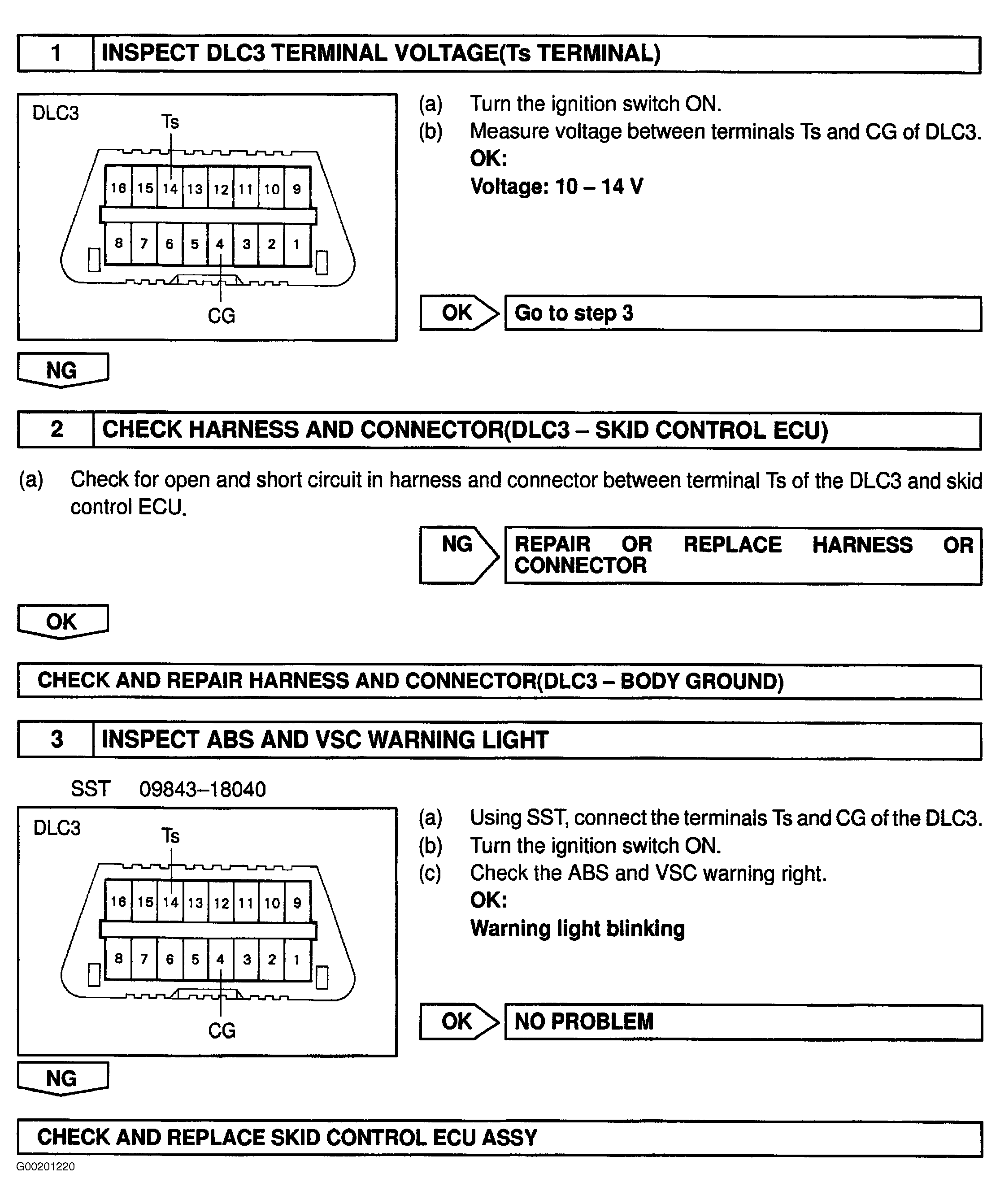

Fig 2: Testing Procedure Ts Terminal Circuit
