Engine ASSY: Components

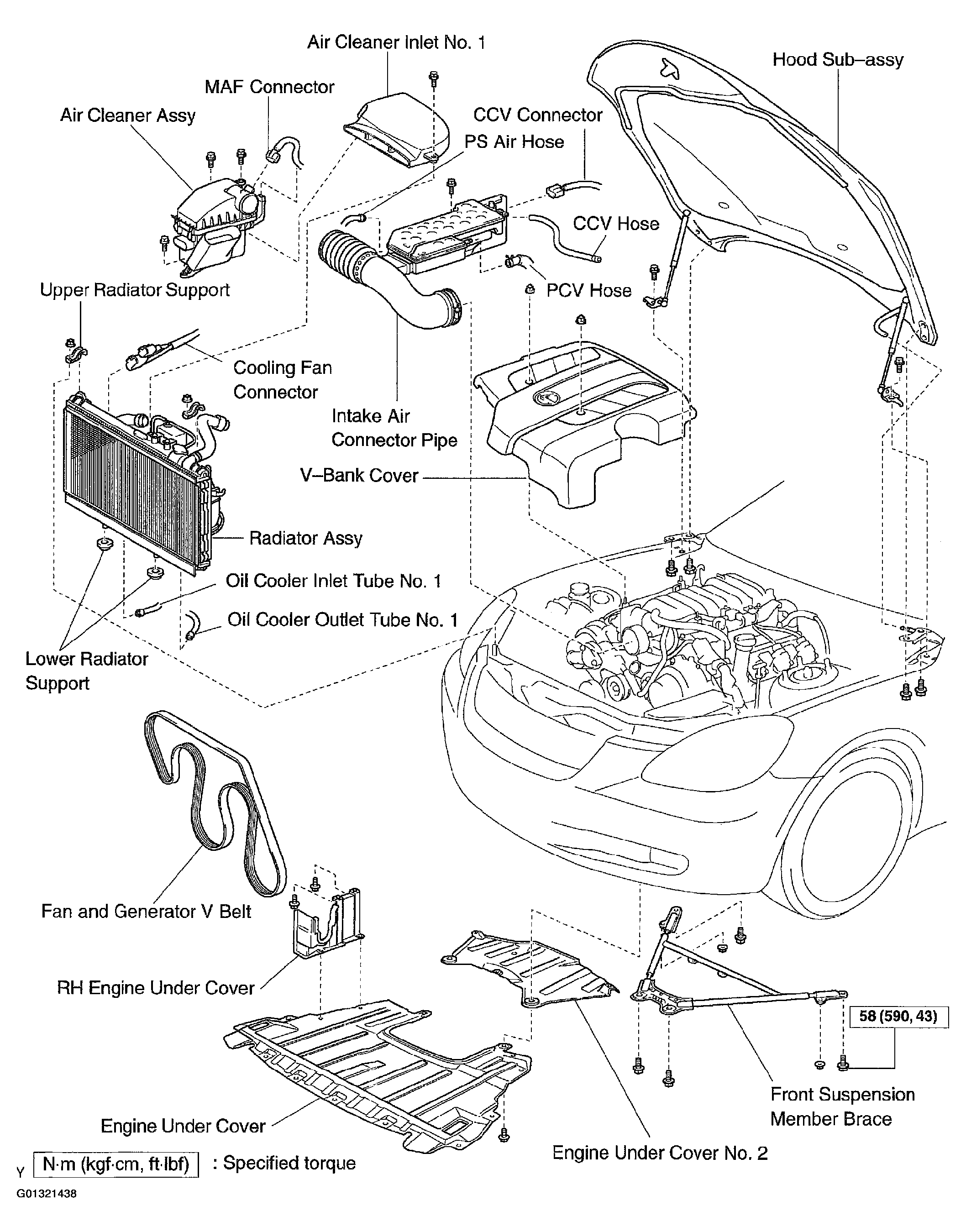

Fig 1: Exploded View Of Engine Assembly Components And Torque Specifications (1 Of 5)
G01321438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

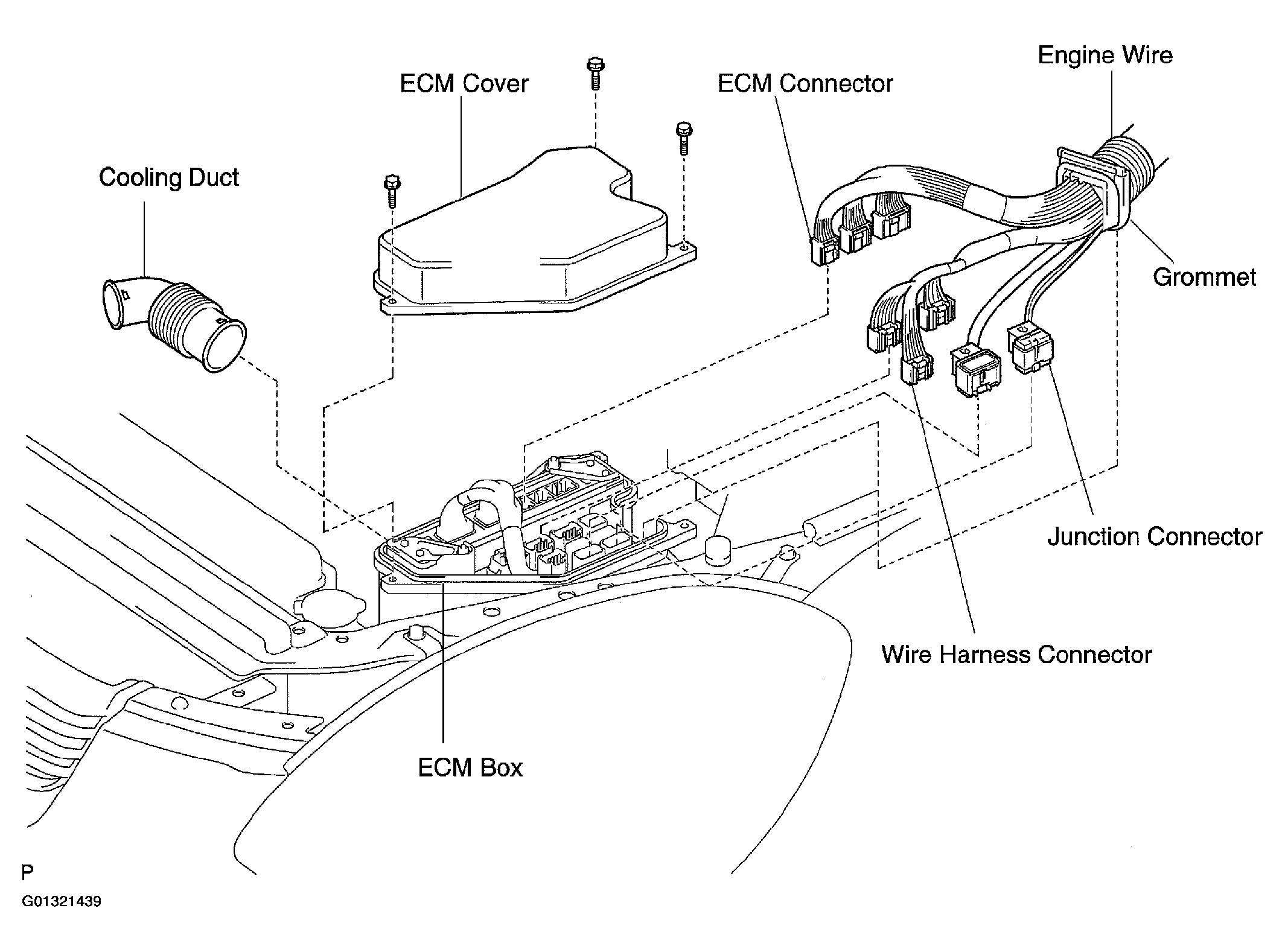

Fig 2: Exploded View Of Engine Assembly Components And Torque Specifications (2 Of 5)
G01321439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

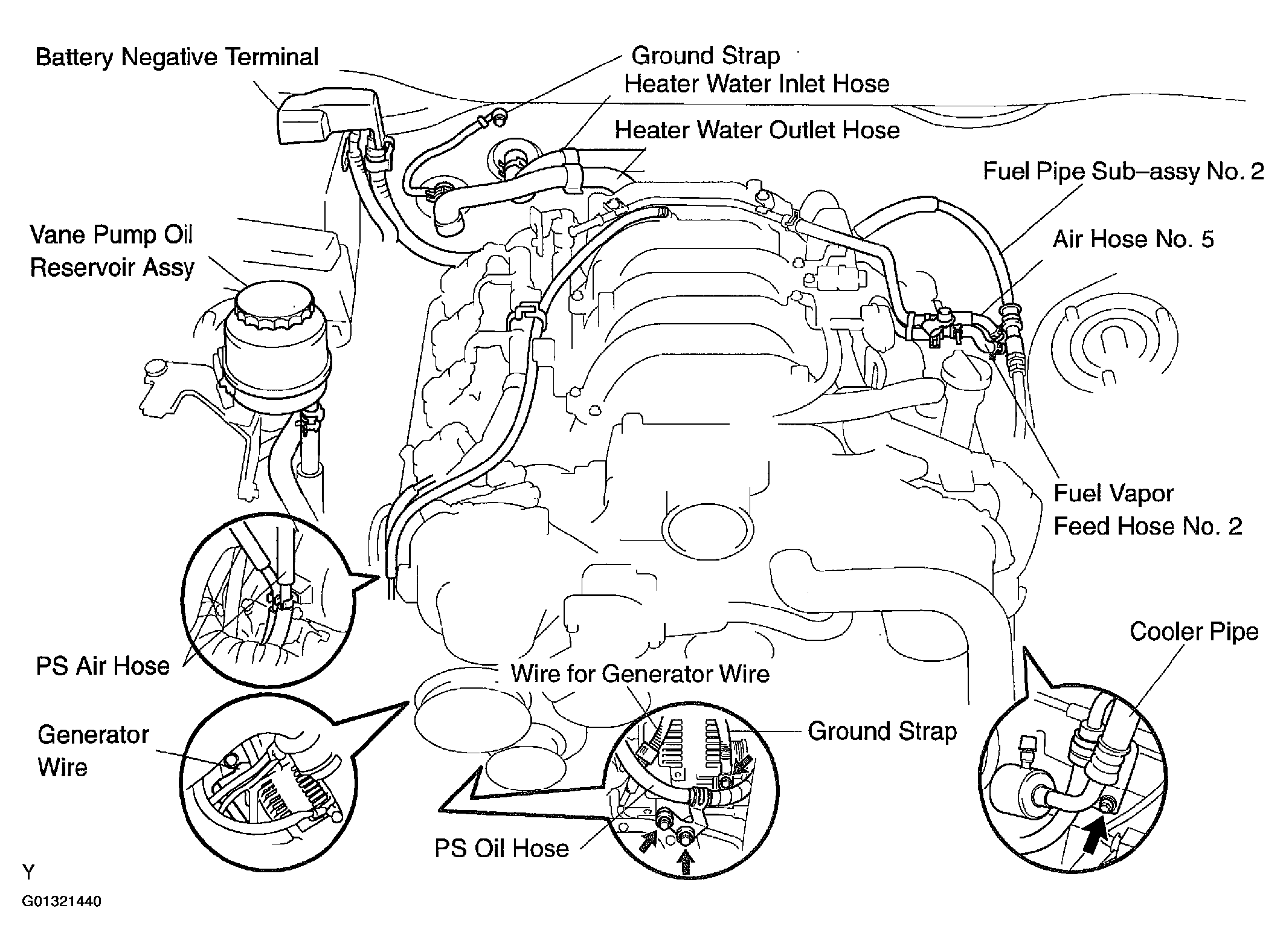

Fig 3: Exploded View Of Engine Assembly Components And Torque Specifications (3 Of 5)
G01321440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

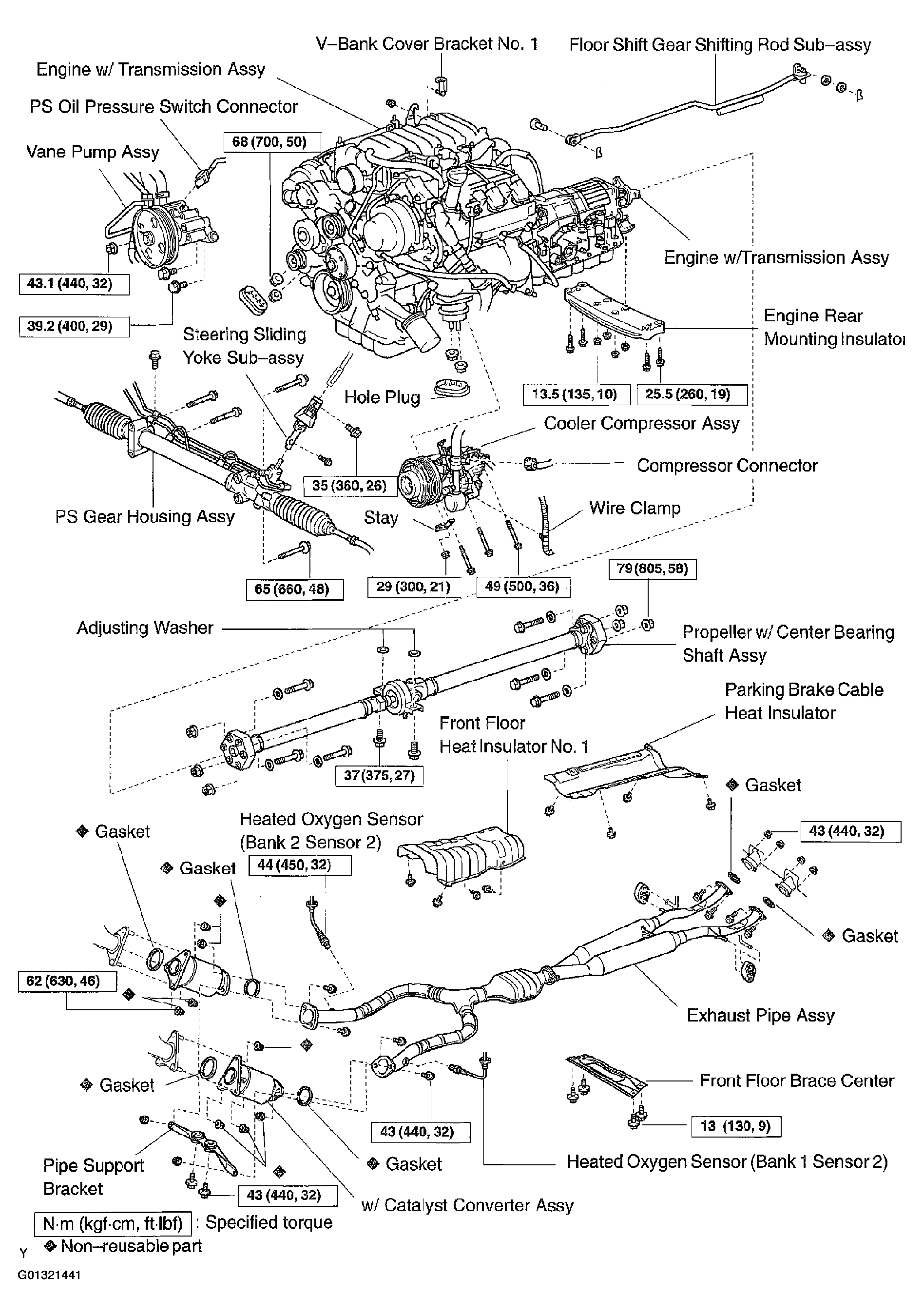

Fig 4: Exploded View Of Engine Assembly Components And Torque Specifications (4 Of 5)
G01321441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

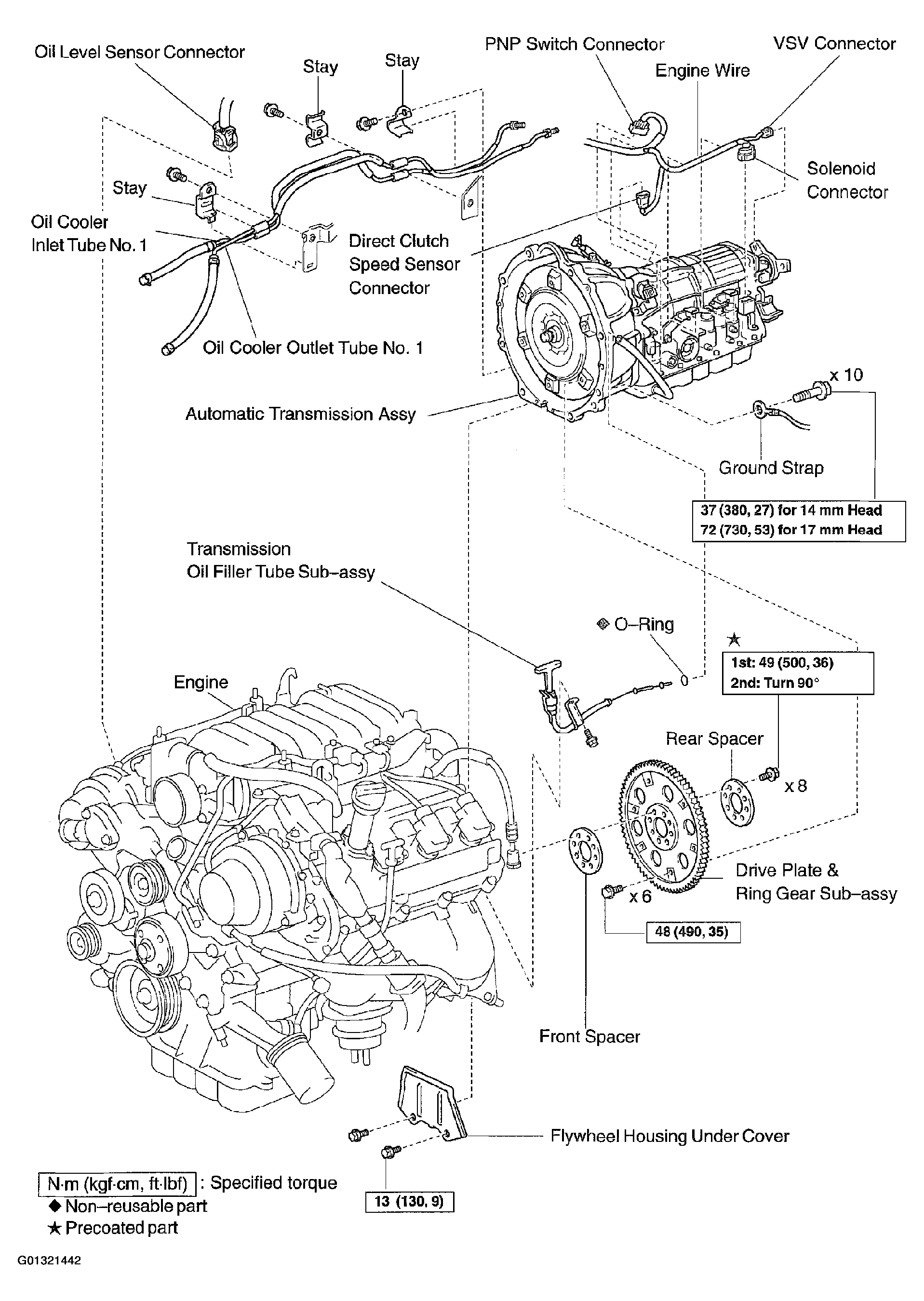

Fig 5: Exploded View Of Engine Assembly Components And Torque Specifications (5 Of 5)
G01321442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
