Partial Engine ASSY: Components

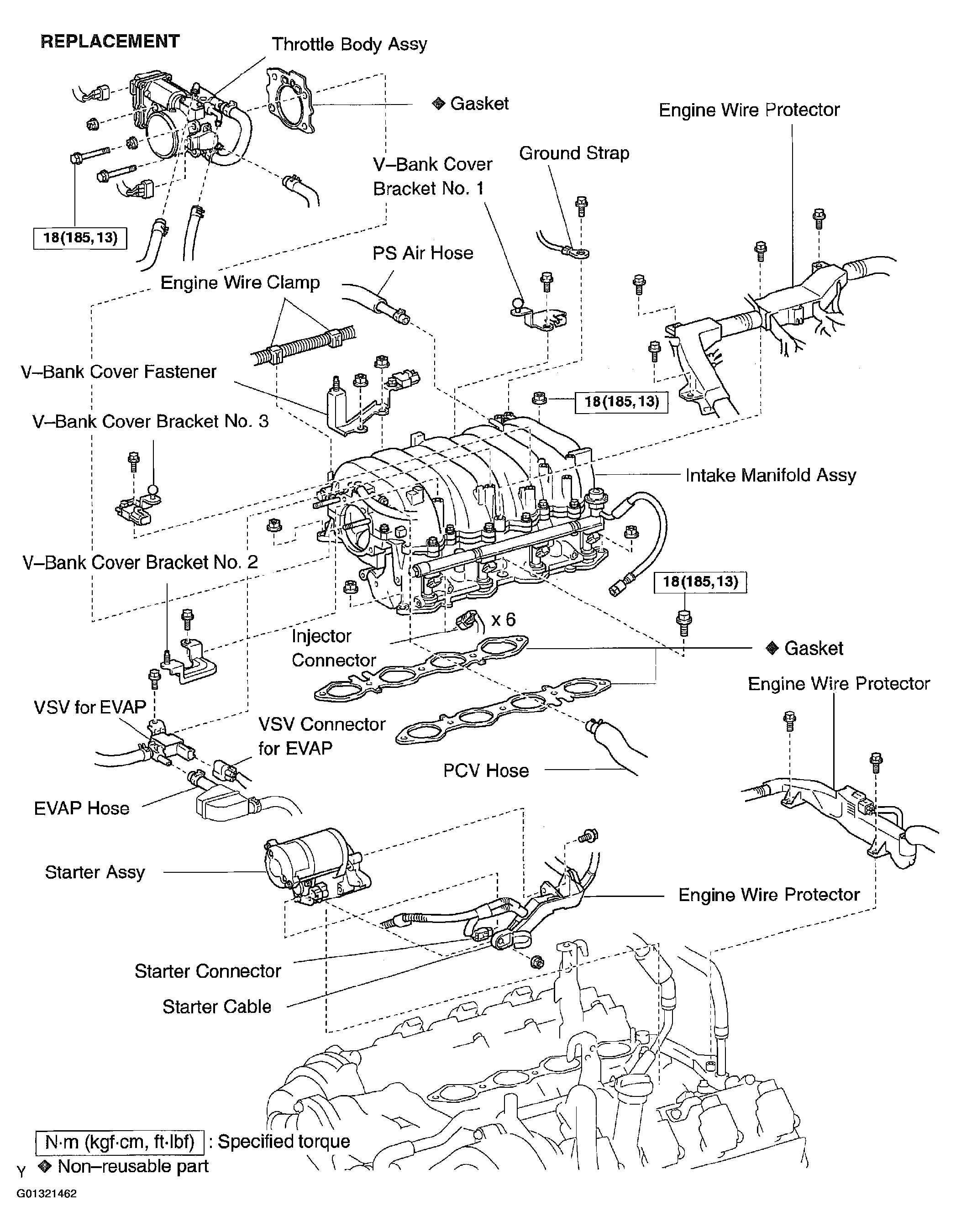

Fig 1: Exploded View Of Partial Engine Assembly Components And Torque Specifications (1 Of 9)
G01321462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

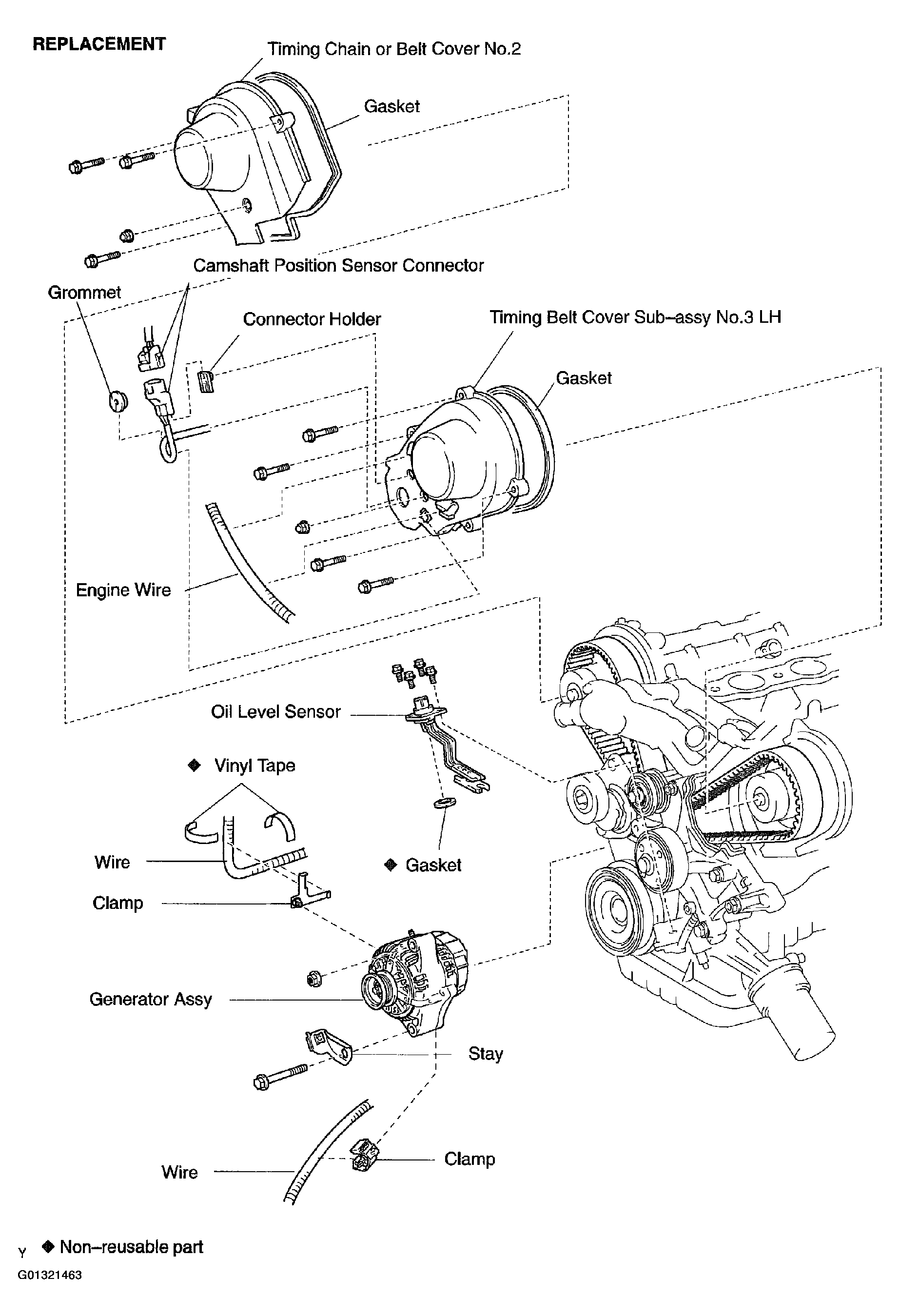

Fig 2: Exploded View Of Partial Engine Assembly Components And Torque Specifications (2 Of 9)
G01321463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

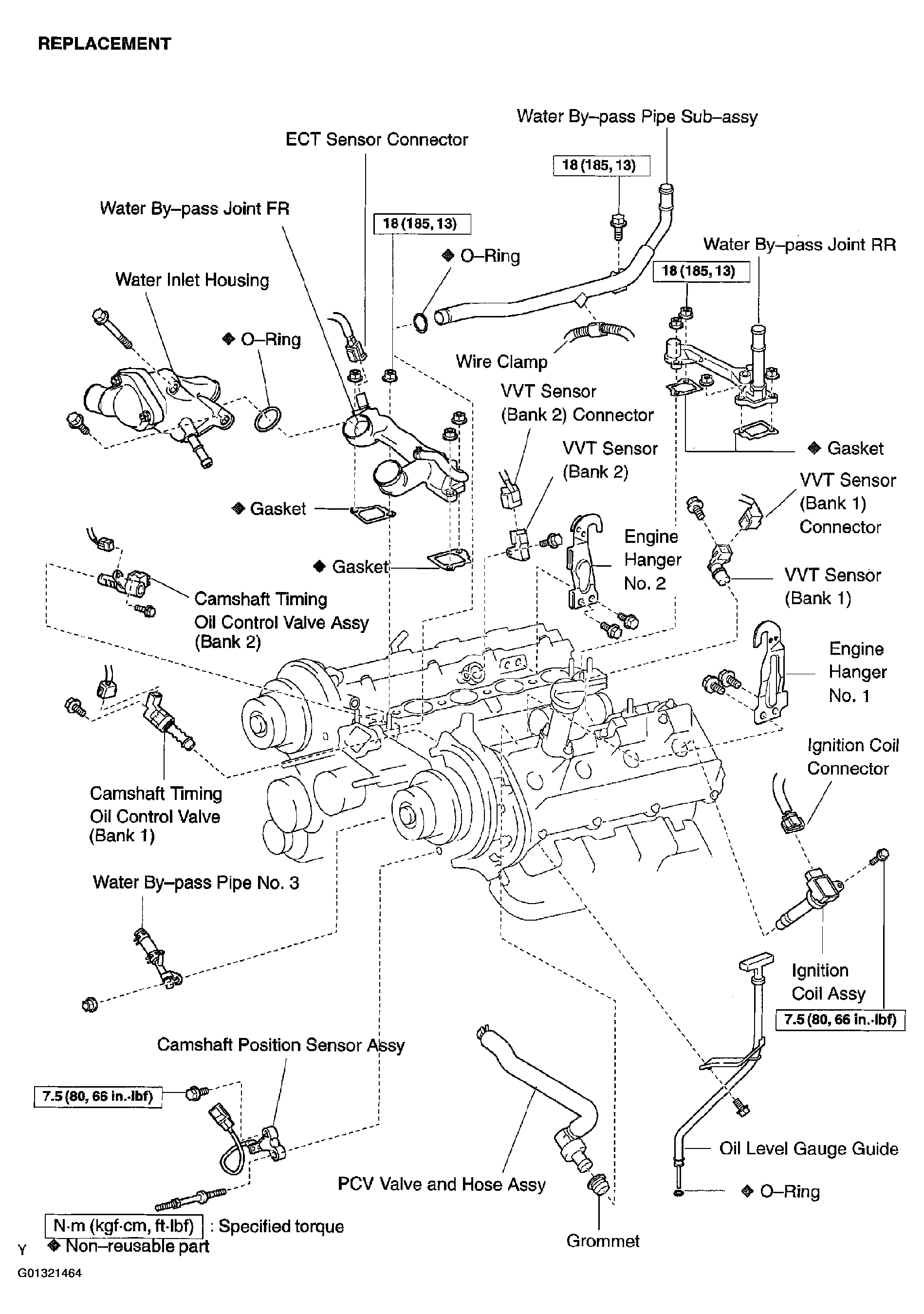

Fig 3: Exploded View Of Partial Engine Assembly Components And Torque Specifications (3 Of 9)
G01321464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

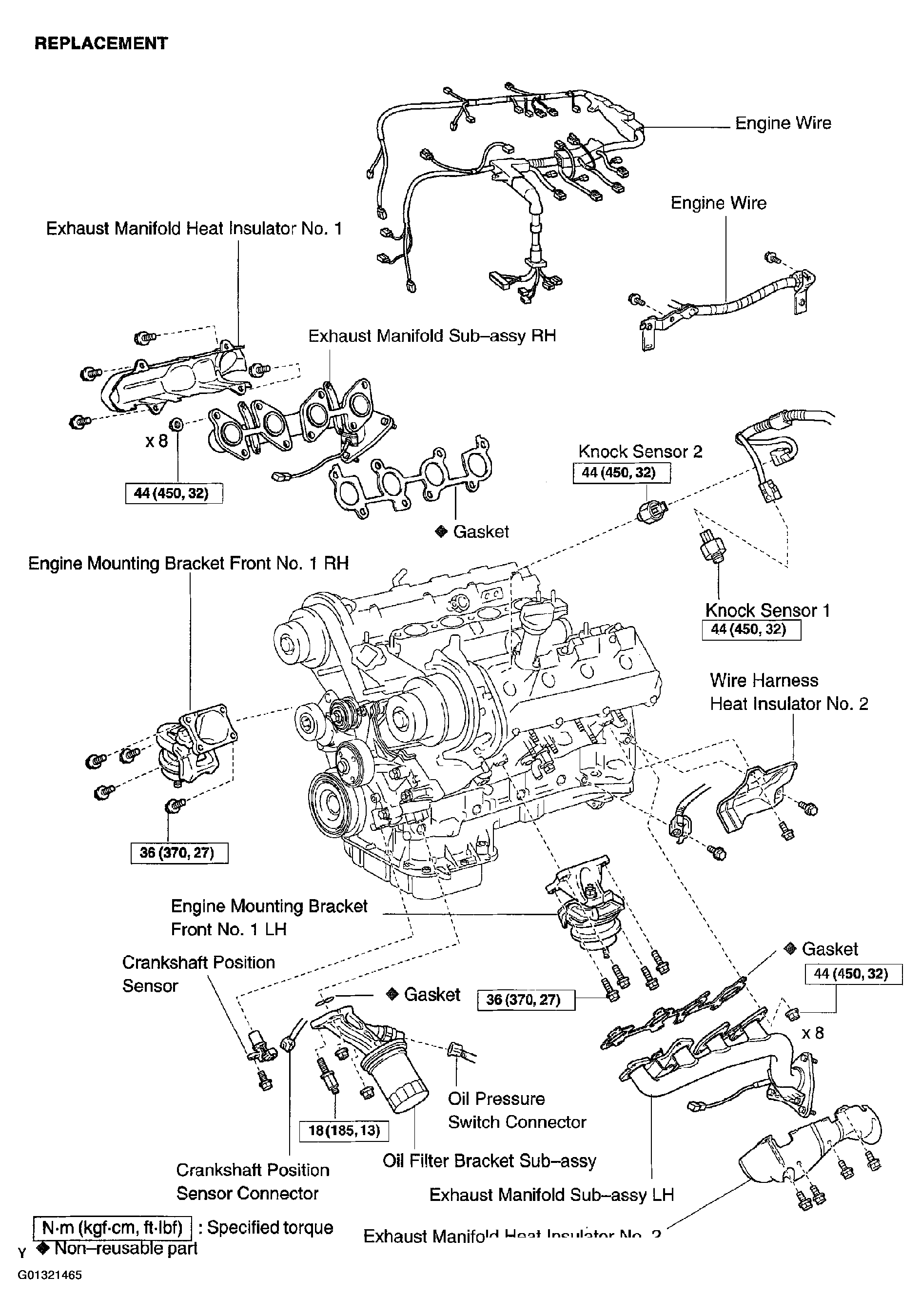

Fig 4: Exploded View Of Partial Engine Assembly Components And Torque Specifications (4 Of 9)
G01321465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

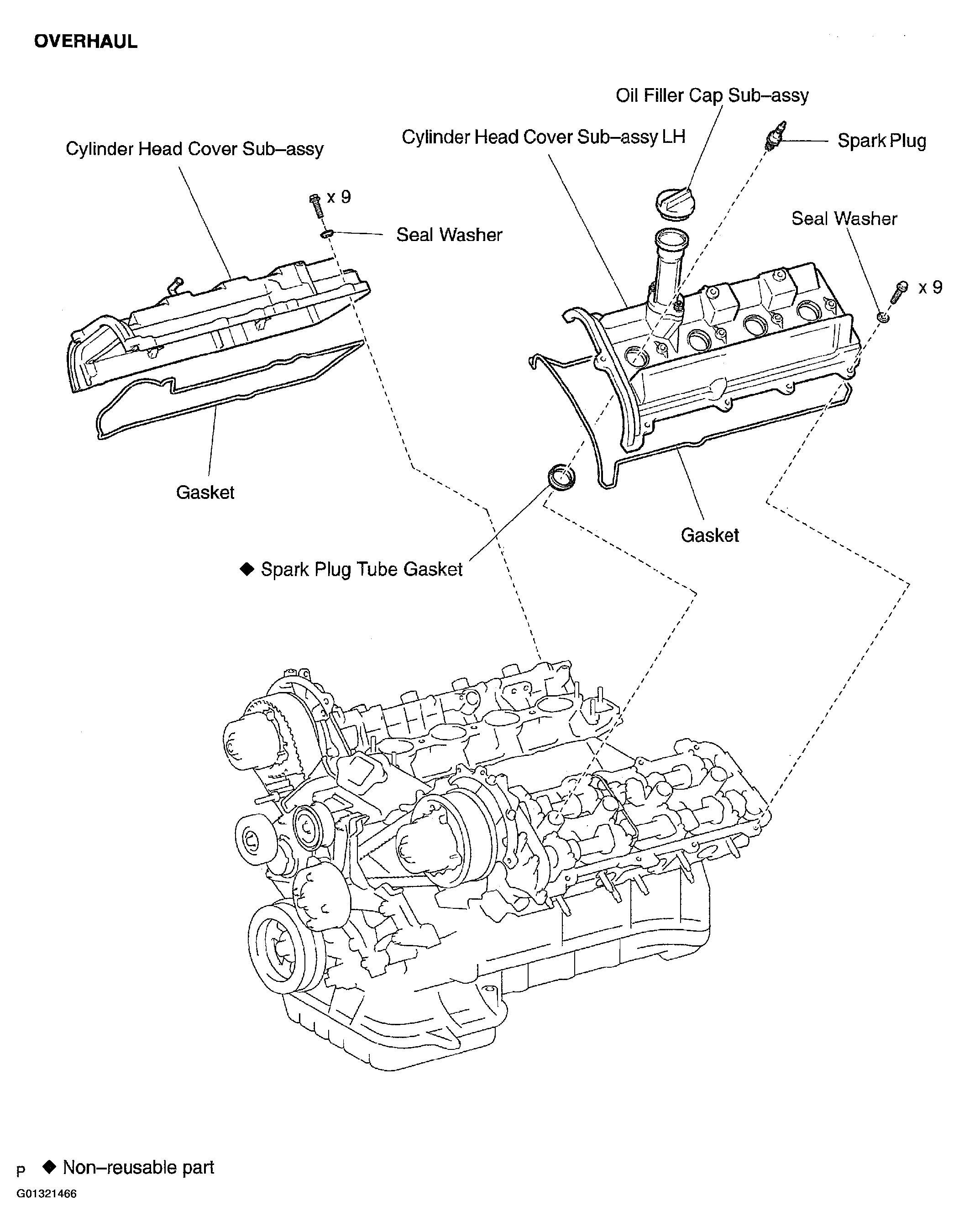

Fig 5: Exploded View Of Partial Engine Assembly Components And Torque Specifications (5 Of 9)
G01321466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

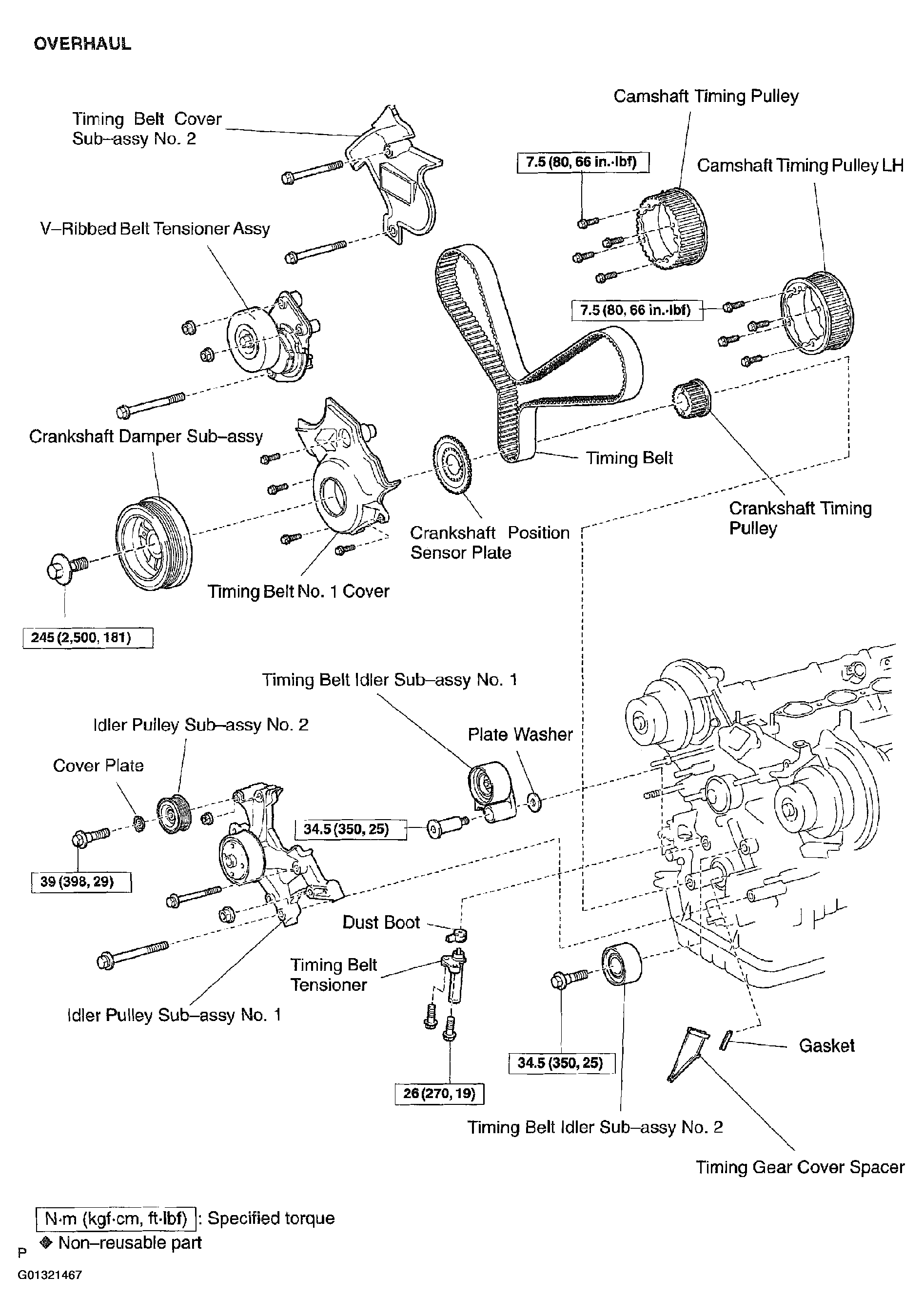

Fig 6: Exploded View Of Partial Engine Assembly Components And Torque Specifications (6 Of 9)
G01321467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

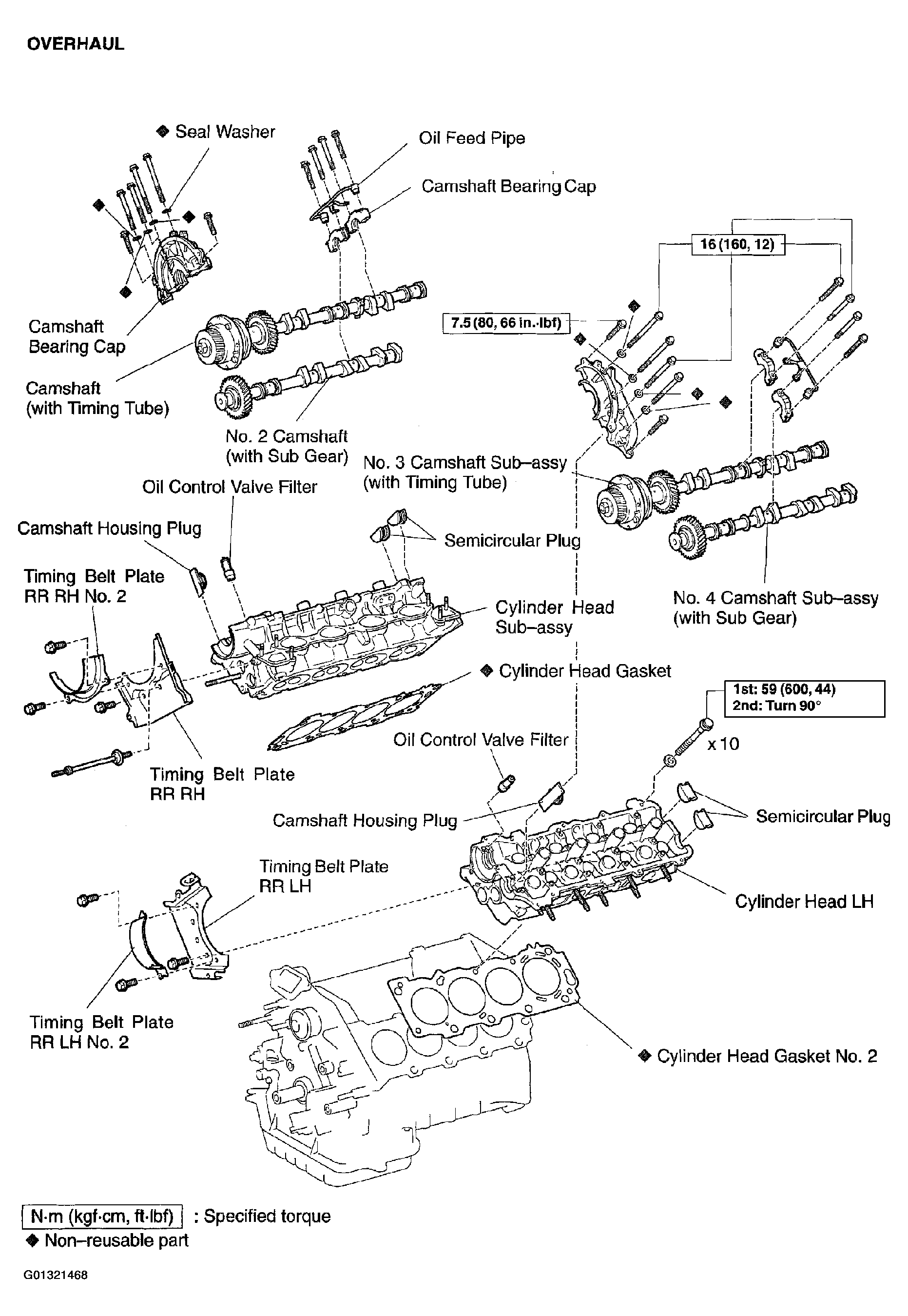

Fig 7: Exploded View Of Partial Engine Assembly Components And Torque Specifications (7 Of 9)
G01321468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

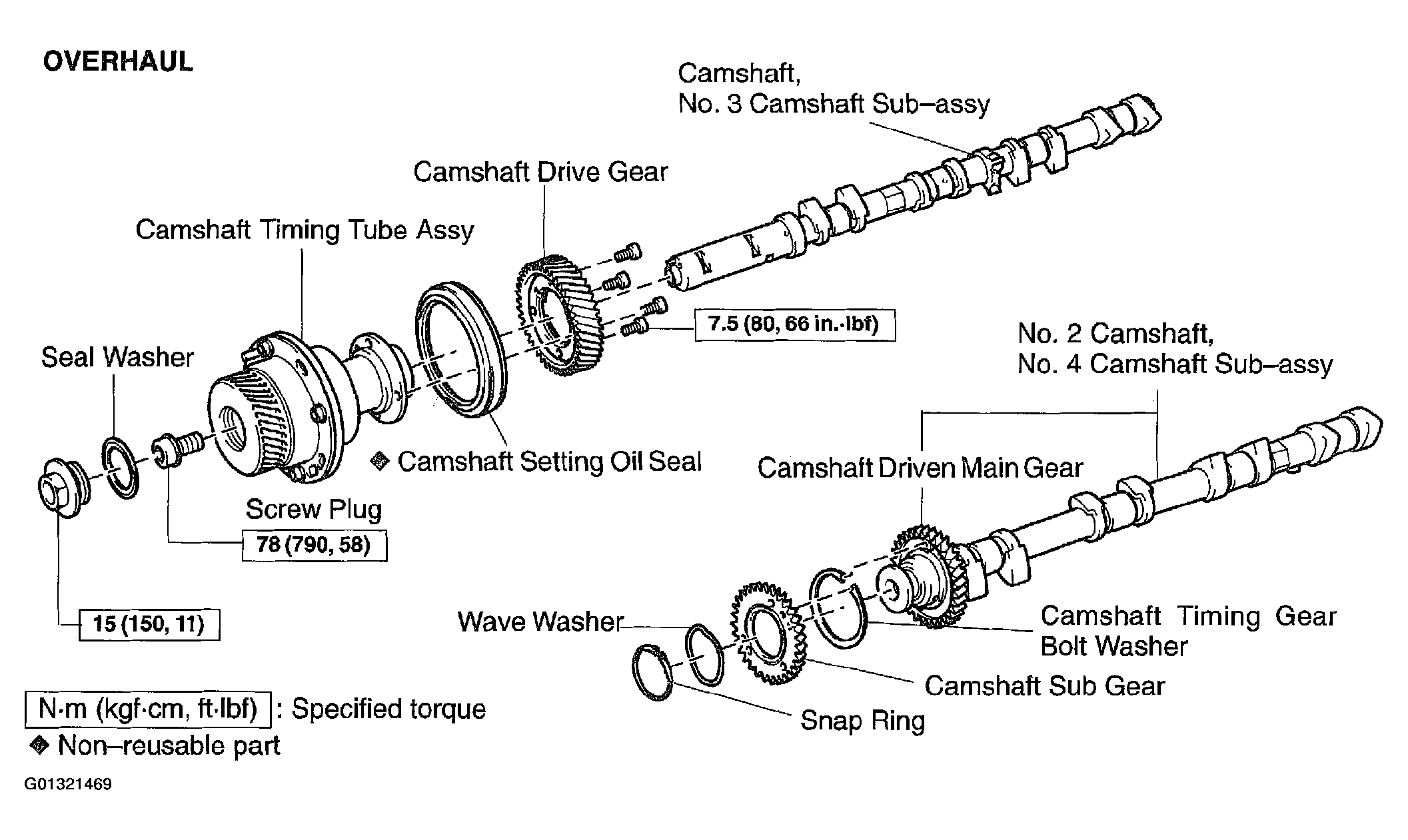

Fig 8: Exploded View Of Partial Engine Assembly Components And Torque Specifications (8 Of 9)
G01321469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

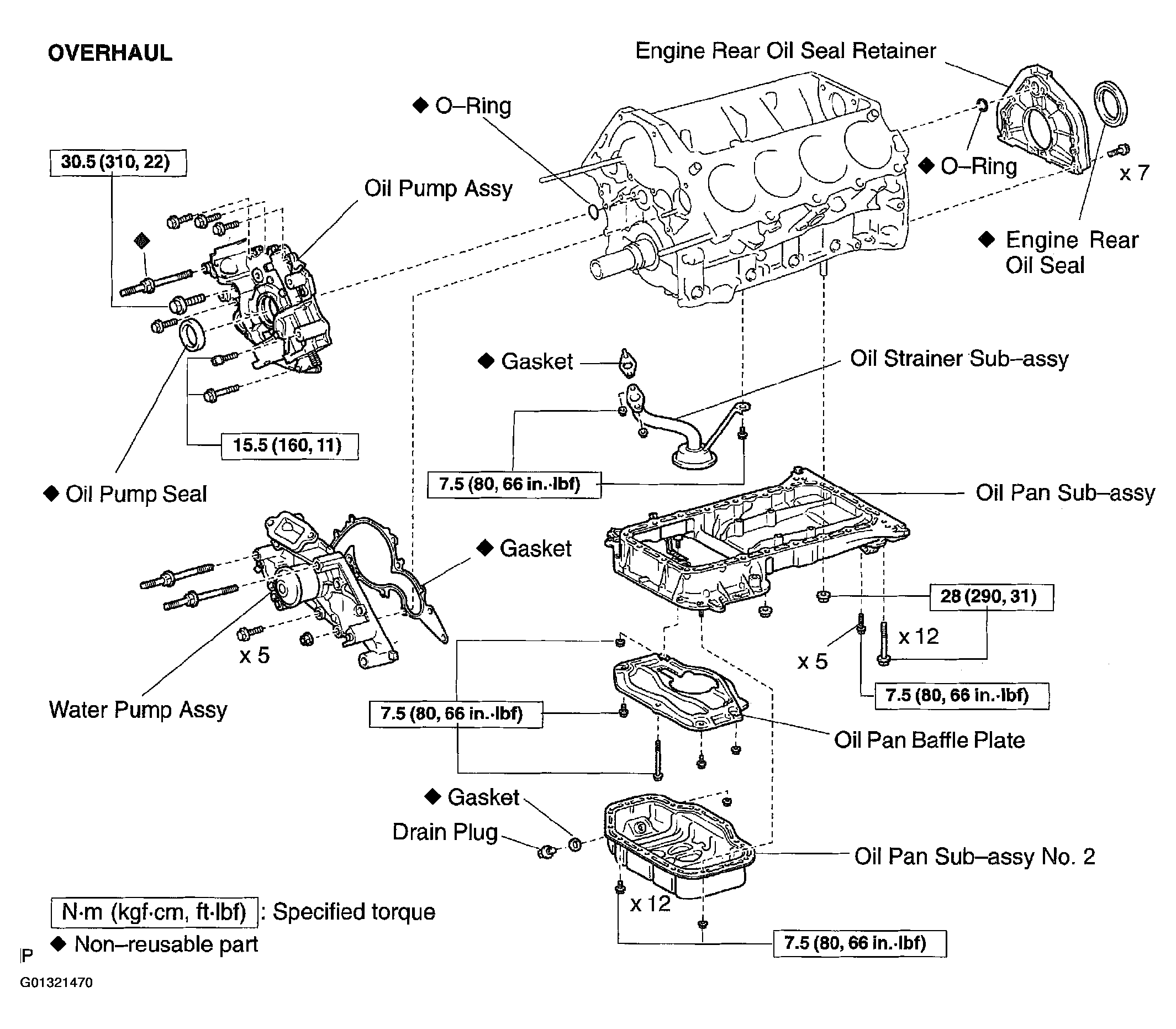

Fig 9: Exploded View Of Partial Engine Assembly Components And Torque Specifications (9 Of 9)
G01321470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
