Front Door: Components

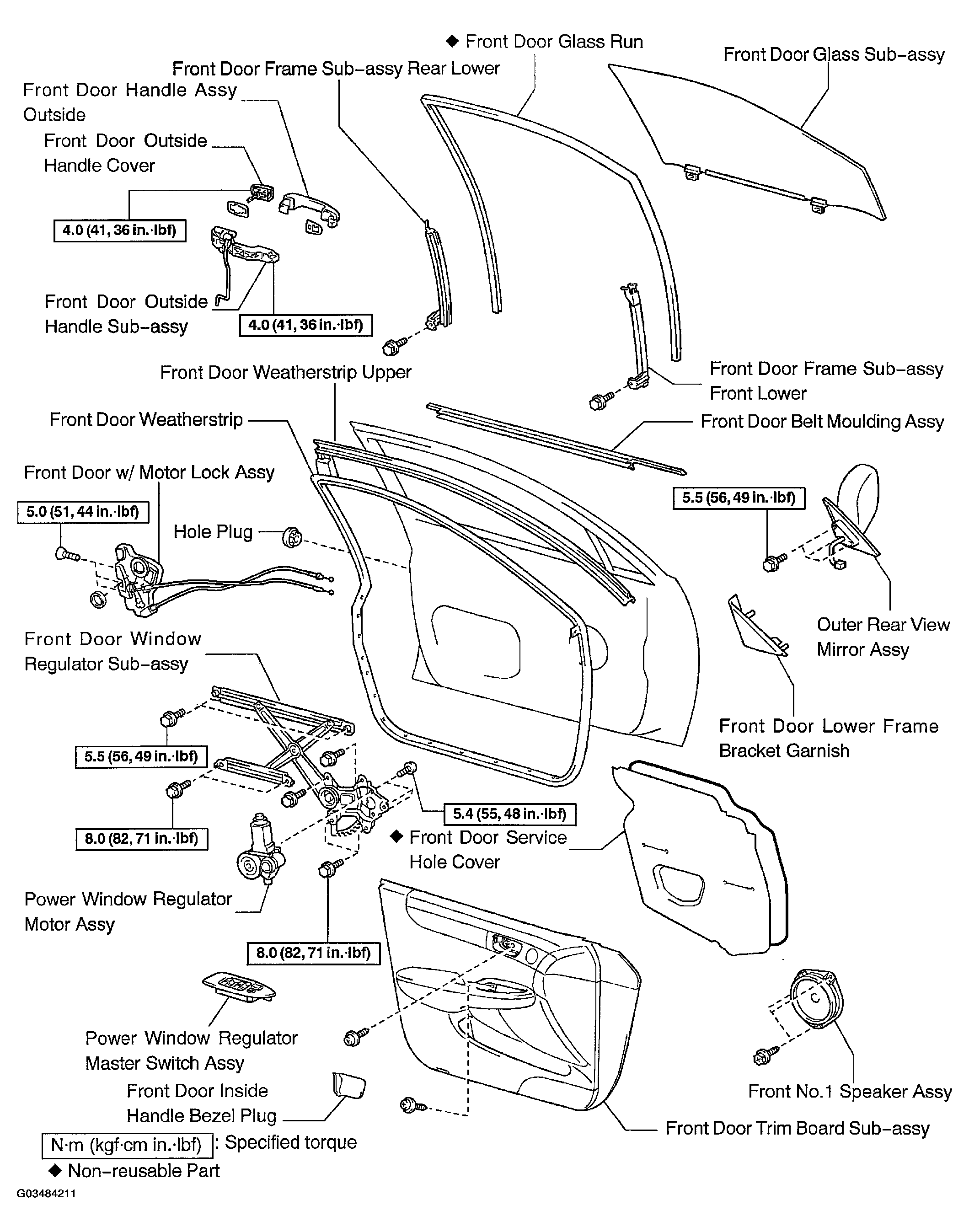

Fig 1: Exploded View Of Front Door Components

G03484211

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
