Combination Meter ASSY: Overhaul

HINT:

COMPONENTS

1. REMOVE INSTRUMENT PANEL REGISTER ASSY NO. 1 (See  REPLACEMENT   )
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY (See  REPLACEMENT   )
3. REMOVE COMBINATION METER ASSY
   1. Remove the 4 screws.

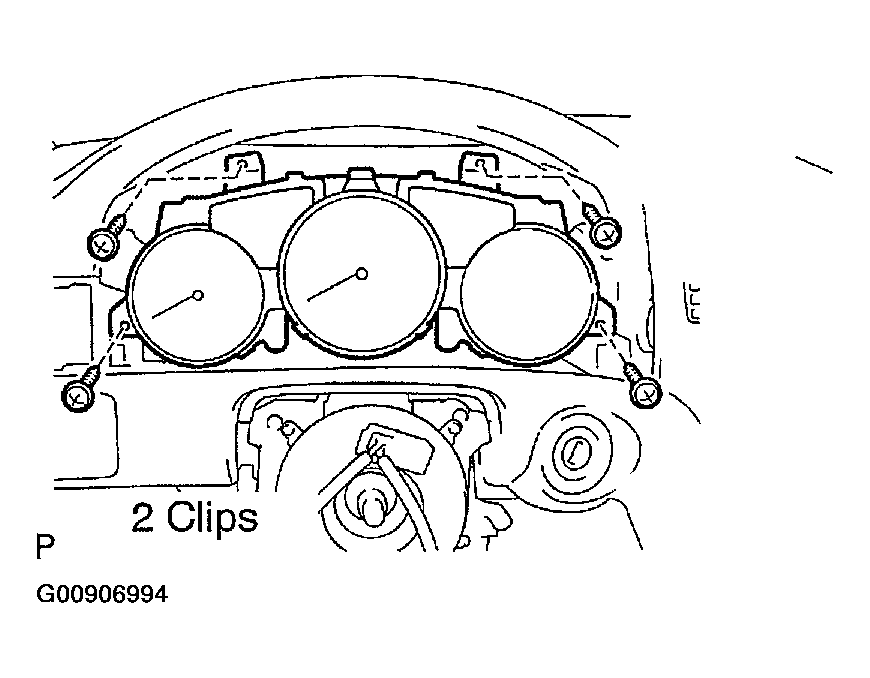

   Fig 1: Removing 4 Screws
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Pull out the combination meter assy, then disconnect the connectors.
4. REMOVE SPEEDOMETER GLASS
   1. Disengage the 9 claws and remove the speedometer glass.

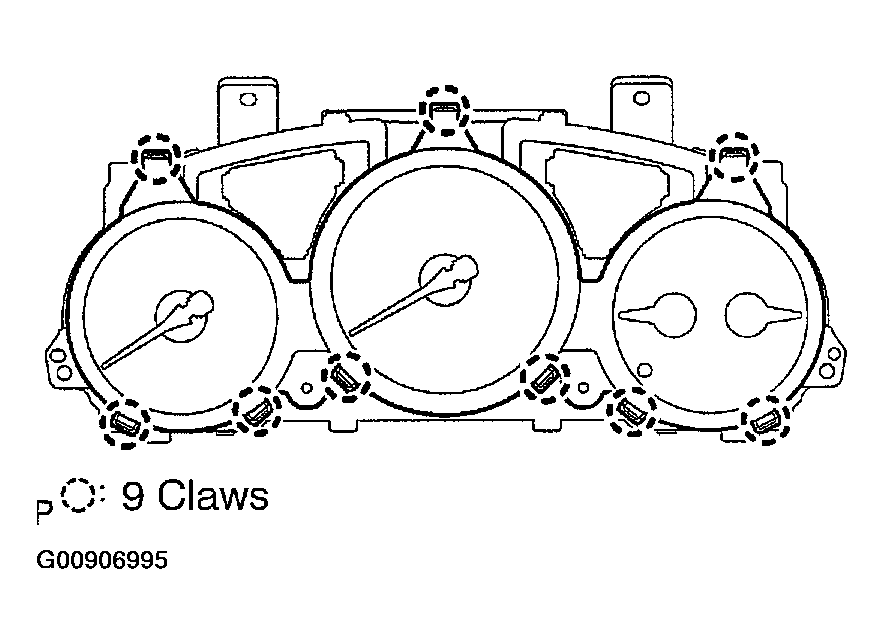

      Fig 2: Removing Speedometer Glass

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
