Active Control Engine Mount: Wiring Diagram

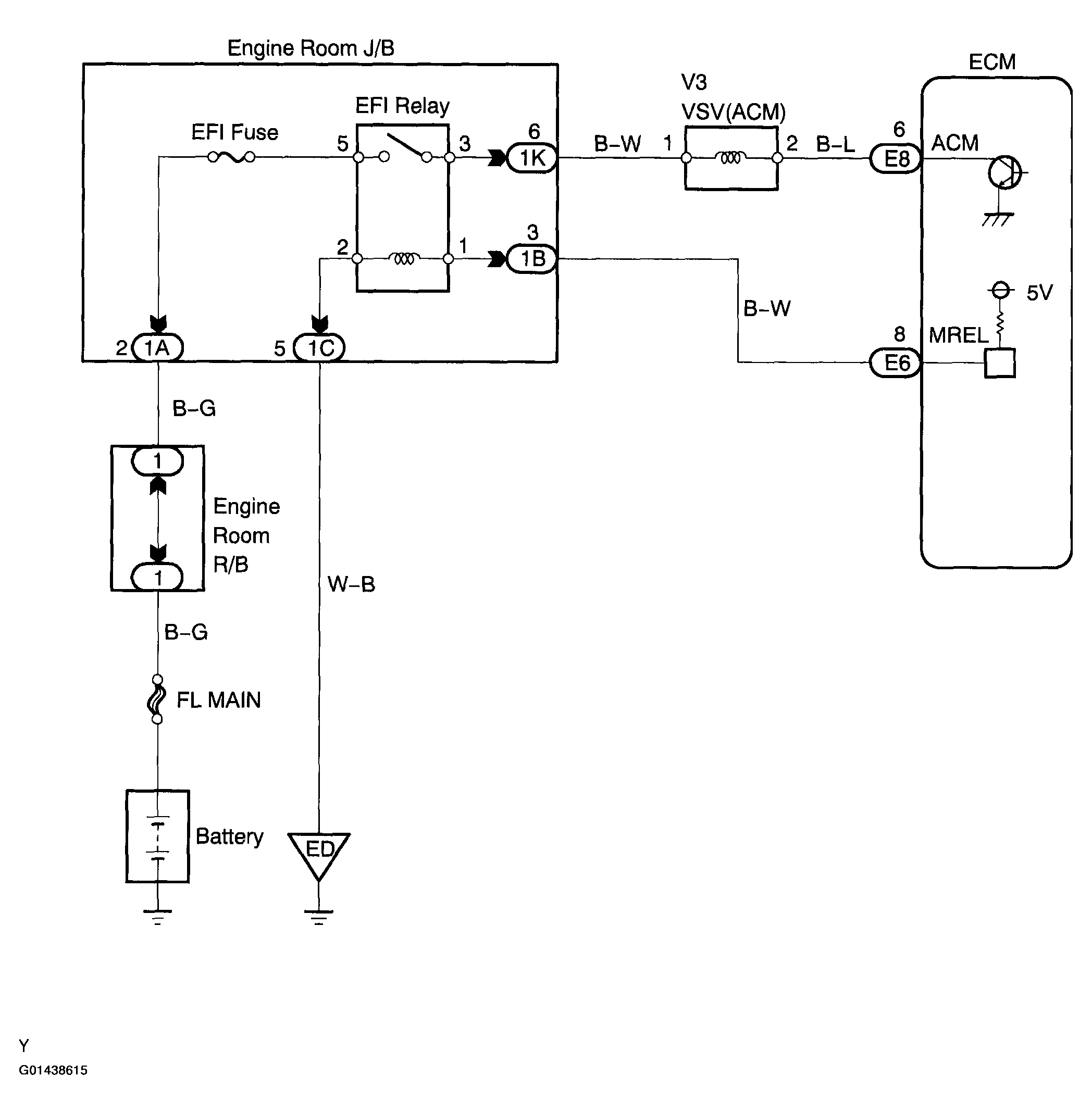

Fig 1: Wiring Diagram - Active Control Engine Mount (ACM) System
G01438615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
