Basic Inspection

When the malfunction is not confirmed in the DTC check, troubleshooting should be carried out in all possible circuits considered as causes of the problem. In many cases, by carrying out the basic engine check shown in the following flow chart, the location causing the problem can be found quickly and efficiently. Therefore, using this check is essential in the engine troubleshooting.

1. CHECK BATTERY VOLTAGE
   NOTE: Carry out this check with the engine stopped and ignition switch OFF.

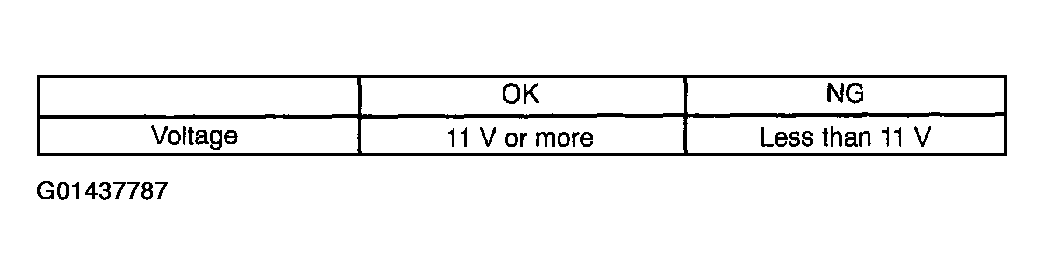

   Fig 1: Battery Voltage Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: CHARGE OR REPLACE BATTERY

   OK: GO TO NEXT STEP

2. CHECK IF ENGINE WILL CRANK

   NG: PROCEED TO PROBLEM SYMPTOMS TABLE ON  PROBLEM SYMPTOMS TABLE

   OK: GO TO NEXT STEP

3. CHECK IF ENGINE STARTS

   NG: GO TO STEP   6

   OK: GO TO NEXT STEP

4. CHECK AIR FILTER
   1. Visually check if the air filter is not contaminated with dirt or oil.

   NG: REPLACE AIR FILTER

   OK: GO TO NEXT STEP

5. CHECK IDLE SPEED (See  INSPECTION  )

   NG: PROCEED TO PROBLEM SYMPTOMS TABLE ON  PROBLEM SYMPTOMS TABLE

   OK: GO TO NEXT STEP

   PROCEED TO PROBLEM SYMPTOMS TABLE ON  PROBLEM SYMPTOMS TABLE

6. CHECK FUEL PRESSURE (See  ON-VEHICLE INSPECTION  )

   NG: PROCEED TO  ON-VEHICLE INSPECTION  AND CONTINUE TO TROUBLESHOOT

   OK: GO TO NEXT STEP

7. CHECK FOR SPARK (See  ON-VEHICLE INSPECTION  )

   NG: PROCEED TO  IGNITION SYSTEM  AND CONTINUE TO TROUBLESHOOT

   OK: GO TO NEXT STEP

   PROCEED TO PROBLEM SYMPTOMS TABLE ON  PROBLEM SYMPTOMS TABLE
