Check Mode Procedure

HINT: Hand-held tester only:

Check mode has a higher sensitivity to detect malfunctions and can detect malfunctions that normal mode cannot detect.

Check mode can also detect all the malfunctions that normal mode can detect.

CHECK MODE PROCEDURE (Using the hand-held tester)
1. Make sure that the items below are true.
  1. Battery positive voltage 11 V or more
  2. Throttle valve fully closed
  3. Transmission in the P or N position
  4. A/C switched OFF
2. Turn the ignition switch to OFF.
3. Connect the hand-held tester to the DLC3.
4. Turn the ignition switch to ON.
5. Change the ECM to check mode with the hand-held tester. Make sure the MIL flashes as shown in the illustration.

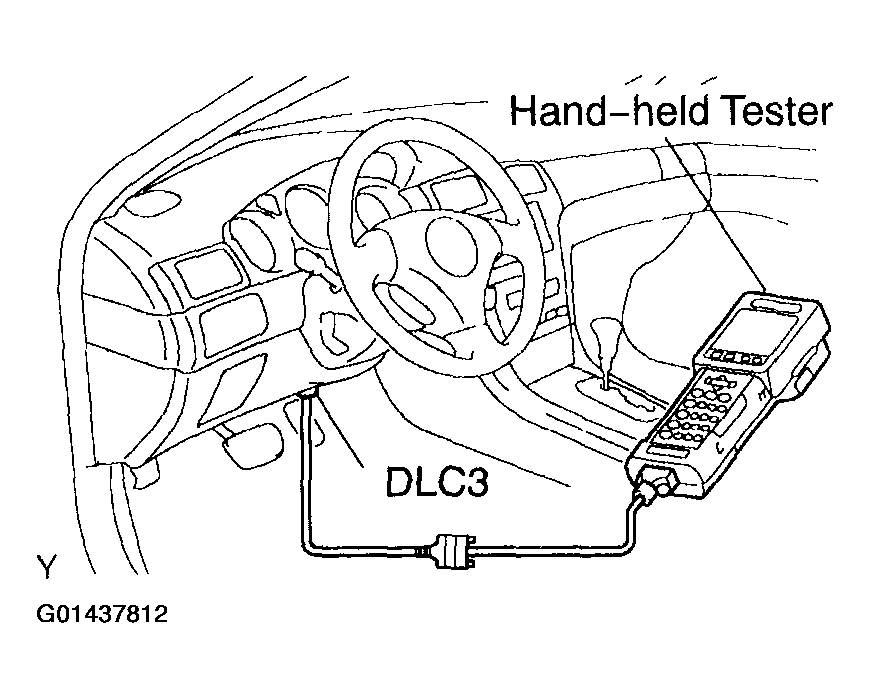

  Fig 1: Connecting Hand-Held Tester To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: All DTCs and freeze frame data recorded will be erased if: 1) the hand-held tester is used to change the ECM from normal mode to check mode or vice-versa; or 2) during check mode, the ignition switch is turned from ON to ACC or OFF.

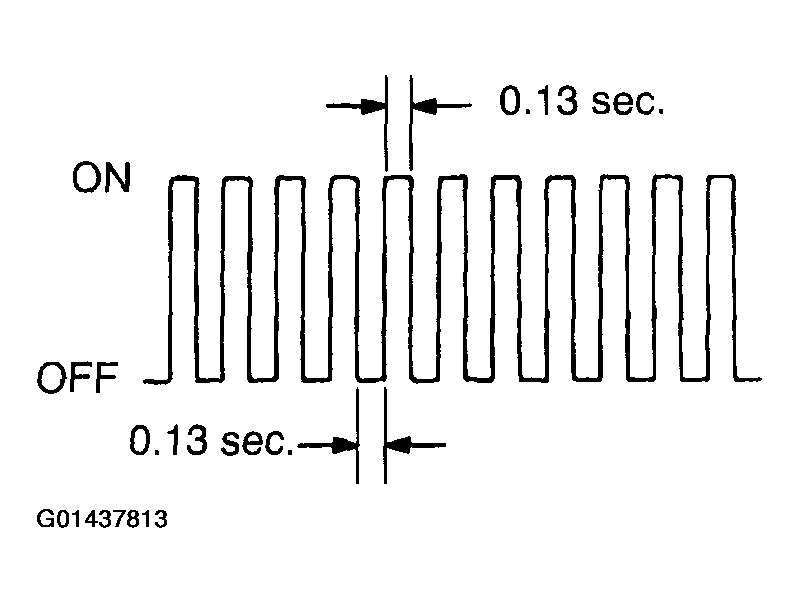

  Fig 2: Identifying MIL Flashes
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Start the engine. The MIL should turn off after the engine starts.
7. Simulate the conditions of the malfunction described by the customer.
8. After simulating the malfunction conditions, use the hand-held tester diagnosis selector to check the DTC, freeze frame data and other data.
9. After checking the DTC, inspect the applicable circuit.
CLEAR DTC (Using the OBD II scan tool or hand-held tester)
1. Connect the OBD II scan tool or hand-held tester to the DLC3.
2. Turn the ignition switch to ON.
3. Erase DTCs and freeze frame data with the OBD II scan tool (complying with SAE J1978) or the hand-held tester. For the hand-held tester: 1) enter the following menus: DIAGNOSIS ENHANCED OBD II / DTC INFO / CLEAR CODES; and 2) press YES. For the OBD II scan tool, see it's instruction manual.
CLEAR DTC (Not using the OBD II scan tool or hand-held tester)
1. Remove the EFI and ETCS fuse from the engine room J/B for more than 60 seconds, or disconnect the battery cable for more than 60 seconds. When disconnecting the battery cable, perform the "INITIALIZE" procedure (see PRECAUTION ).
