Engine Control System - Diagnosis
>>
Definition Of Terms
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Definition Of Terms

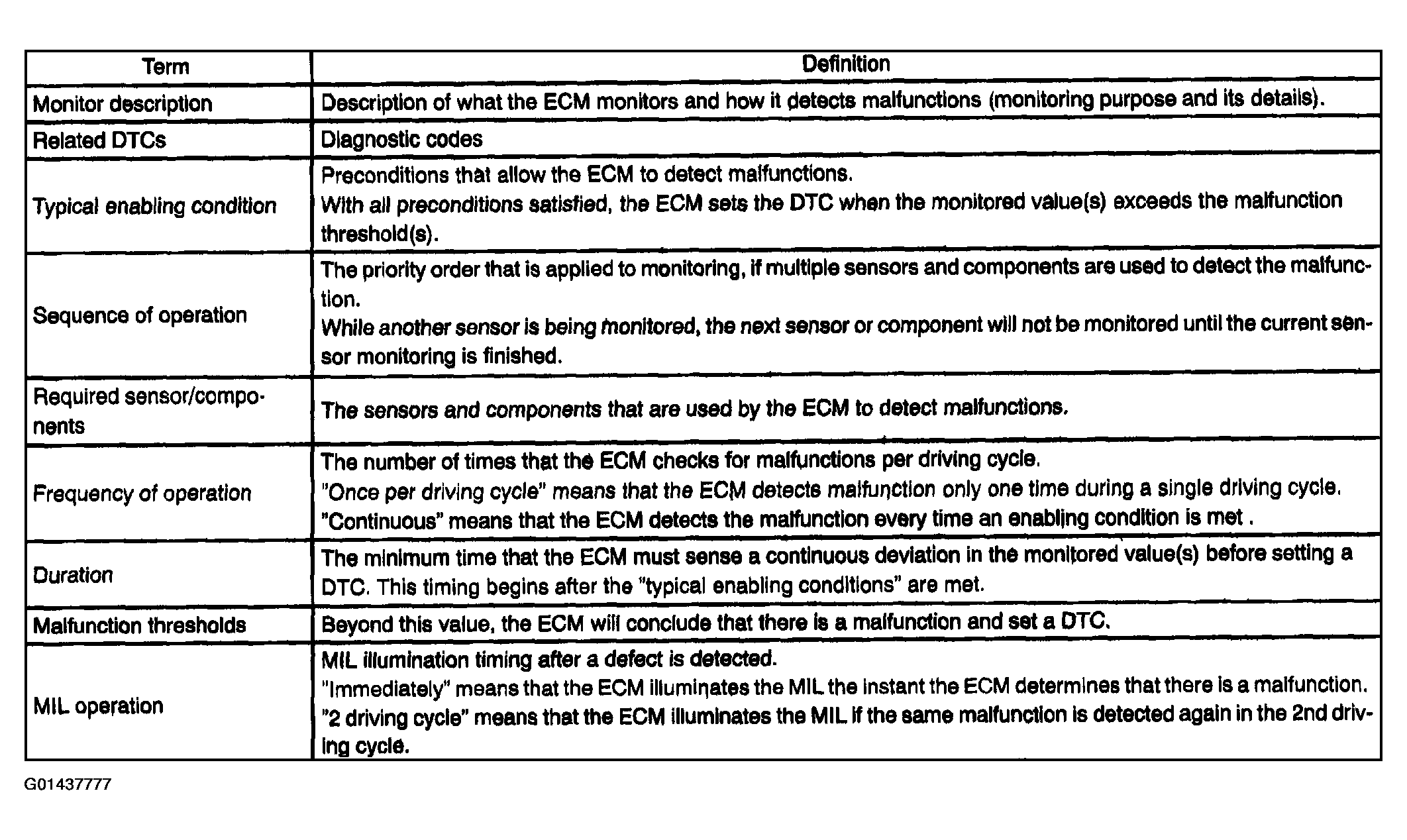

Fig 1: SFI System (3MZ-FE) - Definition Of Terms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
