List Of Disable A Monitor

HINT: The figure Fig 1 below shows the ECM monitoring status for the components listed in the top of the table when the DTCs on the left of the table are set.

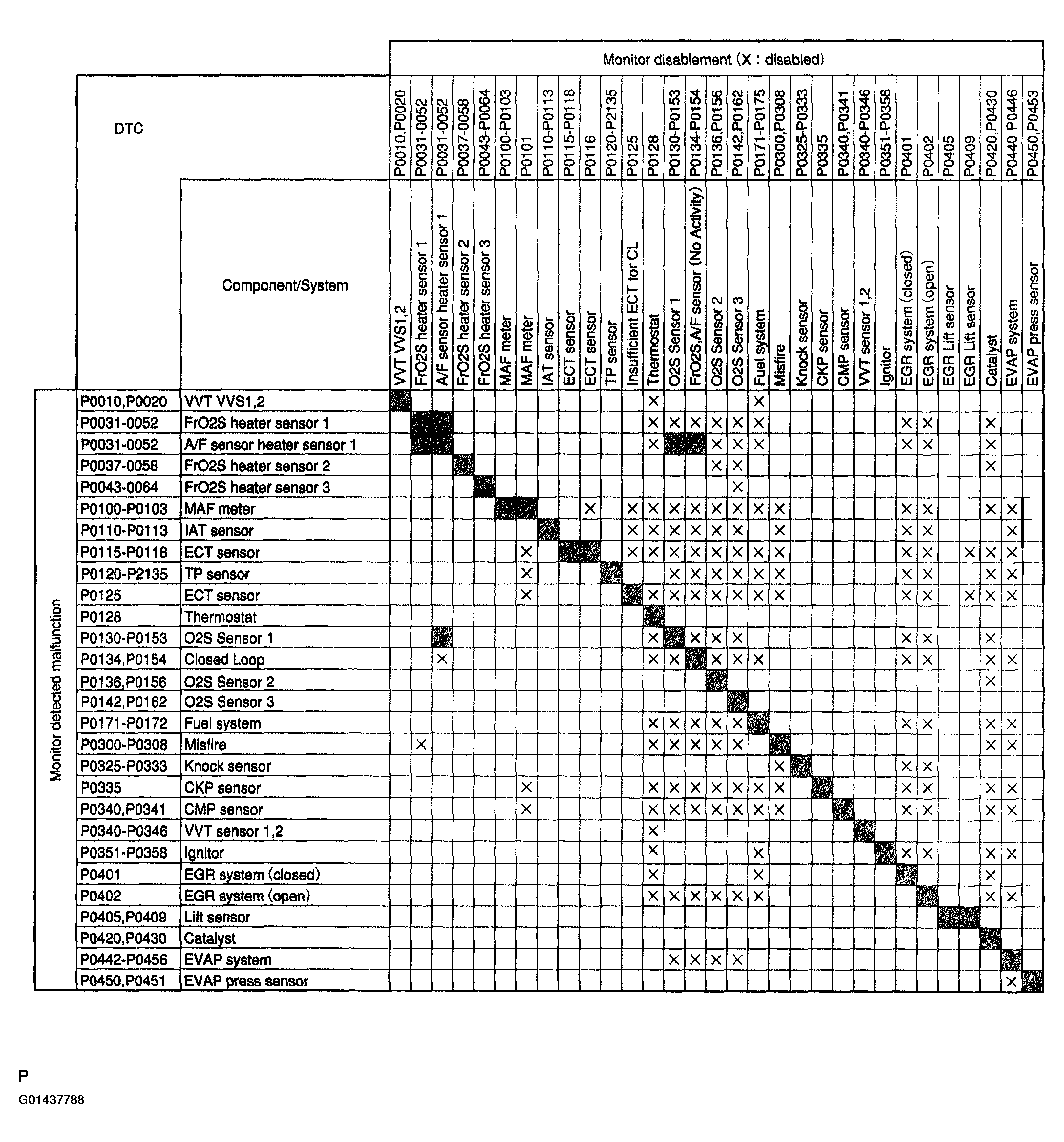

Fig 1: ECM Monitoring Status Chart Of SFI System Components (1 Of 4)
G01437788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

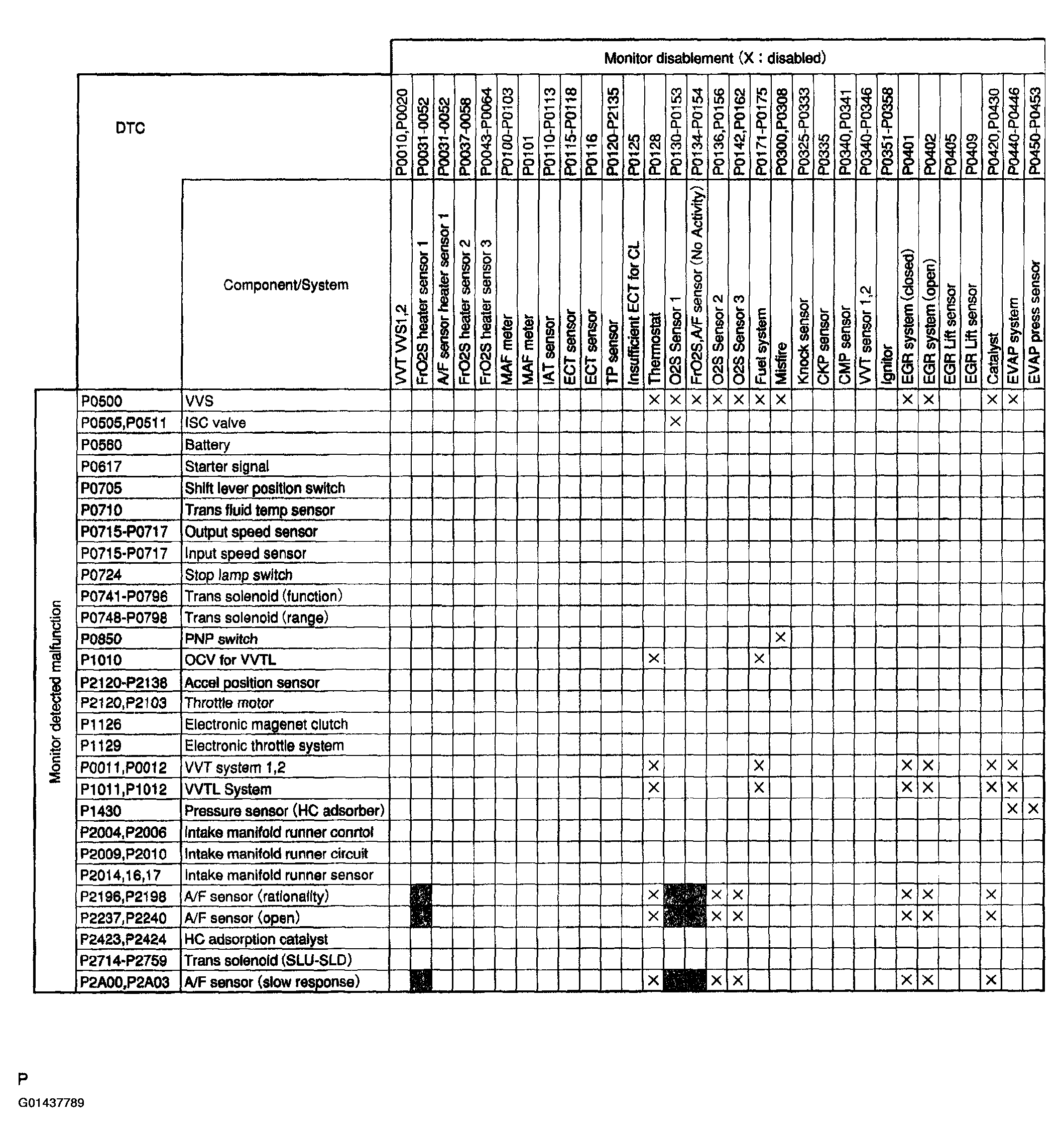

Fig 2: ECM Monitoring Status Chart Of SFI System Components (2 Of 4)
G01437789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

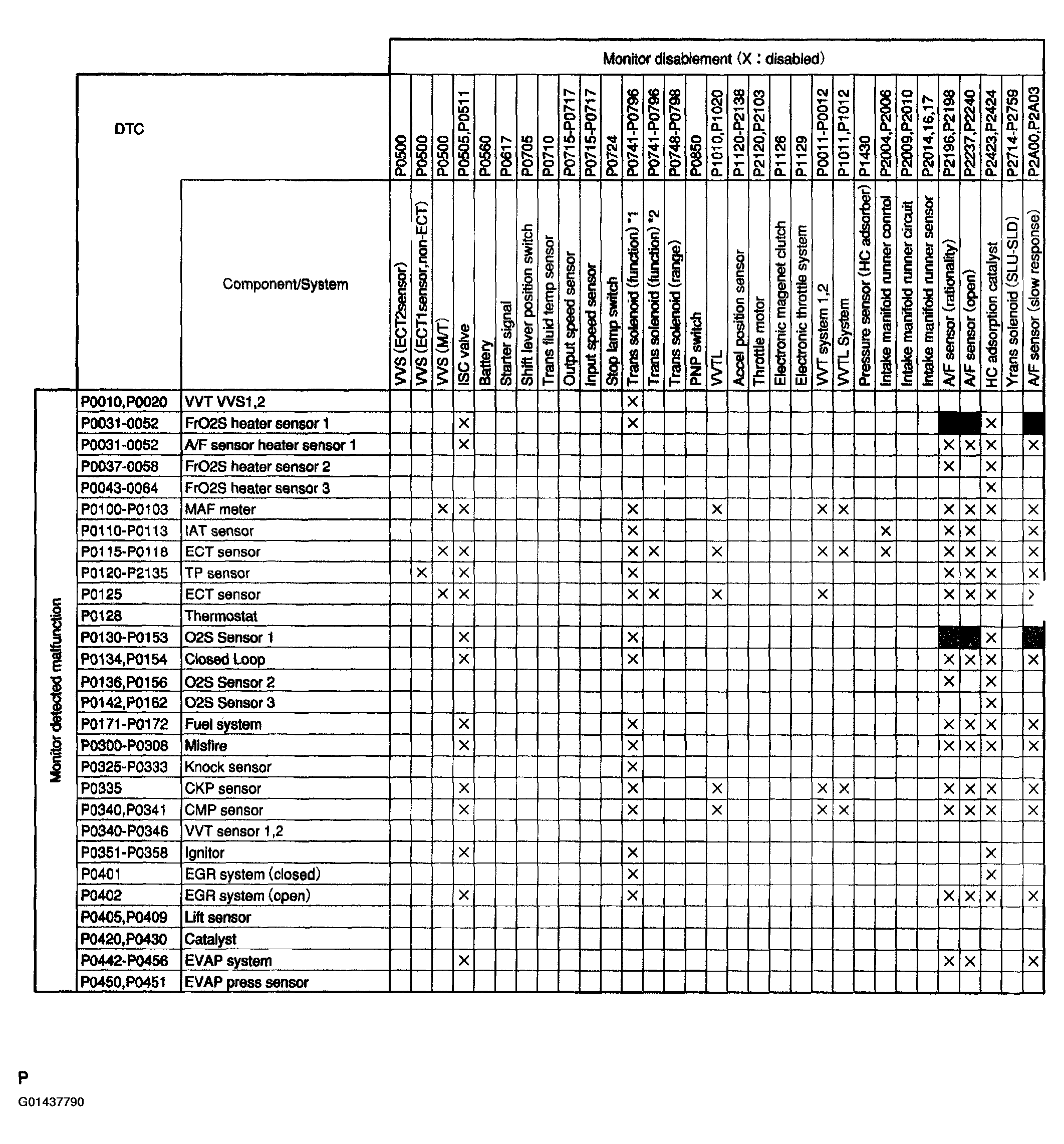

Fig 3: ECM Monitoring Status Chart Of SFI System Components (3 Of 4)
G01437790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

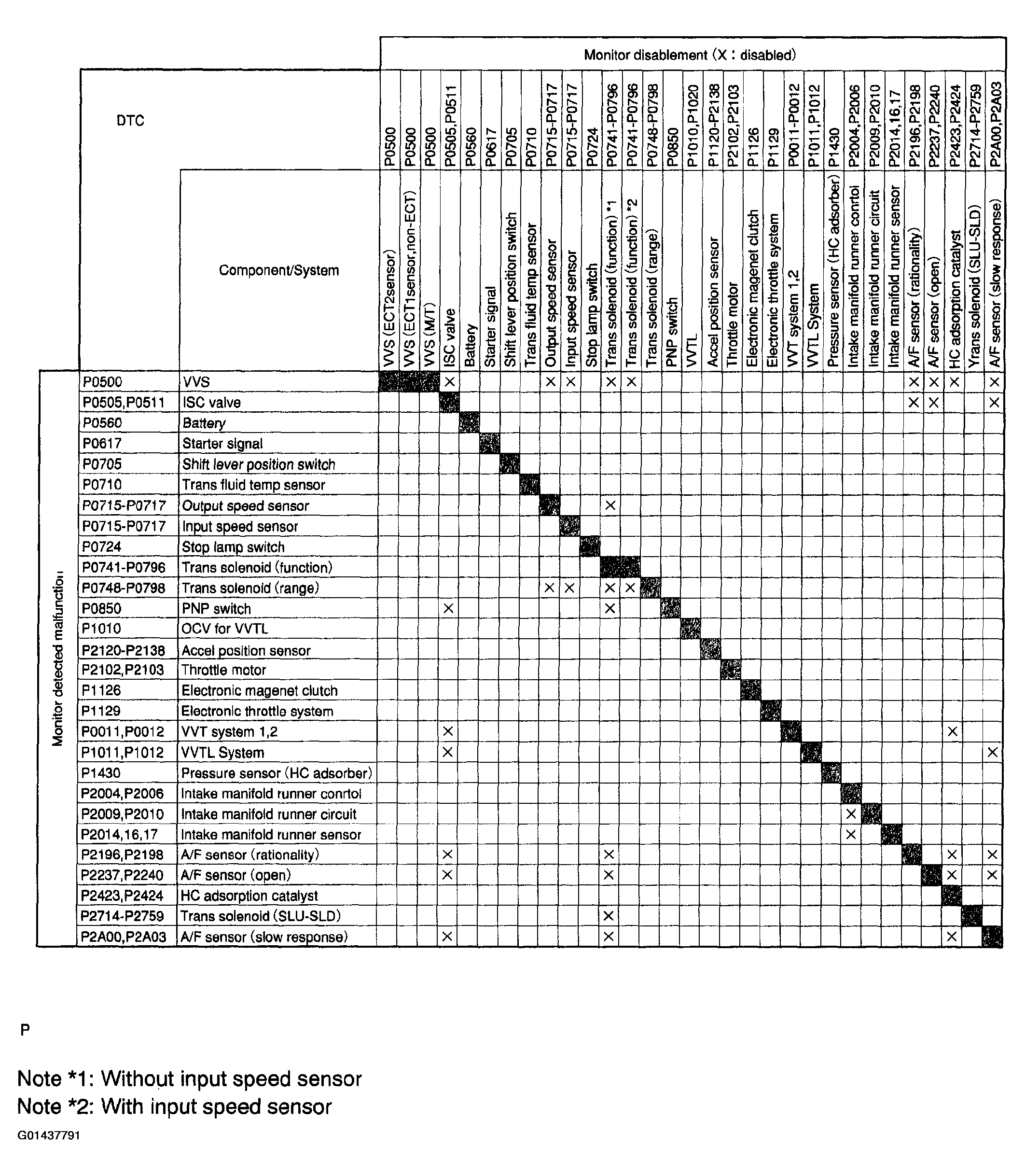

Fig 4: ECM Monitoring Status Chart Of SFI System Components (4 Of 4)
G01437791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
