Throttle Body ASSY (3MZ-FE): Components

Fig 1: Identifying Throttle Body Assy (3MZ-FE) Components (1 Of 2)
G00919764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

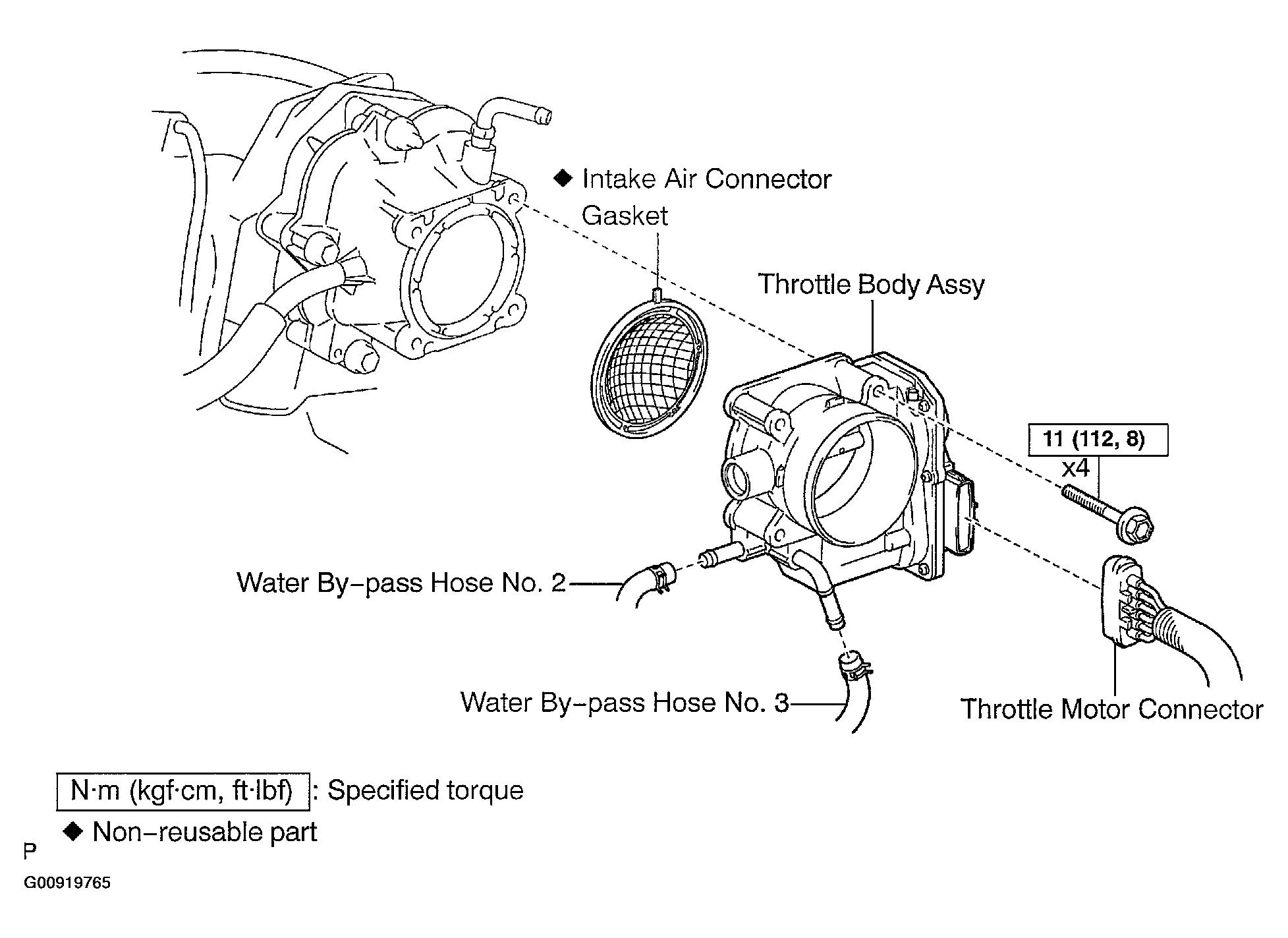

Fig 2: Identifying Throttle Body Assy (3MZ-FE) Components (2 Of 2)
G00919765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
