Section 200 (Multi-Display Controller): Components
WARNING:
This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

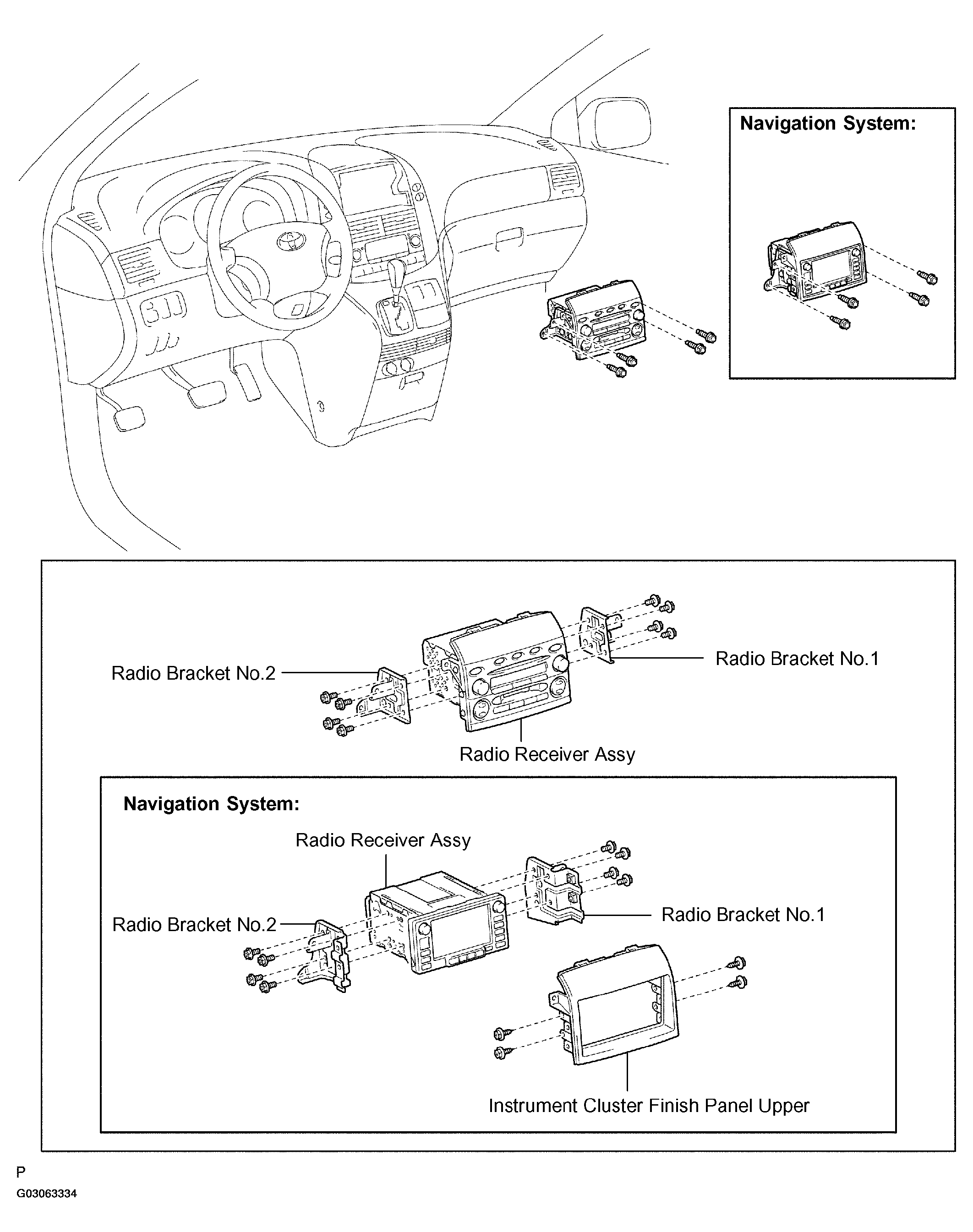

Fig 1: Identifying Location Of Audio & Visual System Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

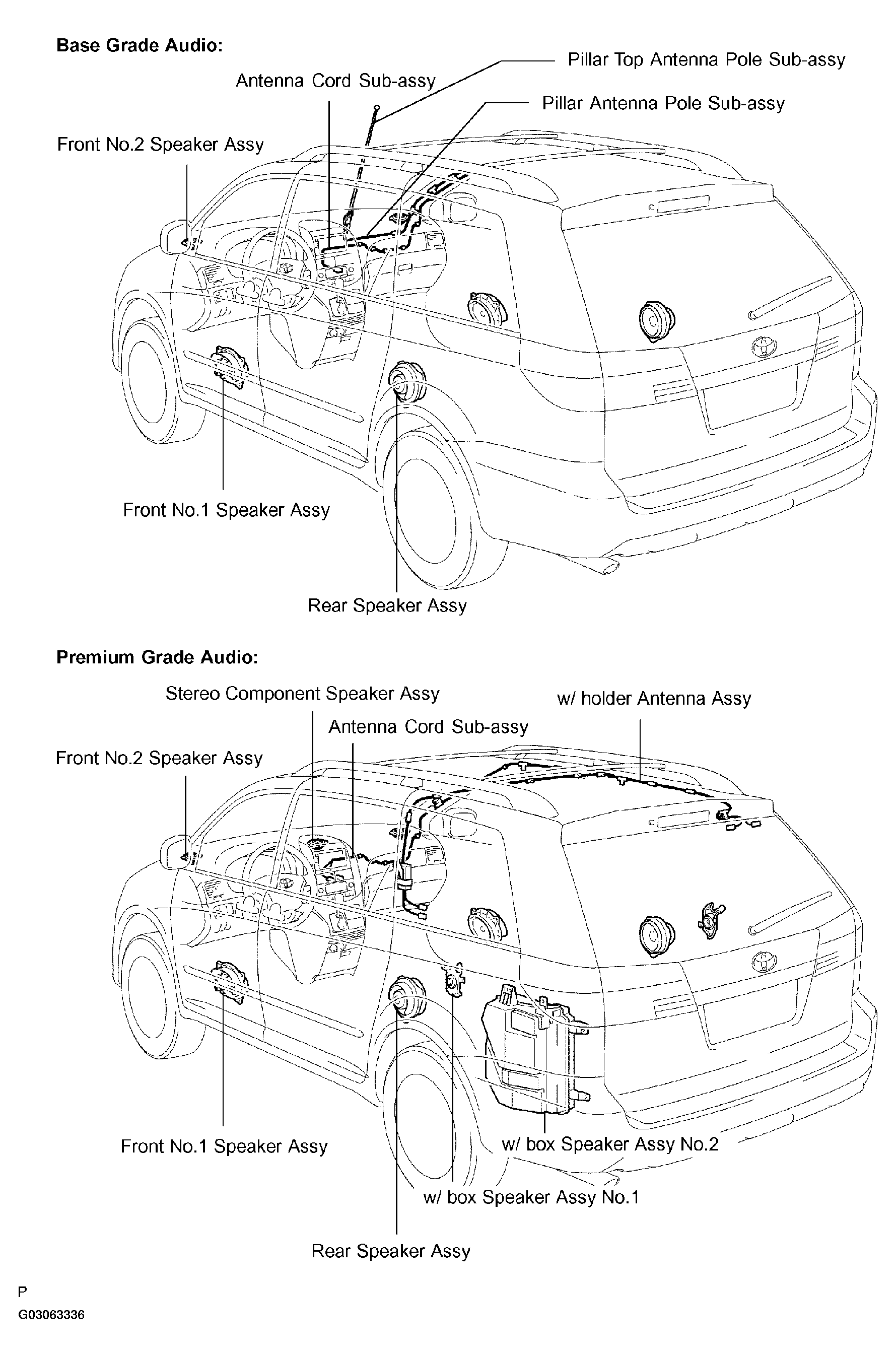

Fig 2: Identifying Location Of Audio & Visual System Components (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

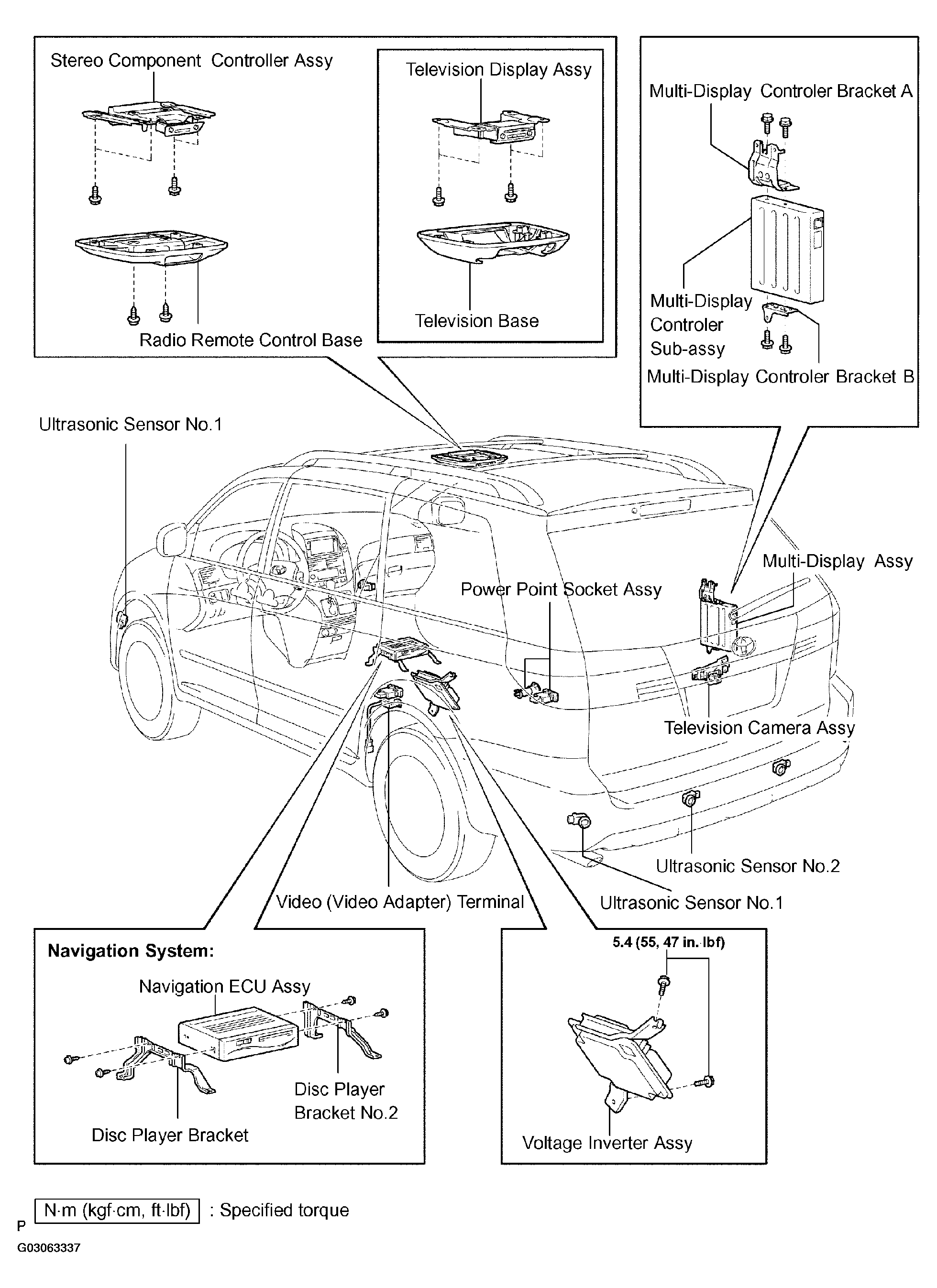

Fig 3: Identifying Location Of Audio & Visual System Components (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Location Of Audio & Visual System Components (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
