Absorber Control Ecu: Replacement

  1. REMOVE FRONT DOOR SCUFF PLATE LH (See  REPLACEMENT  )
  2. REMOVE INSTRUMENT PANEL SUB-ASSY UPPER (See  REPLACEMENT  )
  3. REMOVE INSTRUMENT PANEL INSERT SUB-ASSY LOWER LH (See  REPLACEMENT  )
  4. REMOVE ABSORBER CONTROL ECU
    1. Disconnect the 2 absorber control ECU connectors.
    2. Remove the 2 nuts and absorber control ECU.

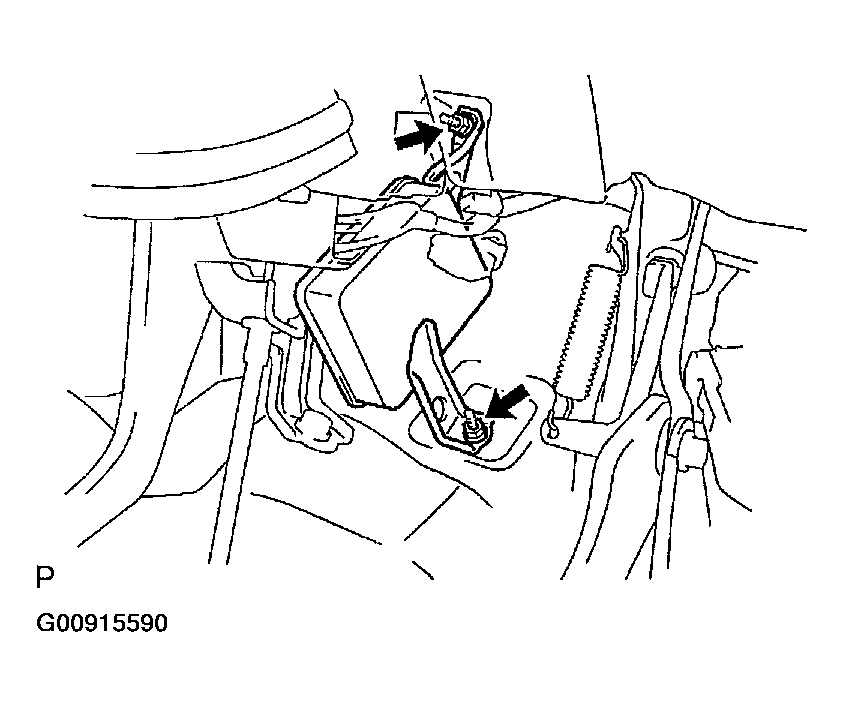

      Fig 1: Identifying Absorber Control ECU
      G00915590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL ABSORBER CONTROL ECU
    1. Install the absorber control ECU with the 2 nuts.

      Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

    2. Connect the 2 absorber control ECU connectors.
