Front Acceleration Sensor: Replacement

  1. REMOVE FRONT DOOR SCUFF PLATE RH (See  REPLACEMENT  )
  2. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1 (See  REPLACEMENT  )
  3. REMOVE INSTRUMENT PANEL SUB-ASSY LOWER (See  REPLACEMENT  )
  4. REMOVE ACCELERATION SENSOR ASSY
    1. Disconnect the acceleration sensor connector.
    2. Remove the nut and acceleration sensor from the instrument panel reinforcement.

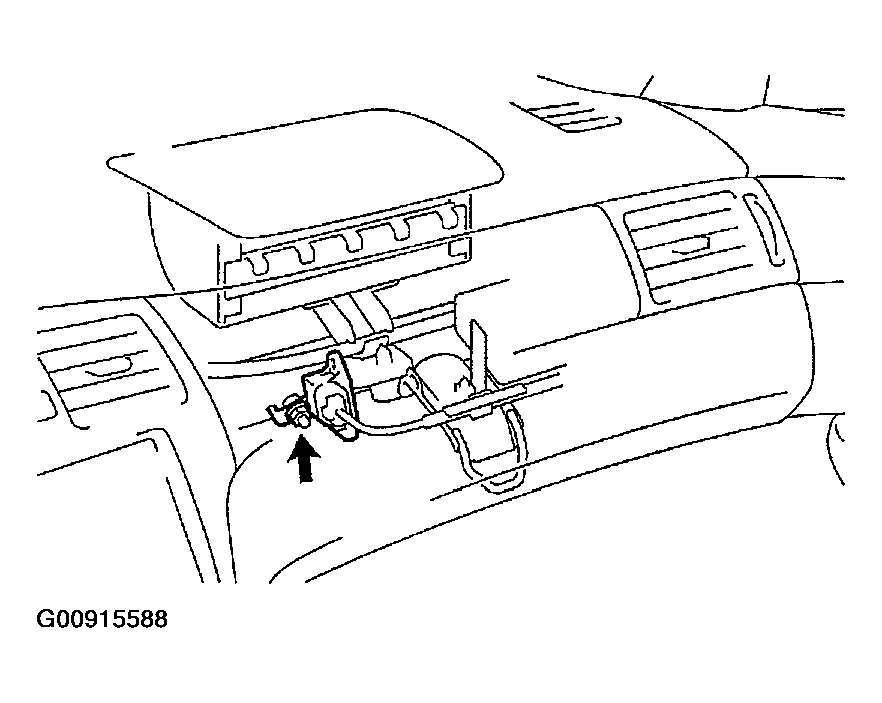

      Fig 1: Identifying Front Acceleration Sensor
      G00915588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL ACCELERATION SENSOR ASSY
    1. Install the acceleration sensor with the nut.

      Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

    2. Connect the acceleration sensor connector.
