Rear Acceleration Sensor: Replacement

  1. REMOVE REAR SEAT CUSHION ASSY (See  OVERHAUL  )
  2. REMOVE REAR SEATBACK ASSY (See  OVERHAUL  )
  3. REMOVE ROOF SIDE GARNISH INNER RH (See  REPLACEMENT  )
  4. REMOVE ACCELERATION SENSOR
    1. Disconnect the acceleration sensor connector.
    2. Remove the bolt and acceleration sensor from the side pillar RH.

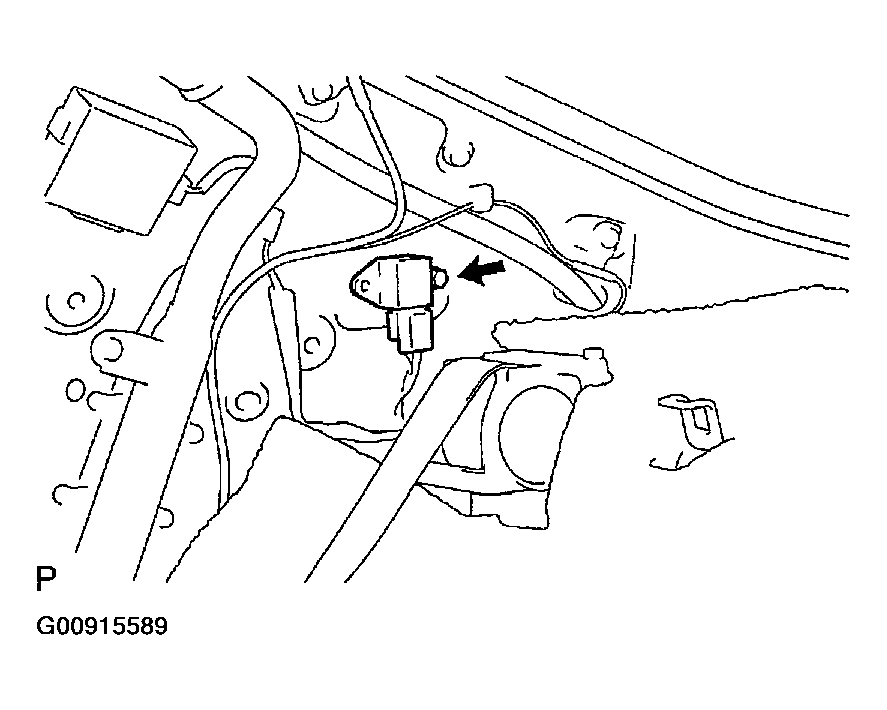

      Fig 1: Identifying Rear Acceleration Sensor
      G00915589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL ACCELERATION SENSOR
    1. Install the acceleration sensor with the bolt.

      Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

    2. Connect the acceleration sensor connector.
