Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

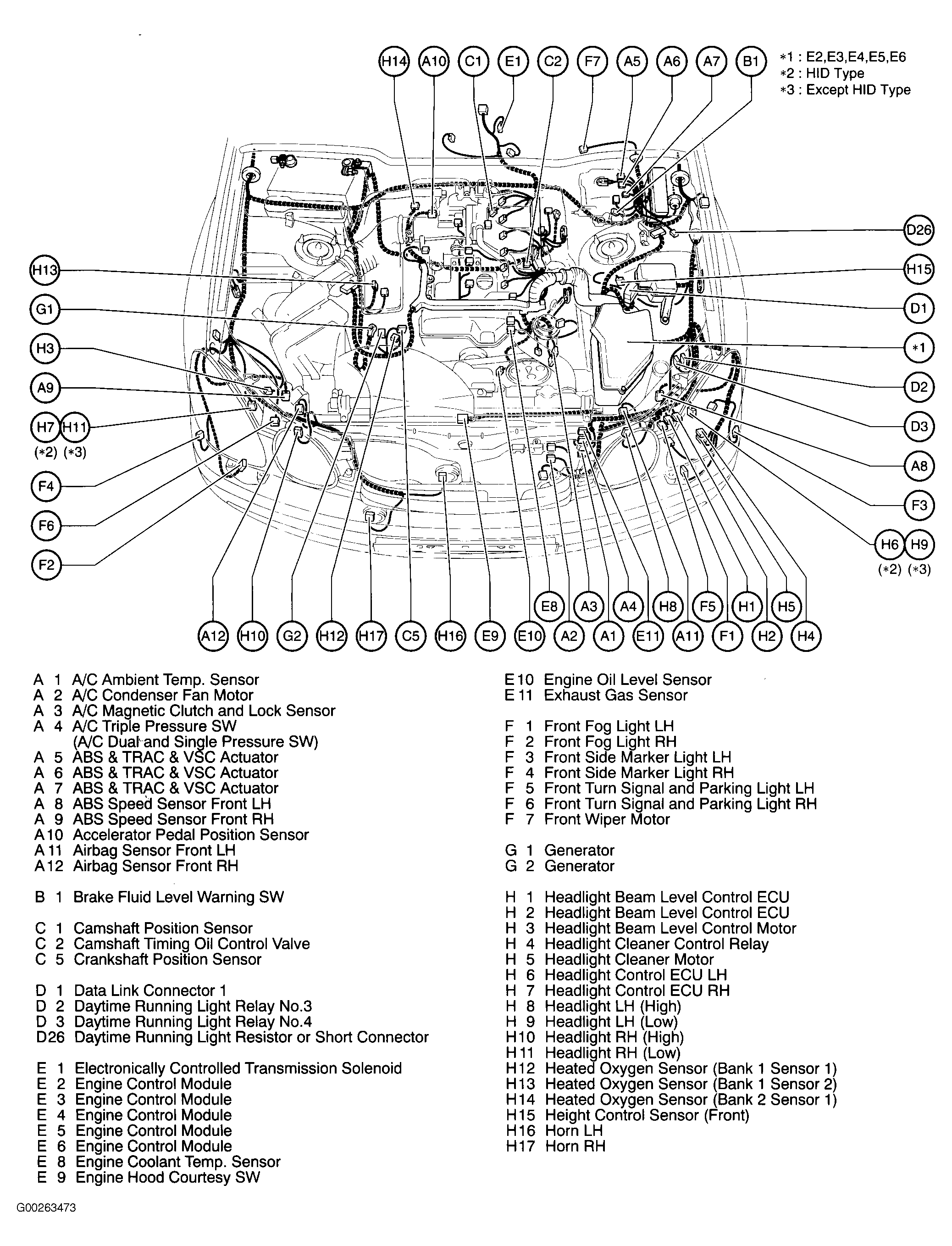

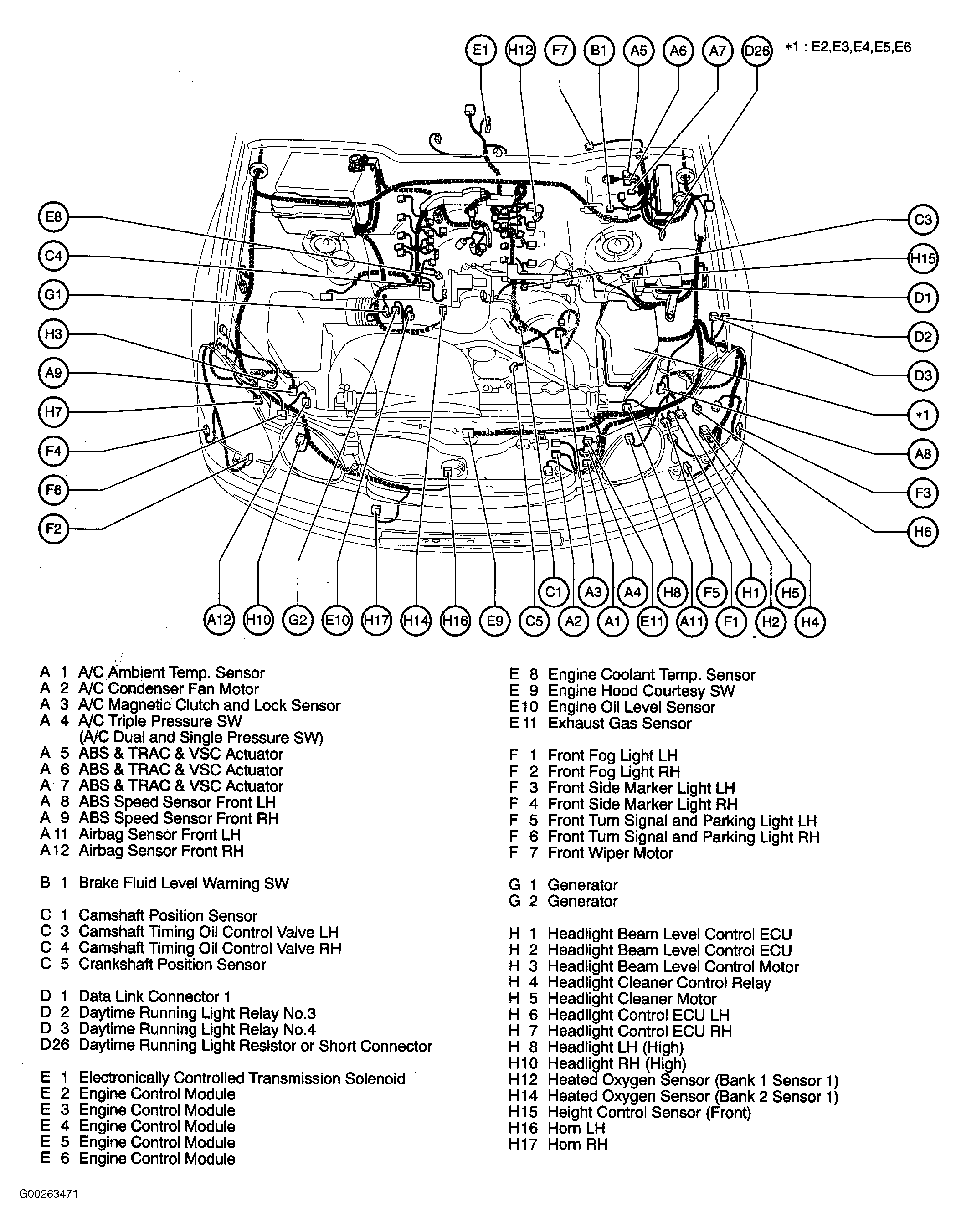

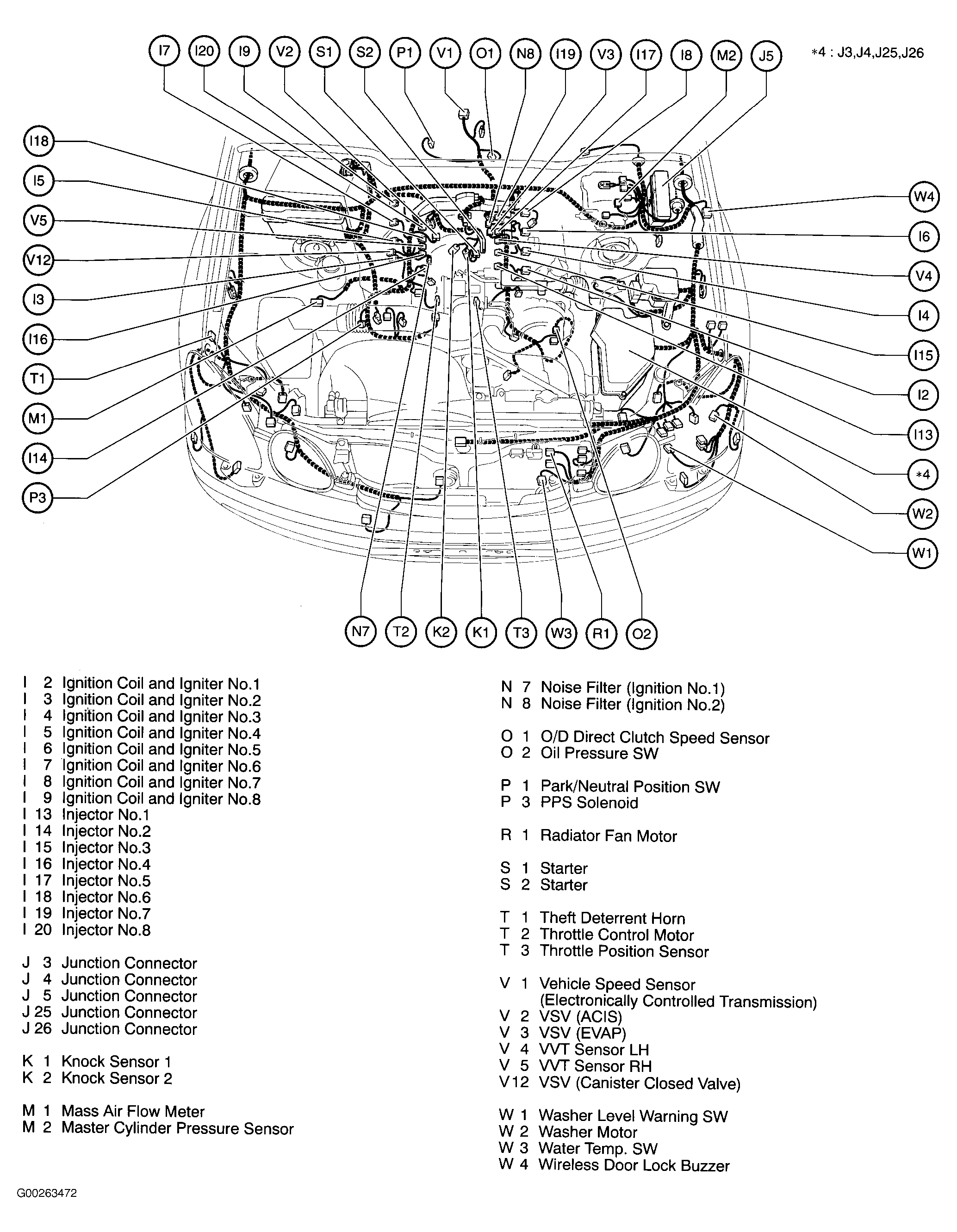

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM RELAY IDENTIFICATION

RELAY DESCRIPTION
Daytime Running Light Relay No.3 and No.4
Headlight Cleaner Control Relay

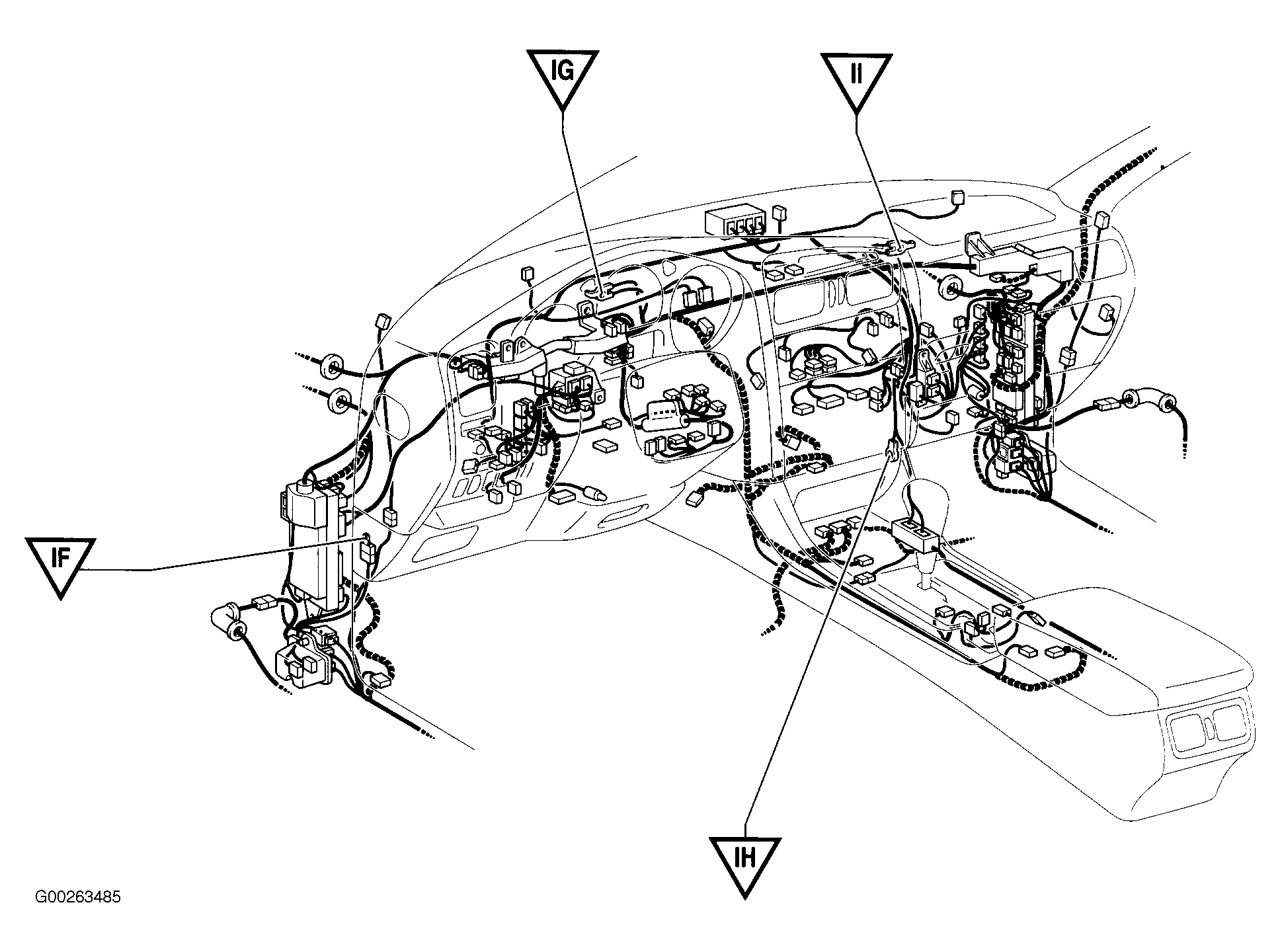

Fig 2: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
Daytime Running Light Relay (Main)

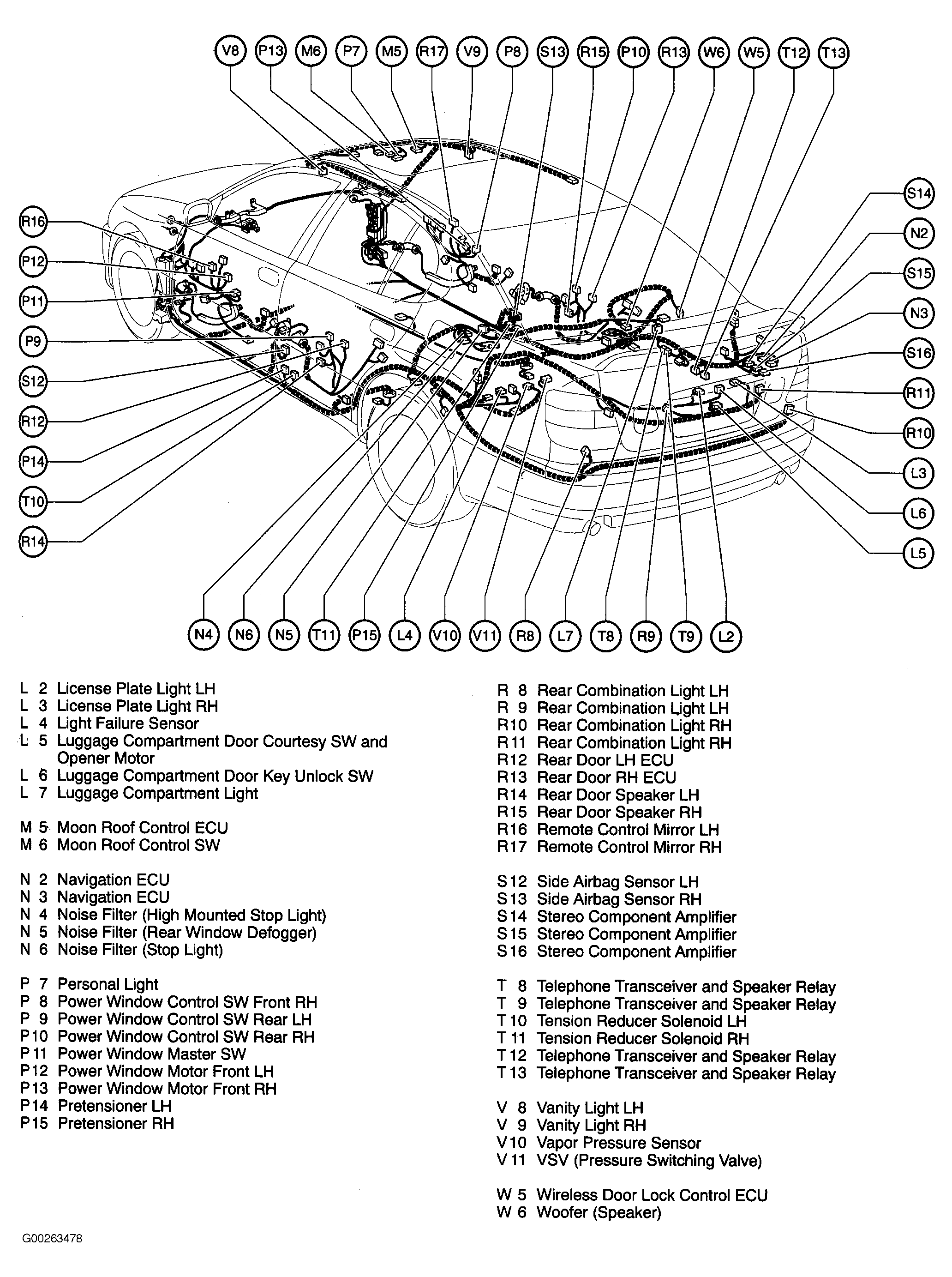

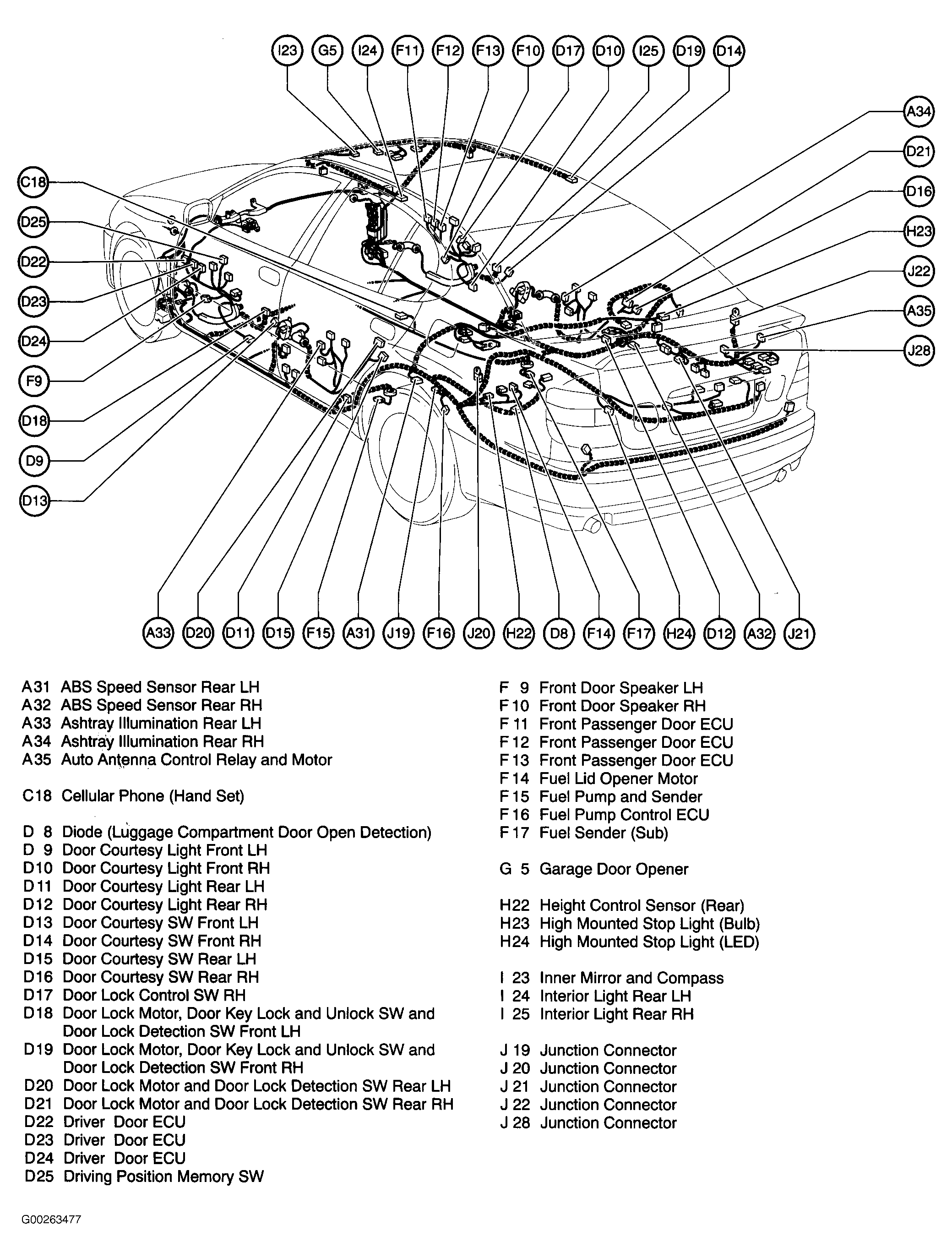

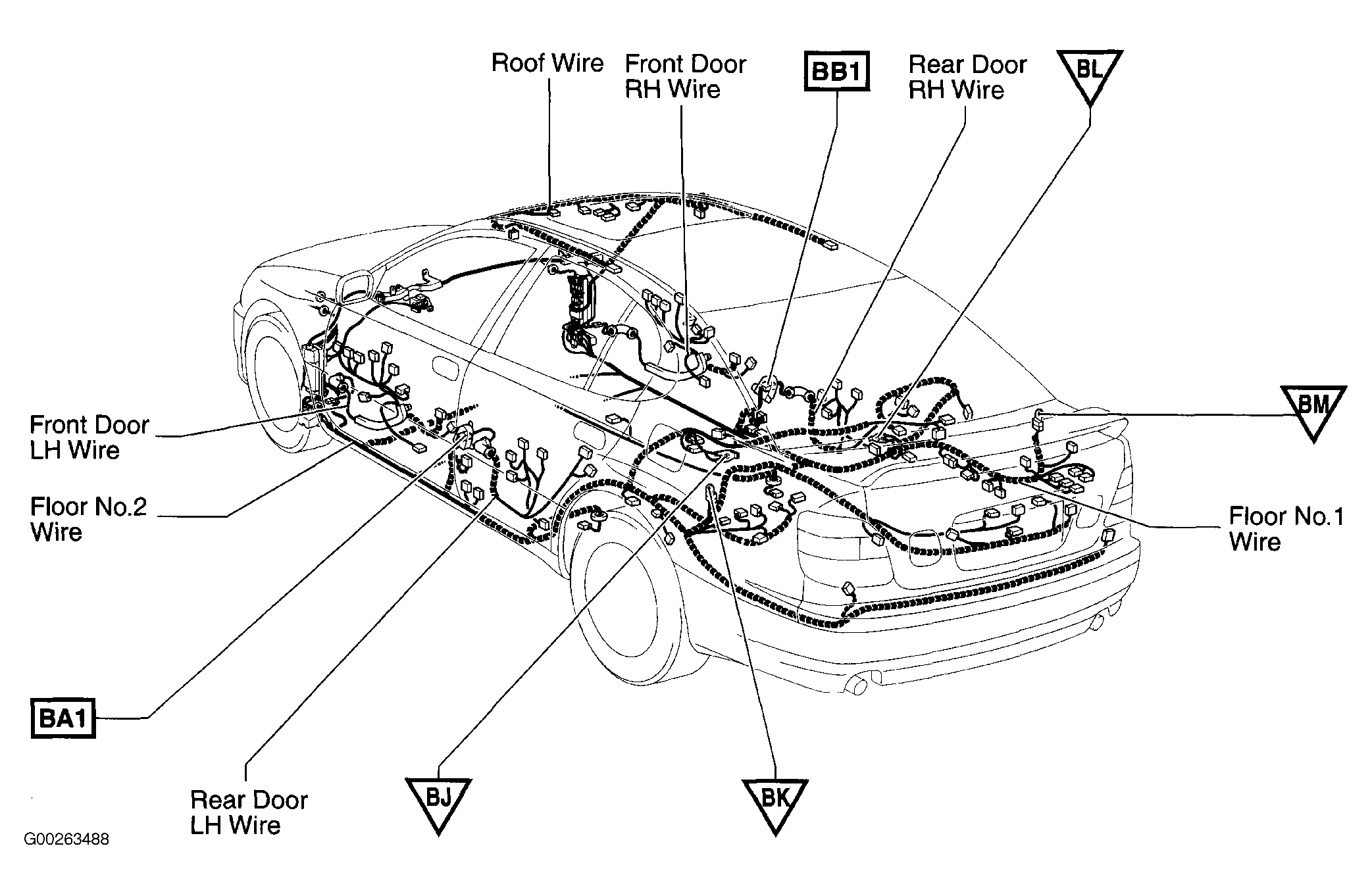

Fig 3: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PASSENGER & LUGGAGE COMPARTMENT RELAY IDENTIFICATION

RELAY DESCRIPTION
Telephone Transceiver and Speaker Relay
Auto Antenna Control Relay and Motor

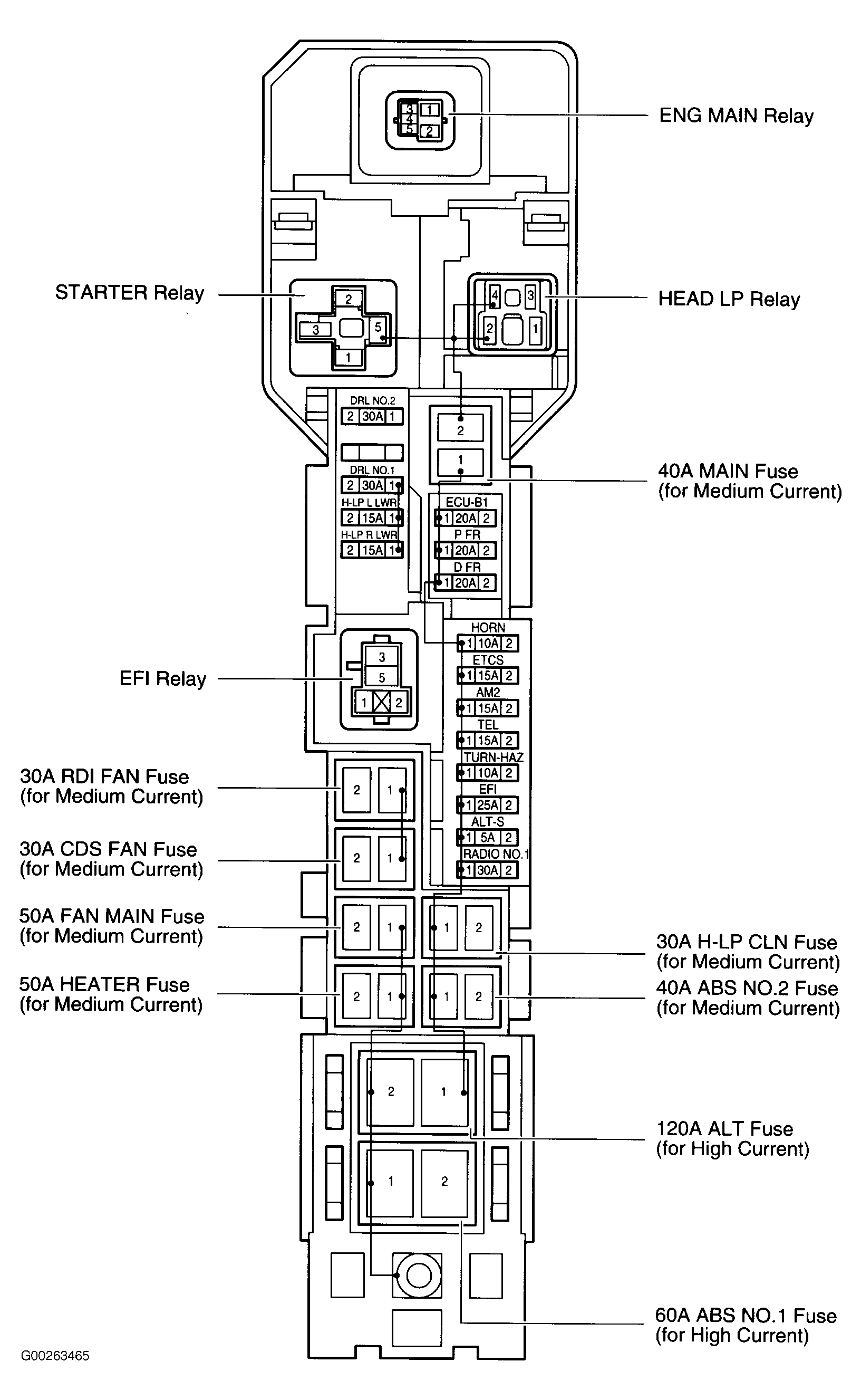

Fig 4: Engine Room R/B No. 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM NO. 1 RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
EFI Relay
Starter Relay
ENG Main Relay
Head LP Relay

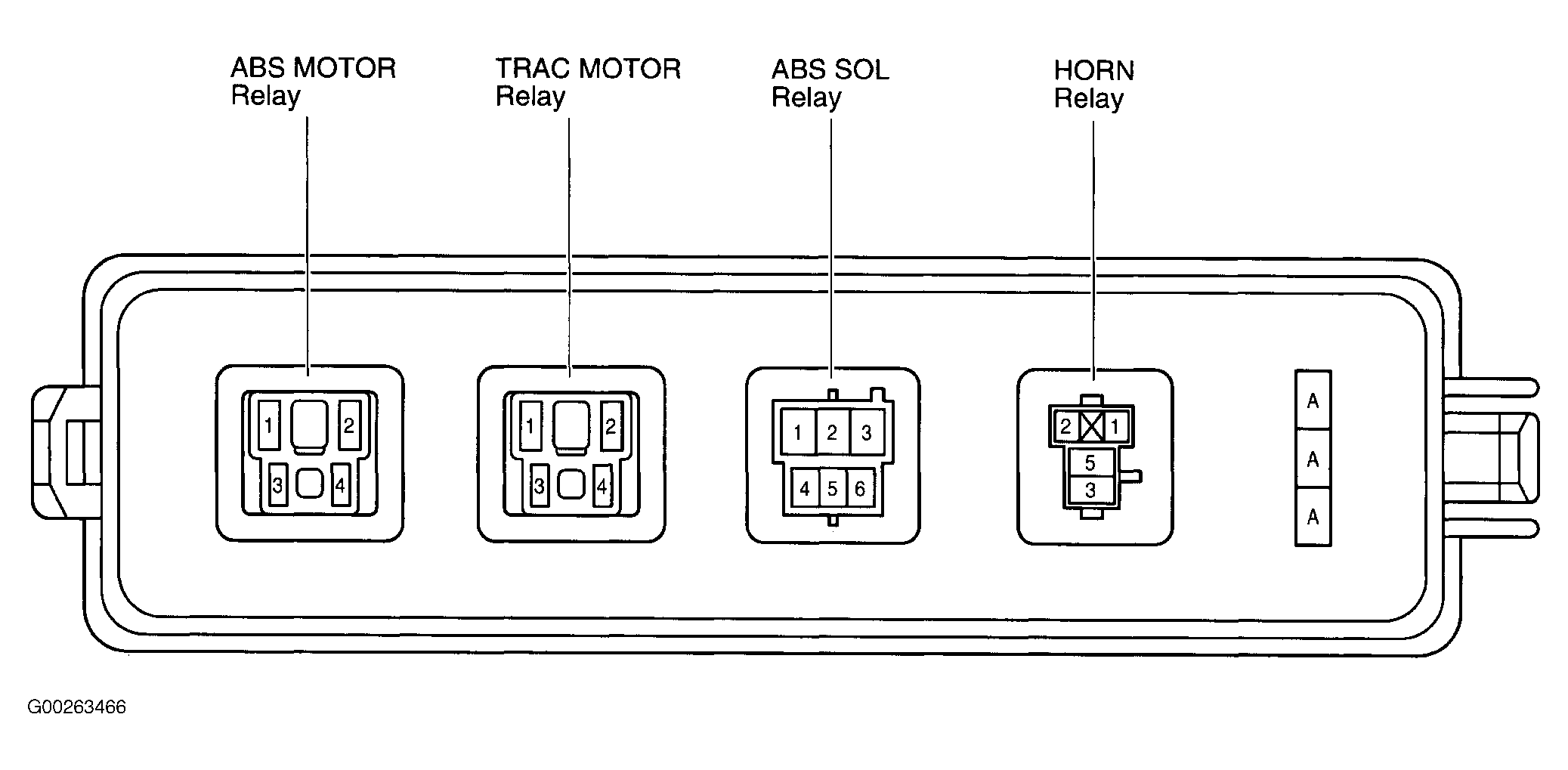

Fig 5: Engine Room R/B No. 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM NO. 2 RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
ABS Motor Relay
TRAC Motor Relay
ABS SOL Relay
Horn Relay

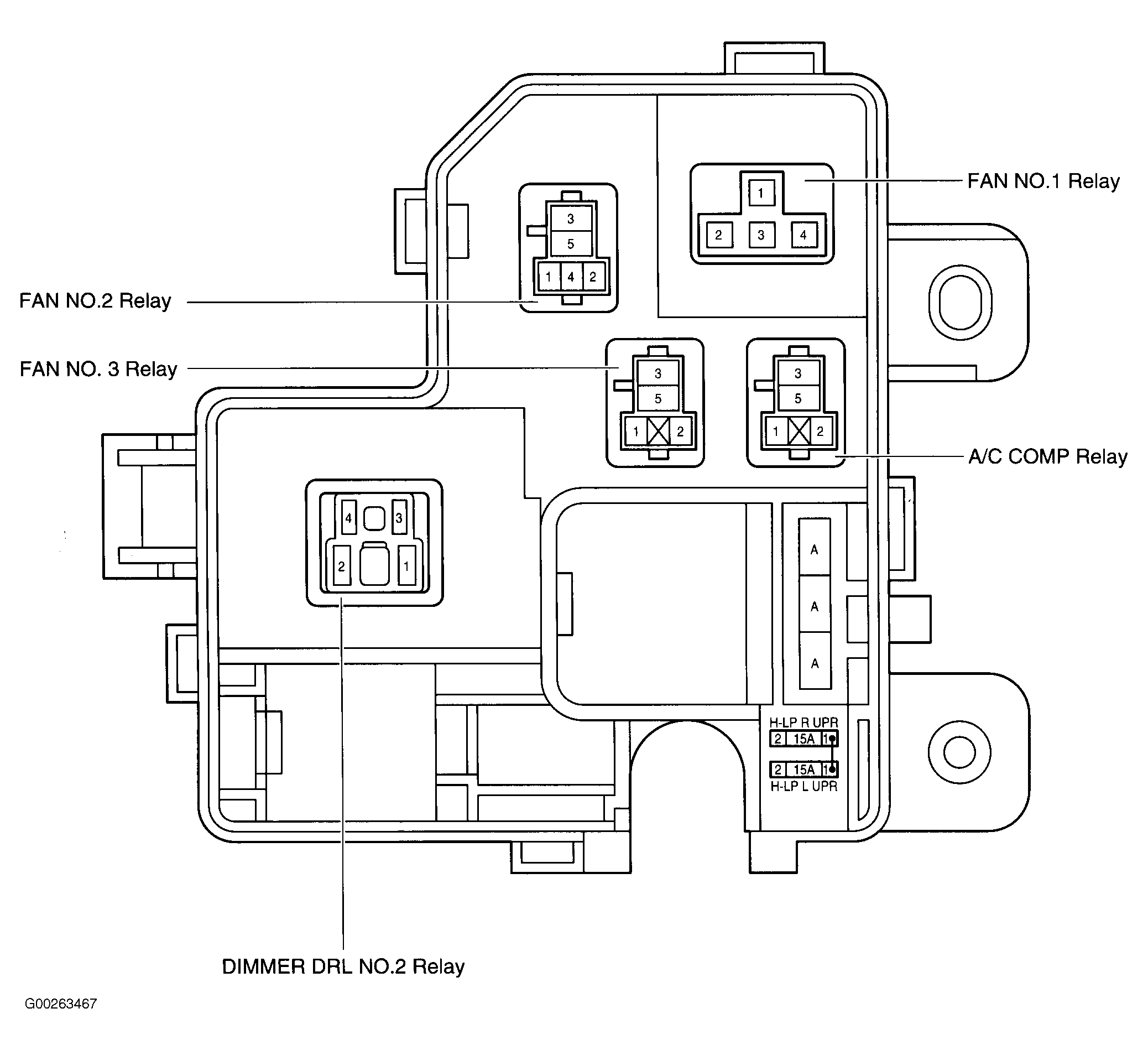

Fig 6: Engine Room R/B No. 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM NO. 3 RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Fan No. 3 Relay
Fan No.2 Relay
Fan No.1 Relay
A/C COMP Relay
Dimmer DRL No.2 Relay

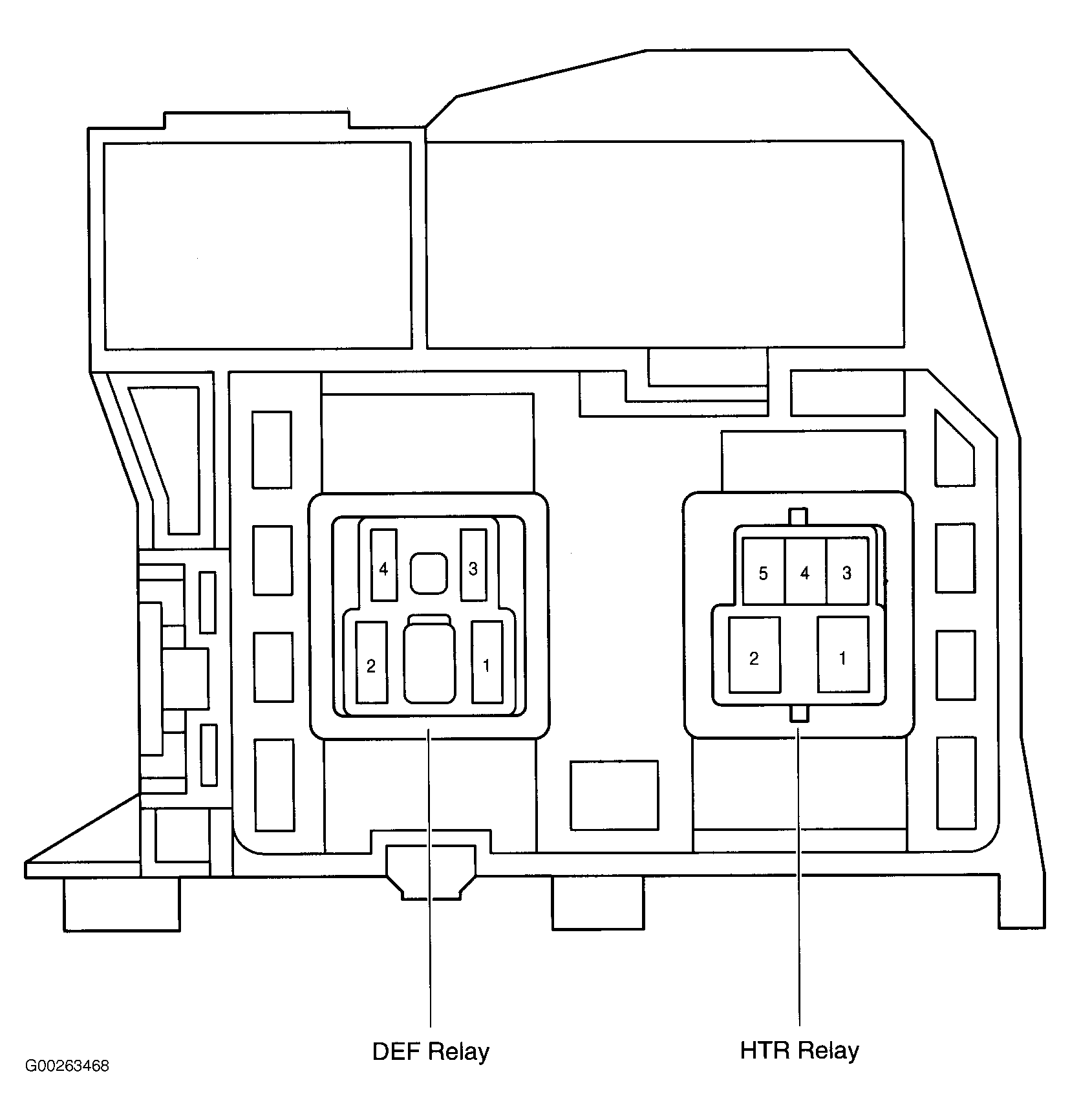

Fig 7: Passenger Side R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PASSENGER SIDE RELAY BOX RELAY IDENTIFICATION

RELAY DESCRIPTION
HTR Relay
DEF Relay

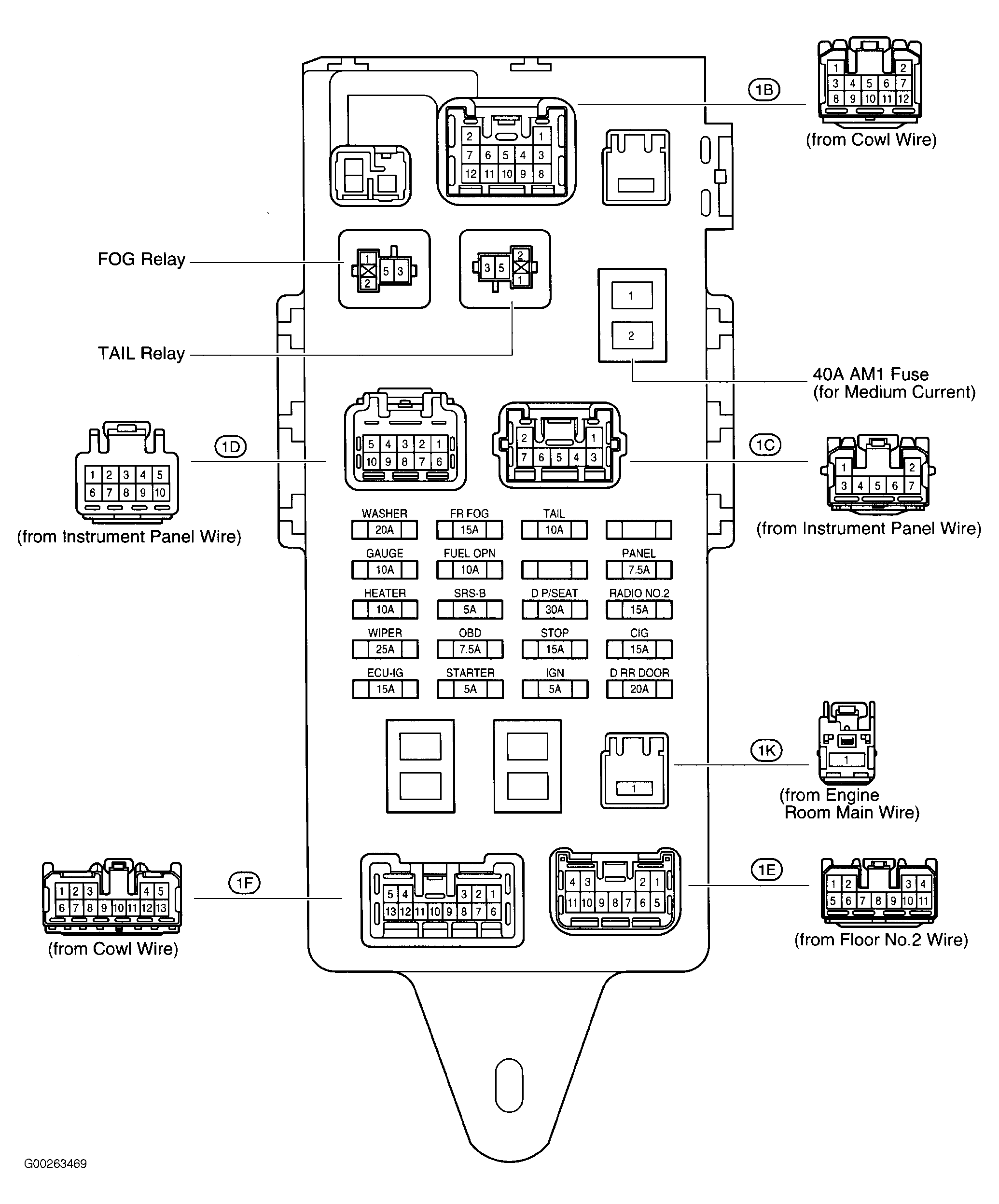

Fig 8: Driver Side J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER SIDE JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Tail Relay
Fog Relay

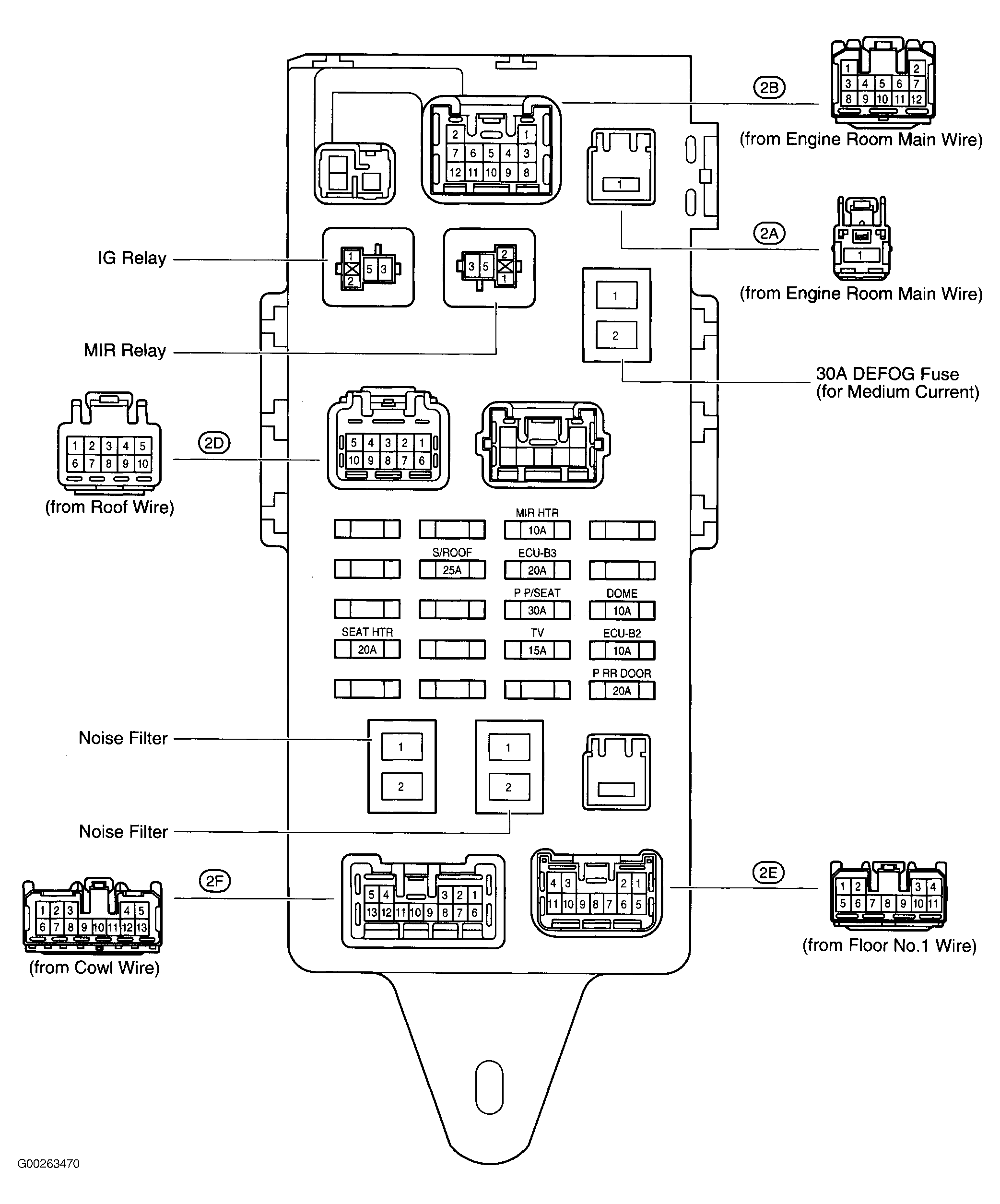

Fig 9: Passenger Side J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PASSENGER SIDE JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
MIR Relay
IG Relay

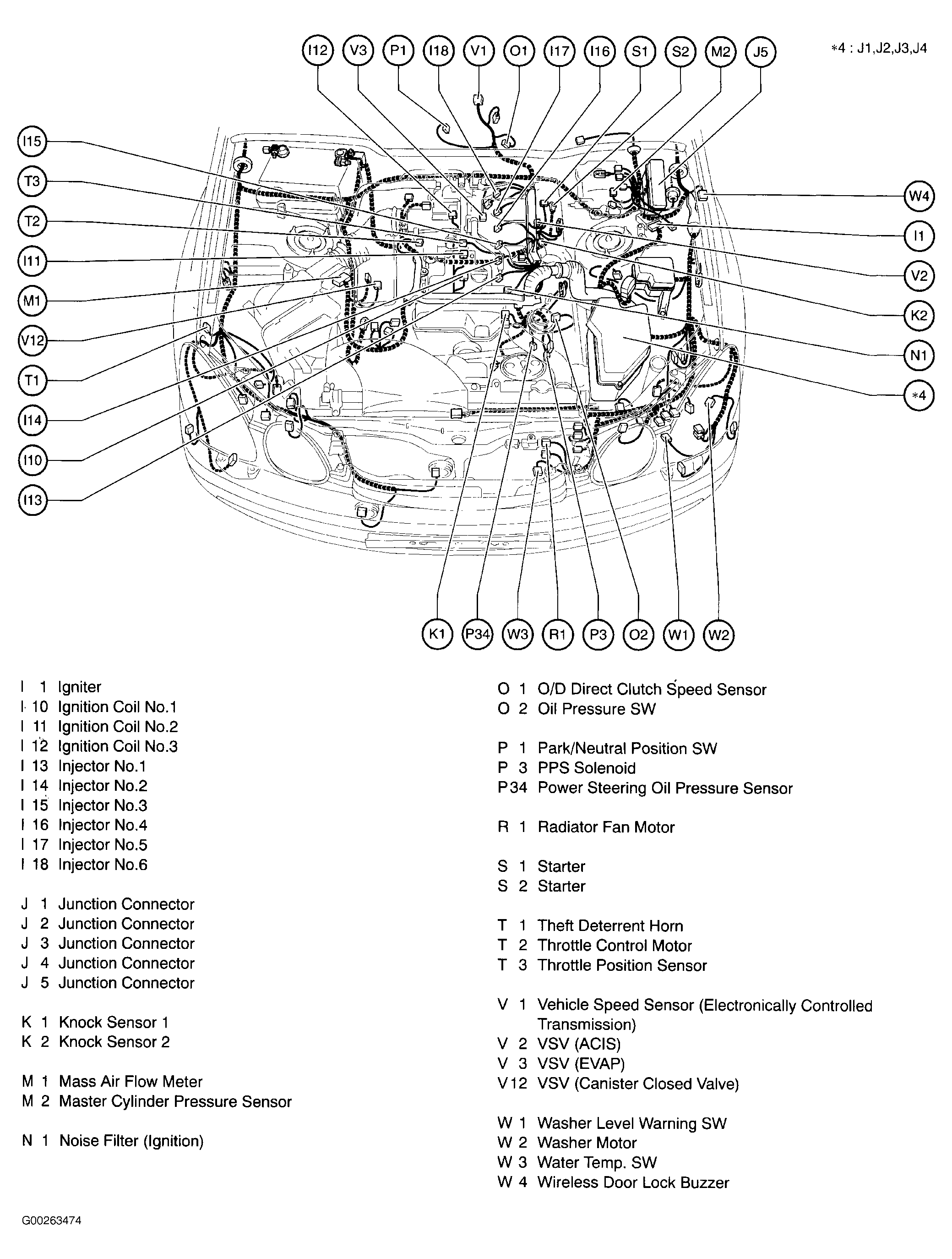

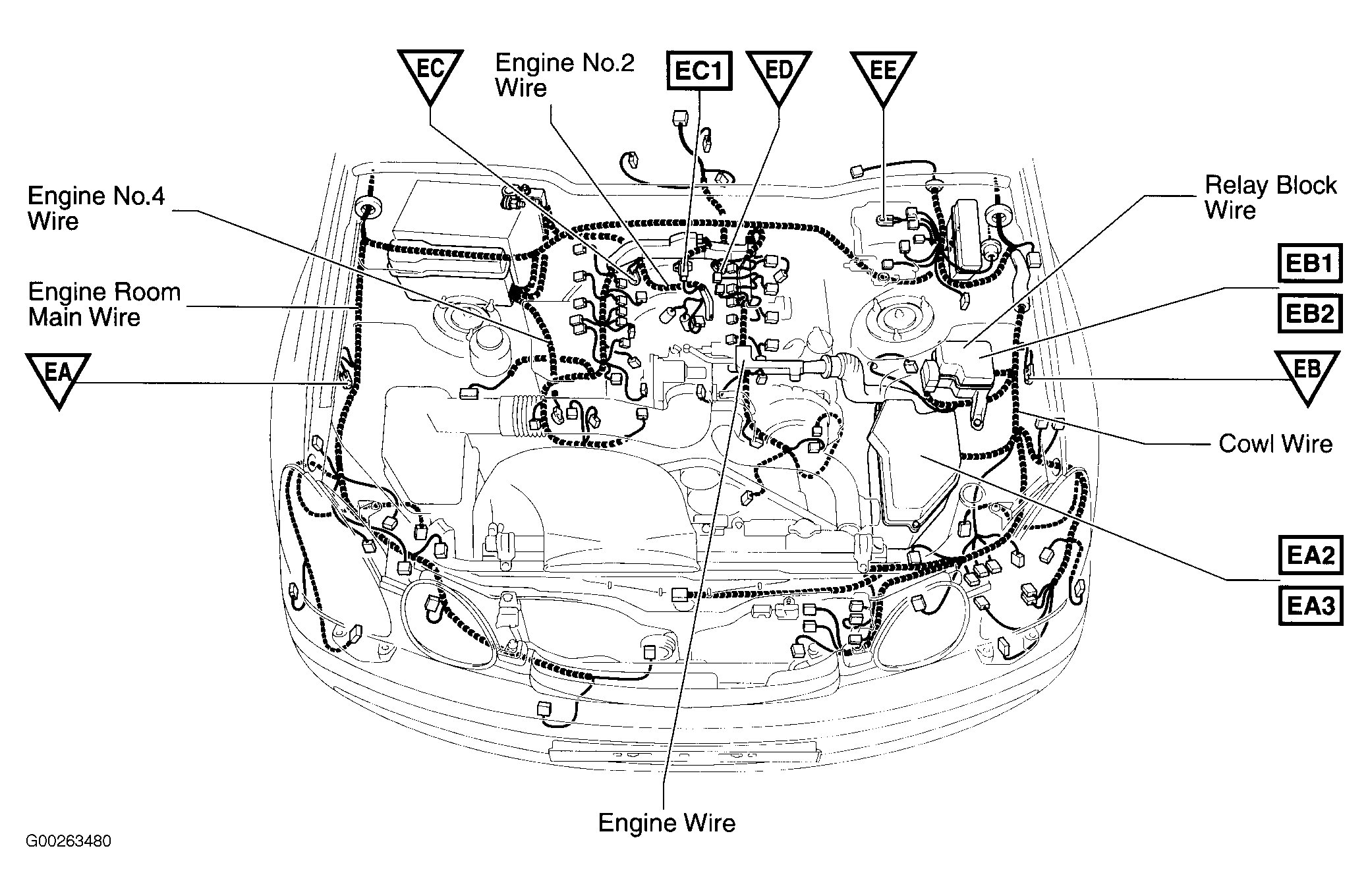

Fig 10: Engine Compartment (4.3L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Compartment (4.3L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

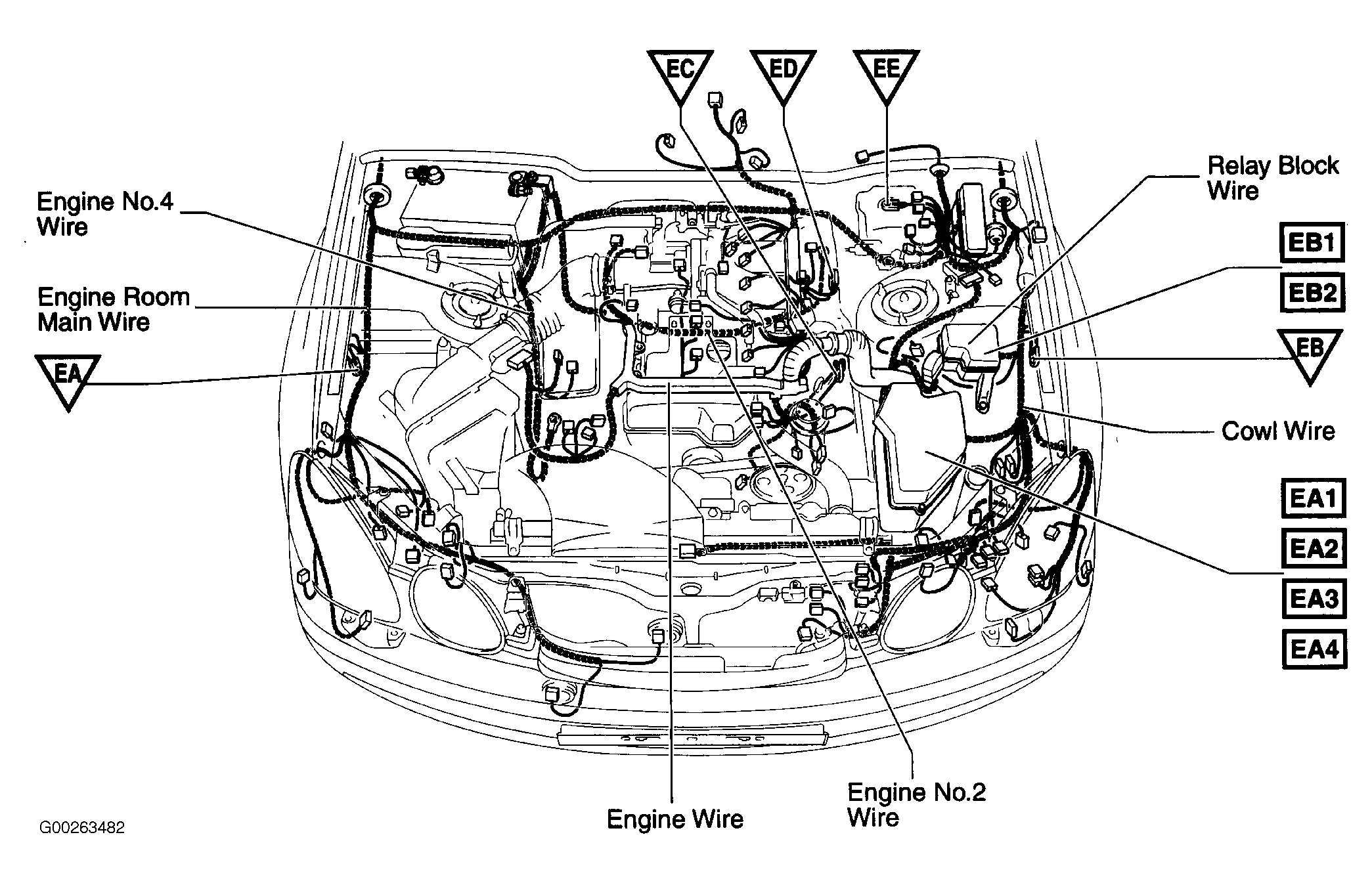

Fig 12: Engine Compartment (3.0L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Engine Compartment (3.0L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

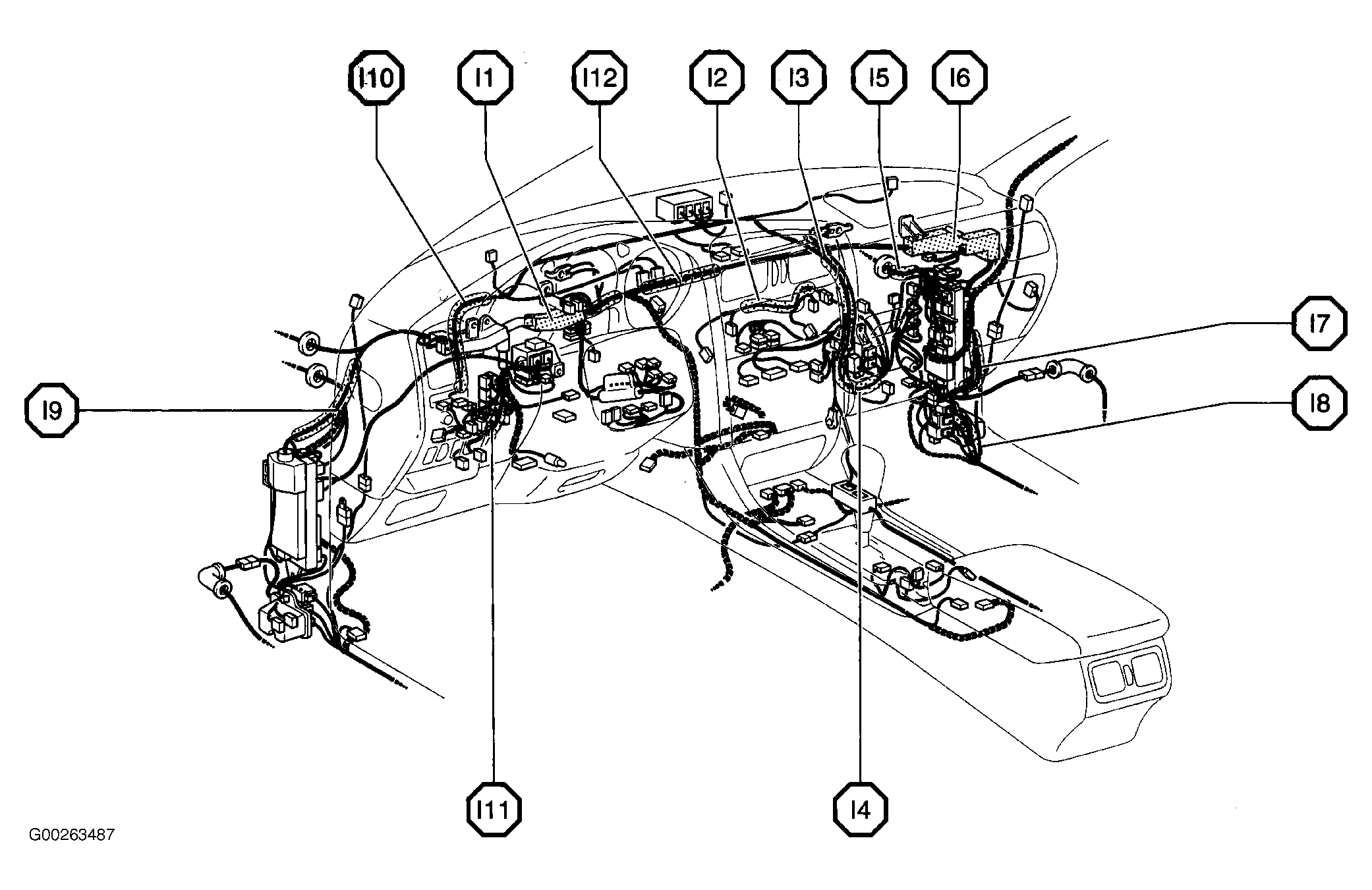

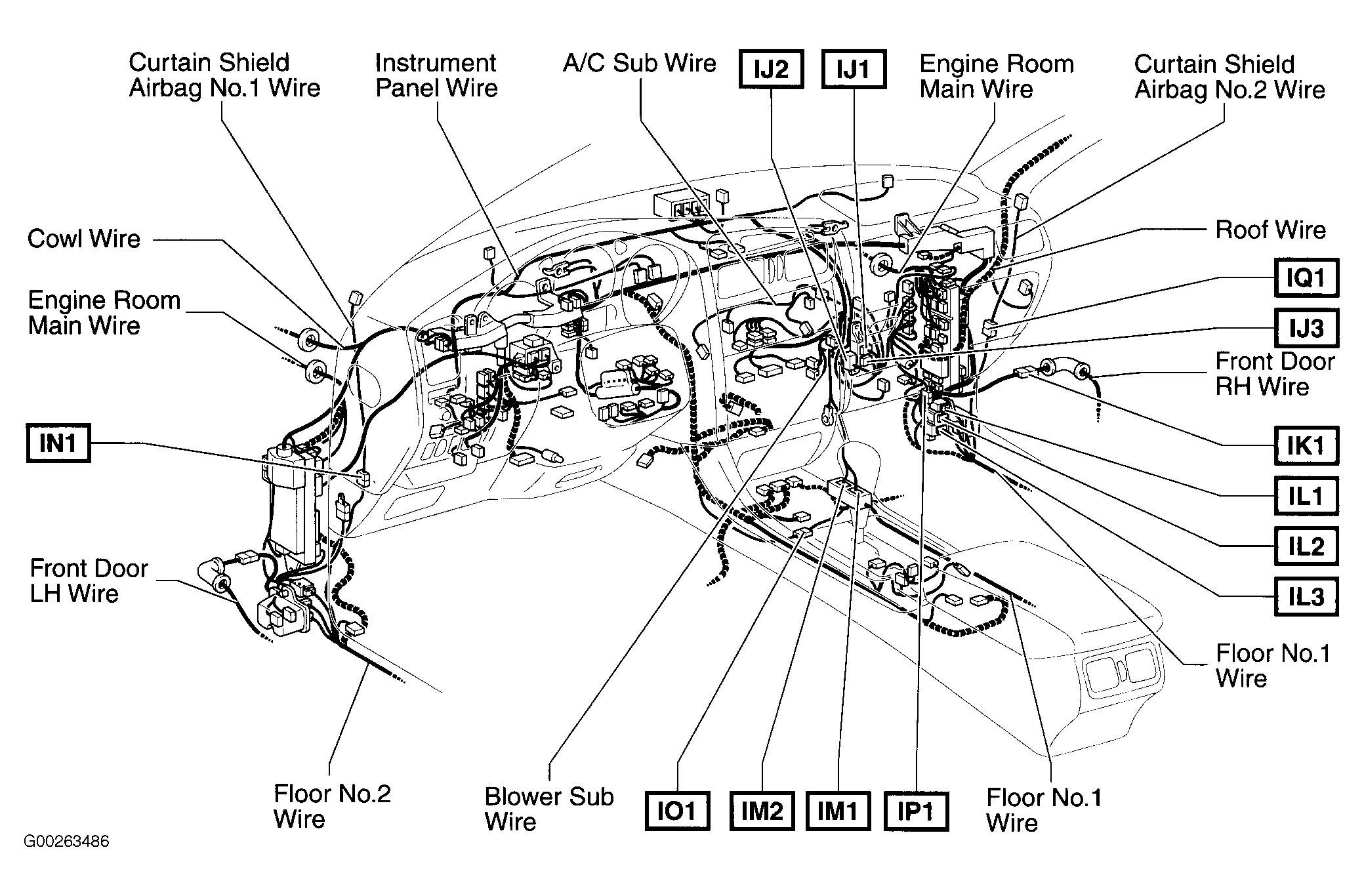

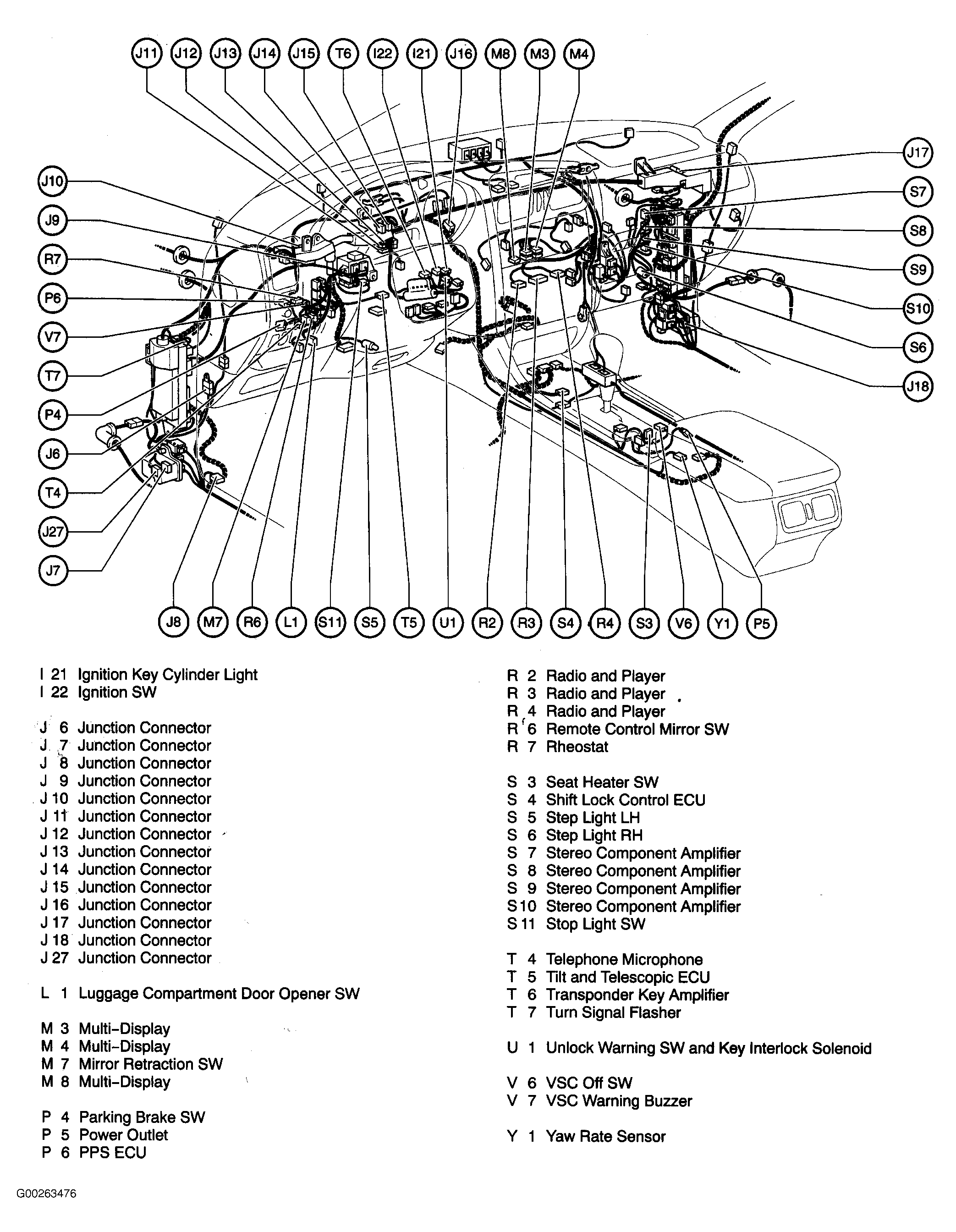

Fig 14: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

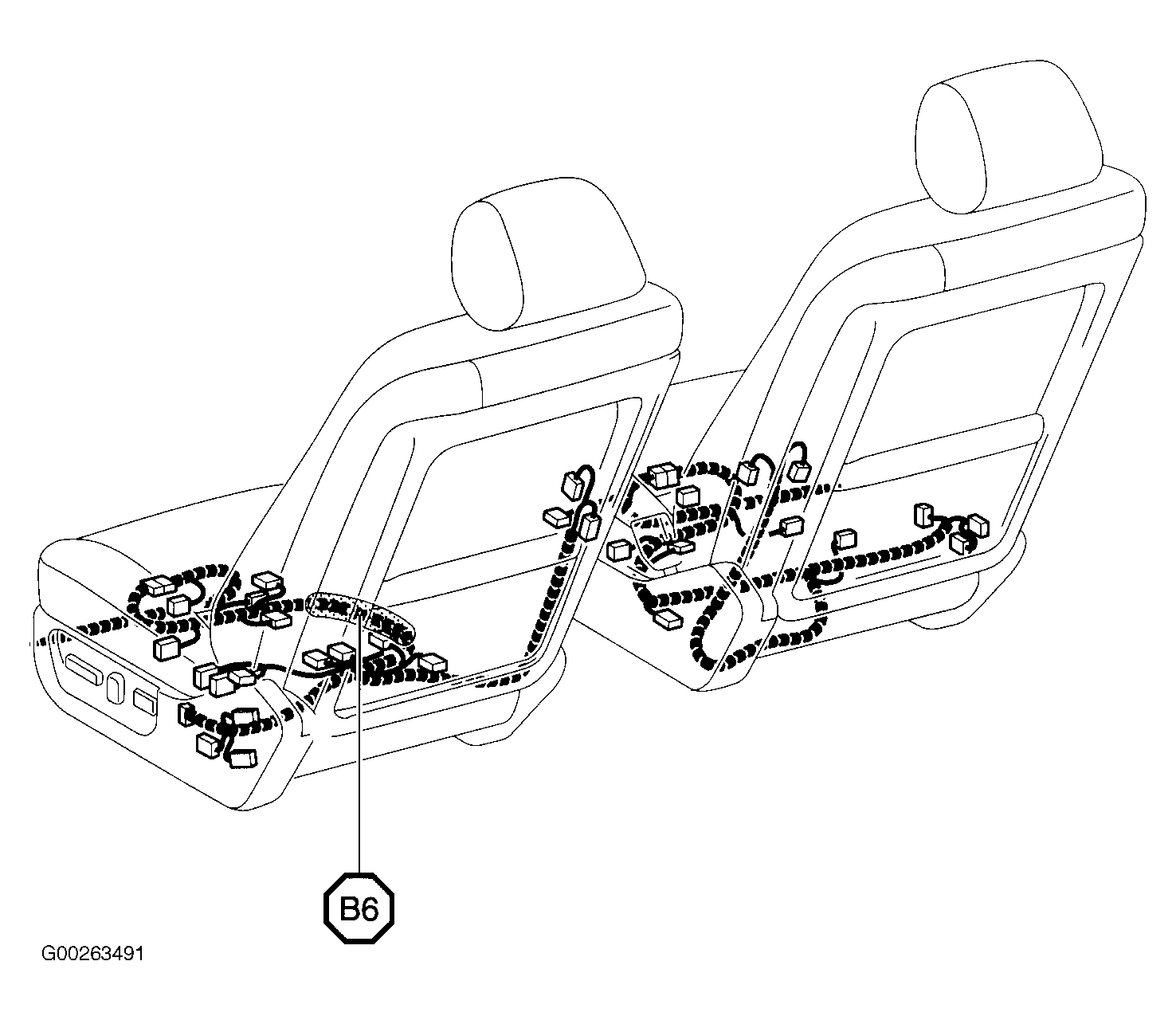

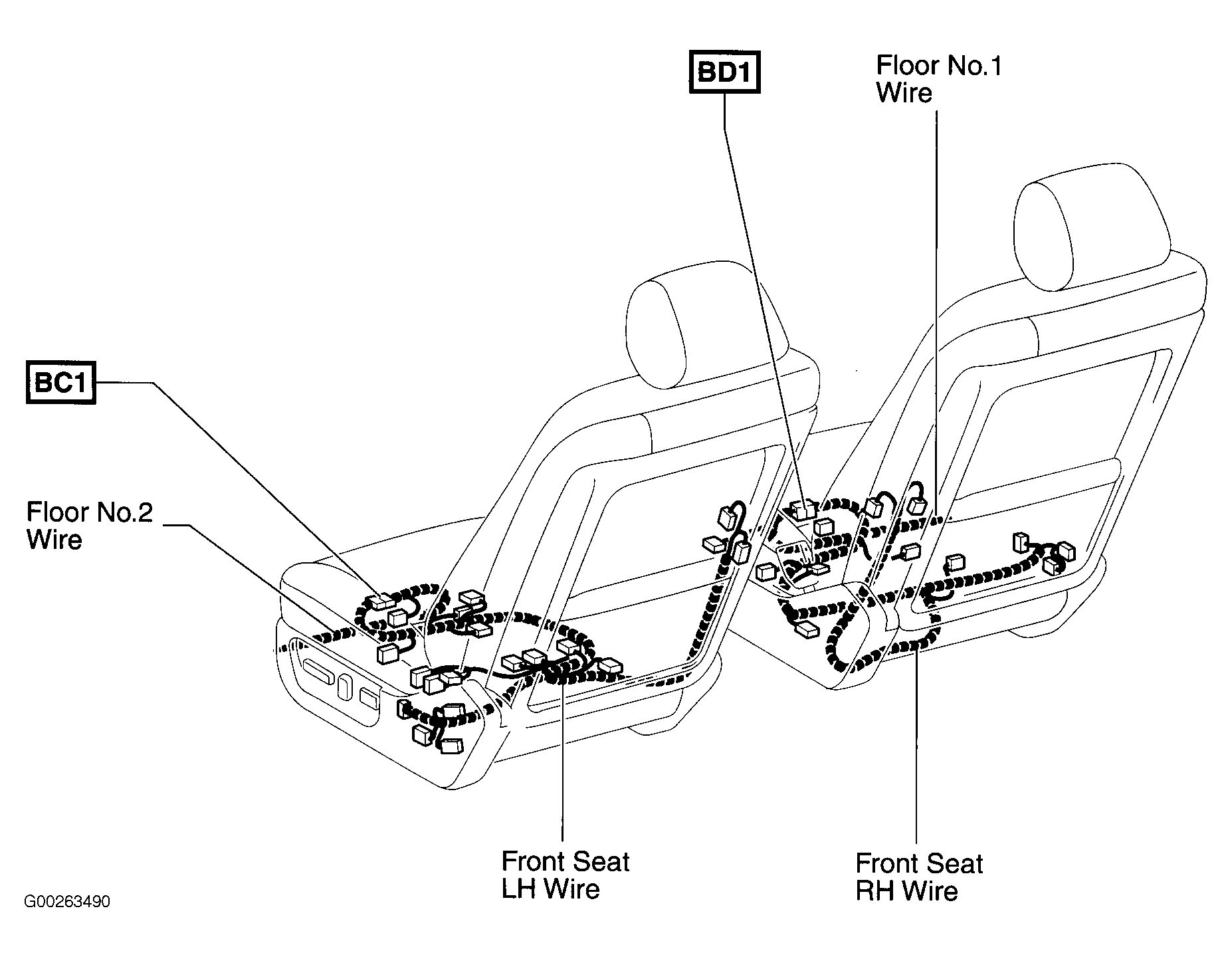

Fig 18: Front Seats

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

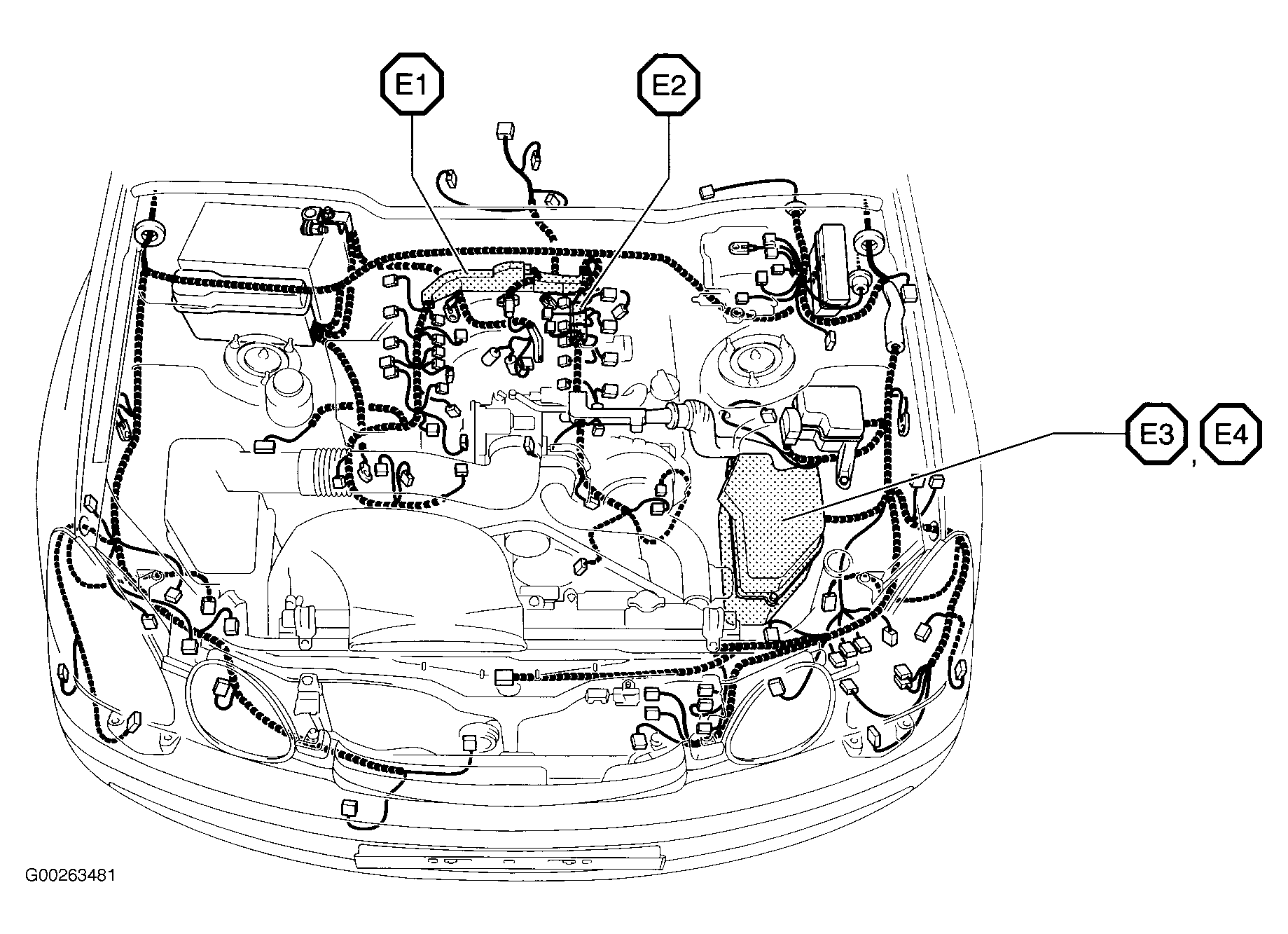

Fig 19: Engine Compartment (4.3L)

Fig 20: Engine Compartment (4.3L)

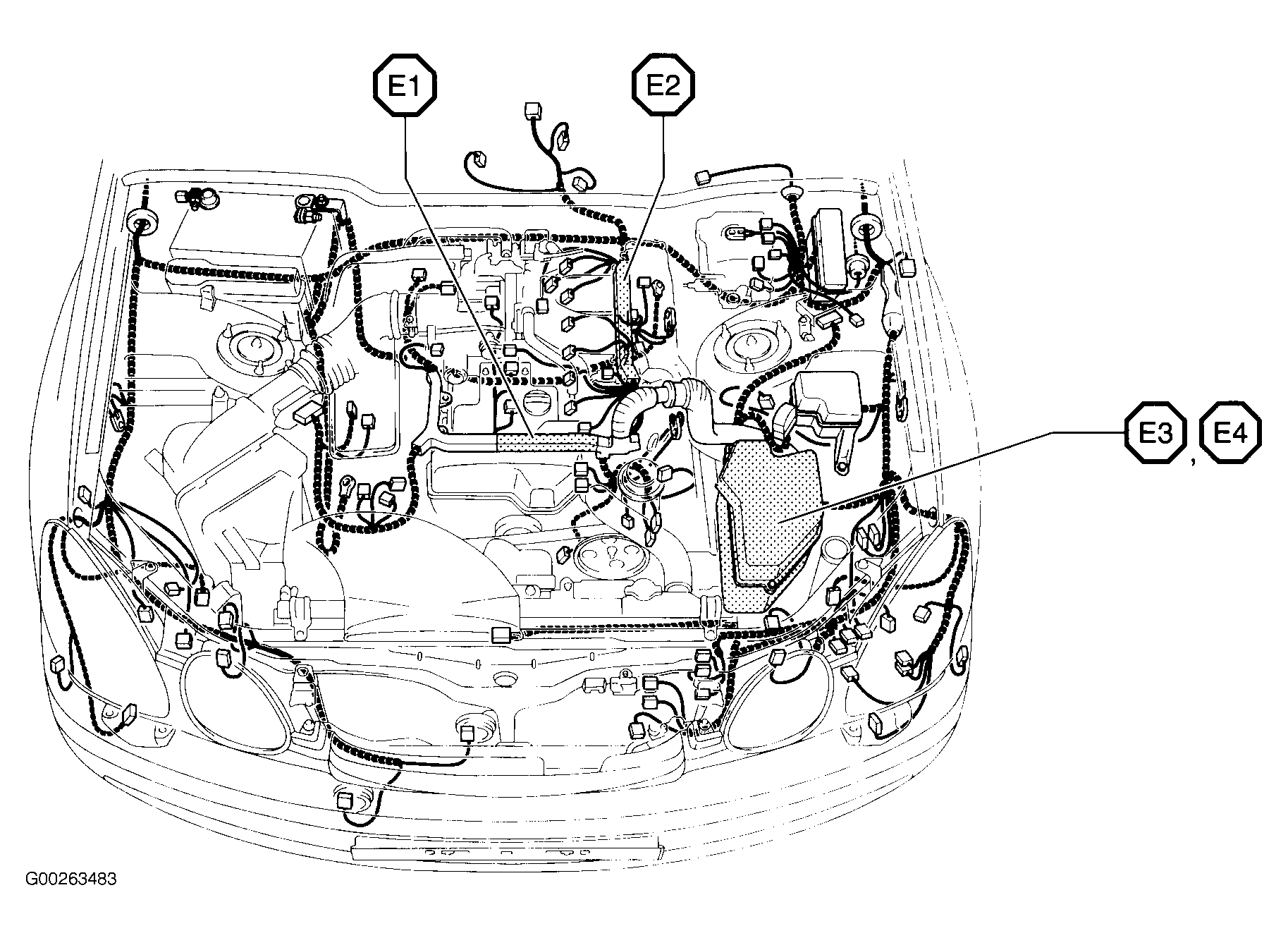

Fig 21: Engine Compartment (3.0L)

Fig 22: Engine Compartment (3.0L)

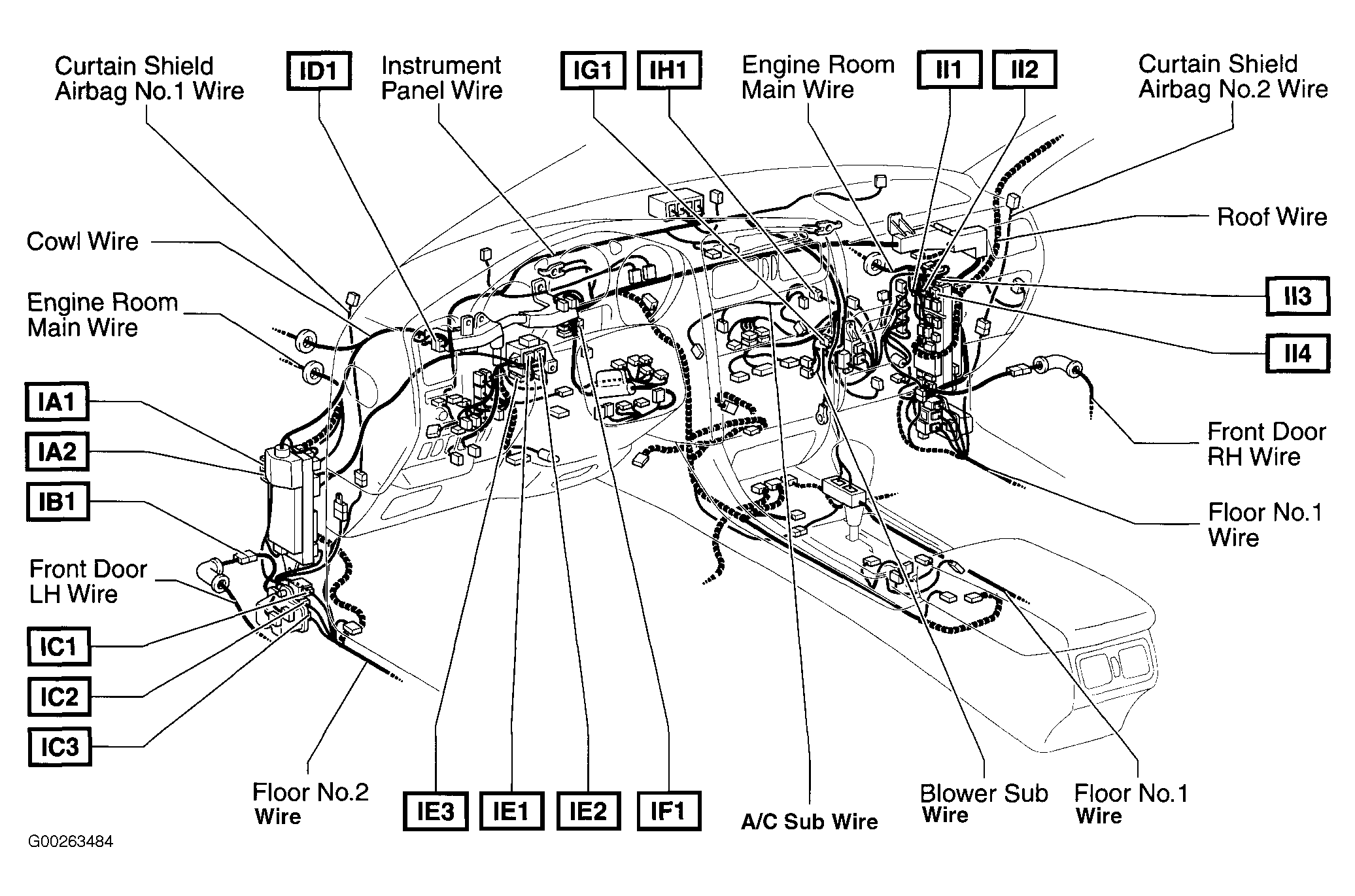

Fig 23: Dash

Fig 24: Dash

Fig 25: Dash

Fig 26: Dash

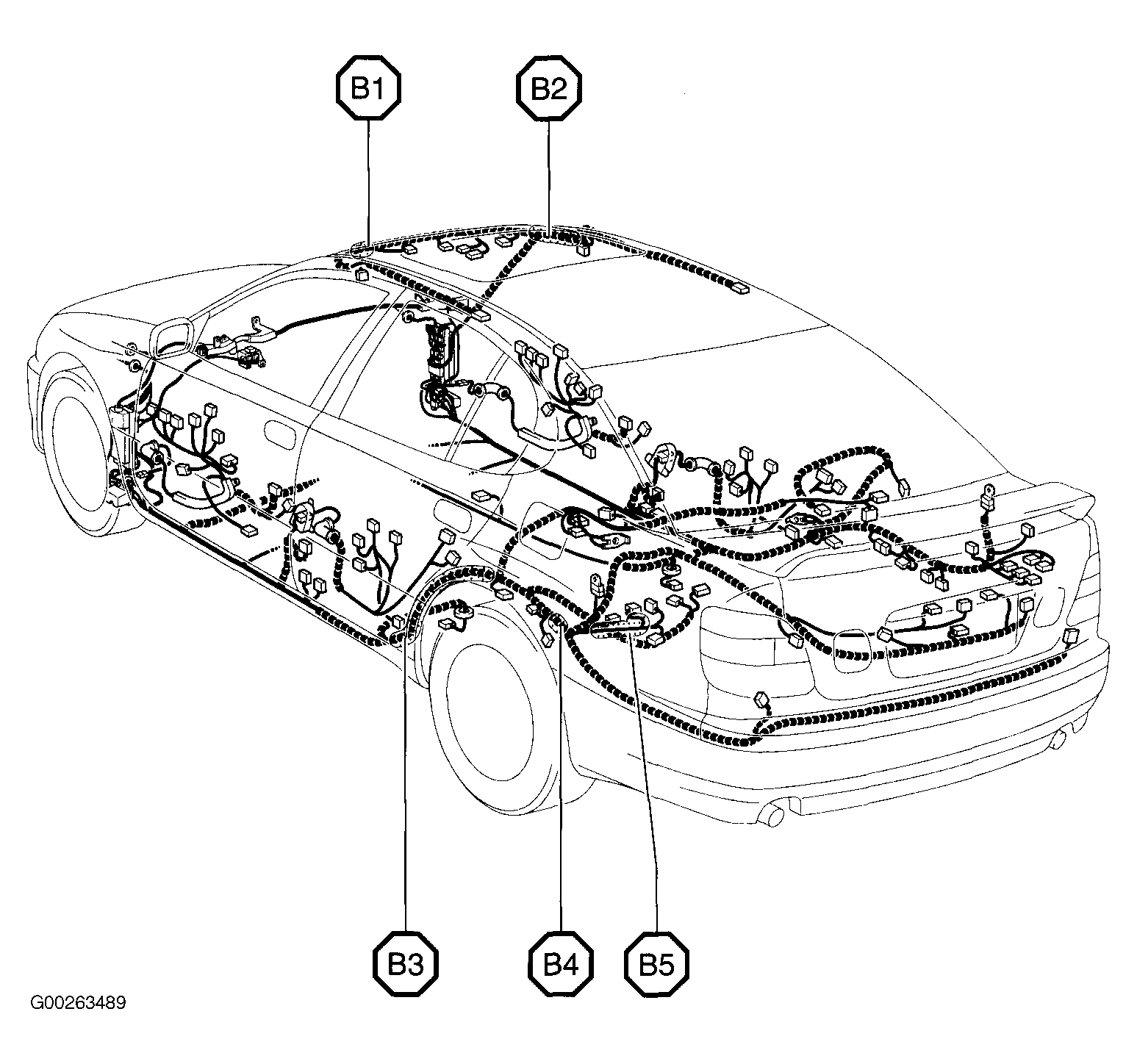

Fig 27: Vehicle Overview

Fig 28: Vehicle Overview

Fig 29: Front Seats

Fig 30: Front Seats
