INSPECT INNER MIRROR (Compass) CIRCUIT

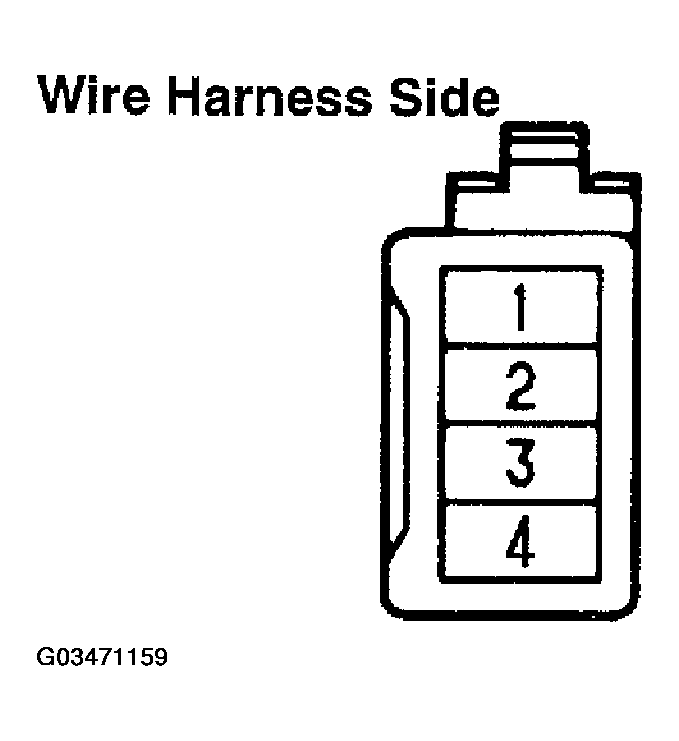

Disconnect the connector from the mirror and inspect the connector on the wire harness side, as shown.
TESTER CONNECTION SPECIFICATION
| Tester connection | Condition | Specified condition |
|---|---|---|
| 4 - Ground | Constant | Continuity |
| 1 - Ground | Ignition switch LOCK or ACC | No voltage |
| 1 - Ground | Ignition switch ON | Battery positive voltage |
If circuit is not as specified, inspect the circuits connected to other parts.
