Engine (3UZ-FE) - Diagnostics
>>
Circuit Inspection
>>
DTC P0420: Catalyst System Efficiency Below Threshold (Bank 1), DTC P0430 Catalyst System Efficiency Below Threshold (Bank 2)
>>
Typical Enabling Conditions
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Typical Enabling Conditions

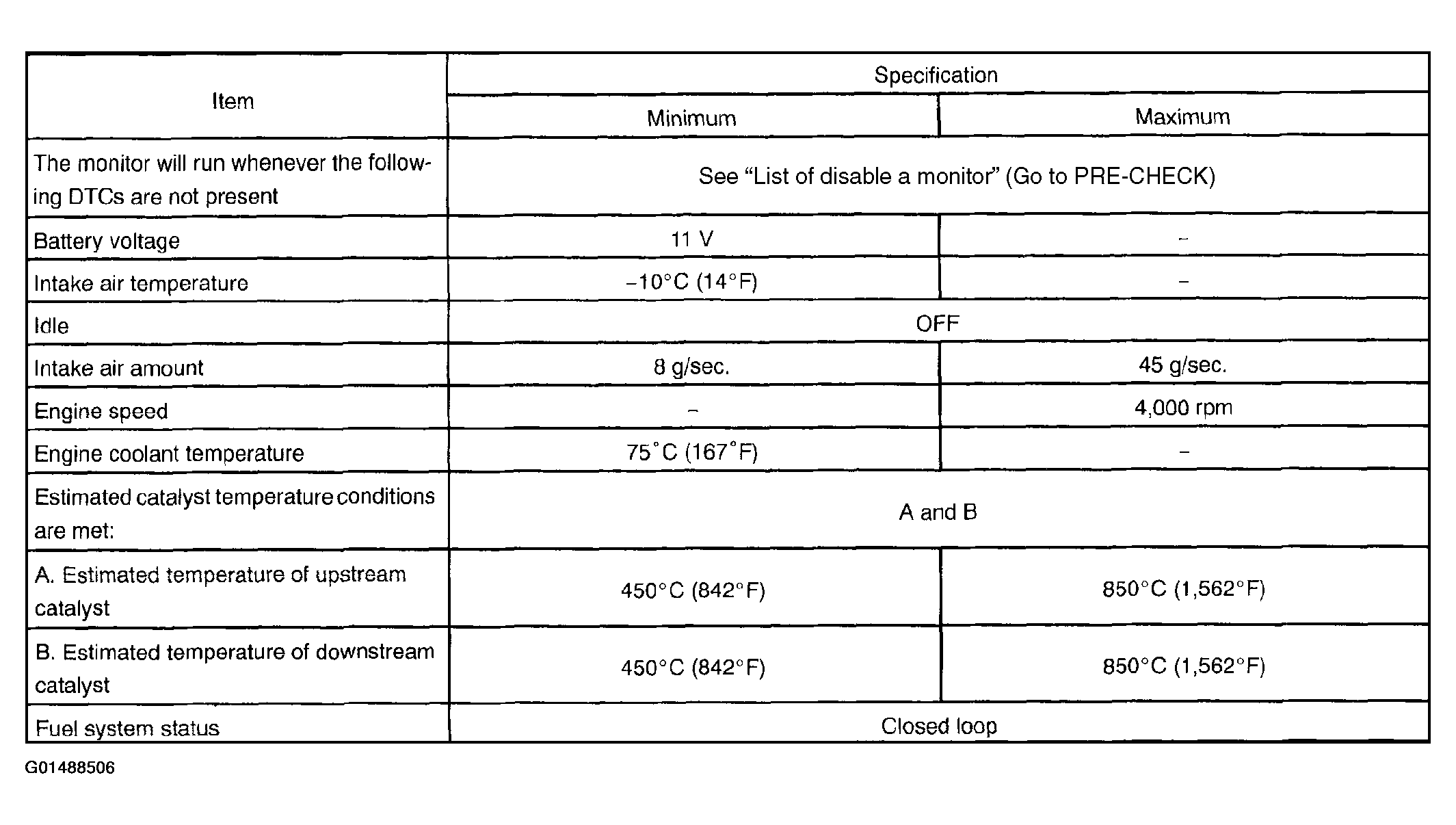

Fig 1: Typical Enabling Conditions Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
