Transmitter Sub-ASSY Module Set Door Control: Replacement

HINT:

The installation is in the reverse order of the removal.

1. REMOVE TRANSMITTER SUB-ASSY MODULE SET DOOR CONTROL
   NOTE: Special caution should be taken for handling each component as they are precise electronic components.
   1. Using a screwdriver, remove the screw.
   2. Push the cover with your finger, as shown in the illustration, so a gap appears, then pry out the cover using that gap.

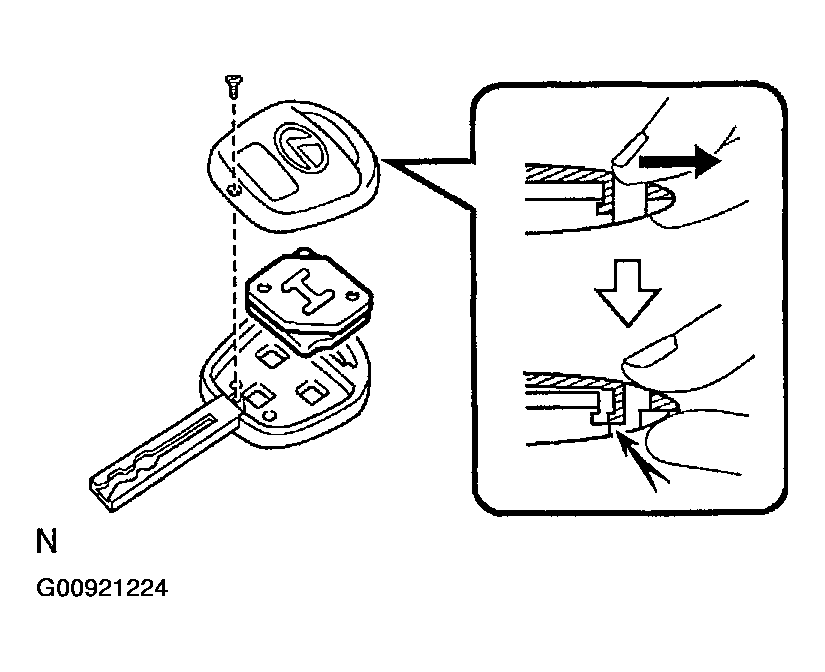

      Fig 1: Removing Transmitter Sub-Assy Module Set Door Control

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Do not forcibly pry the cover up.
