Steering Column ASSY: Components

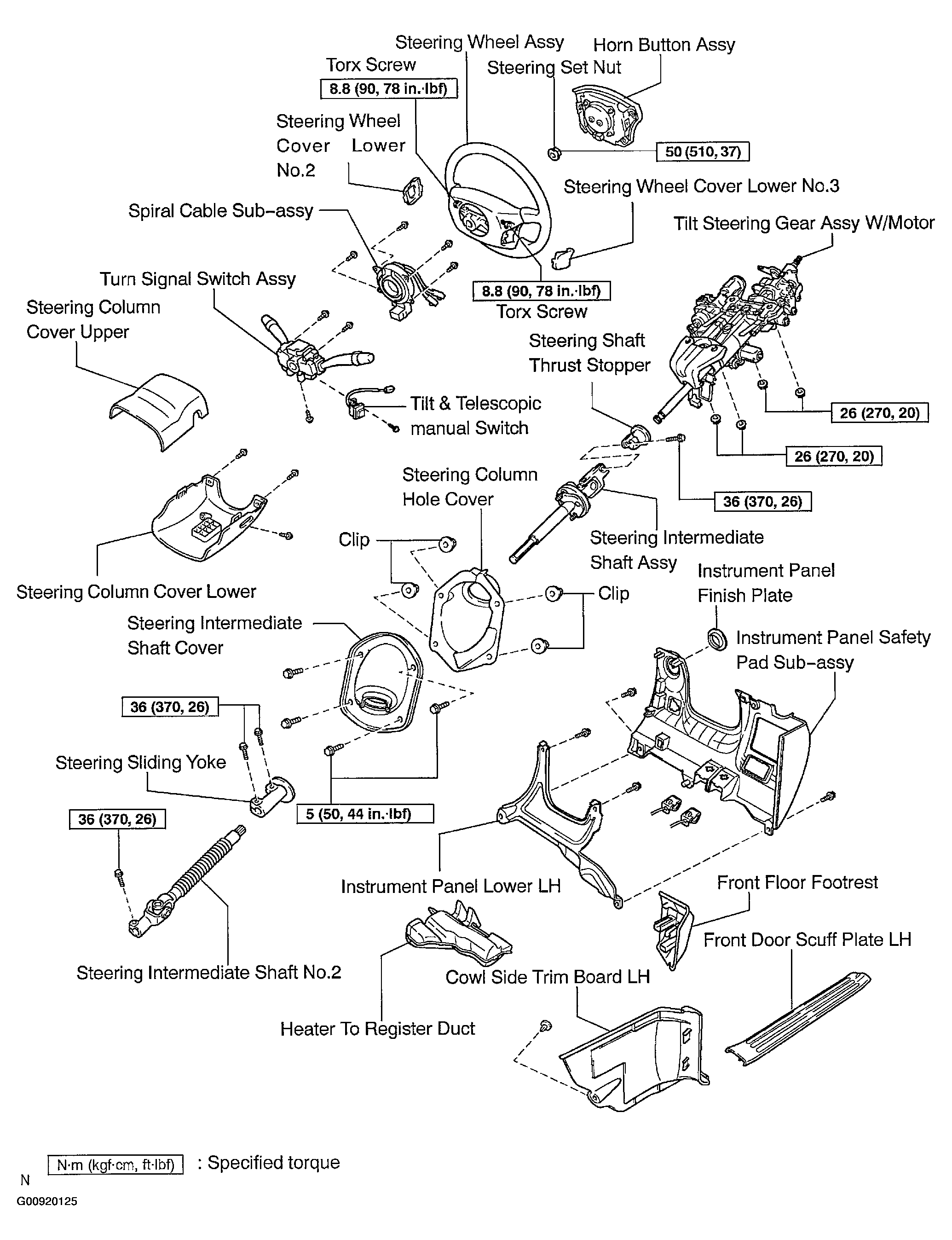

Fig 1: Identifying Components Of Steering Column Assy (1 Of 2)
G00920125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

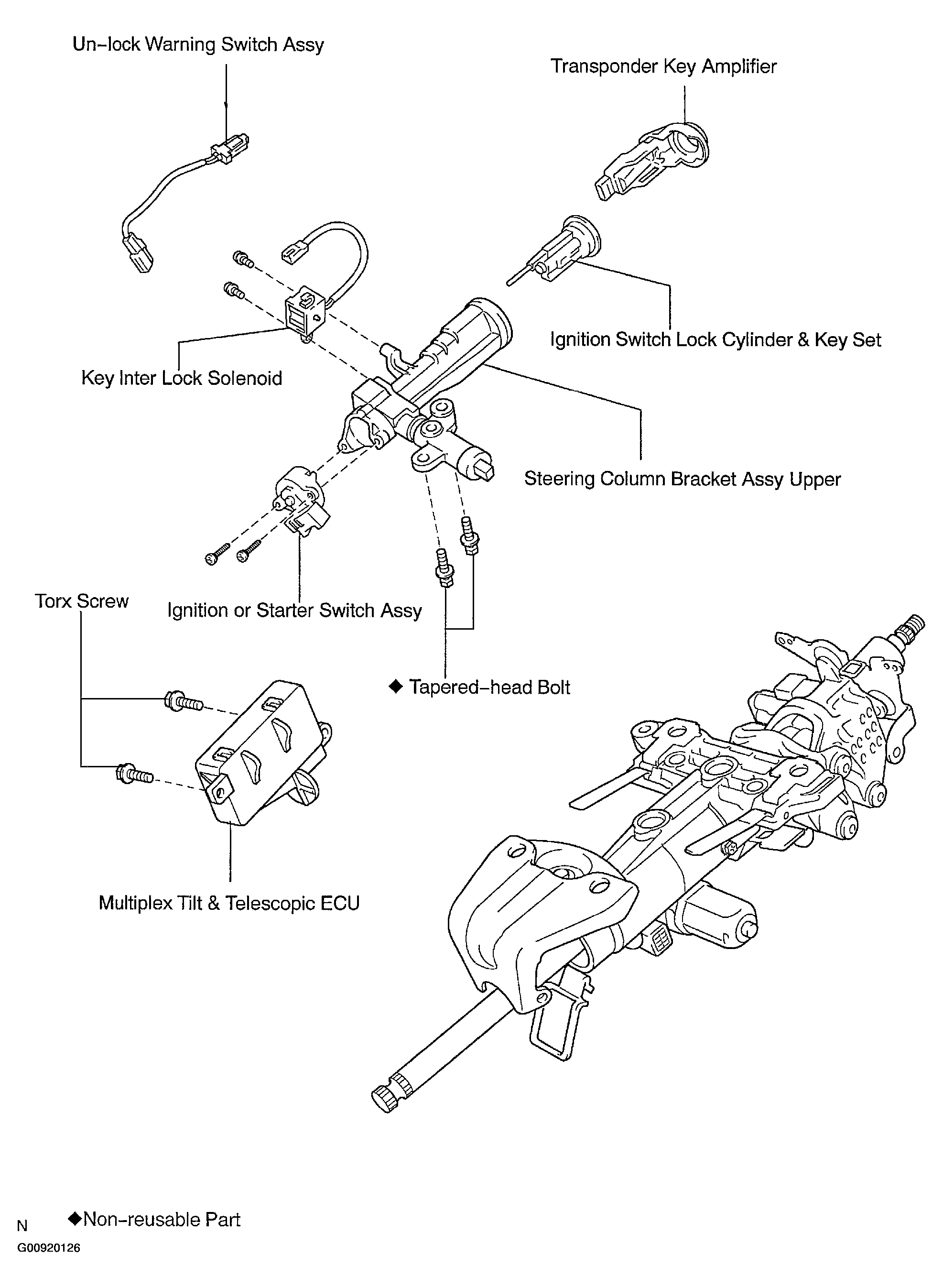

Fig 2: Identifying Components Of Steering Column Assy (2 Of 2)
G00920126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
