Center Diff. Lock System: Location

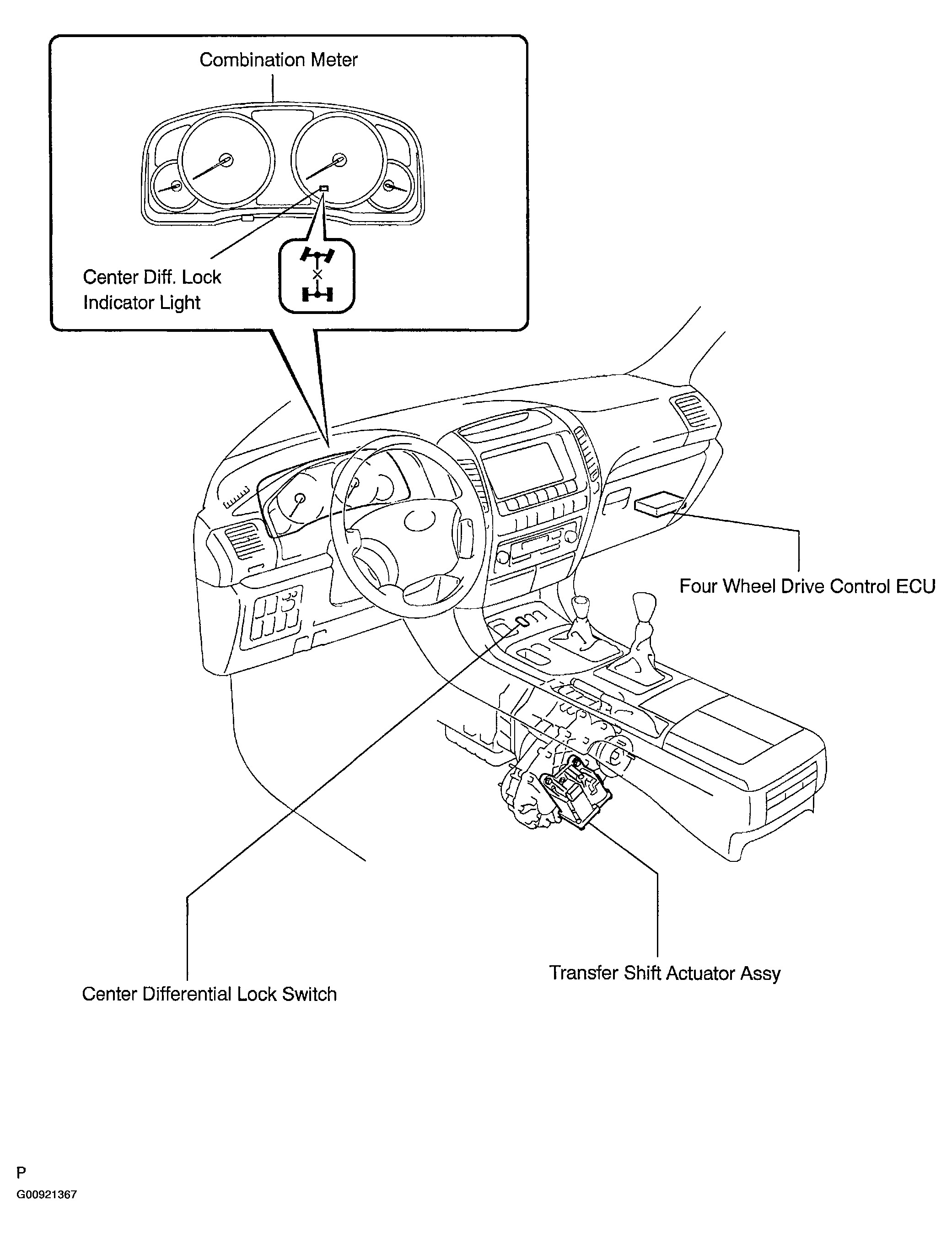

Fig 1: Identifying Center DIFF. Lock System Components Locations
G00921367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
