Transfer ASSY: Components

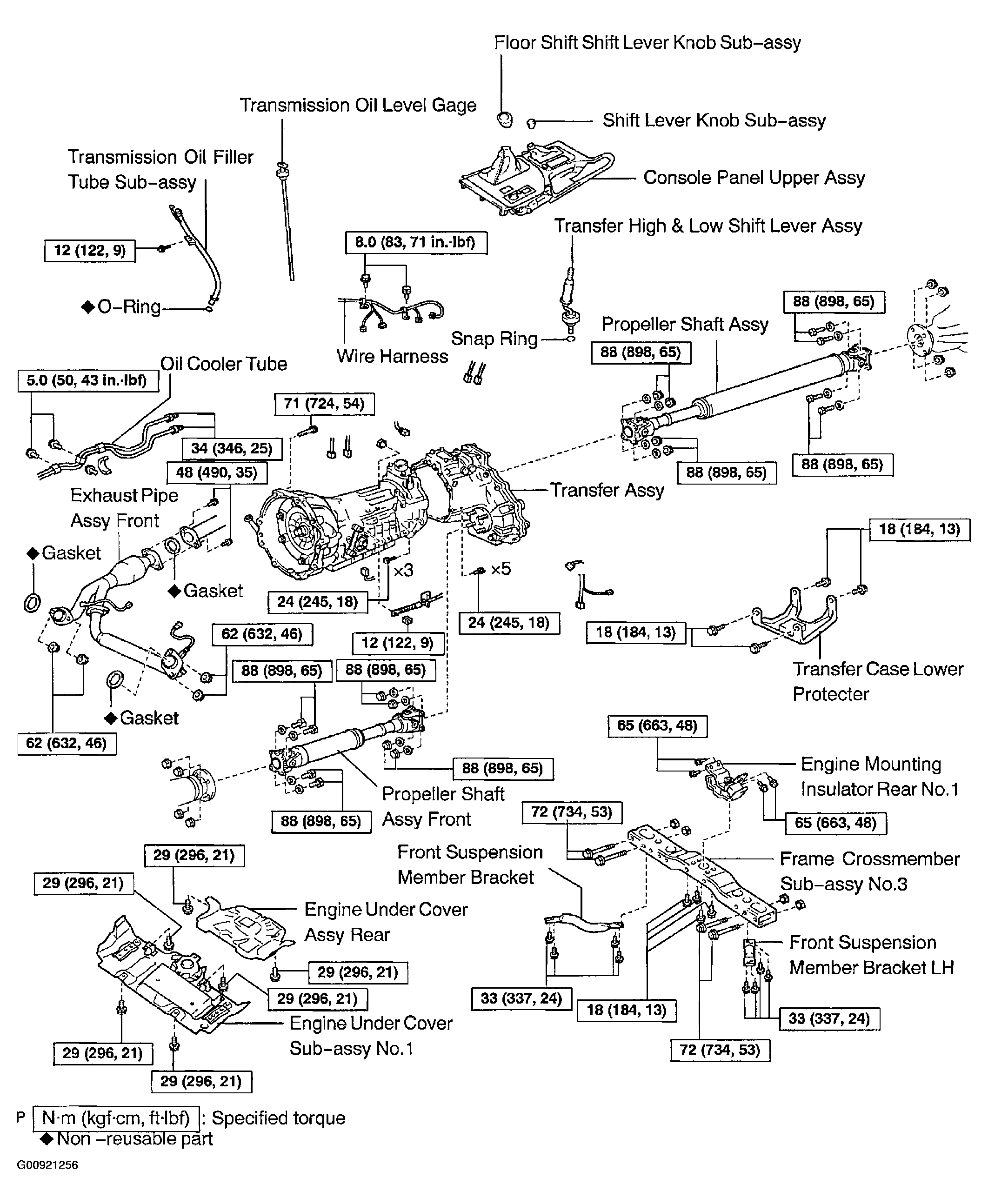

Fig 1: Identifying Transfer Assy Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

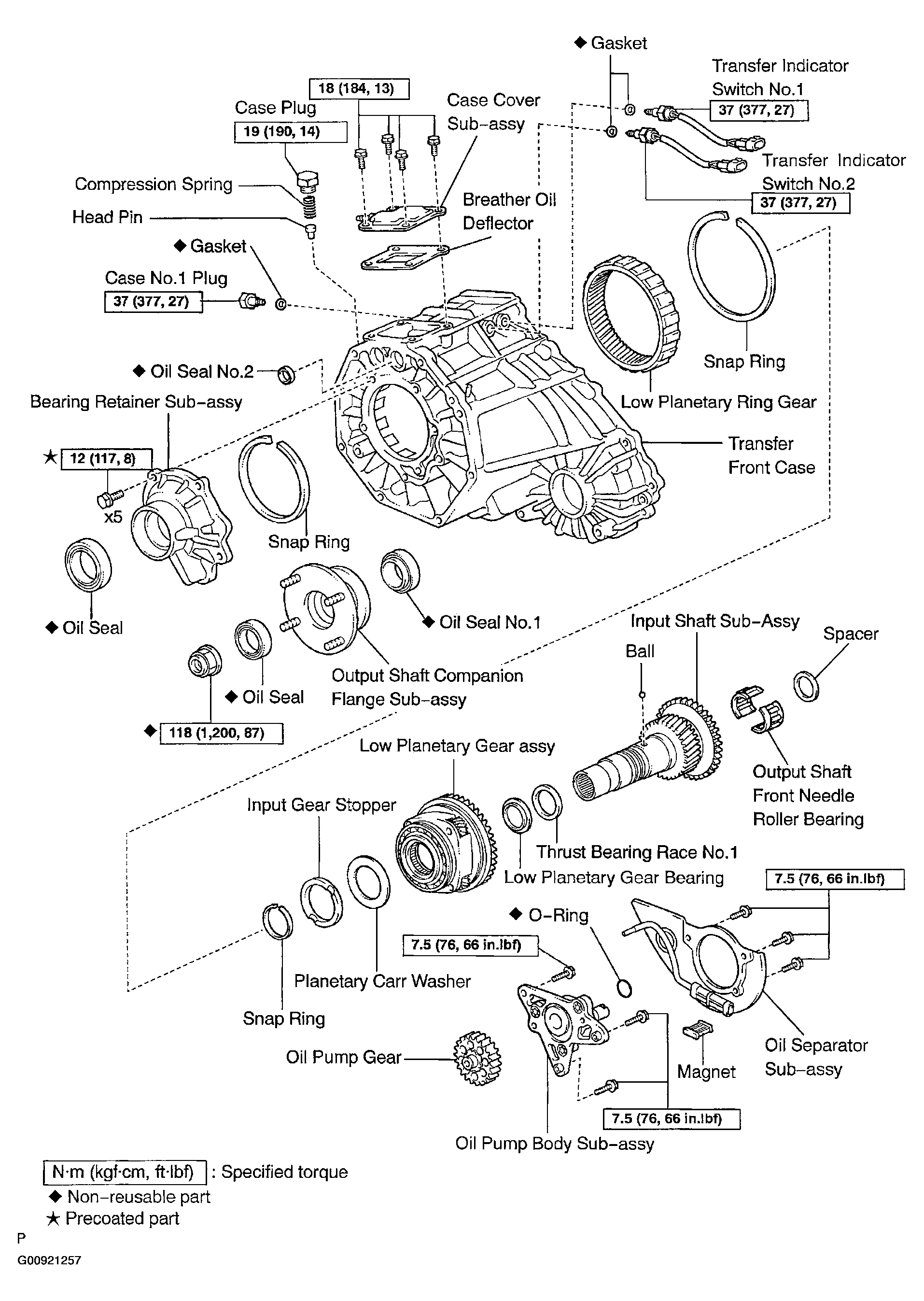

Fig 2: Identifying Transfer Assy Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

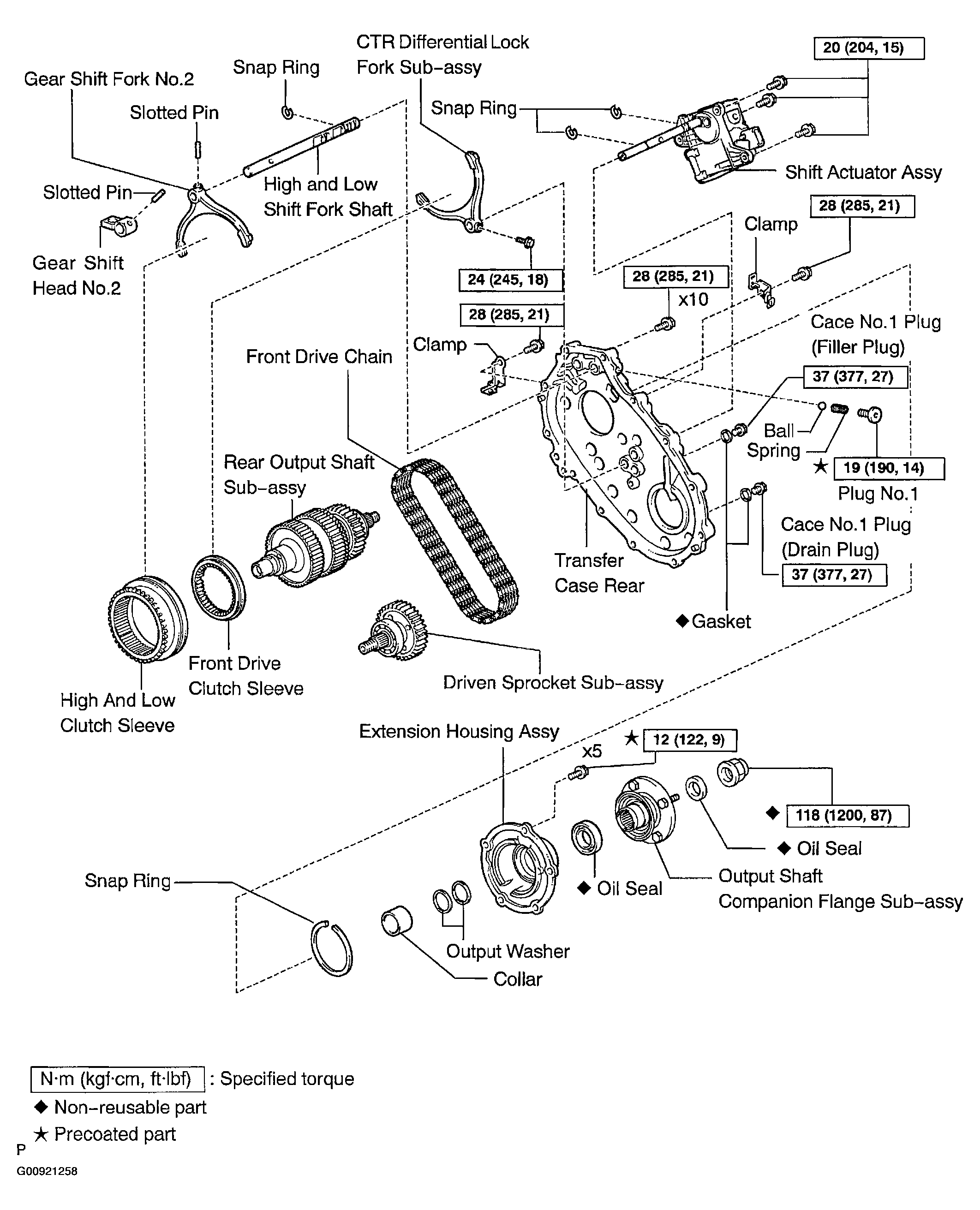

Fig 3: Identifying Transfer Assy Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

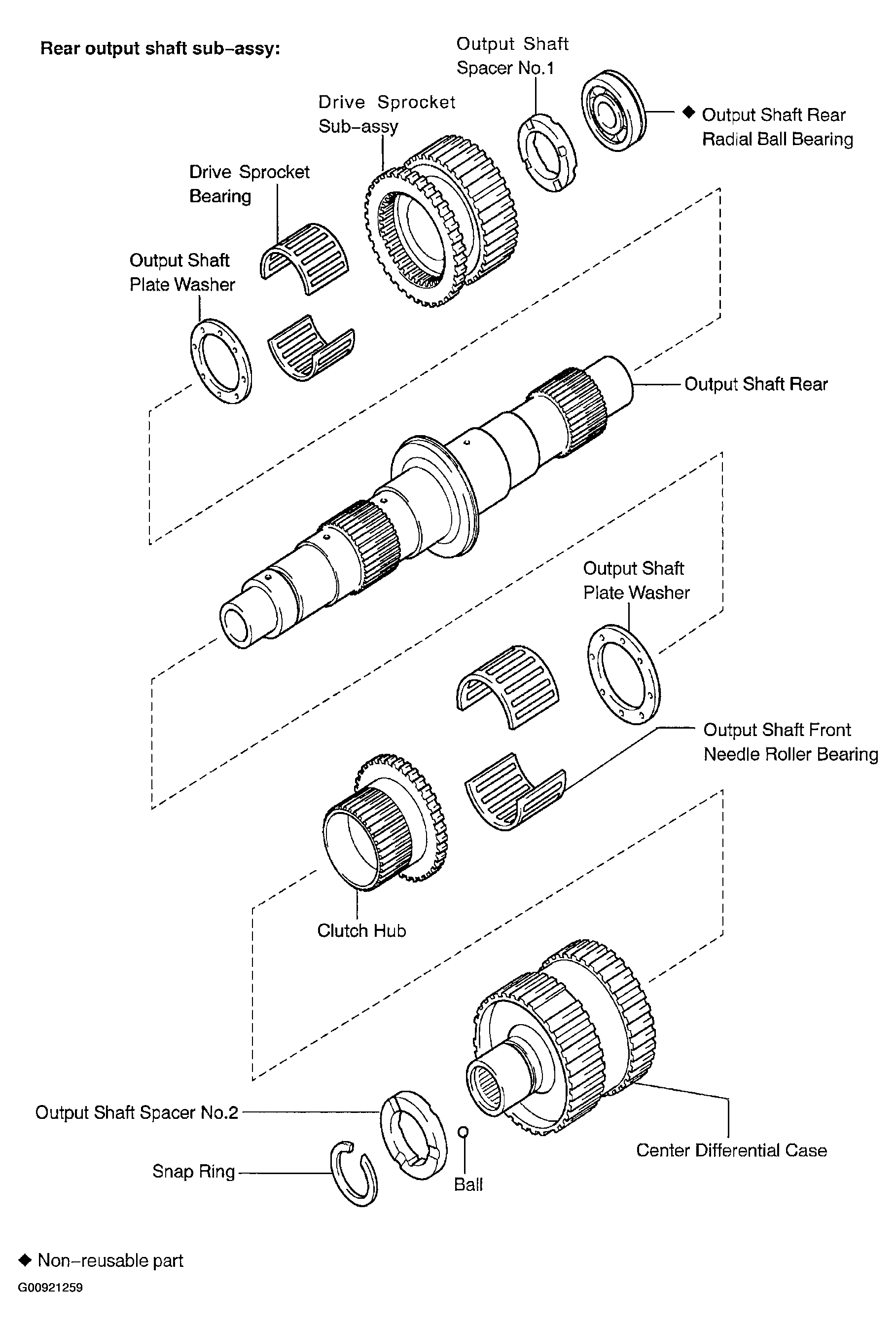

Fig 4: Exploded View Of Rear Output Shaft Sub-Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

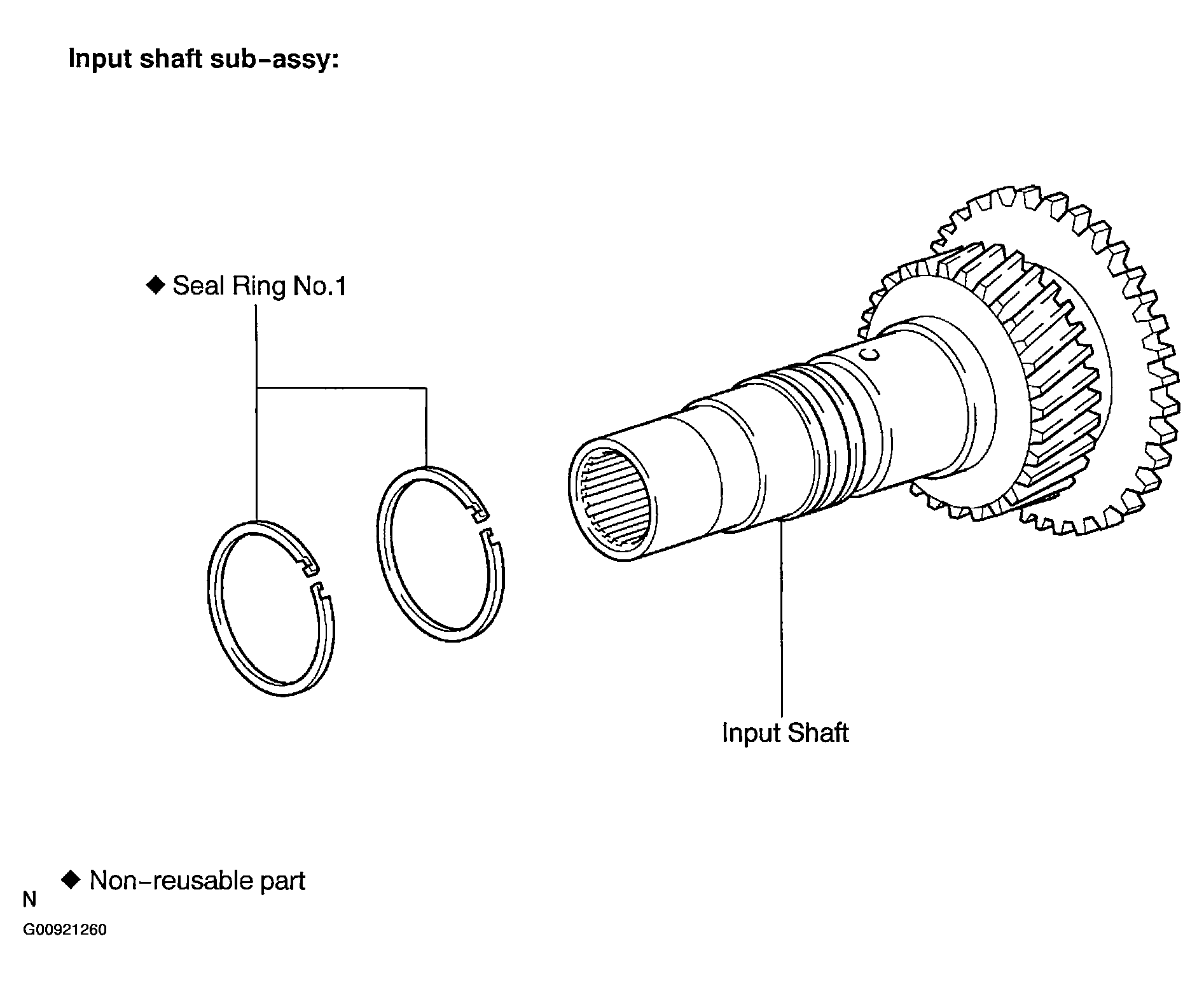

Fig 5: Exploded View Of Input Shaft Sub-Assy

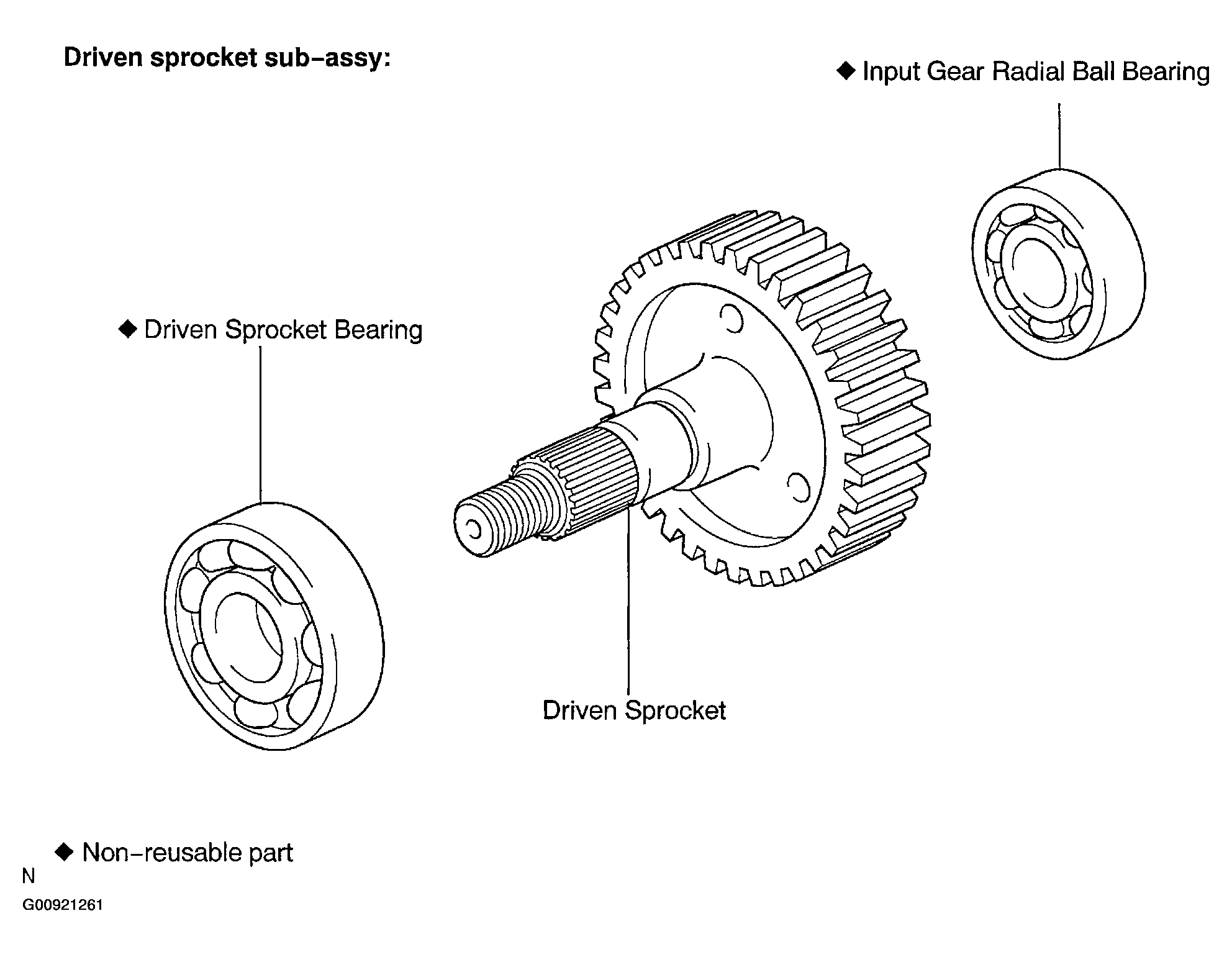

Fig 6: Exploded View Of Driven Sprocket Sub-Assy

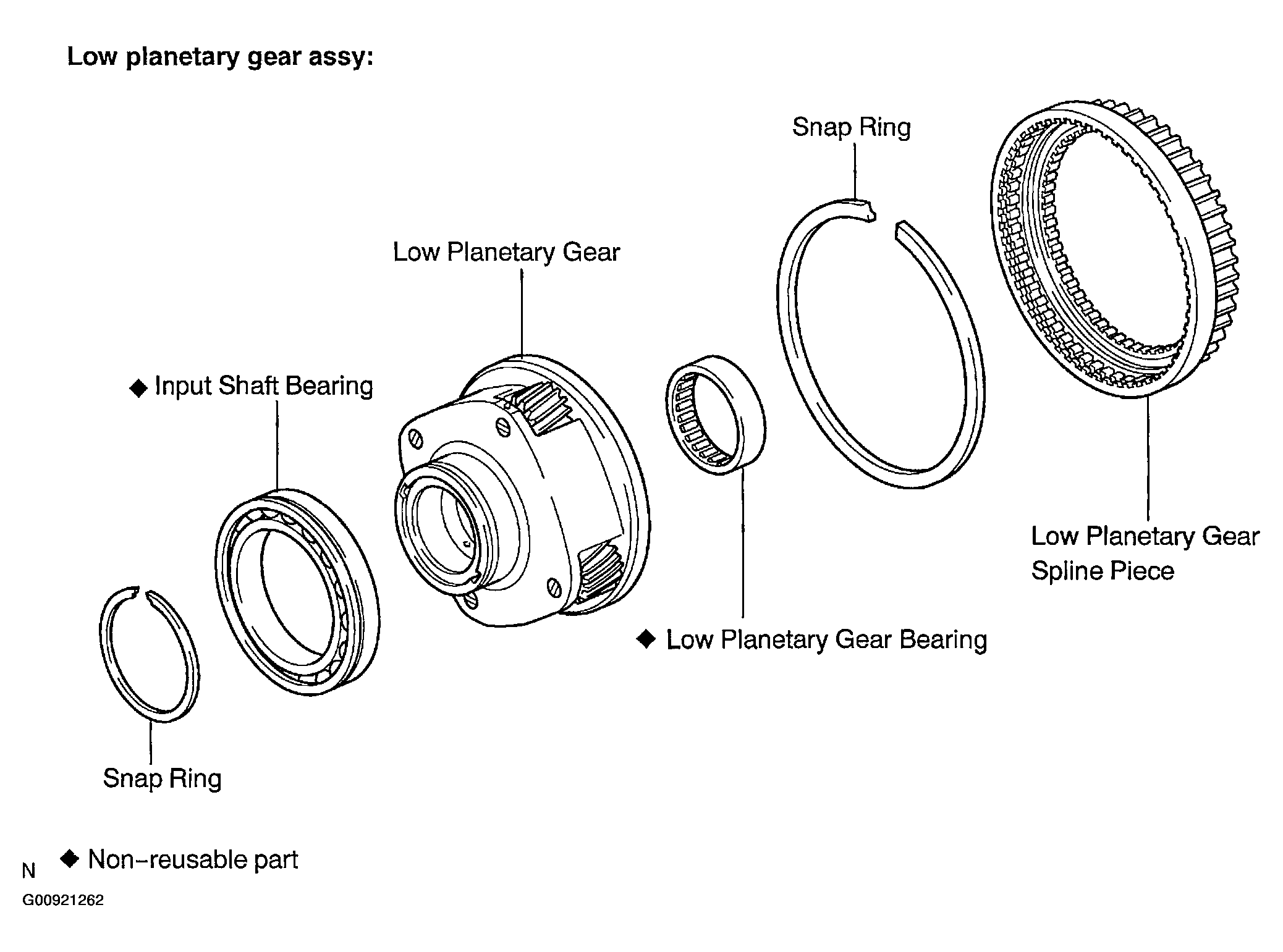

Fig 7: Exploded View Of Low Planetary Gear Assy
