Power Mirror Control System: Inspection

Left/right adjustment switch (Left side): INSPECT MIRROR SWITCH CONTINUITY

SWITCH POSITION SPECIFICATION

Switch position	Specified condition
UP	1-10 3-4
RIGHT	1-3 9-4
DOWN	1-3 10-4
LEFT	1-9 3-4

If continuity is not as specified, replace the switch.

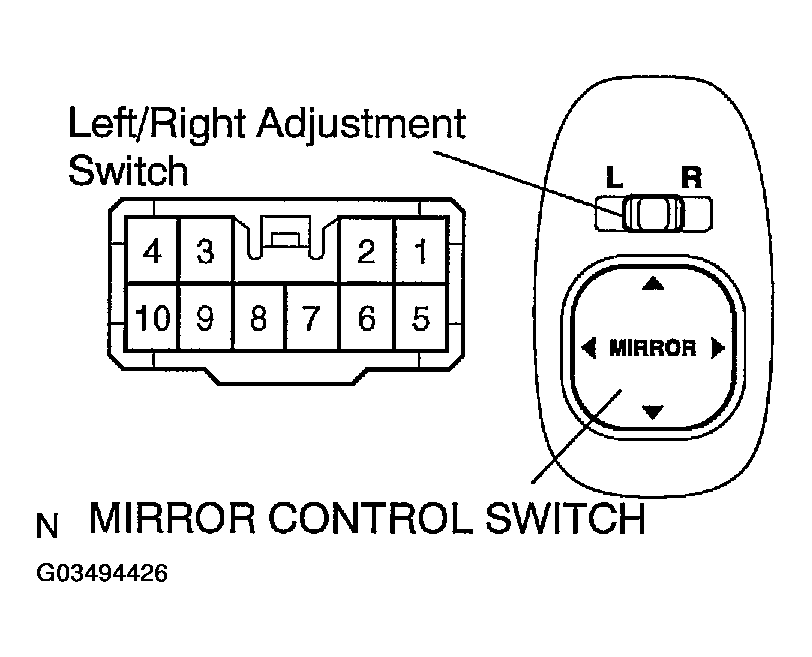

Fig 1: Inspecting Left/Right Adjustment Switch (Left Side)

G03494426

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Left/right adjustment switch (Right side): INSPECT MIRROR SWITCH CONTINUITY

SWITCH POSITION SPECIFICATION

Switch position	Specified condition
UP	1-6 3-4
RIGHT	1-3 2-4
DOWN	1-3 6-4
LEFT	1-2 3-4

If continuity is not as specified, replace the switch.

INSPECT MIRROR MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 8 and the negative (-) lead to terminal 7, and check that the mirror turns to the upward.
2. Reverse the polarity, and check that the mirror turns to the downward.
3. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 7, and check that the mirror turns to the inside.
4. Reverse the polarity, and check that the mirror turns outside.
If operation is not as specified, replace the mirror assembly.

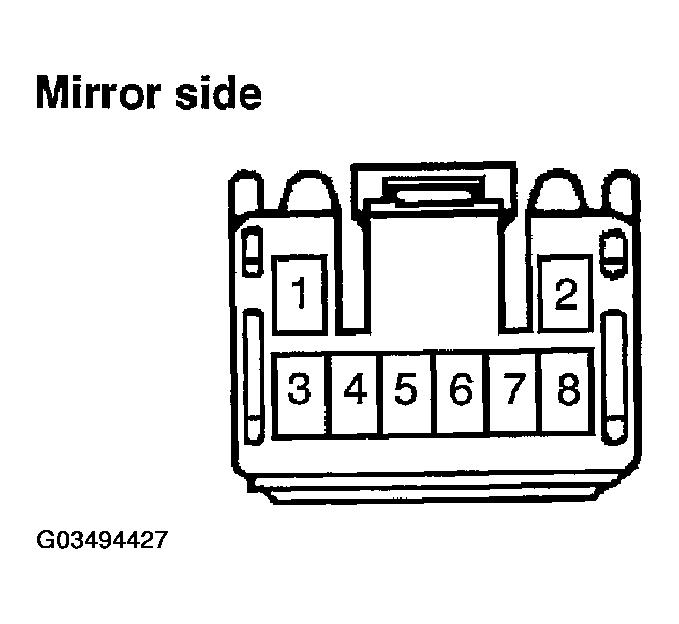

Fig 2: Inspecting Mirror Motor Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
