Diagnostic Trouble Code Chart
HINT:
Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.
If a malfunction code is displayed during the DTC check mode, check the circuit for the codes listed in the table below.

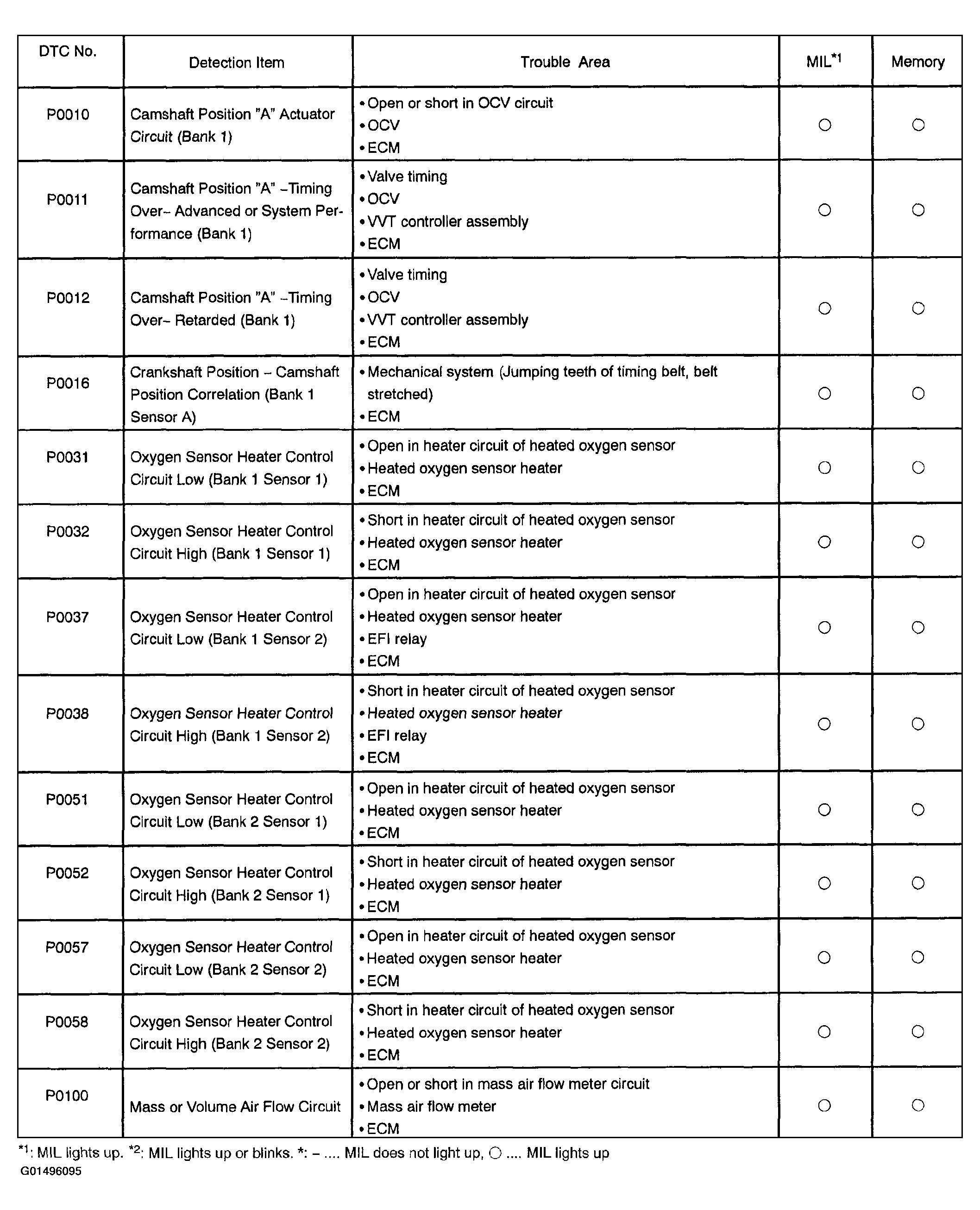

DIAGNOSTIC TROUBLE CODE CHART
| DTC | Description |
|---|---|
| DTC P0010 | Camshaft Position "A" Actuator circuit (Bank 1) |
| DTC P0011 | Camshaft Position "A" -Timing Over-Actuator or System Performance (Bank 1) |
| DTC P0012 | Camshaft Position "A" - Timing Over-Retarded (Bank 1) |
| DTC P0016 | Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor A) |
| DTC P0031 | Oxygen Sensor Heater Control Circuit Low (Bank 1 Sensor 1) |
| DTC P0032 | Oxygen Sensor Heater Control Circuit High (Bank 1 Sensor 1) |
| DTC P0037 | Oxygen Sensor Heater Control Circuit Low (Bank 1 Sensor 2) |
| DTC P0038 | Oxygen Sensor Heater Control Circuit High (Bank 1 Sensor 2) |
| DTC P0051 | Oxygen Sensor Heater Control Circuit Low (Bank 2 Sensor 1) |
| DTC P0052 | Oxygen Sensor Heater Control Circuit High (Bank 2 Sensor 1) |
| DTC P0057 | Oxygen Sensor Heater Control Circuit Low (Bank 2 Sensor 2) |
| DTC P0058 | Oxygen Sensor Heater Control Circuit High (Bank 2 Sensor 2) |

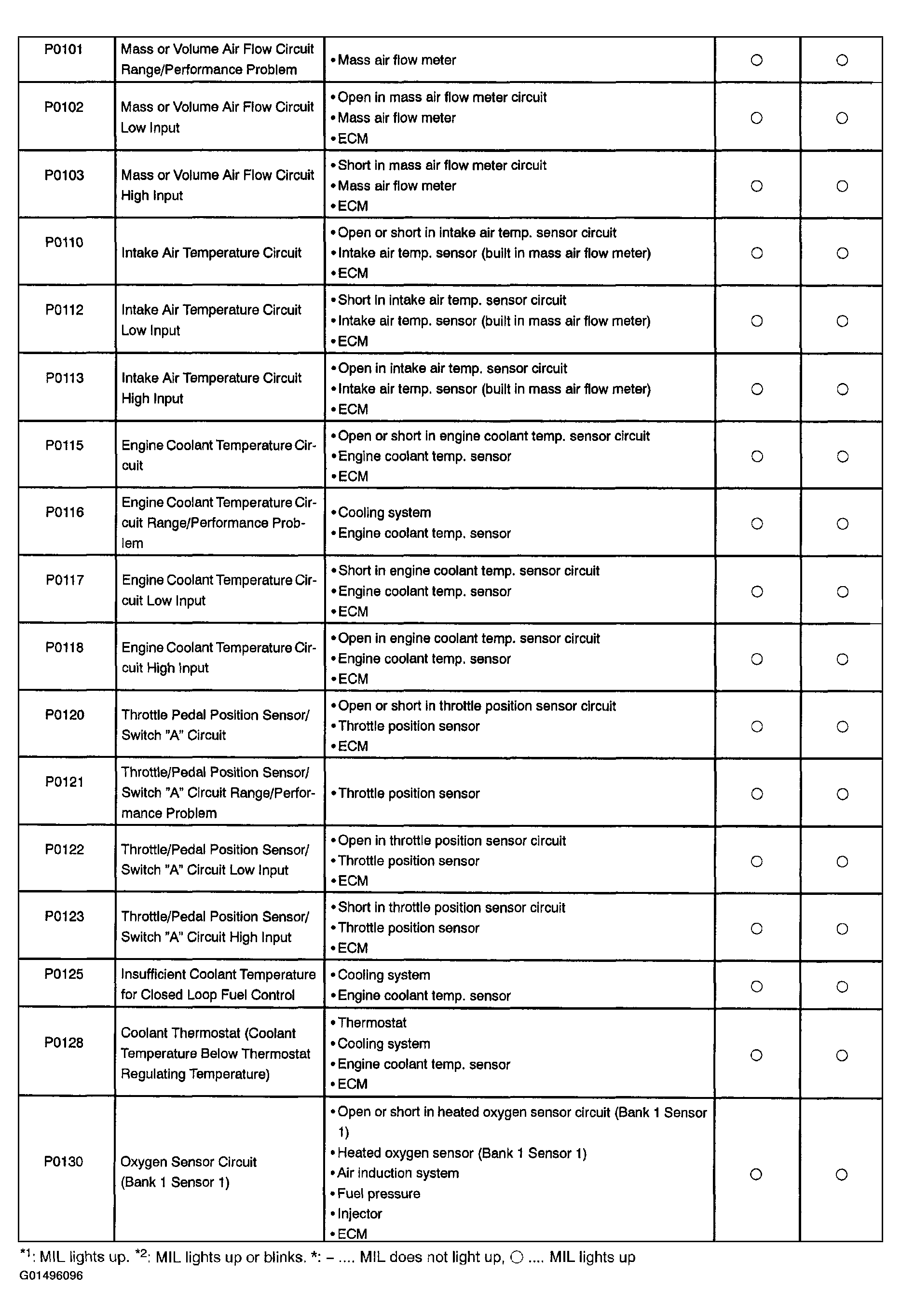

| DTC P0100 | Mass Or Volume Air Flow Circuit |
| DTC P0102 | Mass Or Volume Air Flow Circuit Low Input |
| DTC P0103 | Mass Or Volume Air Flow Circuit High Input |
| DTC P0101 | Mass Or Volume Air Flow Circuit Range/Performance Problem |
| DTC P0110 | Intake Air Temperature Circuit |
| DTC P0112 | Intake Air Temperature Circuit Low Input |
| DTC P0113 | Intake Air Temperature Circuit High Input |
| DTC P0115 | Engine Coolant Temperature Circuit |
| DTC P0117 | Engine Coolant Temperature Circuit Low Input |
| DTC P0118 | Engine Coolant Temperature Circuit High Input |
| DTC P0116 | Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor A) |
| DTC P0120 | Throttle Pedal Position Sensor/Switch "A" Circuit |
| DTC P0122 | Throttle Pedal Position Sensor/Switch "A" Circuit Low Input |
| DTC P0123 | Throttle Pedal Position Sensor/Switch "A" Circuit High Input |
| DTC P0121 | Throttle/Pedal Position Sensor/Switch "A" Circuit Range/Performance problem |
| DTC P0125 | Insufficient Coolant Temperature For Closed Loop Fuel Control |
| DTC P0128 | Coolant Thermostat (Coolant Temperature Below Thermostat Regulating Temperature) |
| DTC P0130 | Oxygen Sensor Circuit (Bank 1 Sensor 1) |
| DTC P0150 | Oxygen Sensor Circuit (Bank 2 Sensor 1) |
| DTC P2195 | Oxygen Sensor Signal Stack Lean (Bank 1 Sensor 1) |
| DTC P2196 | Oxygen Sensor Signal Stack Rich (Bank 1 Sensor 1) |
| DTC P2197 | Oxygen Sensor Signal Stack Lean (Bank 2 Sensor 1) |
| DTC P2198 | Oxygen Sensor Signal Stack Rich (Bank 2 Sensor 1) |

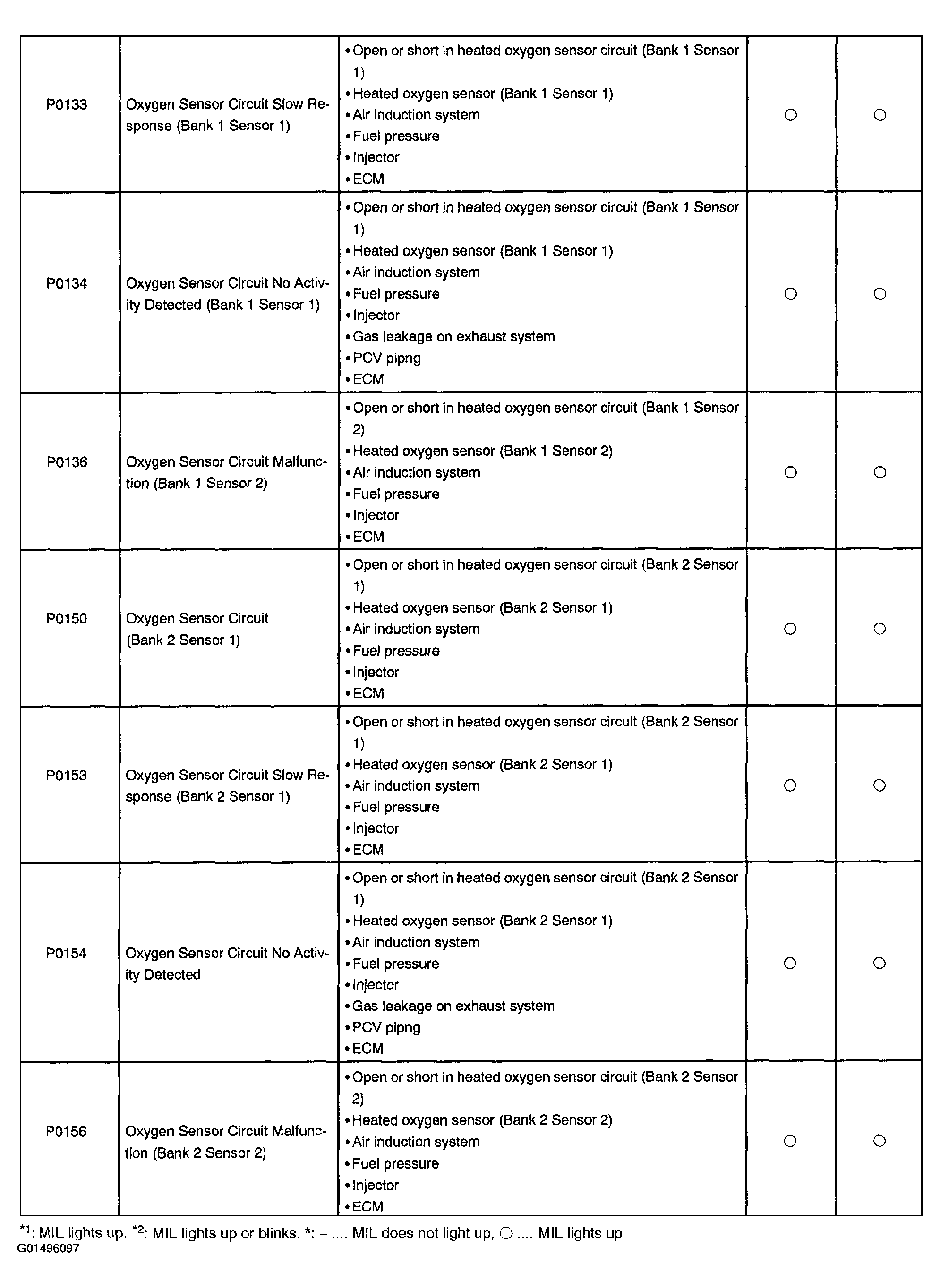

| DTC P0133 | Oxygen Sensor Circuit Slow Response (Bank 1 Sensor 1) |
| DTC P0153 | Oxygen Sensor Circuit Slow Response (Bank 2 Sensor 1) |
| DTC P0134 | Oxygen Sensor Circuit No Activity Detected (Bank 1 Sensor 1) |
| DTC P0154 | Oxygen Sensor Circuit No Activity Detected (Bank 2 Sensor 1) |
| DTC P0136 | Oxygen Sensor Circuit Malfunction (Bank 1 Sensor 2) |
| DTC P0156 | Oxygen Sensor Circuit Malfunction (Bank 2 Sensor 2) |

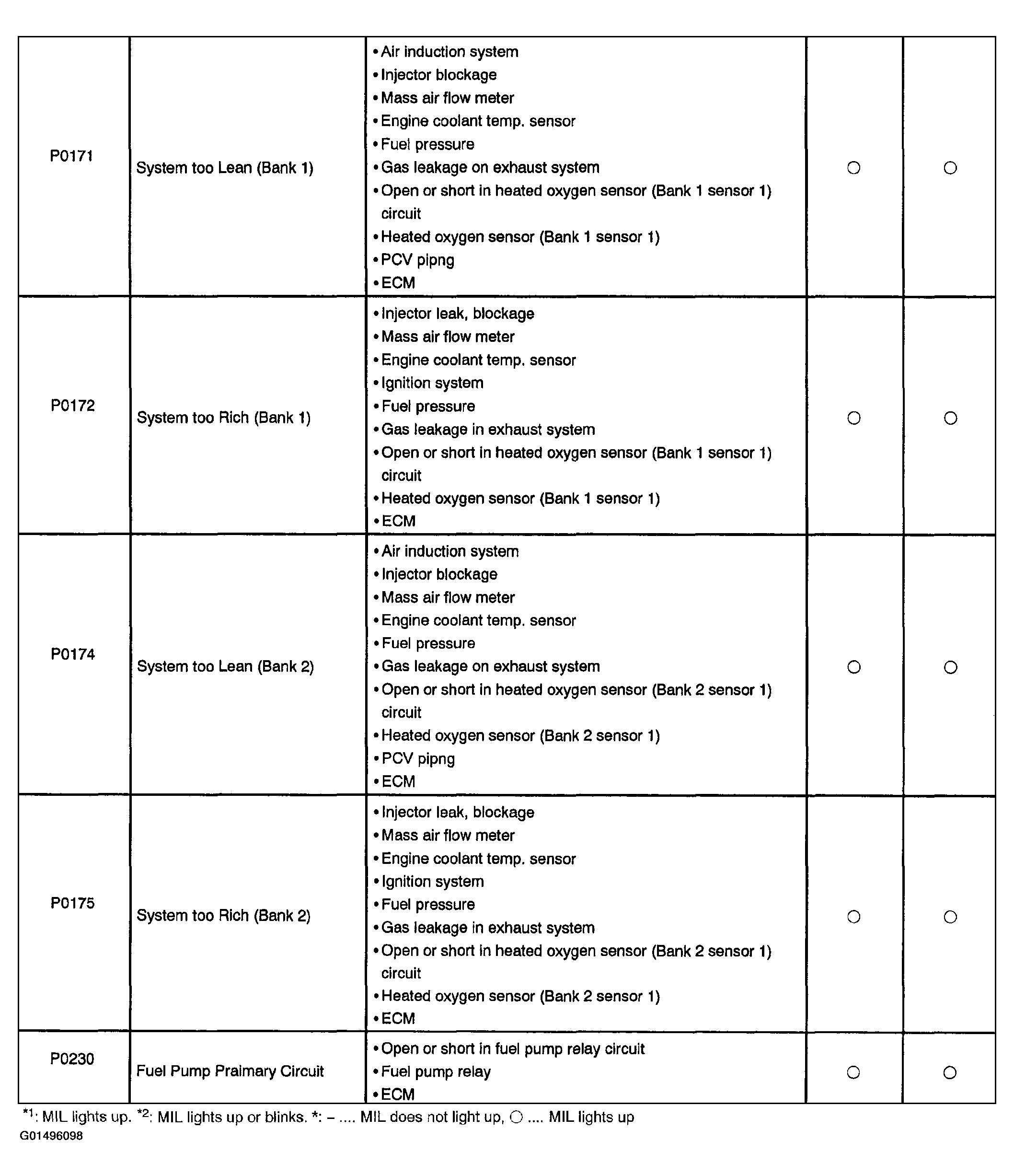

| DTC P0171 | System too Lean (Bank 1) |
| DTC P0172 | System Too Rich (Bank 1) |
| DTC P0174 | System Too Lean (Bank 2) |
| DTC P0175 | System Too Rich (Bank 2) |
| DTC P0230 | Fuel Pump Primary Circuit |

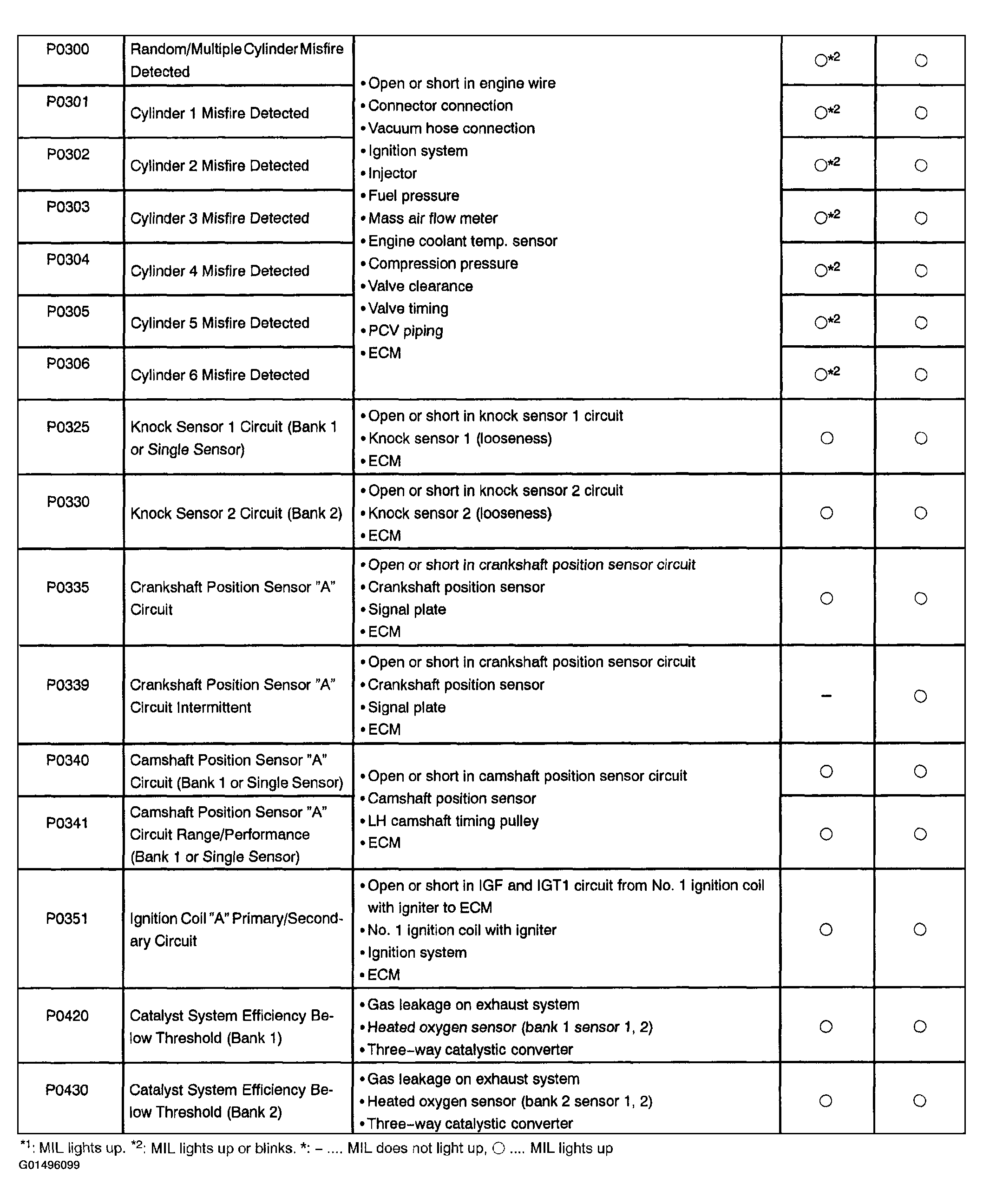

| DTC P0300 | Random/Multiple Cylinder Misfire Detected |
| DTC P0301 | Cylinder 1 Misfire Detected |
| DTC P0302 | Cylinder 2 Misfire Detected |
| DTC P0303 | Cylinder 3 Misfire Detected |
| DTC P0304 | Cylinder 4 Misfire Detected |
| DTC P0305 | Cylinder 5 Misfire Detected |
| DTC P0306 | Cylinder 6 Misfire Detected |
| DTC P0325 | Knock Sensor 1 Circuit (Bank 1 or Single Sensor) |
| DTC P0330 | Knock Sensor 2 Circuit Malfunction (Bank 2) |
| DTC P0335 | Crankshaft Position Sensor "A" circuit |
| DTC P0339 | Crankshaft Position Sensor "A" circuit Intermittent |
| DTC P0340 | Camshaft Position Sensor "A" Circuit (Bank 1 Or Single Sensor) |
| DTC P0341 | Camkshaft Position Sensor "A" Circuit Range/Performance (Single Sensor) |
| DTC P0351 | Igniter Coil "A" Primary/Secondary Circuit |
| DTC P0420 | Catalyst System Efficiency Below Threshold (Bank 1) |
| DTC P0430 | Catalyst System Efficiency Below Threshold (Bank 2) |

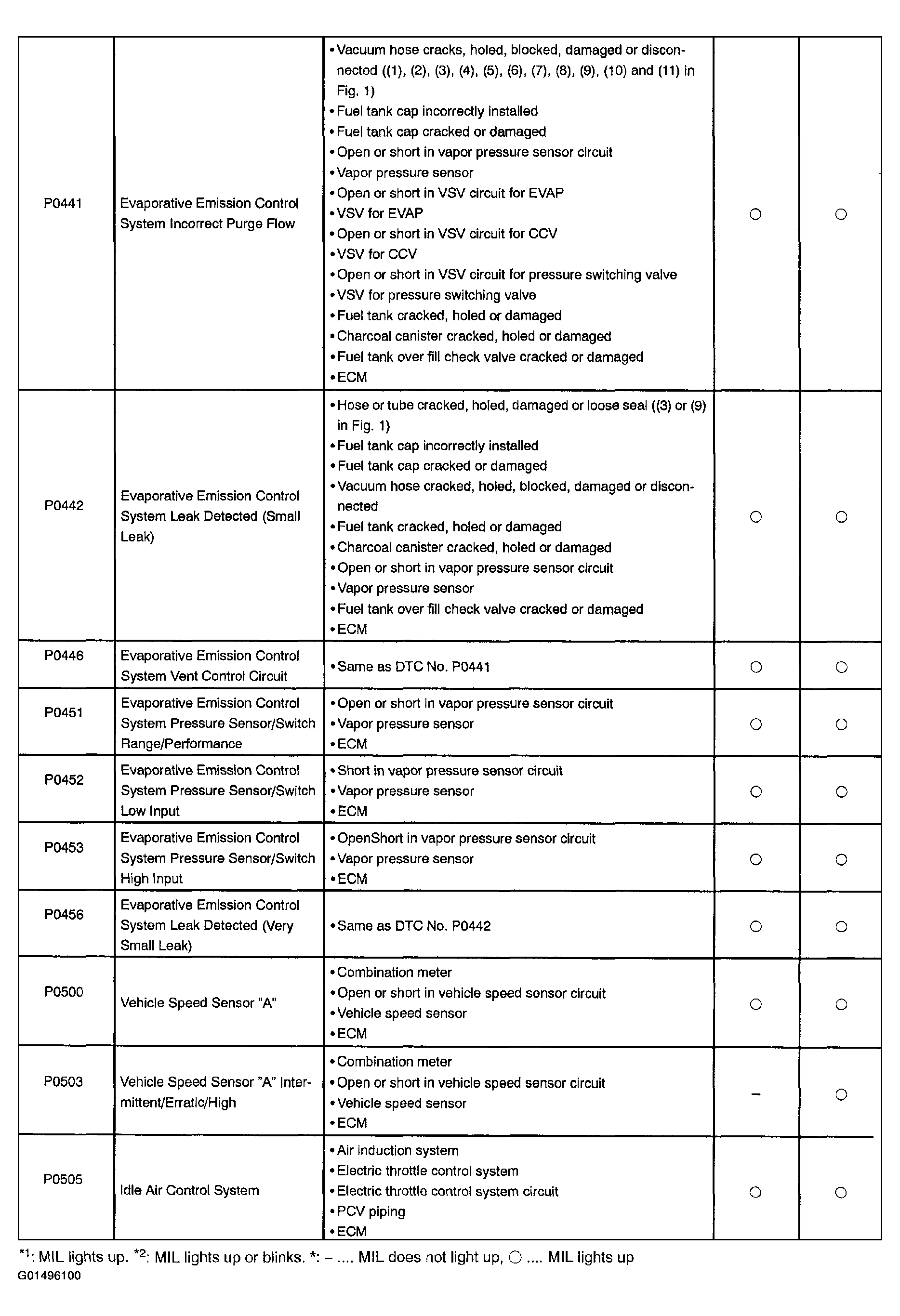

| DTC P0441 | Evaporative Emission Control System Incorrect Purge Flow |
| DTC P0446 | Evaporative Emission Control System Vent Control Circuit |
| DTC P0442 | Evaporative Emission Control System Leak Detected (Small Leak) |
| DTC P0456 | Evaporative Emission Control System Leak Detected (Very Small Leak) |
| DTC P0451 | Evaporative Emission Control System Pressure Sensor/Switch Range/Performance |
| DTC P0452 | Evaporative Emission Control System Pressure Sensor/Switch Low Input |
| DTC P0453 | Evaporative Emission Control System Pressure Sensor/Switch High Input |
| DTC P0500 | Vehicle Speed Sensor "A" |
| DTC P0503 | Vehicle Speed Sensor "A" Intermittent / Erratic / High |
| DTC P0505 | Idle Air Control System |

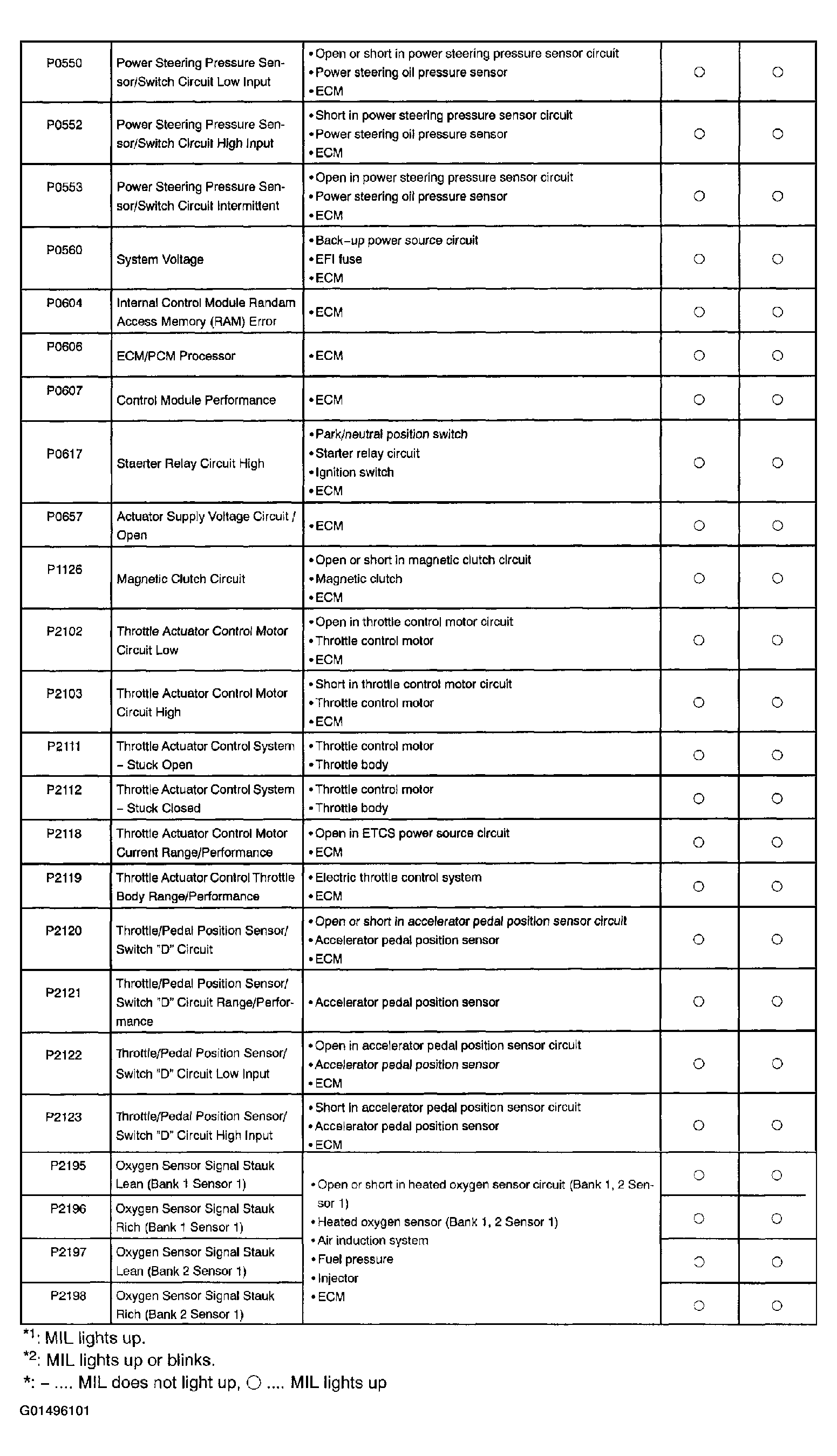

| DTC P0550 | Power Steering Pressure Sensor/Switch Circuit |
| DTC P0552 | Power Steering Pressure Sensor/Switch Circuit Low Input |
| DTC P0553 | Power Steering Pressure Sensor/Switch Circuit High Input |
| DTC P0560 | System Voltage |
| DTC P0604 | Internal Conform Module Random Access Memory (RAM) Error |
| DTC P0606 | ECM/PCM Processor |
| DTC P0607 | Control Module Performance |
| DTC P0657 | Actuator Supply Voltage Circuit / Open |
| DTC P0617 | Starter Relay Circuit High |
| DTC P1126 | Magnetic Clutch Circuit |
| DTC P2102 | Throttle Actuator Control Motor Circuit Low |
| DTC P2103 | Throttle Actuator Control Motor Circuit High |
| DTC P2111 | Throttle Actuator Control System-Stuck Open |
| DTC P2112 | Throttle Actuator Control System-Stuck Closed |
| DTC P2118 | Throttle Actuator Control Motor Current Range/Performance |
| DTC P2119 | Throttle Actuator Control Throttle Body Range/Performance |
| DTC P2120 | Throttle/pedal Position Sensor/Switch "D" Circuit |
| DTC P2122 | Throttle/pedal Position Sensor/Switch "D" Circuit |
| DTC P2123 | Throttle/Pedal Position Sensor/Switch "D" Circuit High Input |
| DTC P2121 | Throttle/Pedal Position Sensor/Switch "D" Circuit Range/Performance |
