Automatic Transmission Unit: Installation

Using calipers and a straight edge, measure from the distance from the installed surface of the transmission housing to the installed surface of the torque converter clutch.

1. Correct distance: More than 0.1 mm (0.004 in.)

If the distance is less than the standard, check for an improper installation.

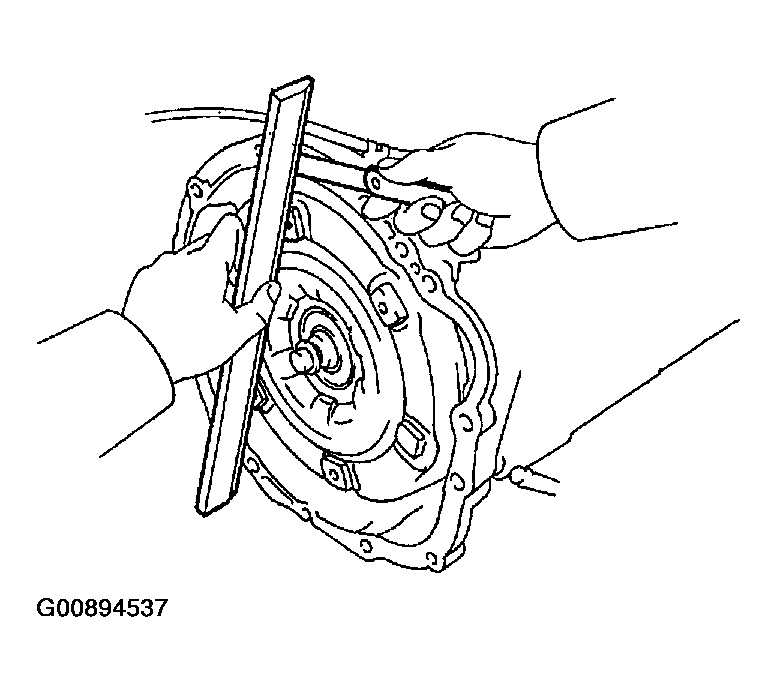

Fig 1: Measuring Distance From Installed Surface Of Transmission Housing To Installed Surface Of Torque Converter Clutch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Installation is in the reverse order of removal (See  REMOVAL  ).

HINT:

After installation, check and inspect items as follows.

• Adjust the shift lever position (See PRE-CHECK ).
• Fill ATF and check fluid level (See PRE-CHECK ).
• Do the road test (See PRE-CHECK ).
• Fill with engine coolant (See REPLACEMENT ).
