Shift Lock System: Inspection

INSPECT SHIFT LOCK CONTROL ECU
Using a voltmeter, measure the voltage at each terminal.

HINT:

Do not disconnect the shift lock control ECU connector.

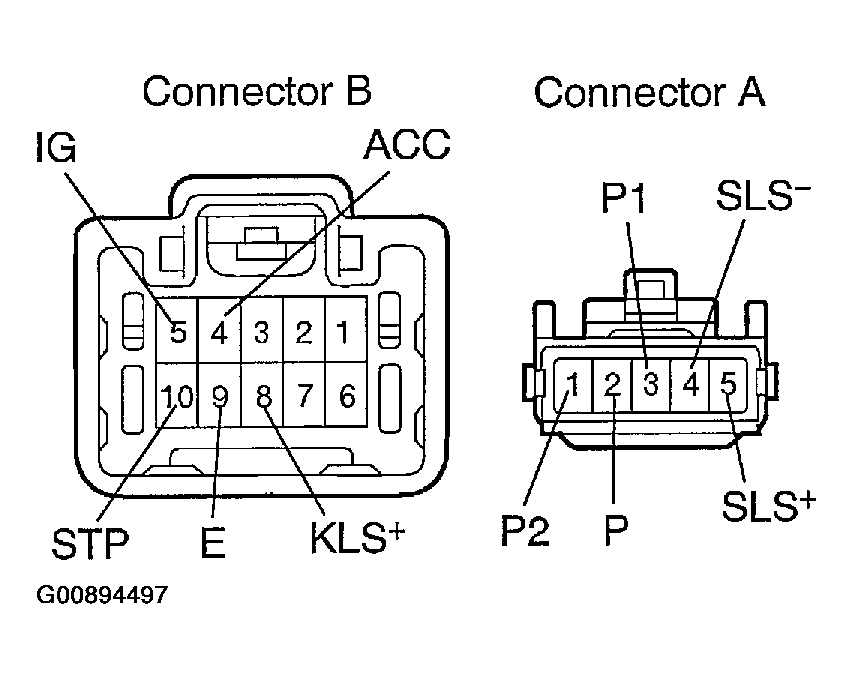

Fig 1: Inspecting Shift Lock Control ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

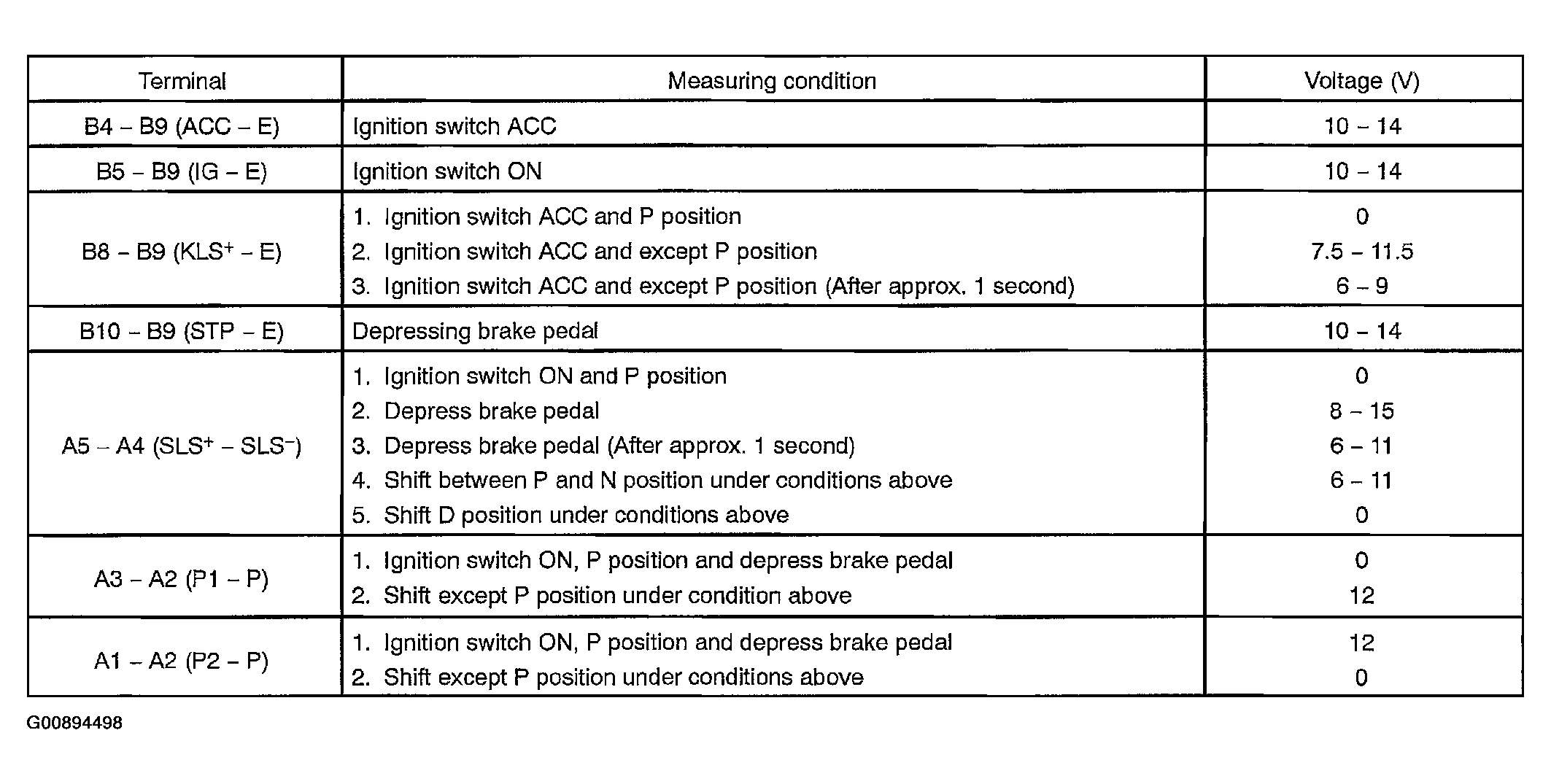

Fig 2: Shift Lock Control ECU Voltage Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT SHIFT LOCK SOLENOID
1. Disconnect the solenoid connector.
2. Using an ohmmeter, measure resistance between terminals.
  If resistance value is not as specified, replace the solenoid.
3. Check the solenoid operating sound when connecting the battery positive terminal to 5 (SLS+) and battery negative terminal to 4 (SLS-).
  If the solenoid does not operate, replace the solenoid.

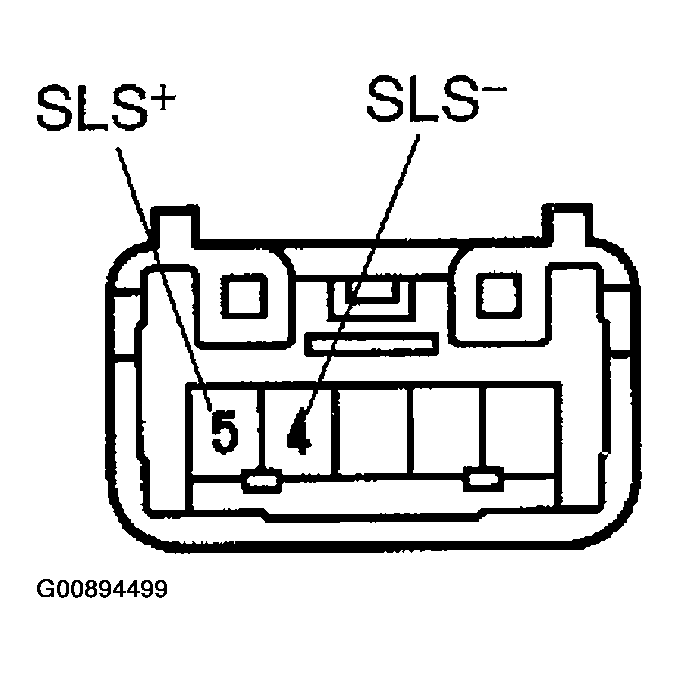

  Fig 3: Inspecting Shift Lock Solenoid
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT KEY INTERLOCK SOLENOID
1. Disconnect the solenoid connector.
2. Using an ohmmeter, measure resistance between terminals.
  If resistance valve is not as specified, replace the solenoid.
3. Check the solenoid operating sound when connecting the battery positive terminal to 4 (KLS+) and battery negative terminal to 3 (KLS-).
  If the solenoid does not operate, replace the solenoid.

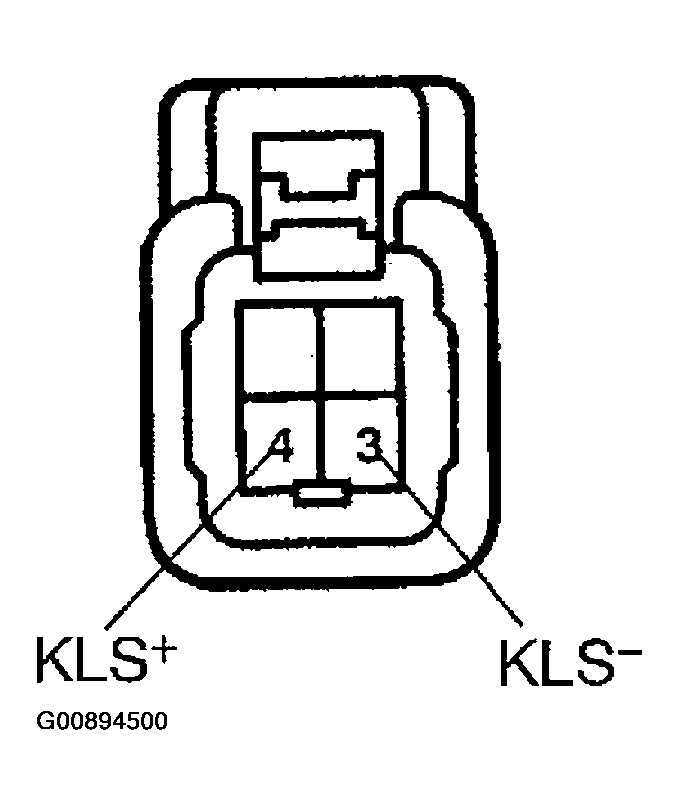

  Fig 4: Inspecting Key Interlock Solenoid
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT SHIFT LOCK CONTROL SWITCH
1. Disconnect the shift lock control switch.
2. Inspect that continuity exists between each terminal.

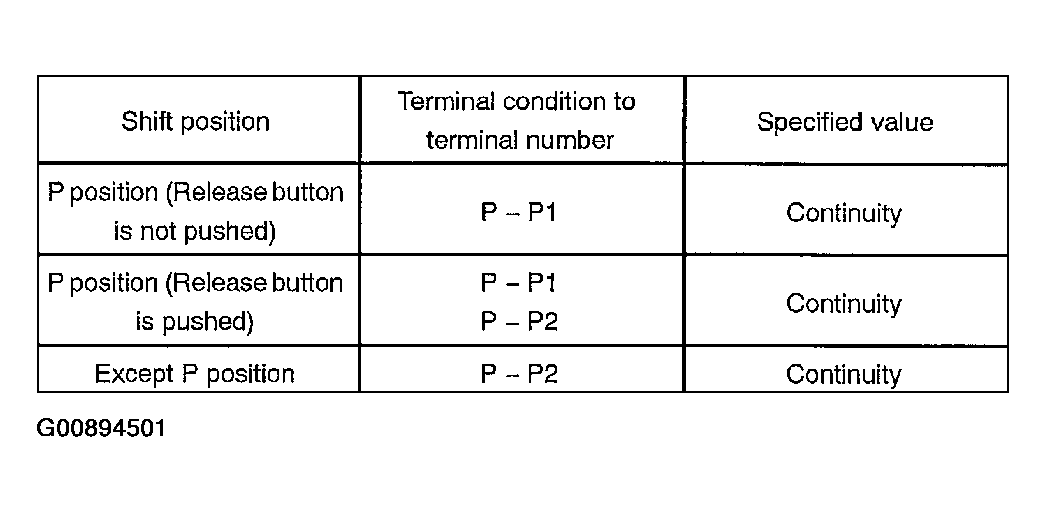

  Fig 5: Shift Lock Control Switch Continuity Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

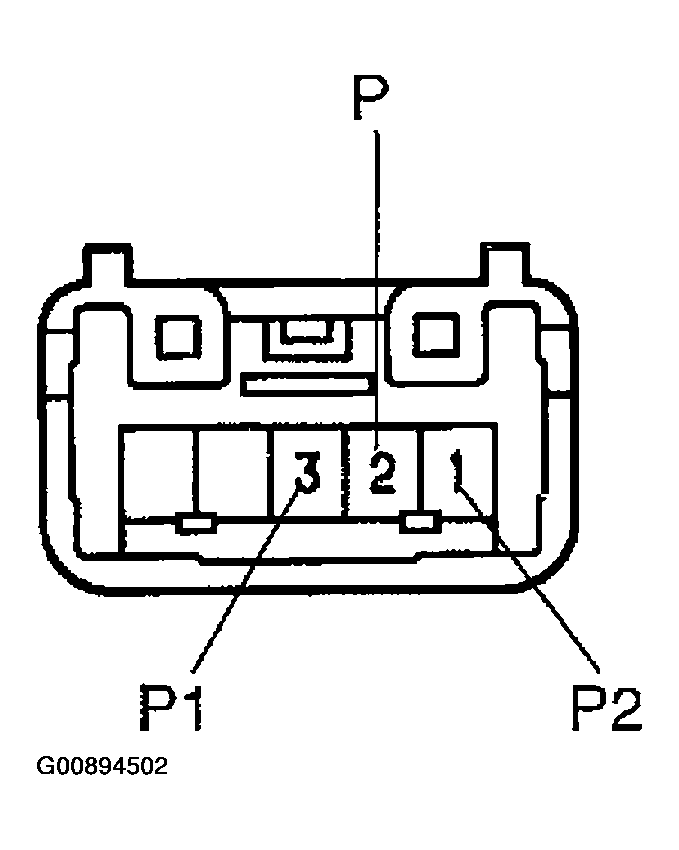

  Fig 6: Inspecting Shift Lock Control Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
