Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE COMPARTMENT RELAY IDENTIFICATION

RELAY DESCRIPTION
Daytime Running Light Relay No.3
Daytime Running Light Relay No.4
Headlight Cleaner Control Relay

Fig 2: Dash Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
Daytime Running Light Relay (Main)

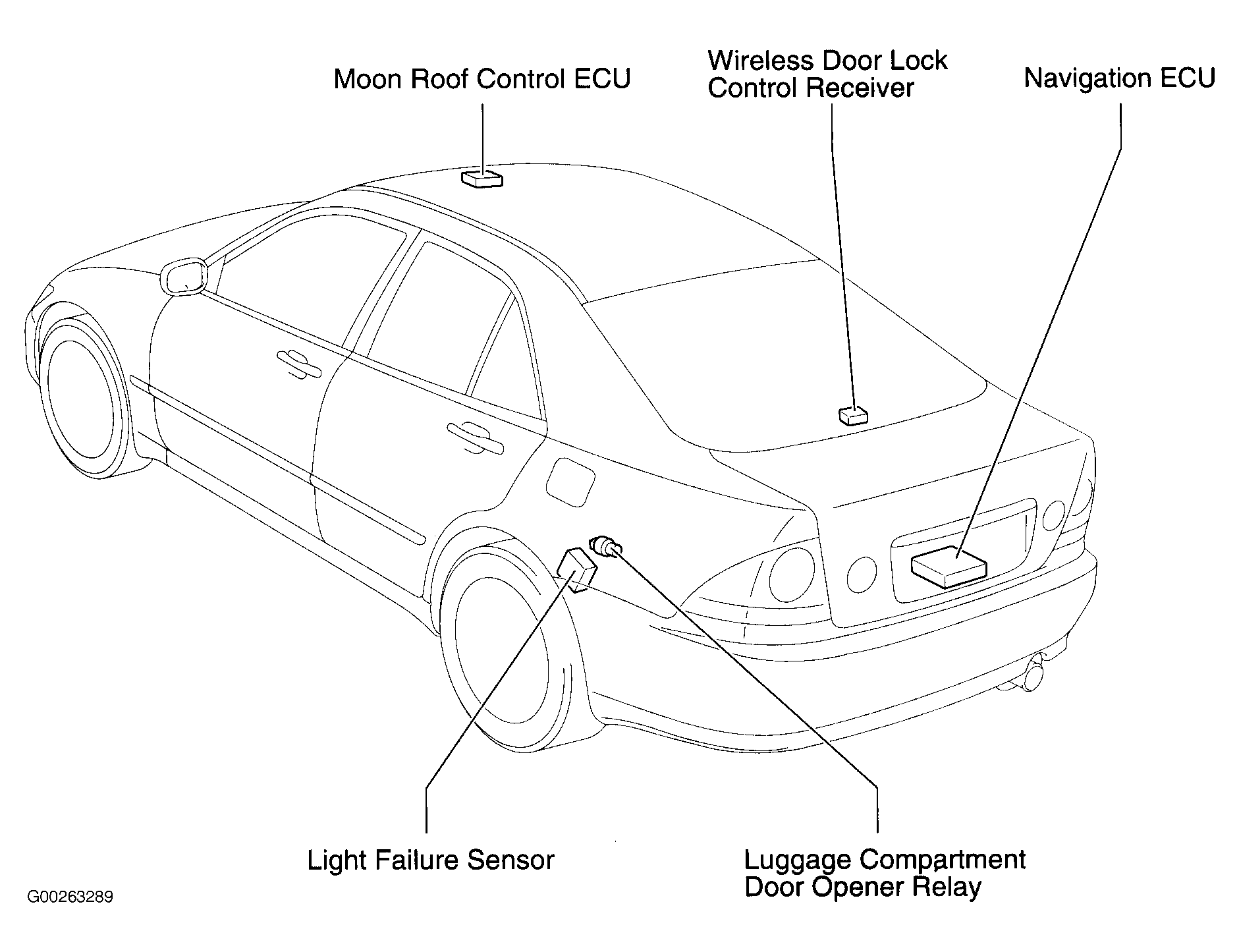

Fig 3: Vehicle Overview (Sedan)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PASSENGER'S AREA RELAY IDENTIFICATION (SEDAN)

RELAY DESCRIPTION
Luggage Compartment Door Opener Relay

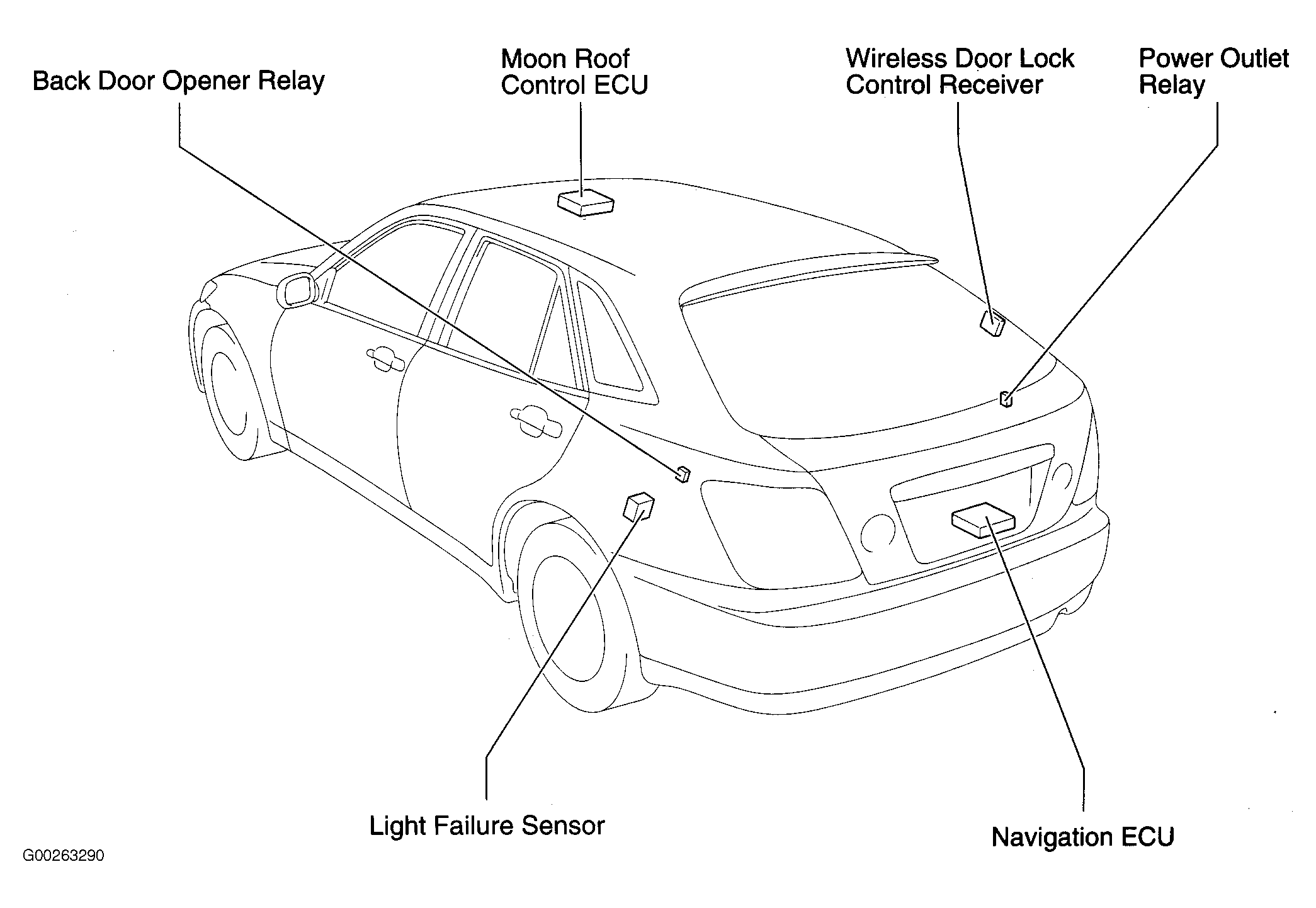

Fig 4: Vehicle Overview (Wagon)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PASSENGER'S AREA RELAY IDENTIFICATION (HATCHBACK)

RELAY DESCRIPTION
Back Door Opener Relay
Power Outlet Relay

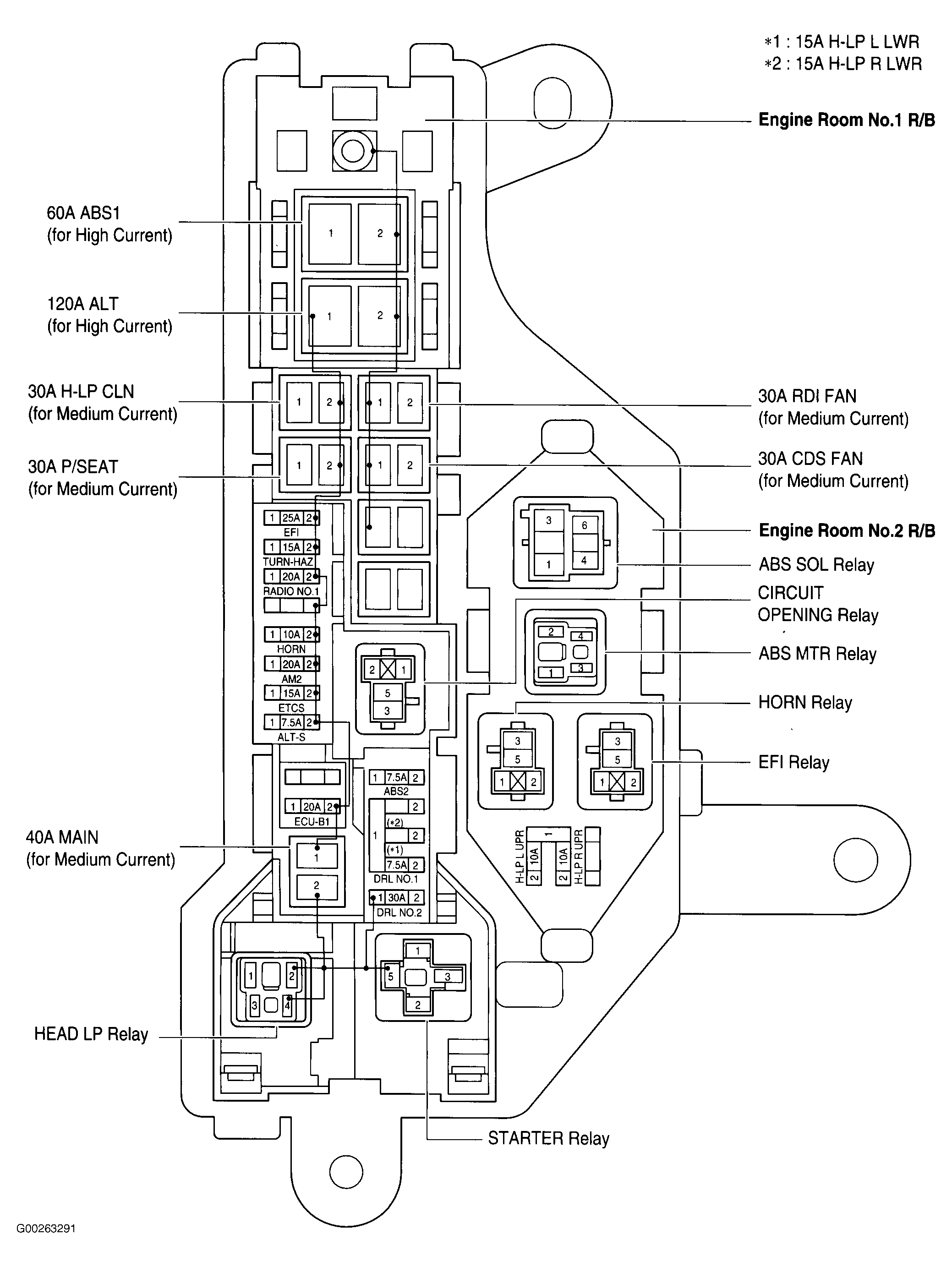

Fig 5: Engine Room No. 1 And 2 R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE COMPARTMENT NO. 1 & 2 RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Head LP Relay
ABS SOL Relay
Circuit Opening Relay
ABS MTR Relay
Horn Relay
EFI Relay
Starter Relay

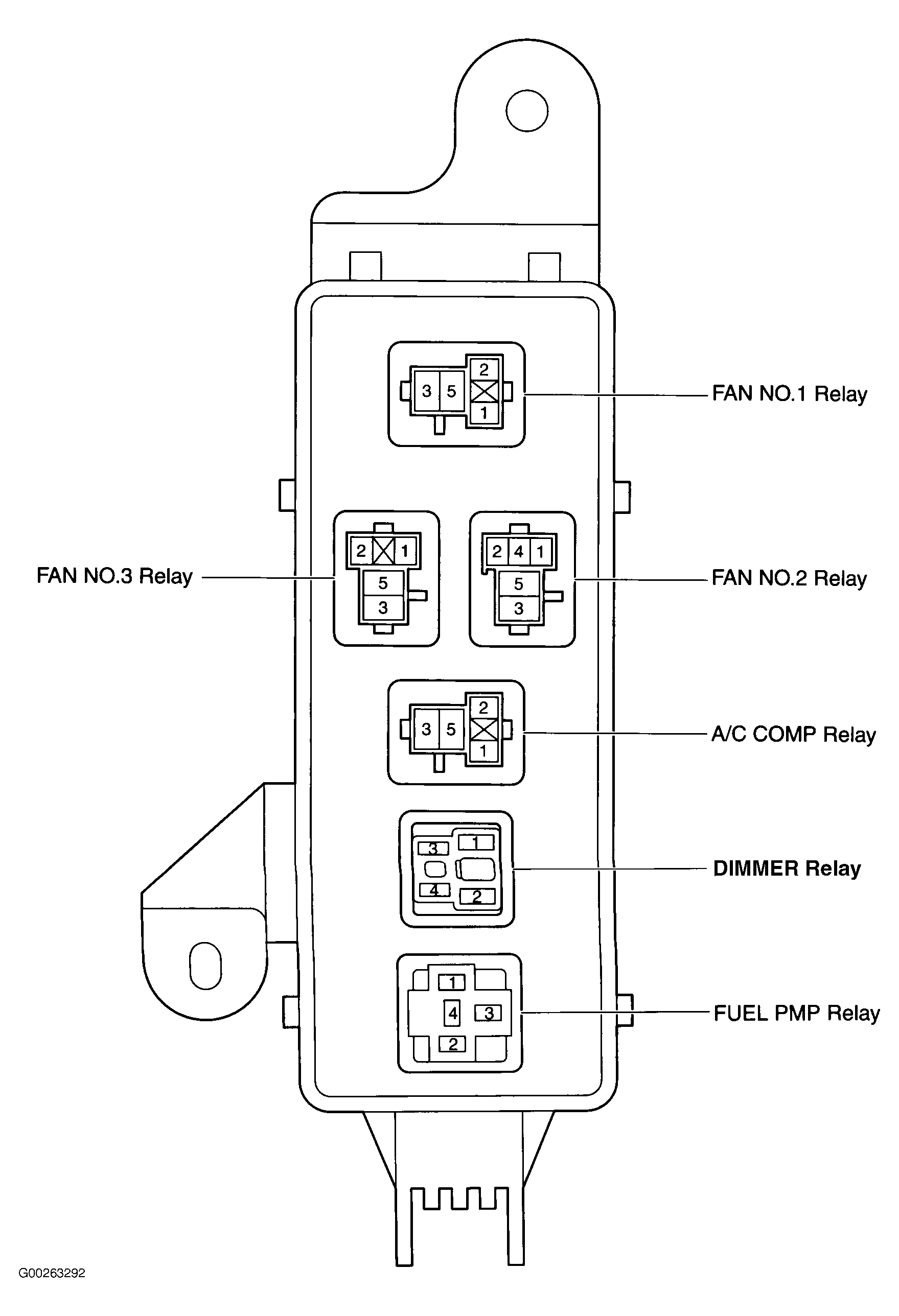

Fig 6: Engine Room No. 3 R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM NO. 3 RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Fan No.3 Relay
Fan No.1 Relay
Fan No.2 Relay
A/C COMP Relay
Dimmer Relay
Fuel Pump Relay

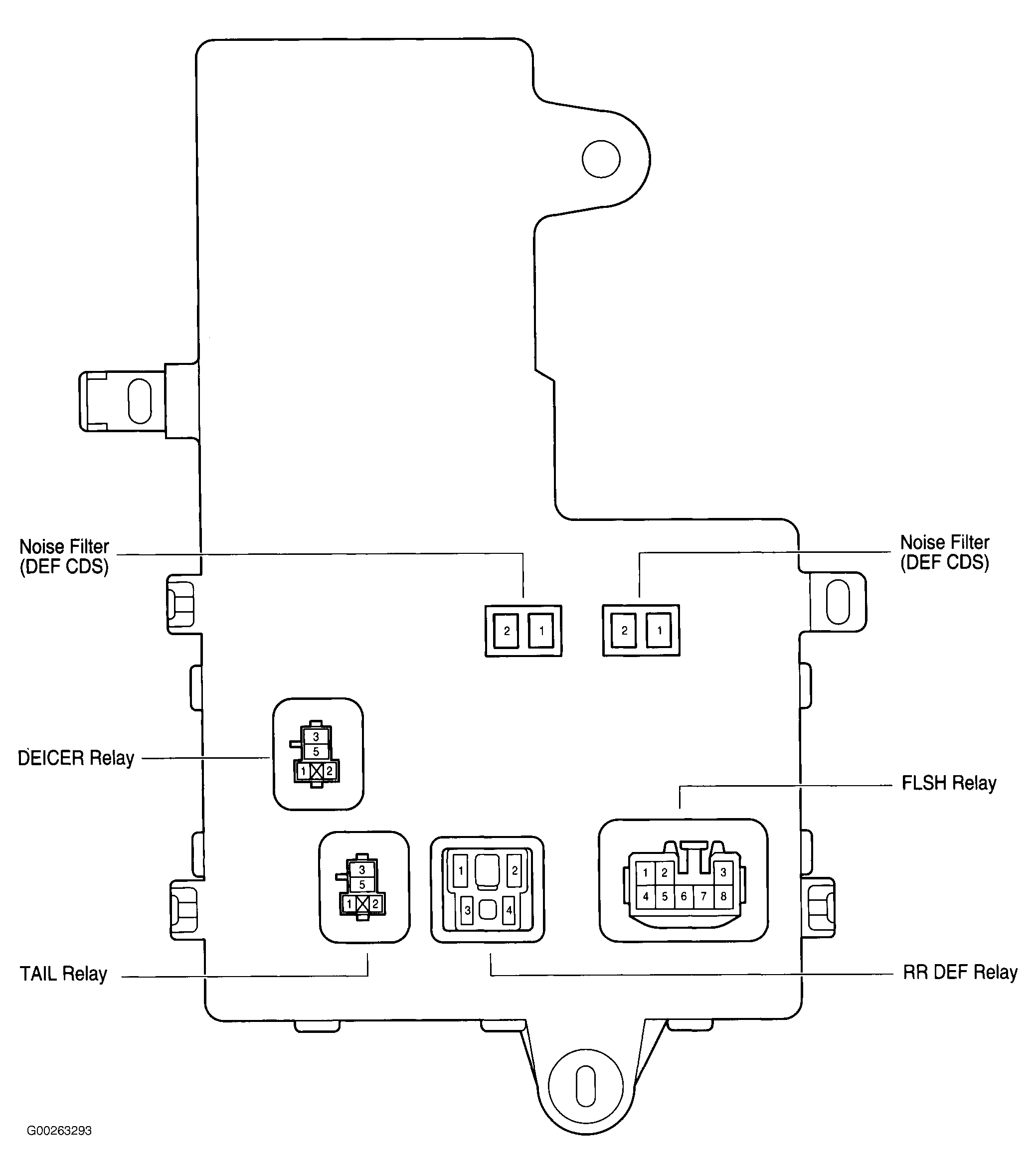

Fig 7: Driver Side J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER'S SIDE JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Tail Relay
Deicer Relay
FLSH Relay
RR DEF Relay

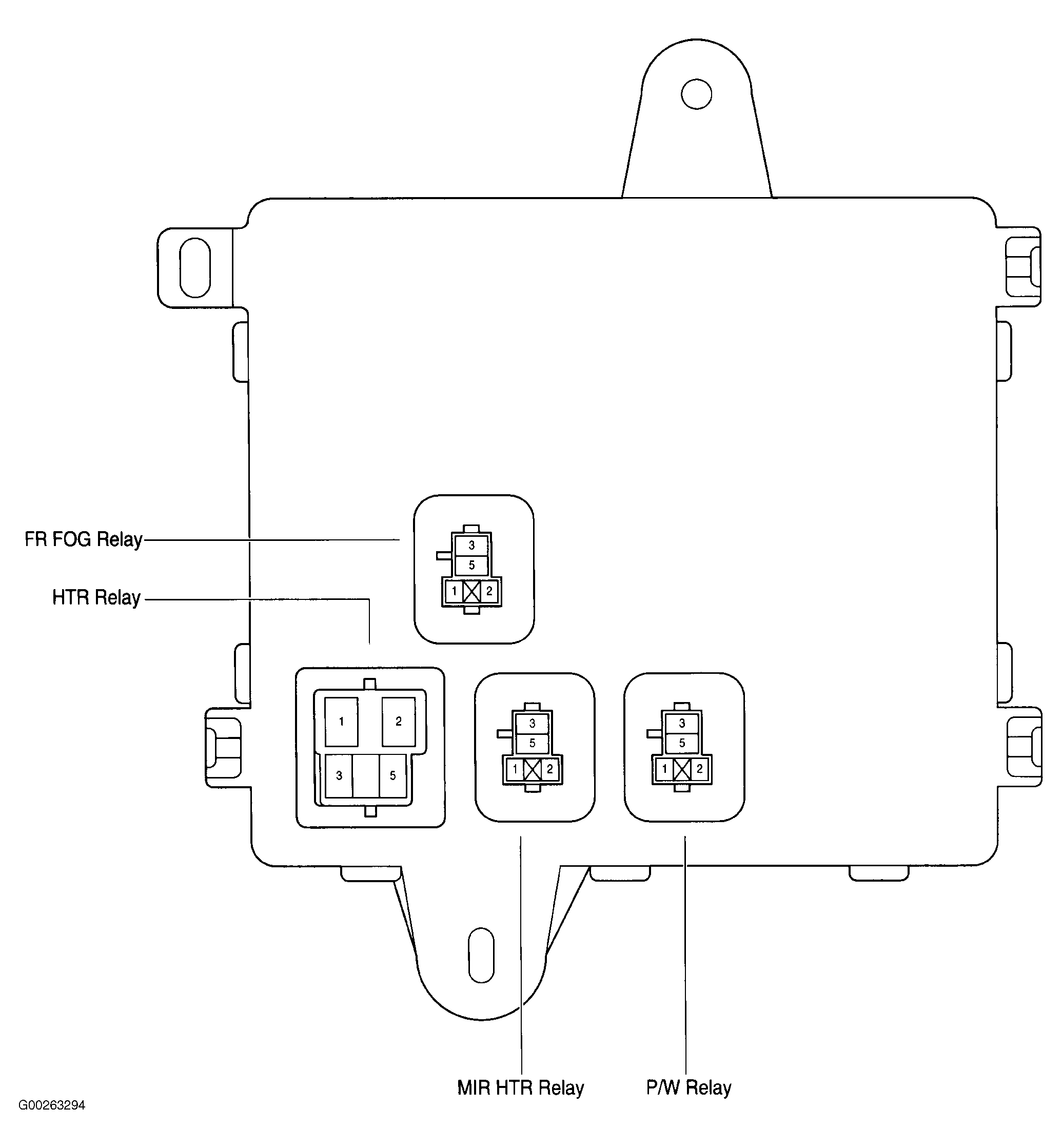

Fig 8: Passenger Side J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PASSENGER'S SIDE JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
HTR Relay
RR Fog Relay
P/W Relay
MIR HTR Relay

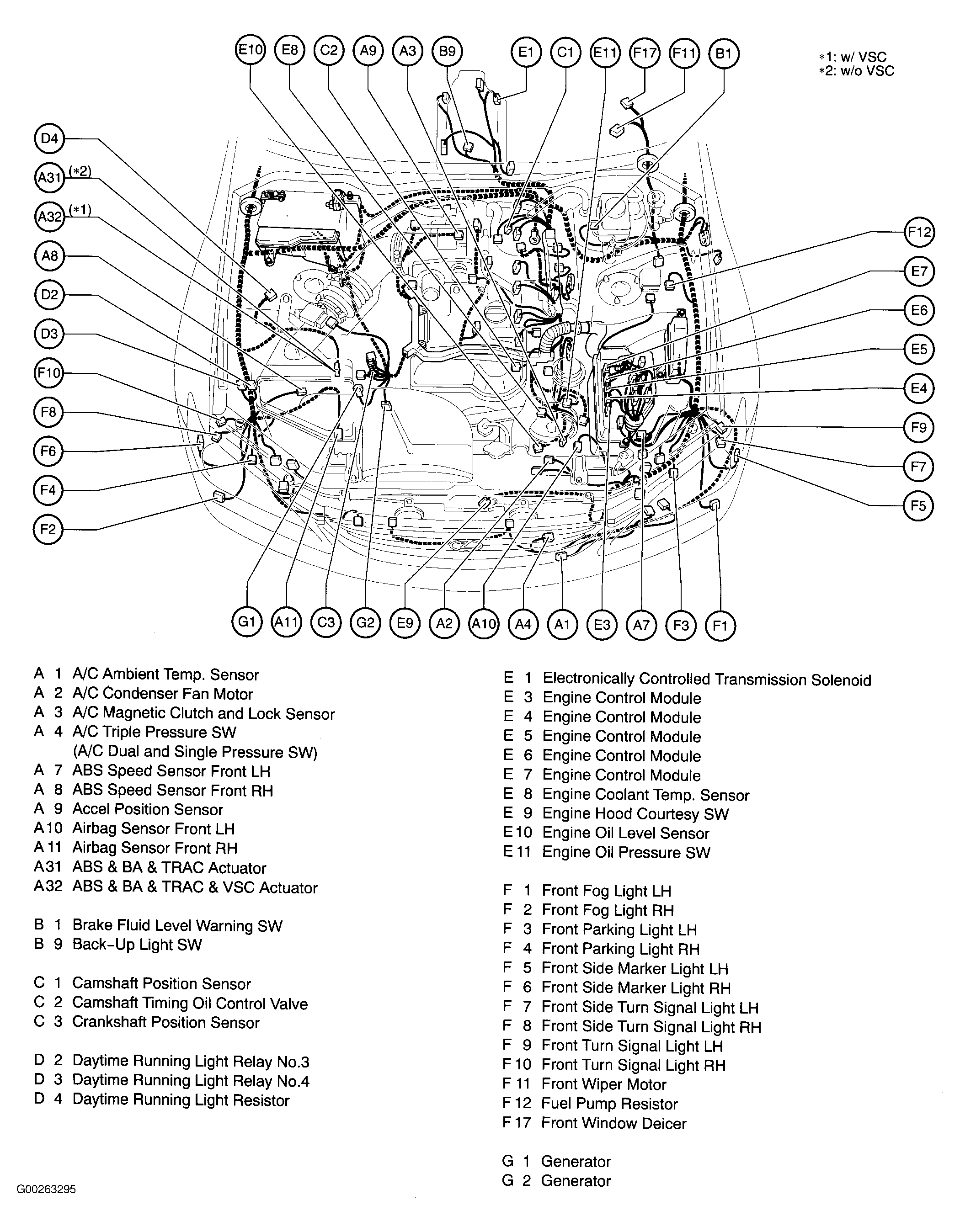

Fig 9: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

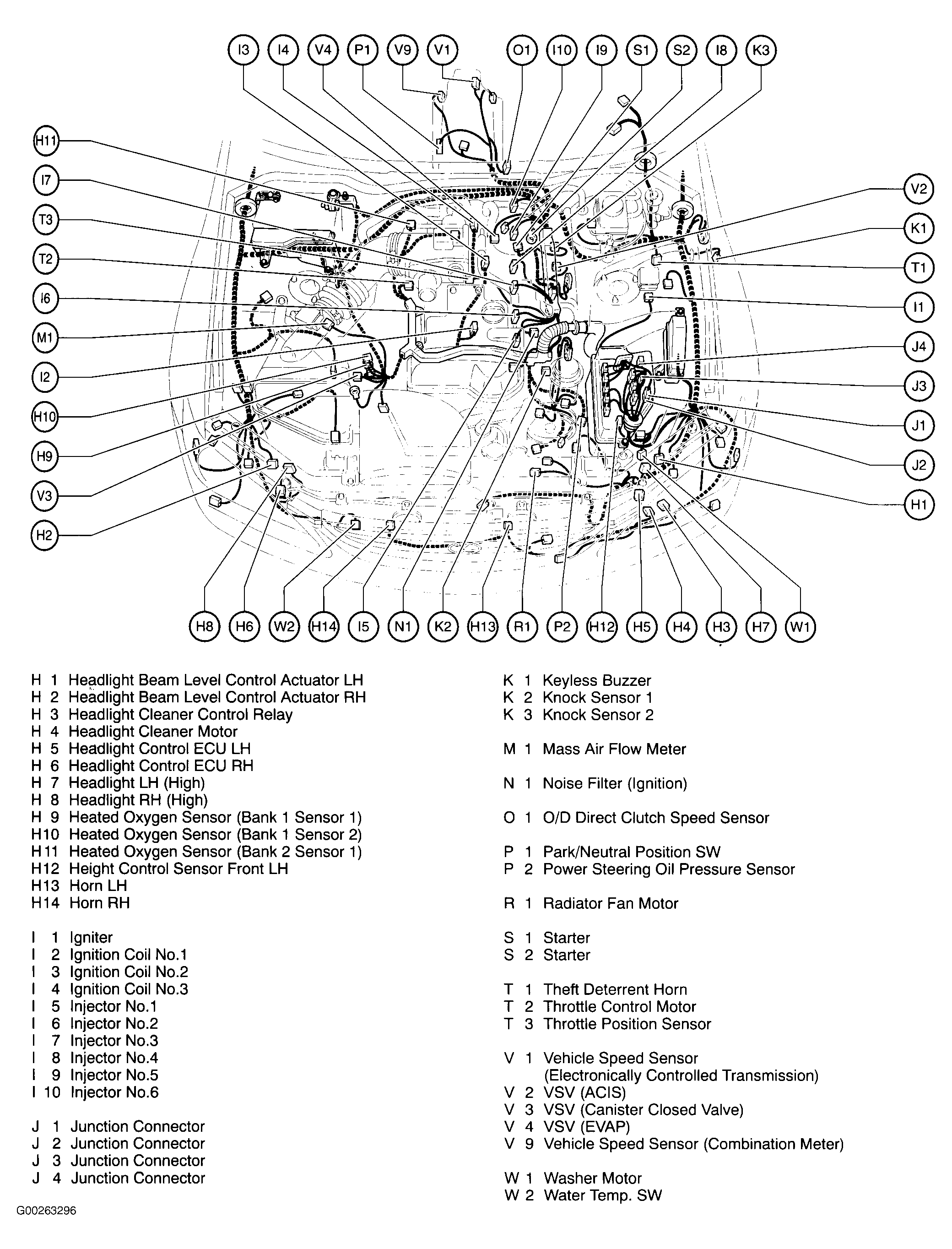

Fig 10: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

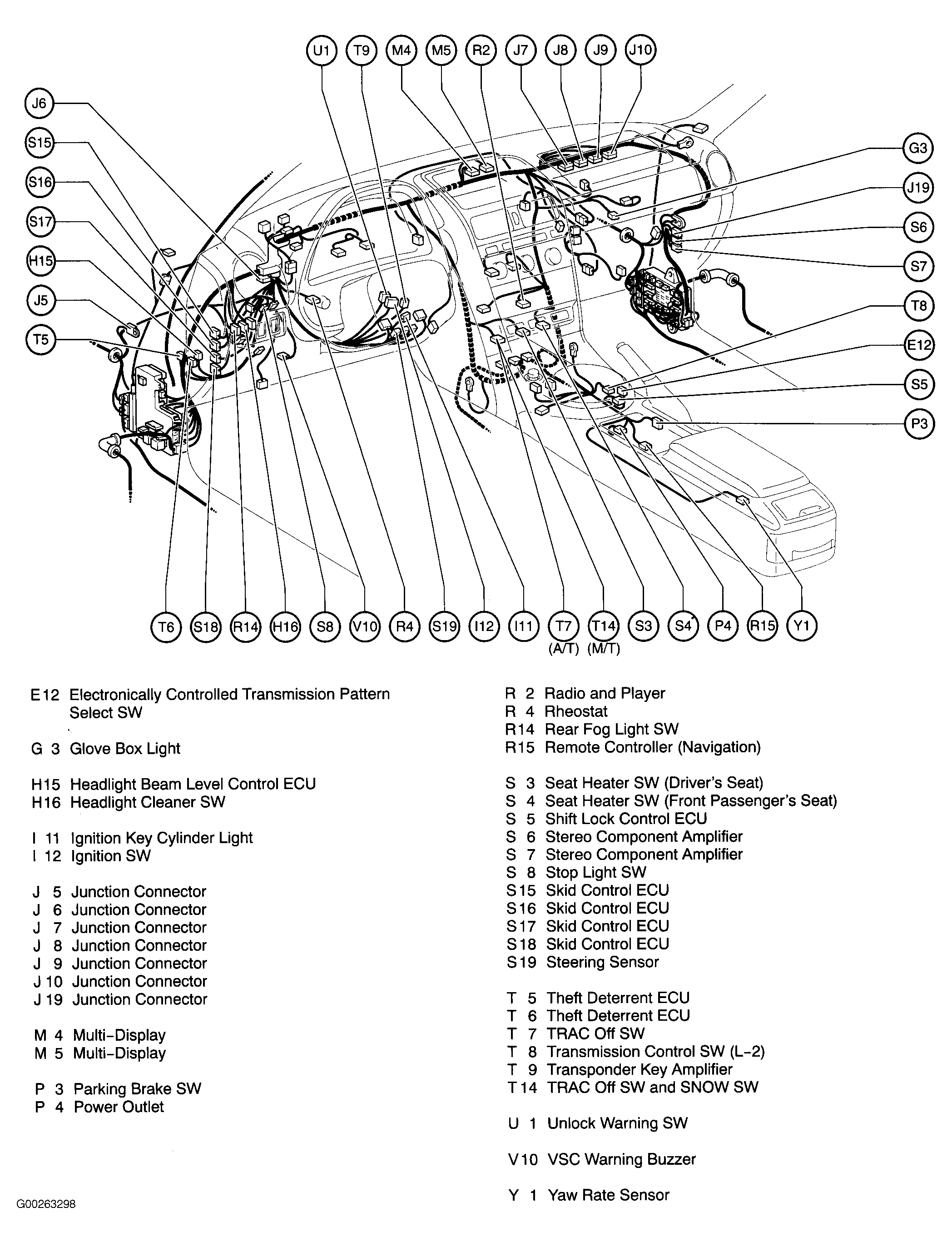

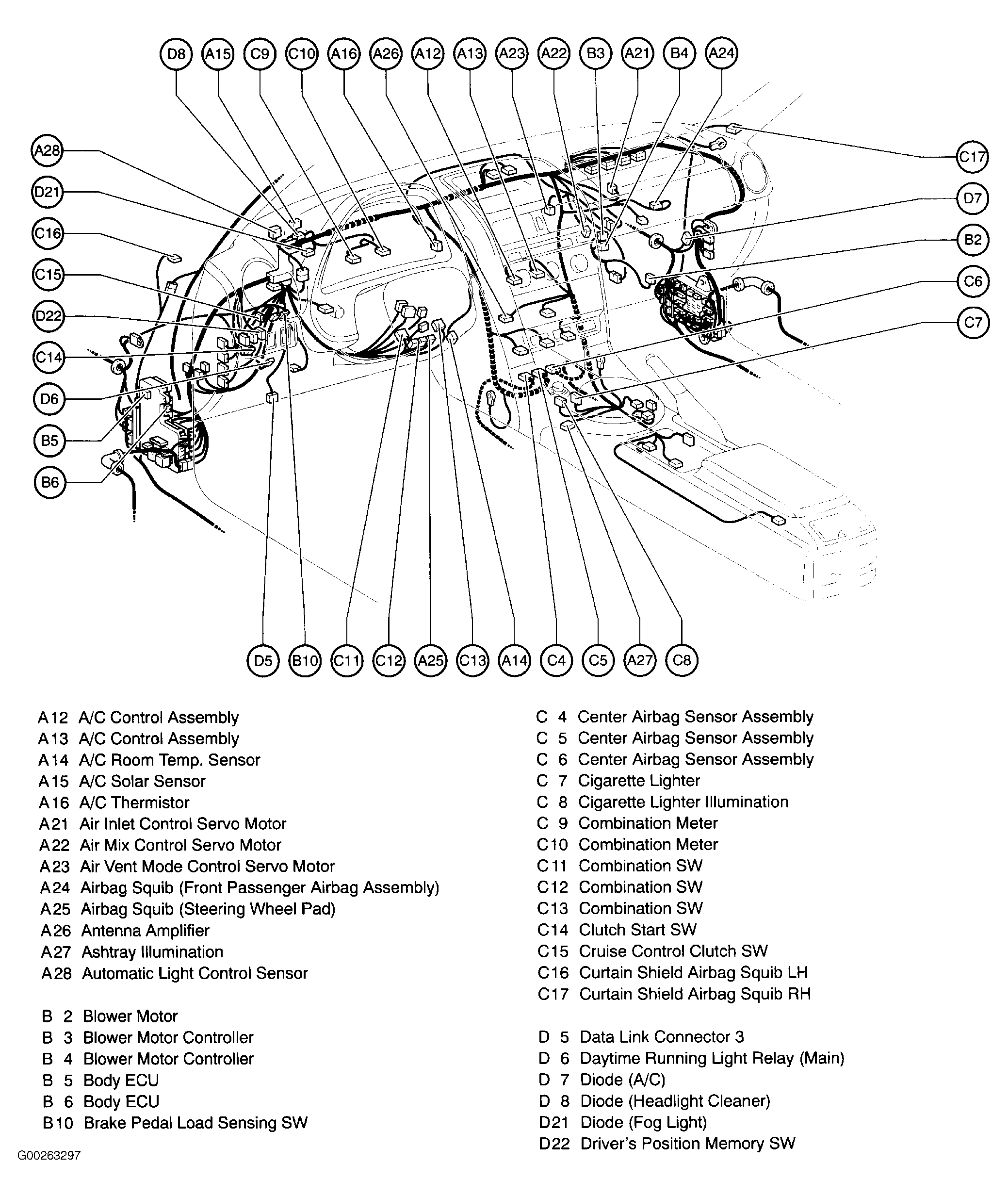

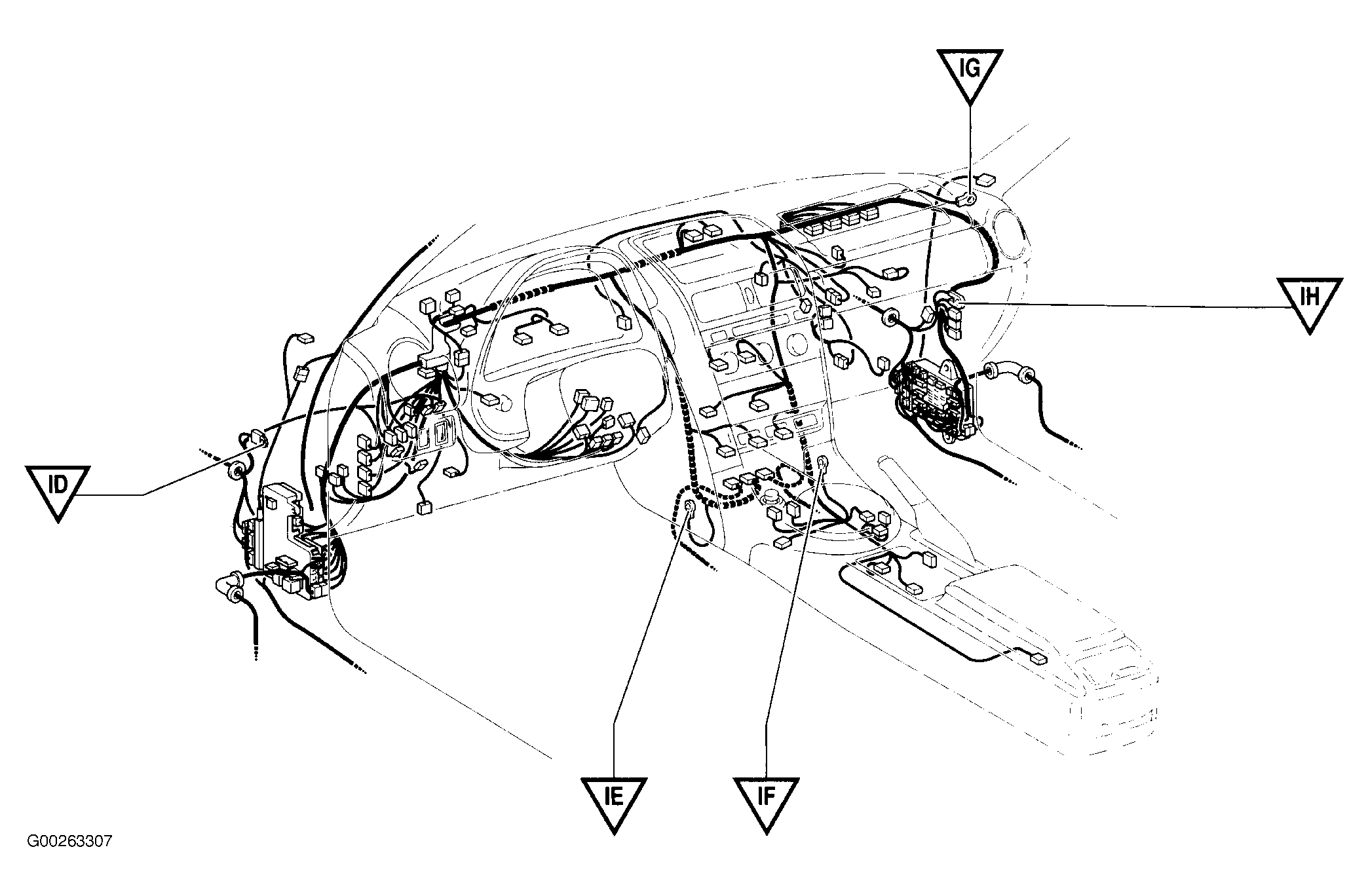

Fig 11: Dashboard

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

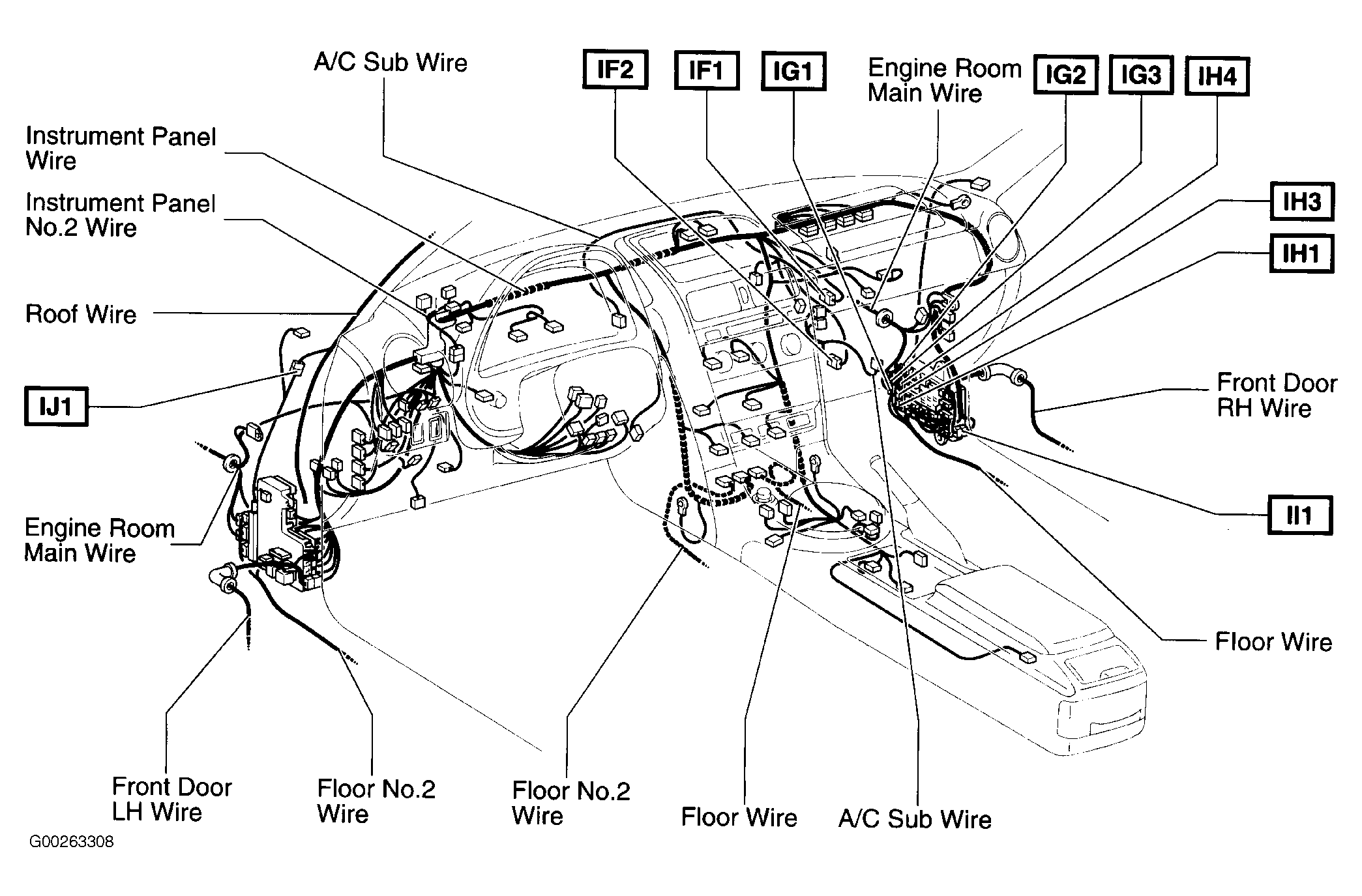

Fig 12: Dashboard

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

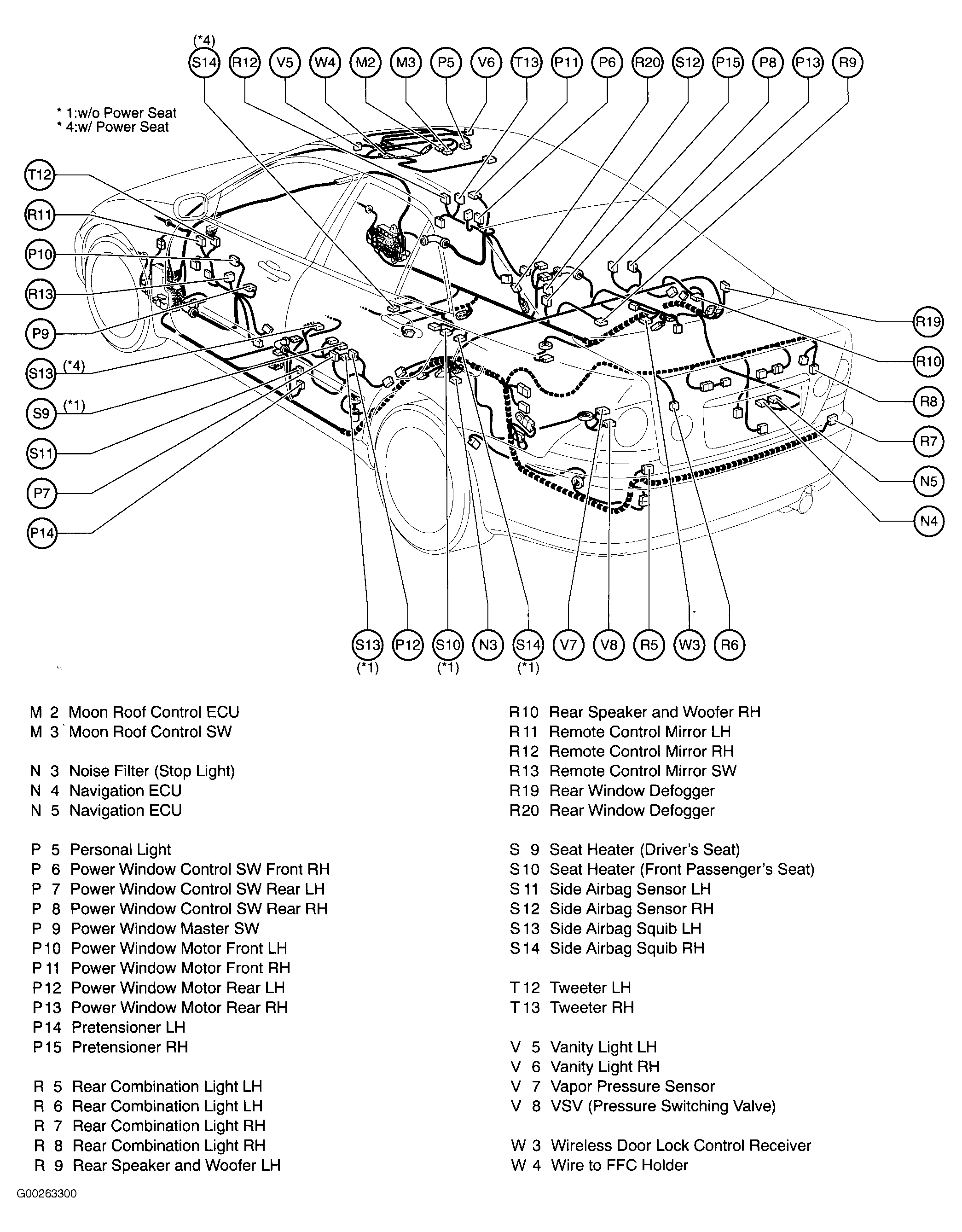

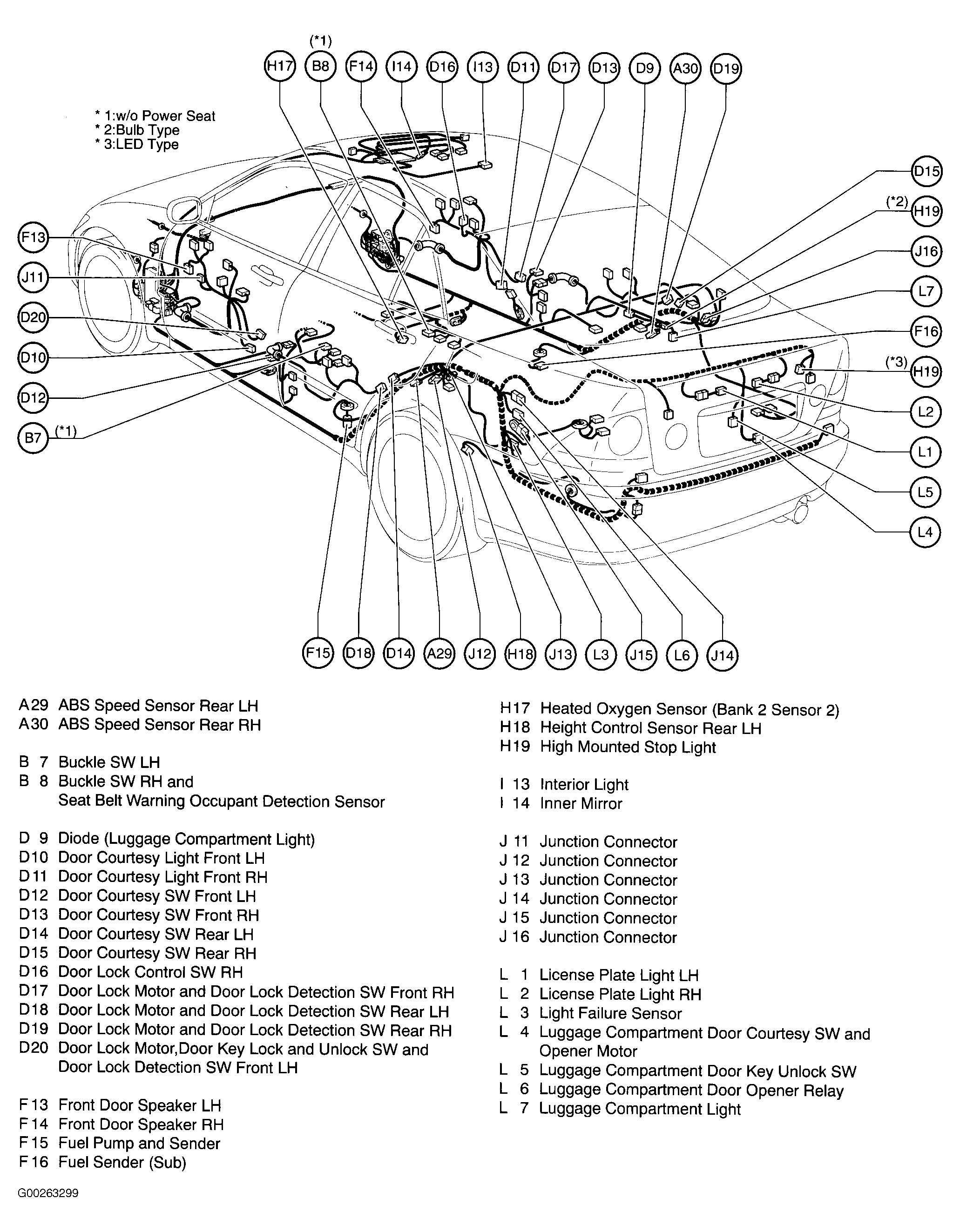

Fig 13: Vehicle Overview (Sedan)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Vehicle Overview (Sedan)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

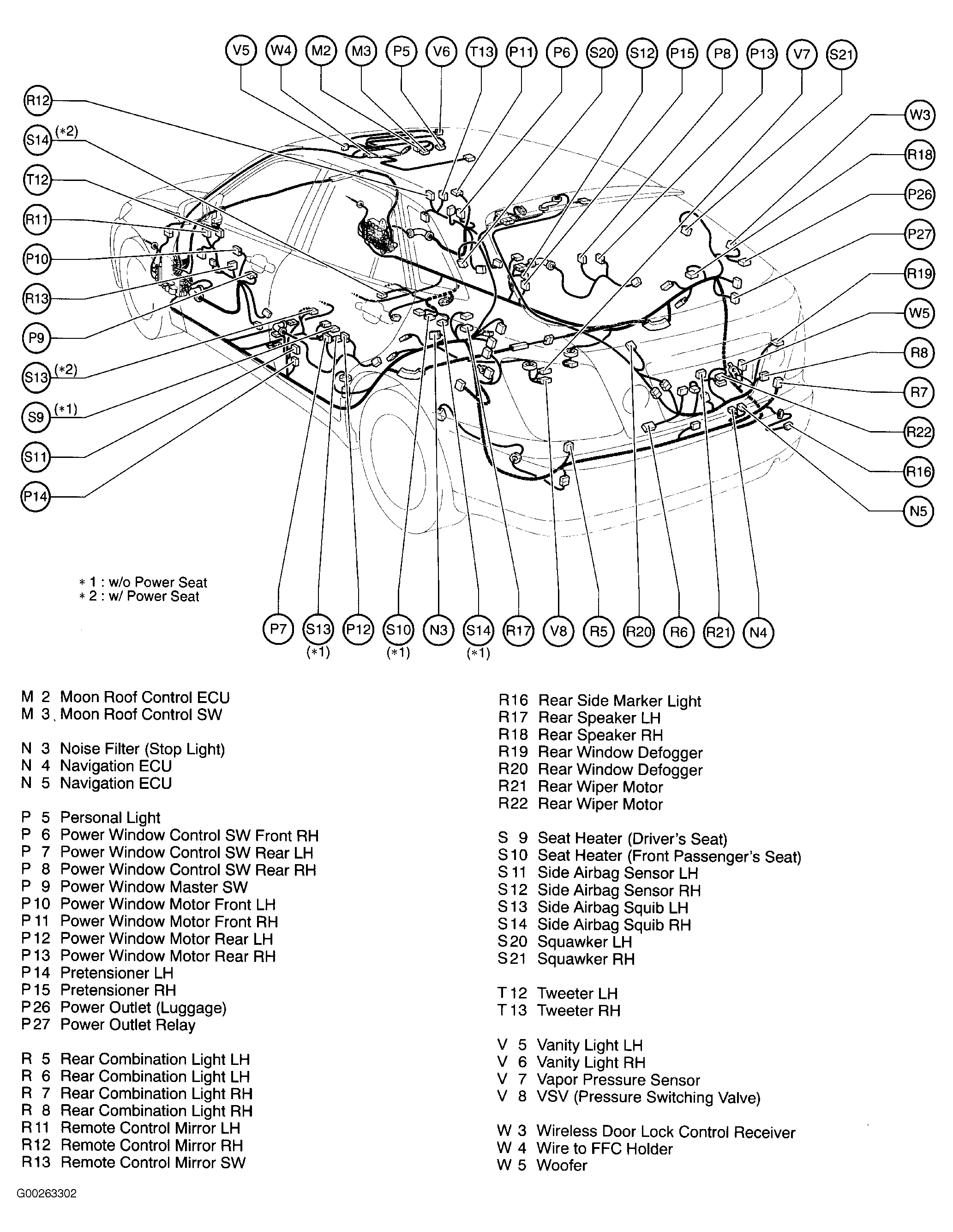

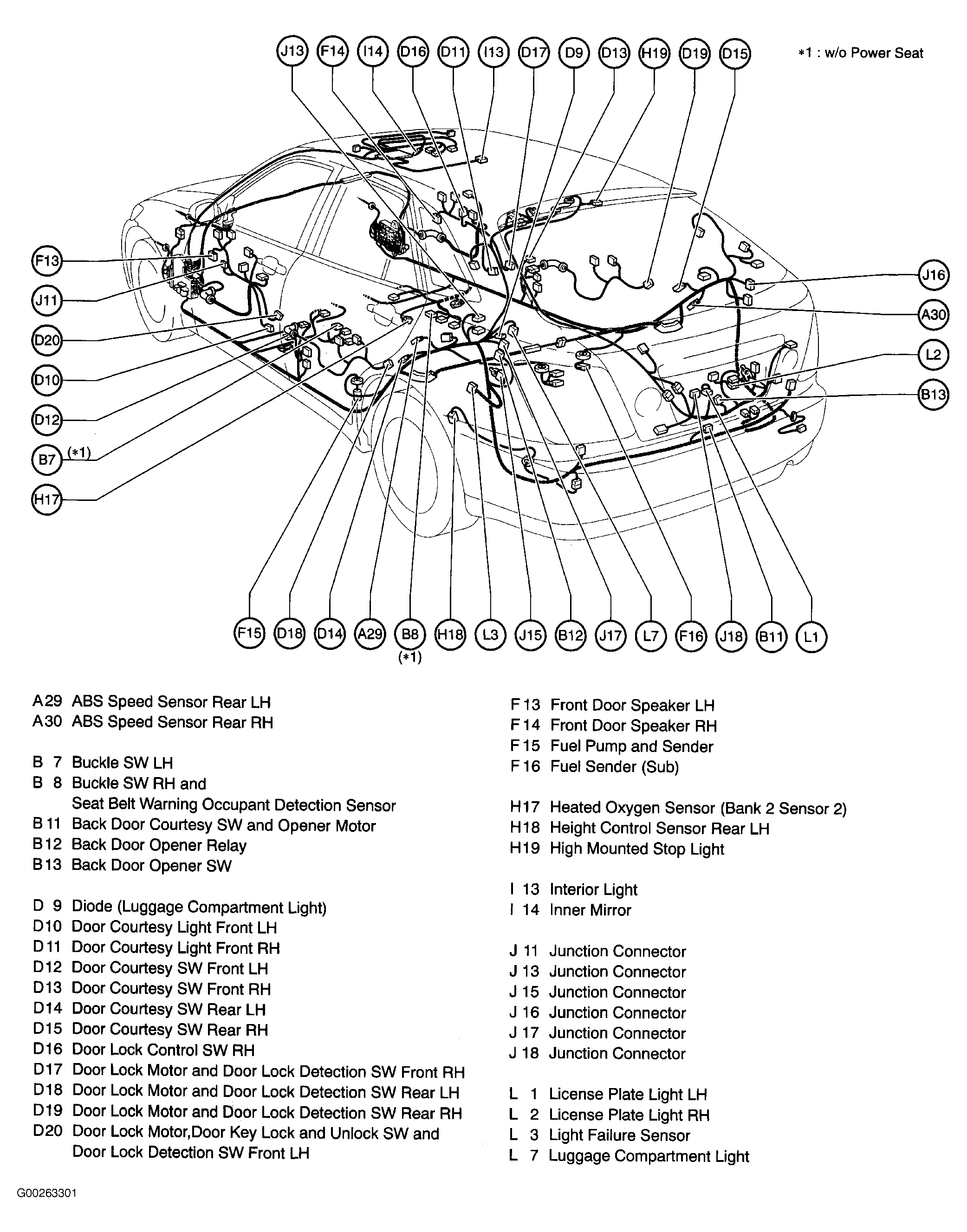

Fig 15: Vehicle Overview (Wagon)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Vehicle Overview (Wagon)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

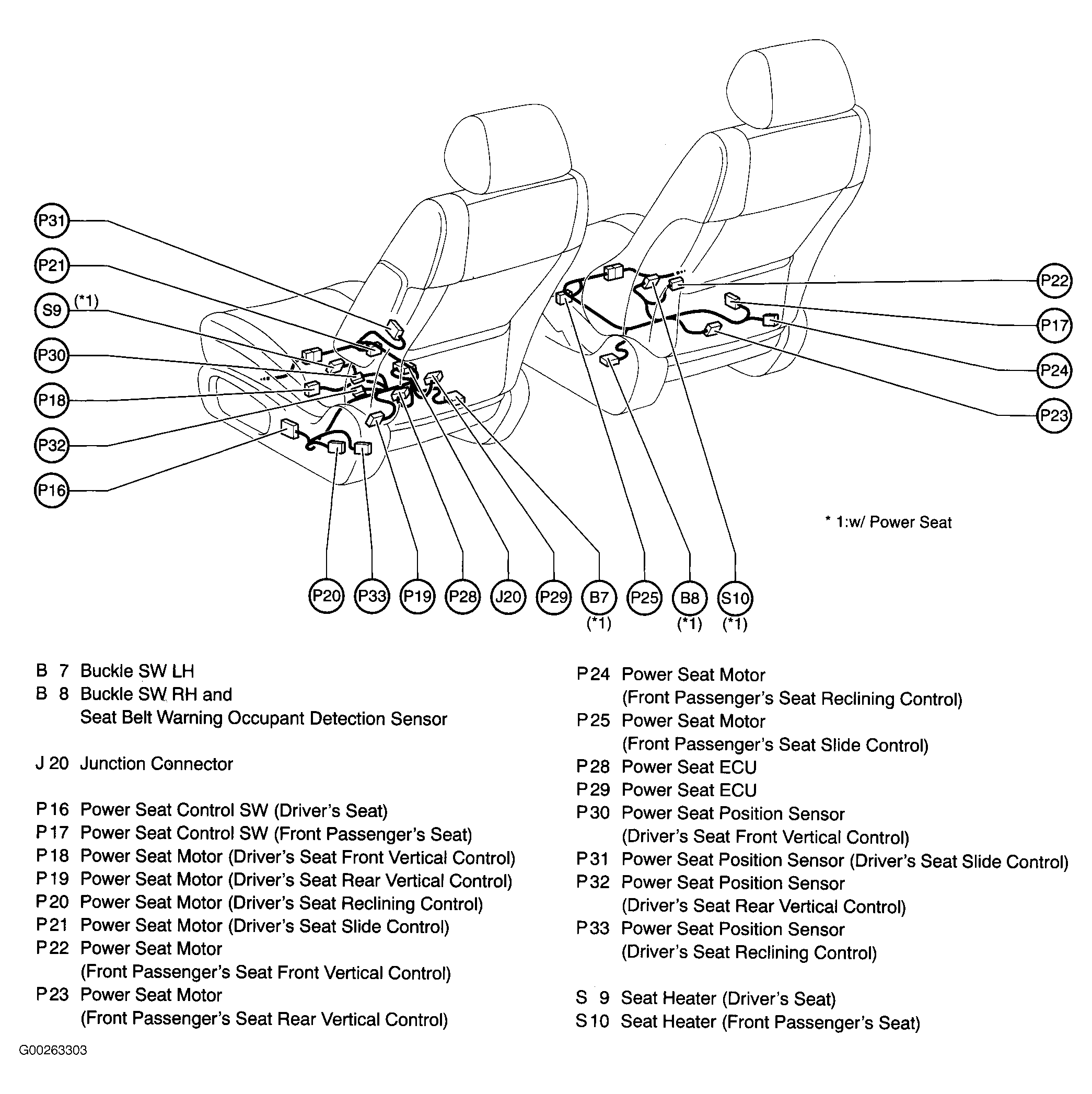

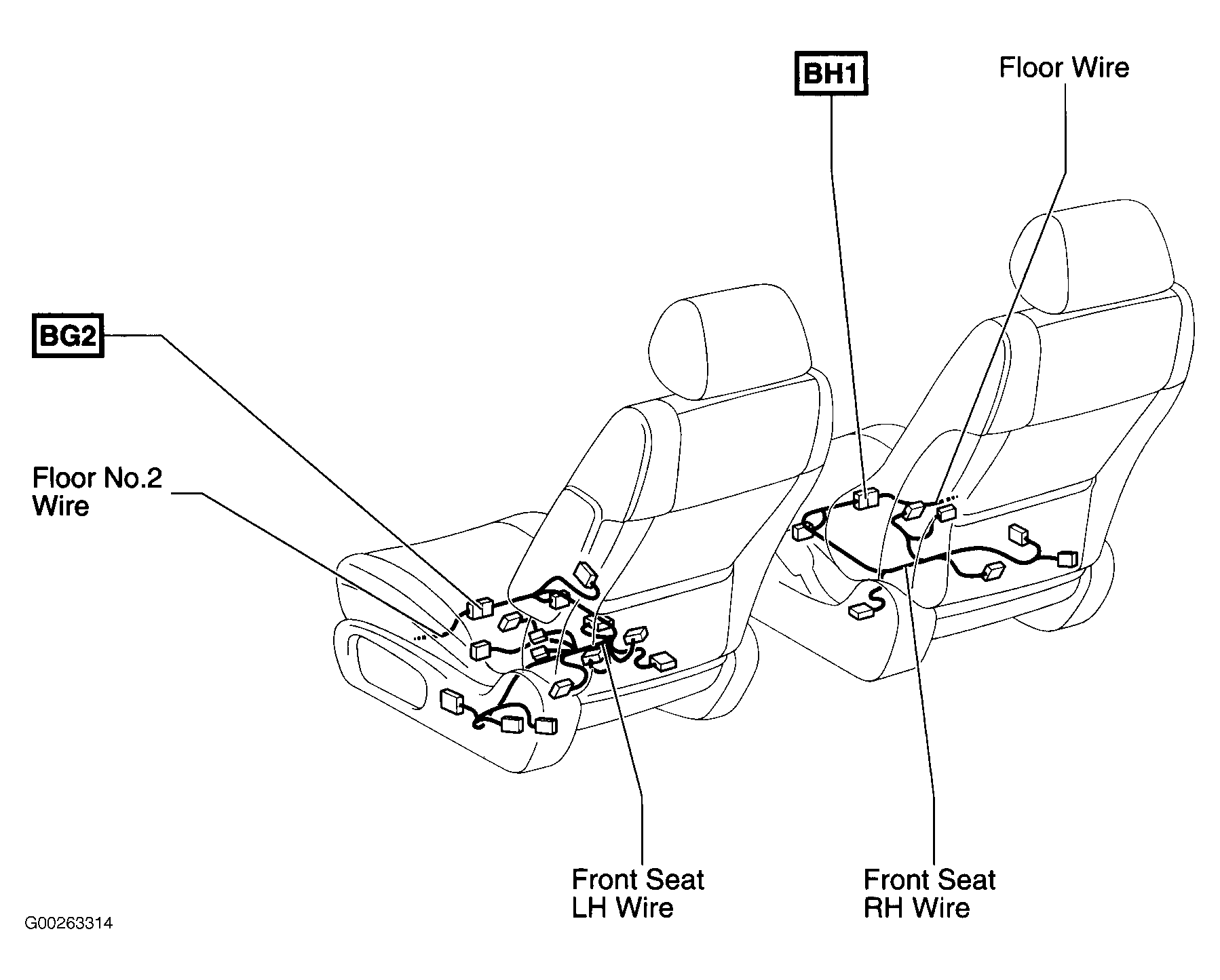

Fig 17: Front Seats

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

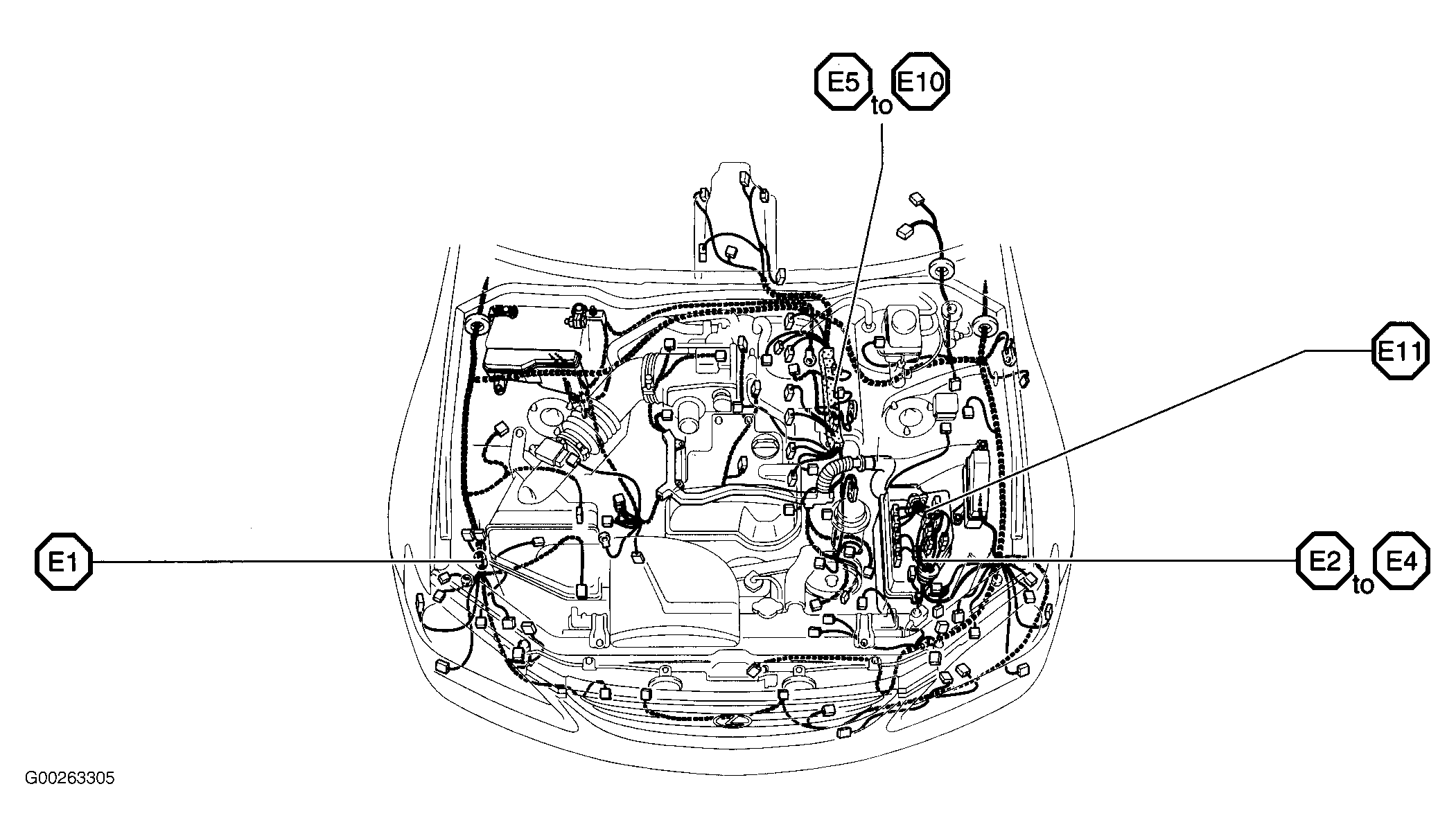

Fig 18: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

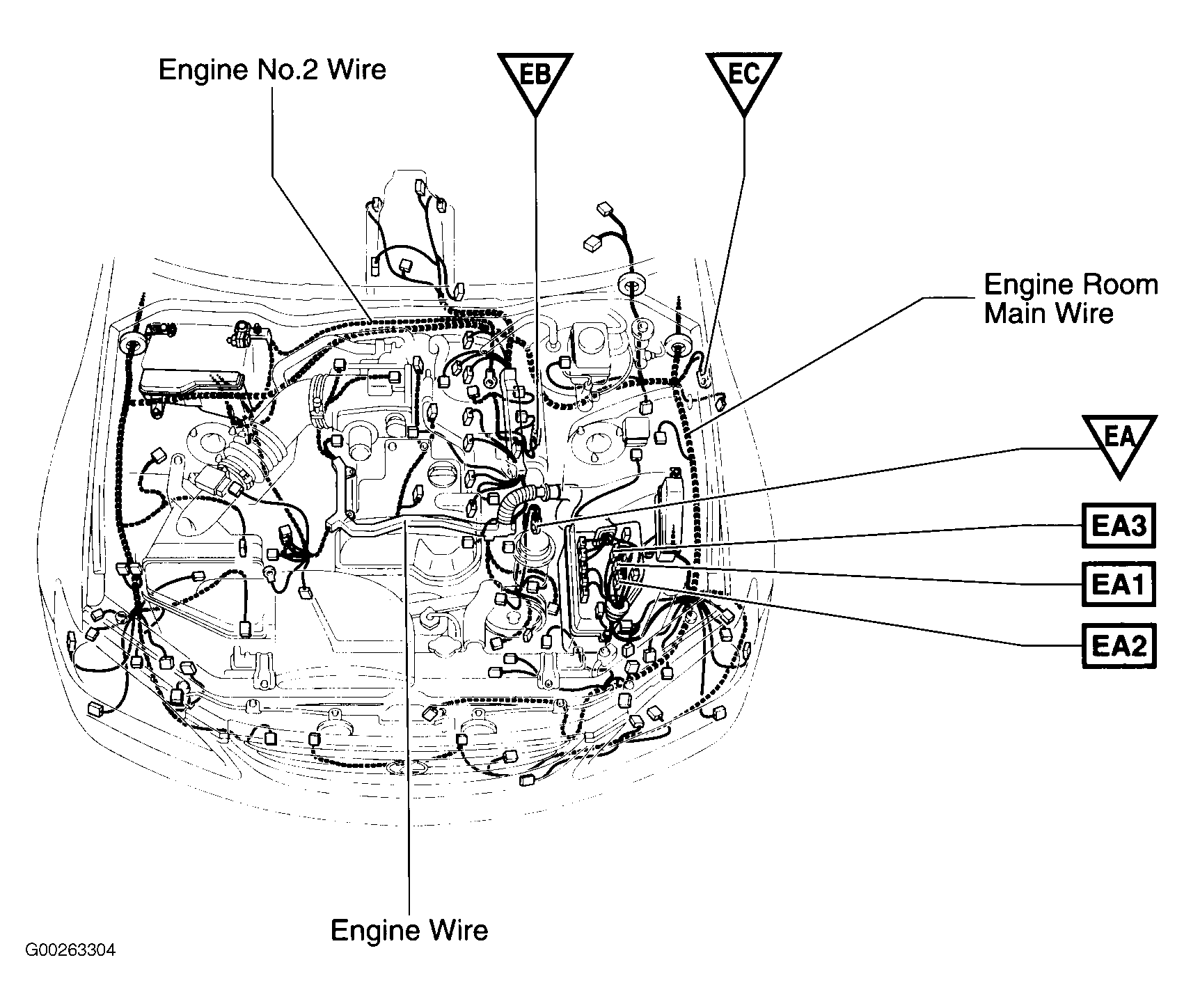

Fig 19: Engine Compartment

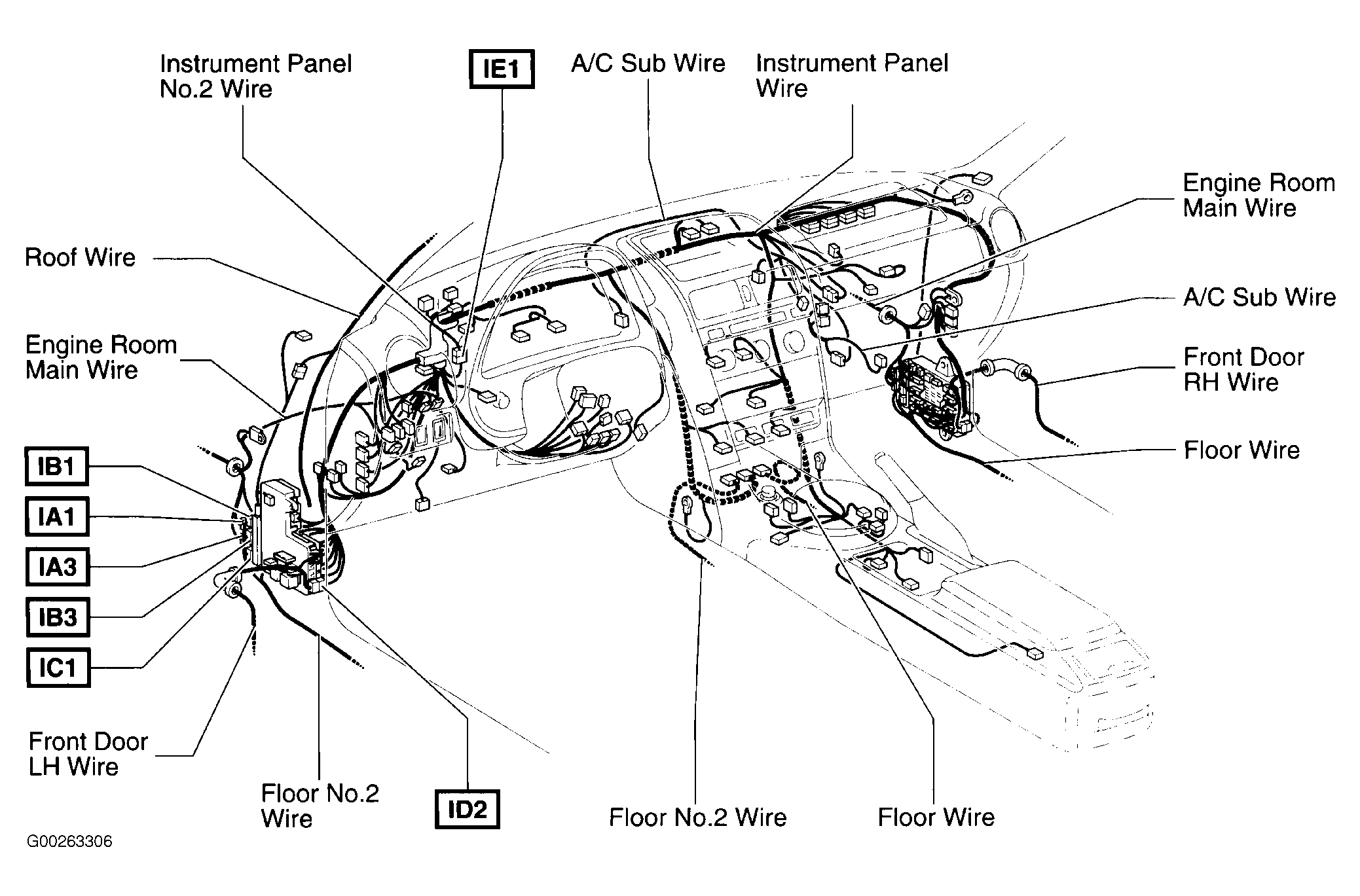

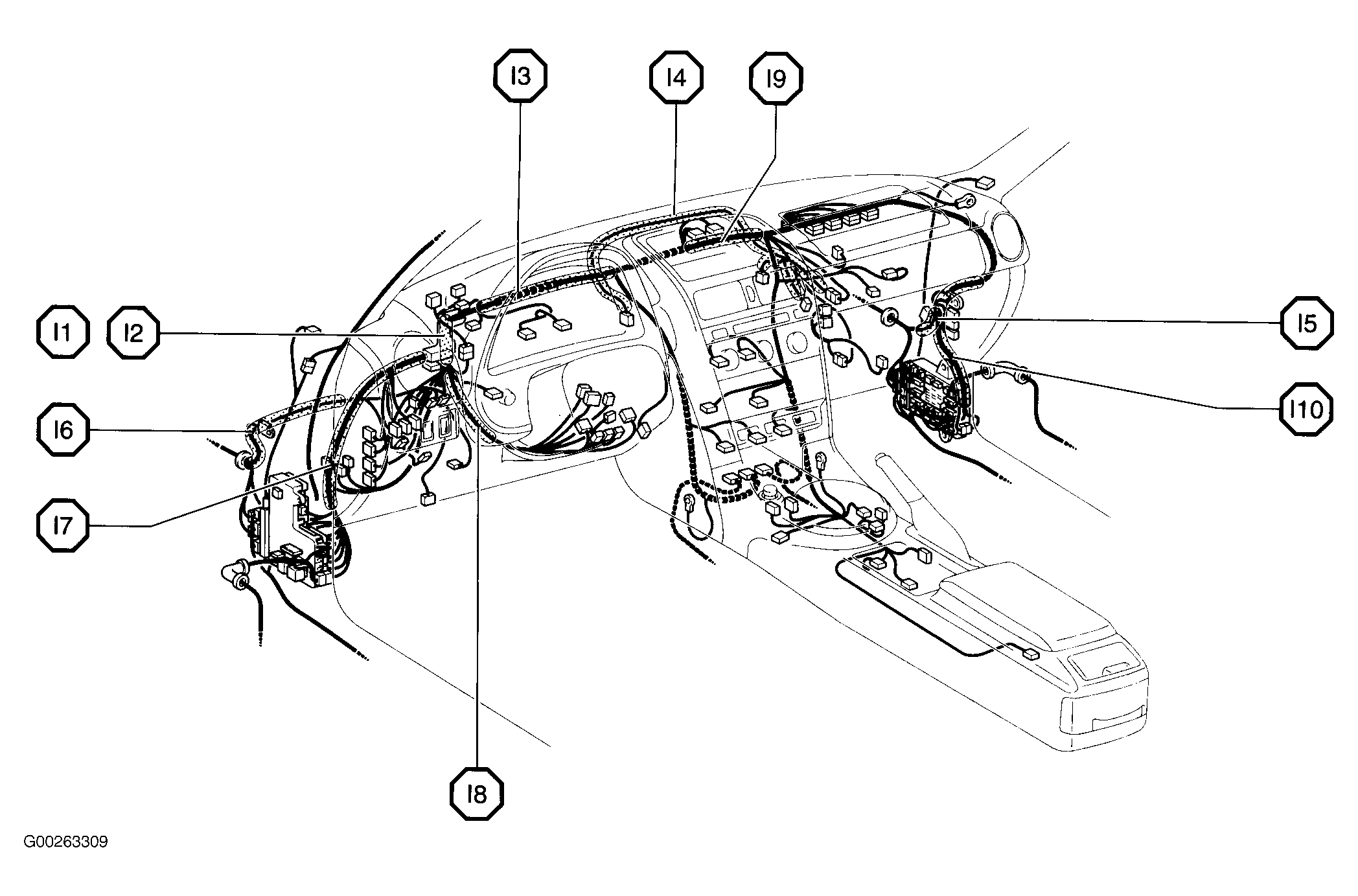

Fig 20: Dashboard Connectors

Fig 21: Dashboard Grounds

Fig 22: Dashboard Connectors

Fig 23: Dashboard Splices

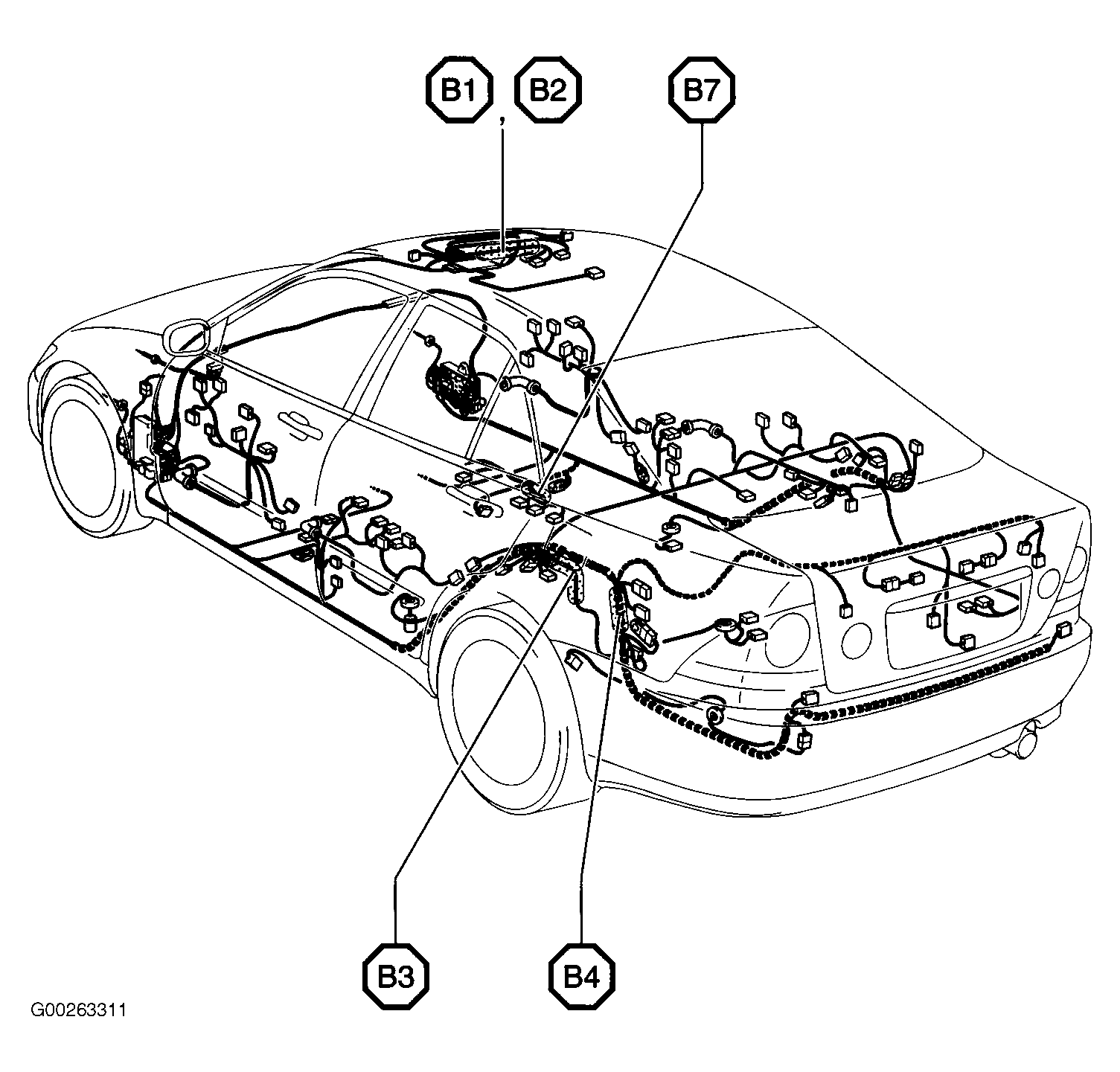

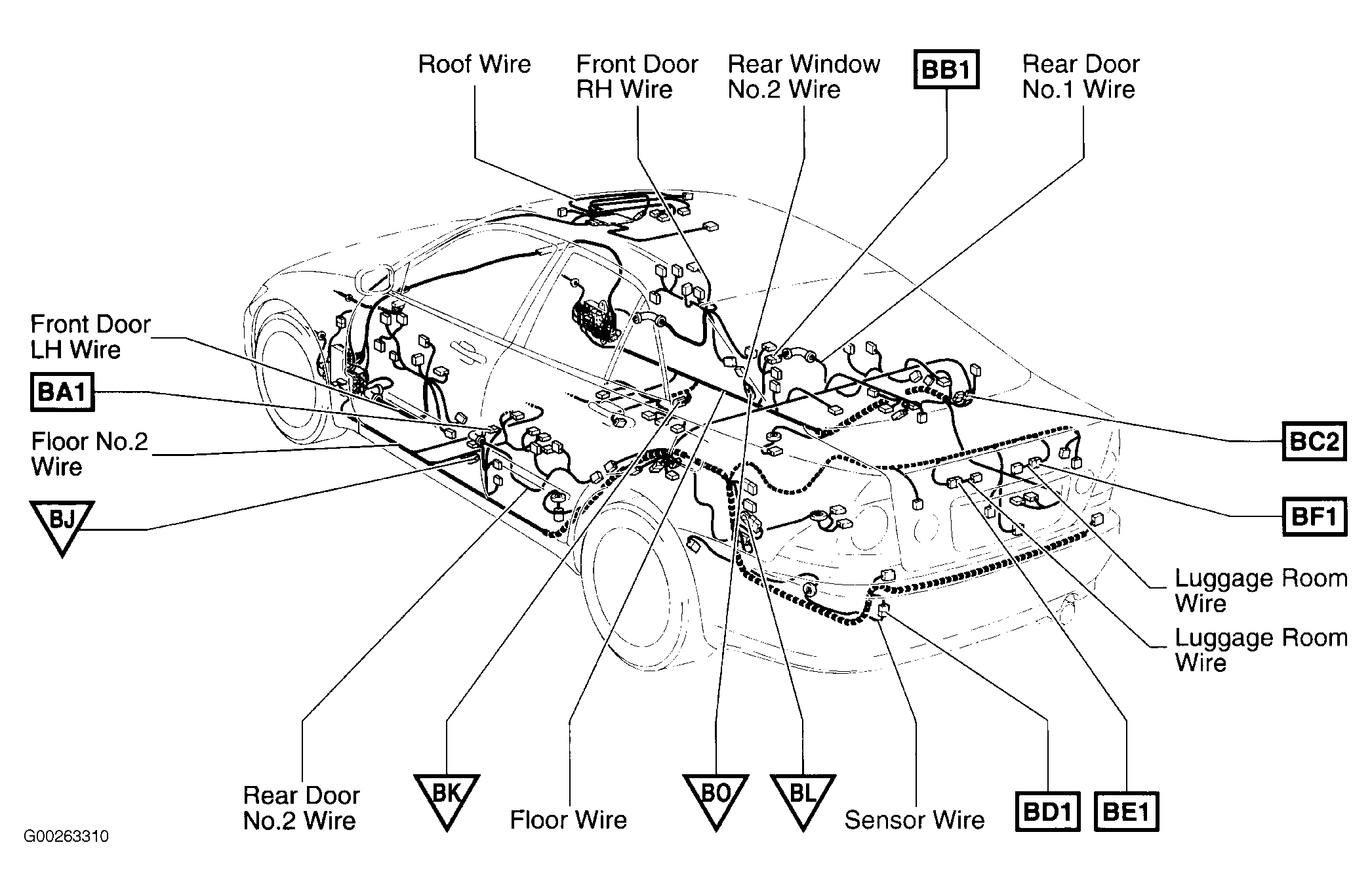

Fig 24: Vehicle Overview (Sedan)

Fig 25: Vehicle Overview (Sedan)

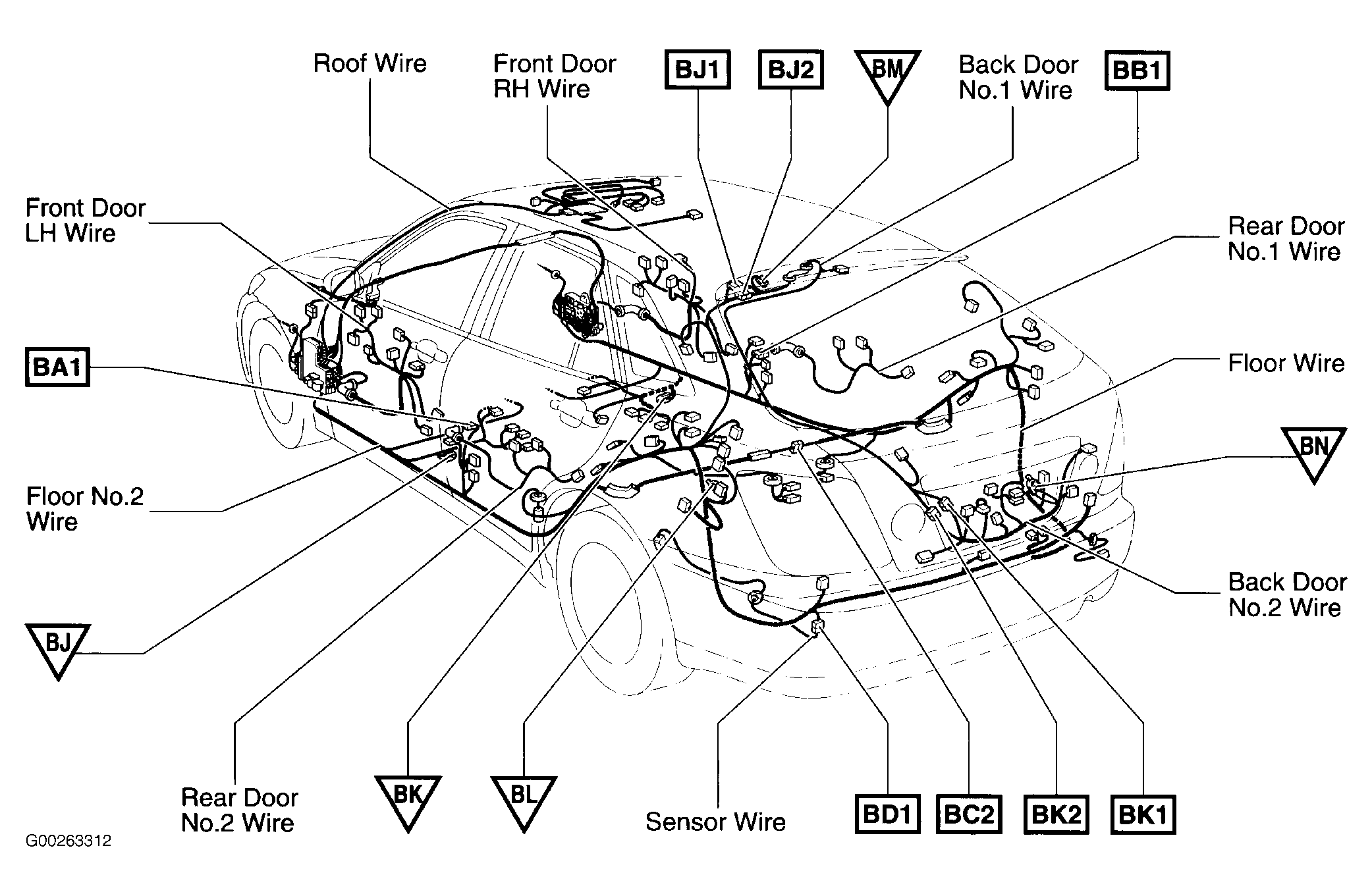

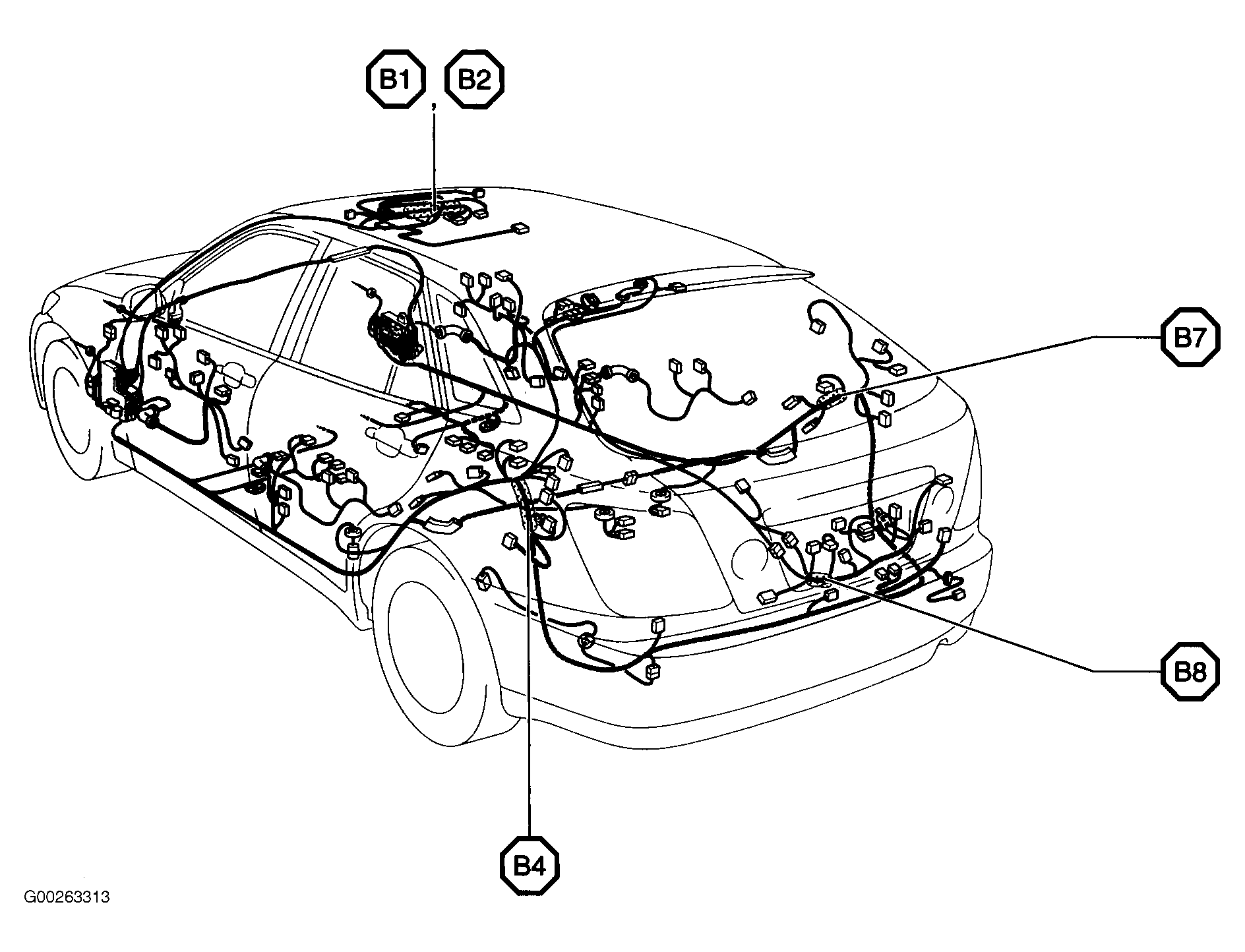

Fig 26: Vehicle Overview (Wagon)

Fig 27: Vehicle Overview (Wagon)

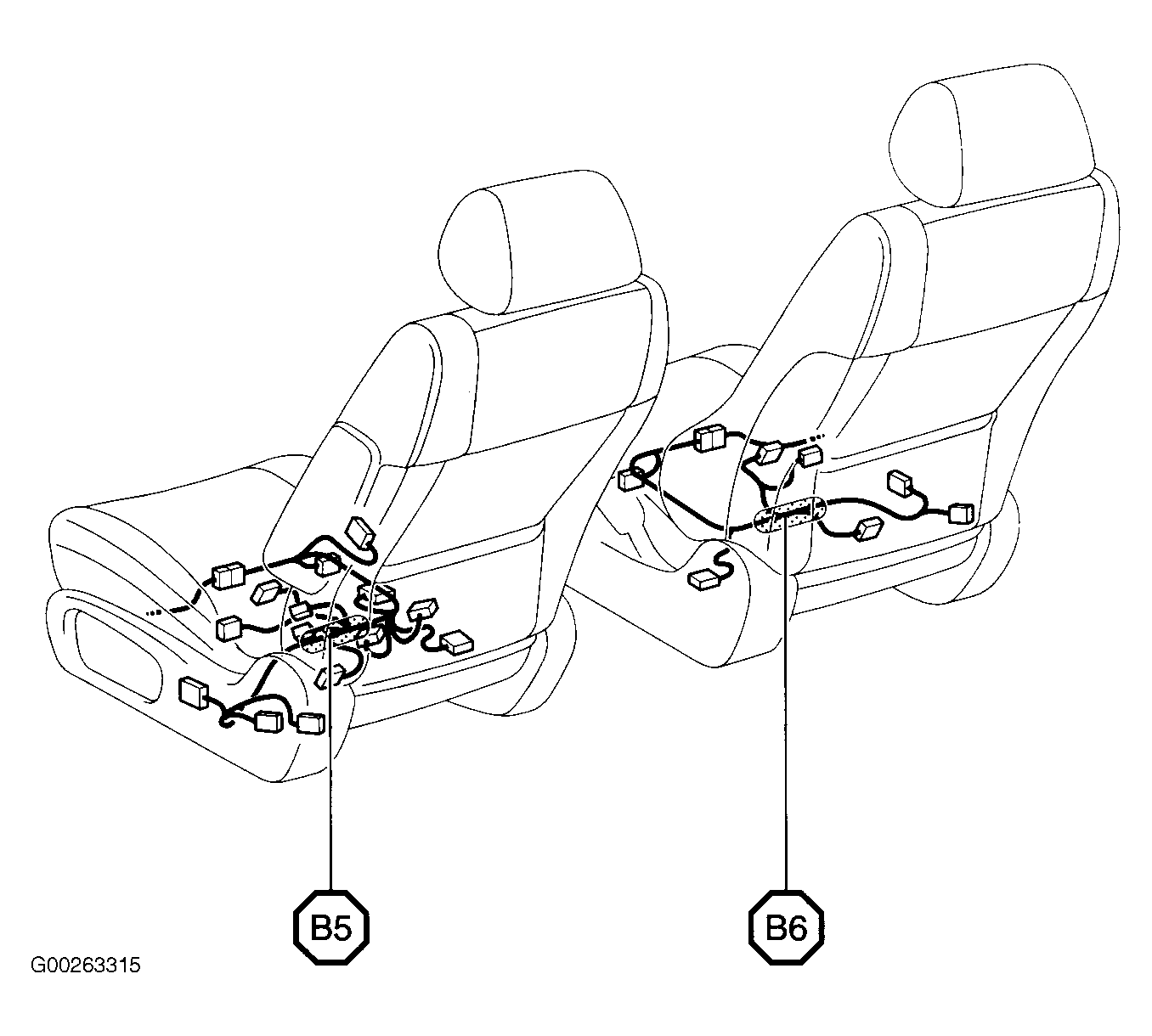

Fig 28: Front Seat Connectors

Fig 29: Front Seat Splices
