Fuel Pressure Regulator: Removal

REMOVE FUEL PUMP AND SENDER GAUGE ASSEMBLY FROM FUEL TANK (See REMOVAL )
REMOVE NO. 2 FUEL SUCTION SUPPORT
1. Using 2 screwdrivers, disconnect the 4 snap claws from the claw holes and remove the fuel suction support.
  NOTE: Be careful not to damage the suction supports.
2. Remove the rubber cushion.

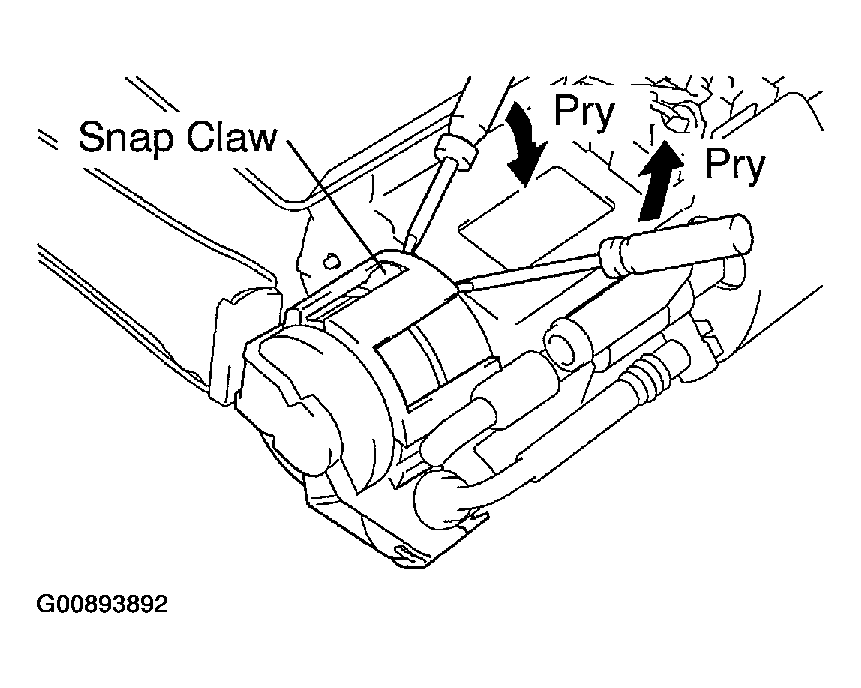

  Fig 1: Removing No. 2 Fuel Suction Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PRESSURE REGULATOR AND FUEL RETURN JET TUBE ASSEMBLY

Fig 2: Removing Fuel Pressure Regulator & Fuel Return Jet Tube Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the fuel return jet tube from the clamp of the No. 2 fuel suction support.
2. Pull out the fuel pressure regulator from the fuel filter, and remove the fuel pressure regulator and fuel return jet tube assembly.
3. Remove the O-ring from the fuel pressure regulator.
