Skid Control Sensor Front: Components

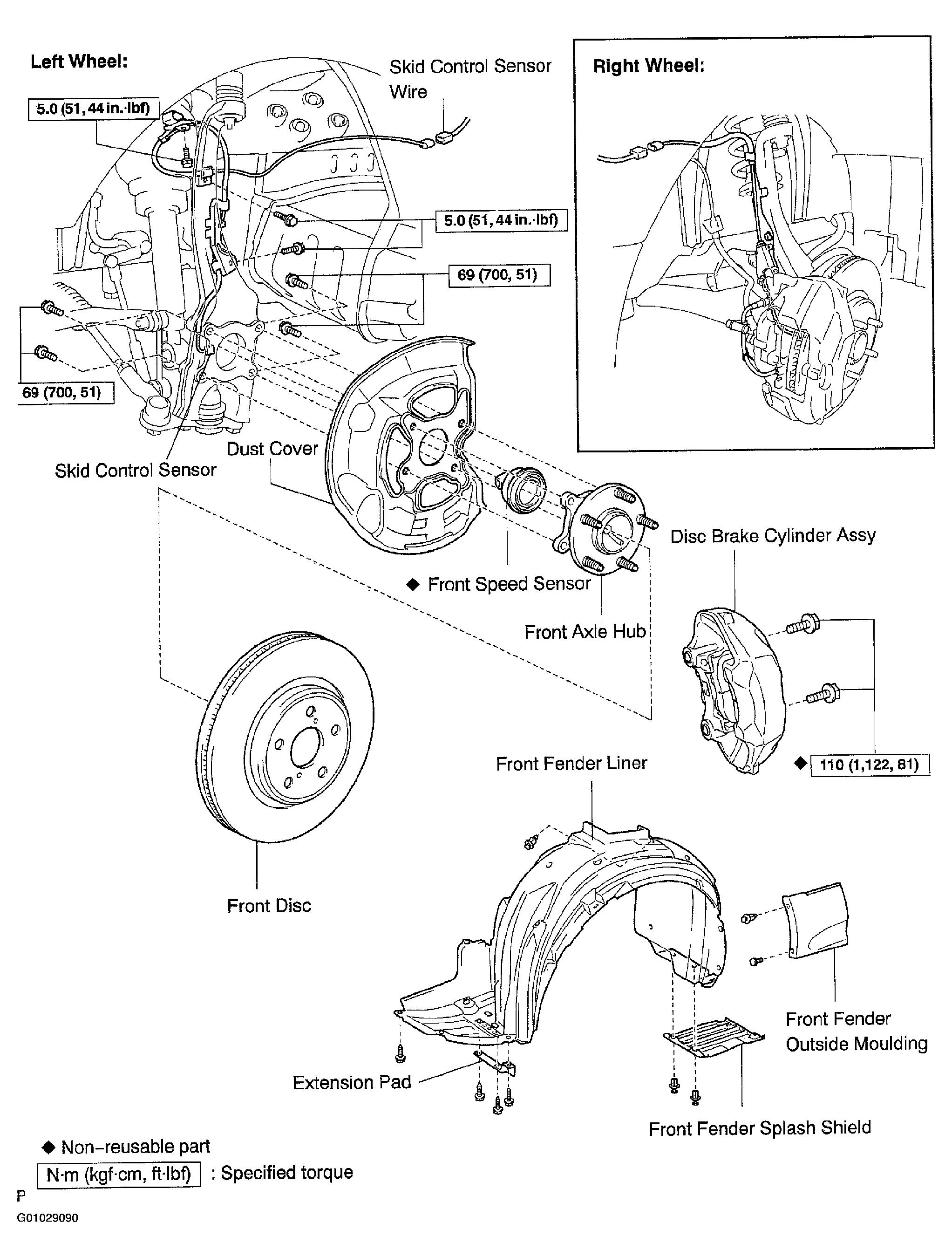

Fig 1: Identifying Skid Control Sensor Front Components
G01029090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
