Camshaft Position Sensor: Replacement

  1. REMOVE AIR CLEANER INLET NO.1 (See  REPLACEMENT  )
  2. DRAIN ENGINE COOLANT (See  ENGINE COOLANT  )
  3. REMOVE V-BANK COVER
  4. REMOVE ENGINE ROOM SIDE COVER
  5. DISCONNECT RADIATOR HOSE NO.1
  6. REMOVE TIMING BELT COVER SUB-ASSY NO.3 LH (See  REPLACEMENT  )
  7. REMOVE CAMSHAFT POSITION SENSOR
    1. Remove the bolt, stud bolt and sensor.
  8. INSTALL CAMSHAFT POSITION SENSOR
    1. Install a new sensor with the bolt and stud bolt.

      Torque: 7.5 N.m (76 kgf.cm, 66 in. lbf)

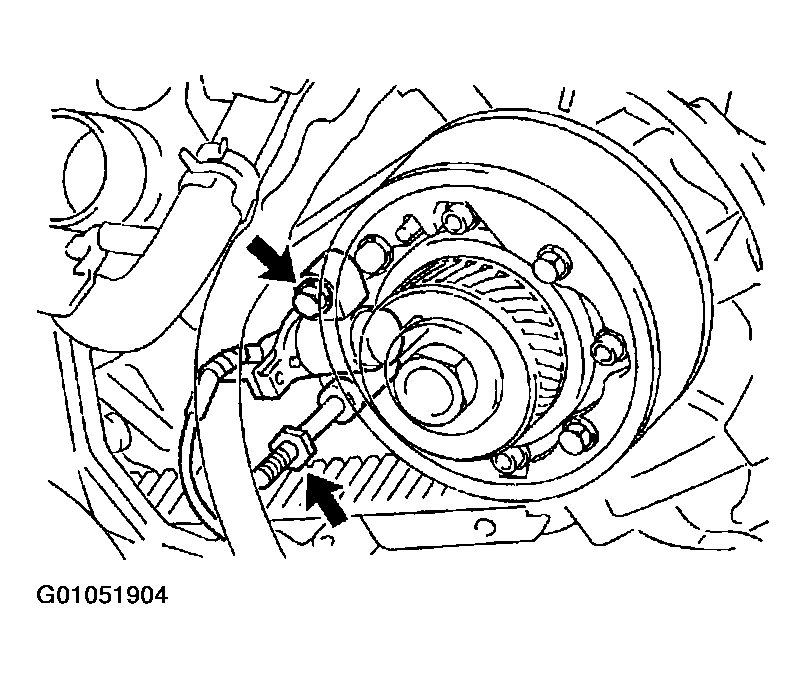

      Fig 1: Identifying Camshaft Position Sensor
      G01051904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL TIMING BELT COVER SUB-ASSY NO.3 LH (See  REPLACEMENT  )
  10. CONNECT RADIATOR HOSE NO.1
  11. INSTALL AIR CLEANER INLET NO.1 (See  REPLACEMENT  )
  12. INSTALL ENGINE ROOM SIDE COVER
  13. INSTALL V-BANK COVER
  14. REFILL ENGINE COOLANT (See  ENGINE COOLANT  )
  15. WARM UP ENGINE
  16. CHECK FOR ENGINE COOLANT LEAKS
