Crankshaft Position Sensor: Replacement

  1. REMOVE ENGINE UNDER COVER NO.1
  2. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.

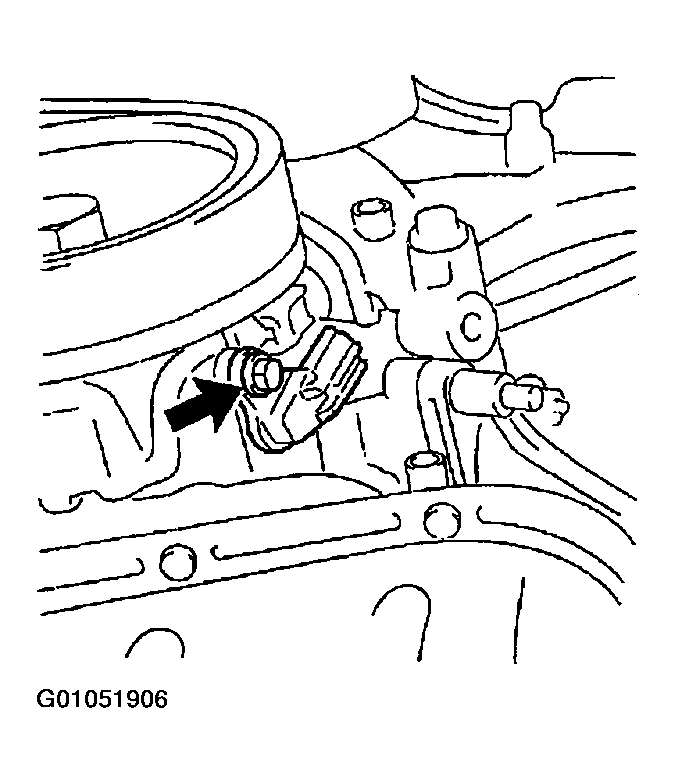

      Fig 1: Identifying Crankshaft Position Sensor
      G01051906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL CRANKSHAFT POSITION SENSOR
    1. Install a new sensor with the bolt.

      Torque: 6.5 N.m (65 kgf.cm, 58 in. lbf)

    2. Connect the sensor connector.
  4. INSTALL ENGINE UNDER COVER NO.1
