Ignition Coil: Replacement

  1. REMOVE V-BANK COVER
  2. REMOVE ENGINE ROOM SIDE COVER
  3. REMOVE INTAKE AIR CONNECTOR PIPE
  4. REMOVE OIL LEVEL GAGE SUB-ASSY (See  REPLACEMENT  )
  5. REMOVE IGNITION COIL ASSY
    1. Disconnect the ignition coil connector.
    2. Remove the bolt and pull out the ignition coil.

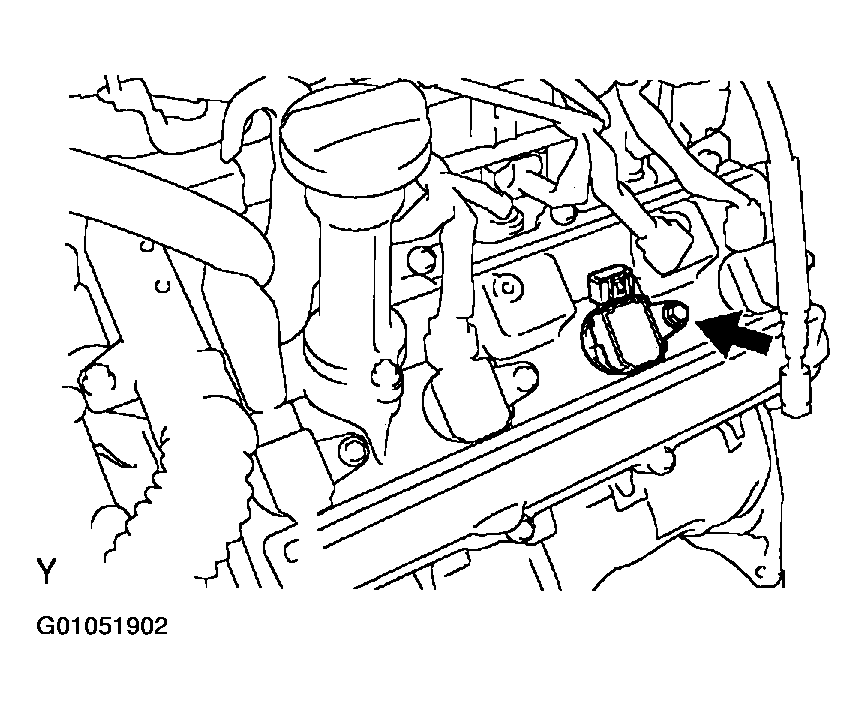

      Fig 1: Locating Ignition Coil Connector
      G01051902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL IGNITION COIL ASSY
    1. Connect a new ignition coil to the spark plug, attach the ignition coil to the cylinder head cover, and install the bolt.

      Torque: 7.5 N.m (76 kgf.cm, 66 in. lbf)

    2. Connect the ignition coil connector.
  7. INSTALL OIL LEVEL GAGE SUB-ASSY (See  REPLACEMENT  )
  8. INSTALL INTAKE AIR CONNECTOR PIPE
  9. INSTALL V-BANK COVER
  10. INSTALL ENGINE ROOM SIDE COVER
