Mode 6 - 2004 LEXUS
>>
SC 430
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
SC 430

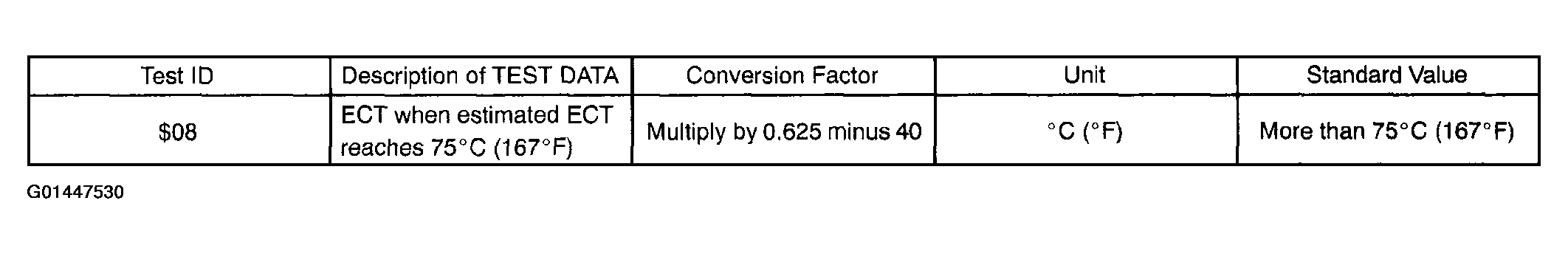

Fig 1: Thermostat Monitor Result Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

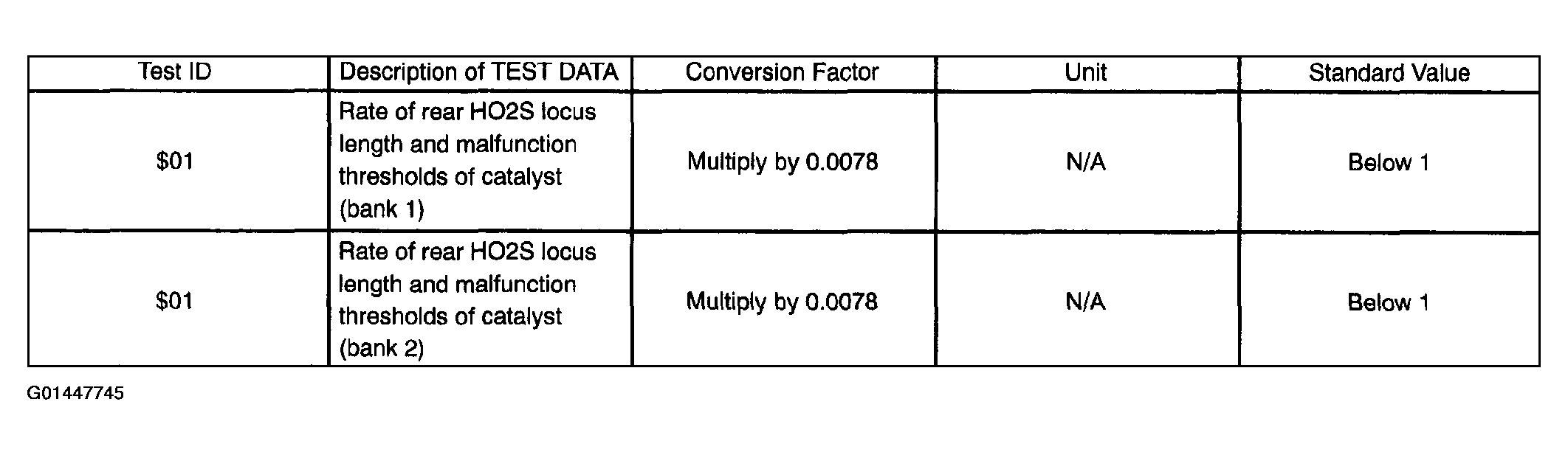

Fig 2: Catalyst Monitor Result
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

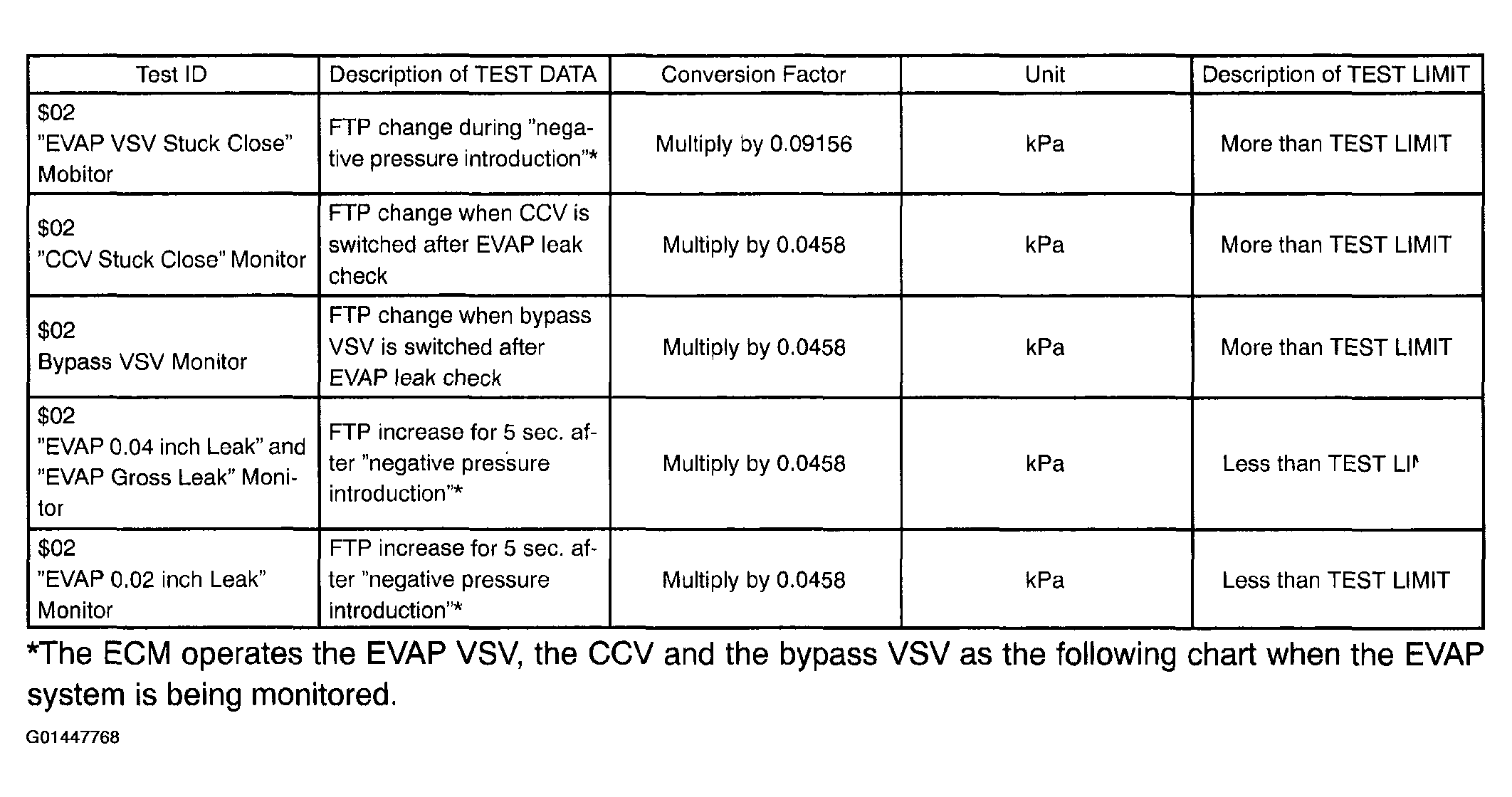

Fig 3: EVAP Monitor Result
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
