Accelerator Pedal Rod ASSY: Replacement

1. Disconnect the accelerator pedal position sensor connector.
2. Remove the 2 bolts, 2 nuts and accelerator pedal rod.

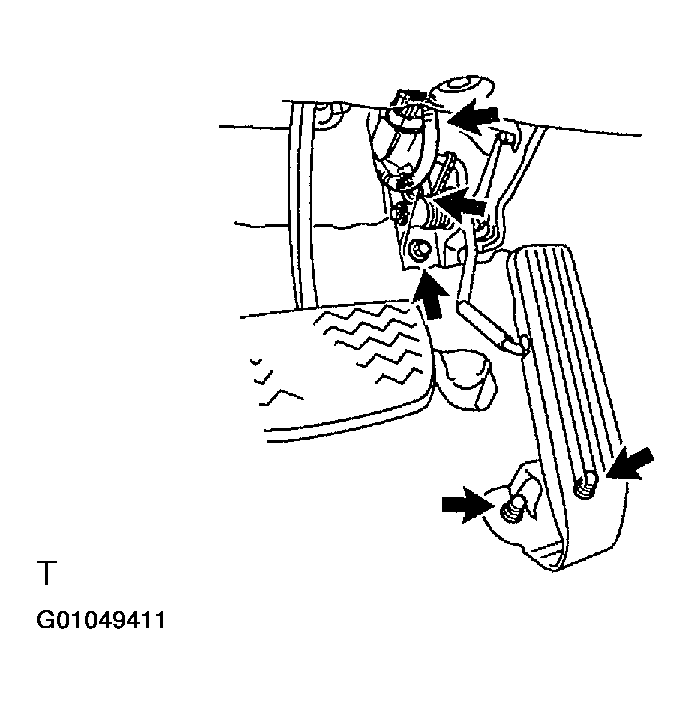

   Fig 1: Removing Accelerator Pedal Rod Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the accelerator pedal position sensor connector.
2. Install the accelerator pedal rod with the 2 bolts and 2 nuts.

Torque: 7.5 N.m (76.5 kgf.cm, 66 in.lbf)
