Throttle Body ASSY: Components

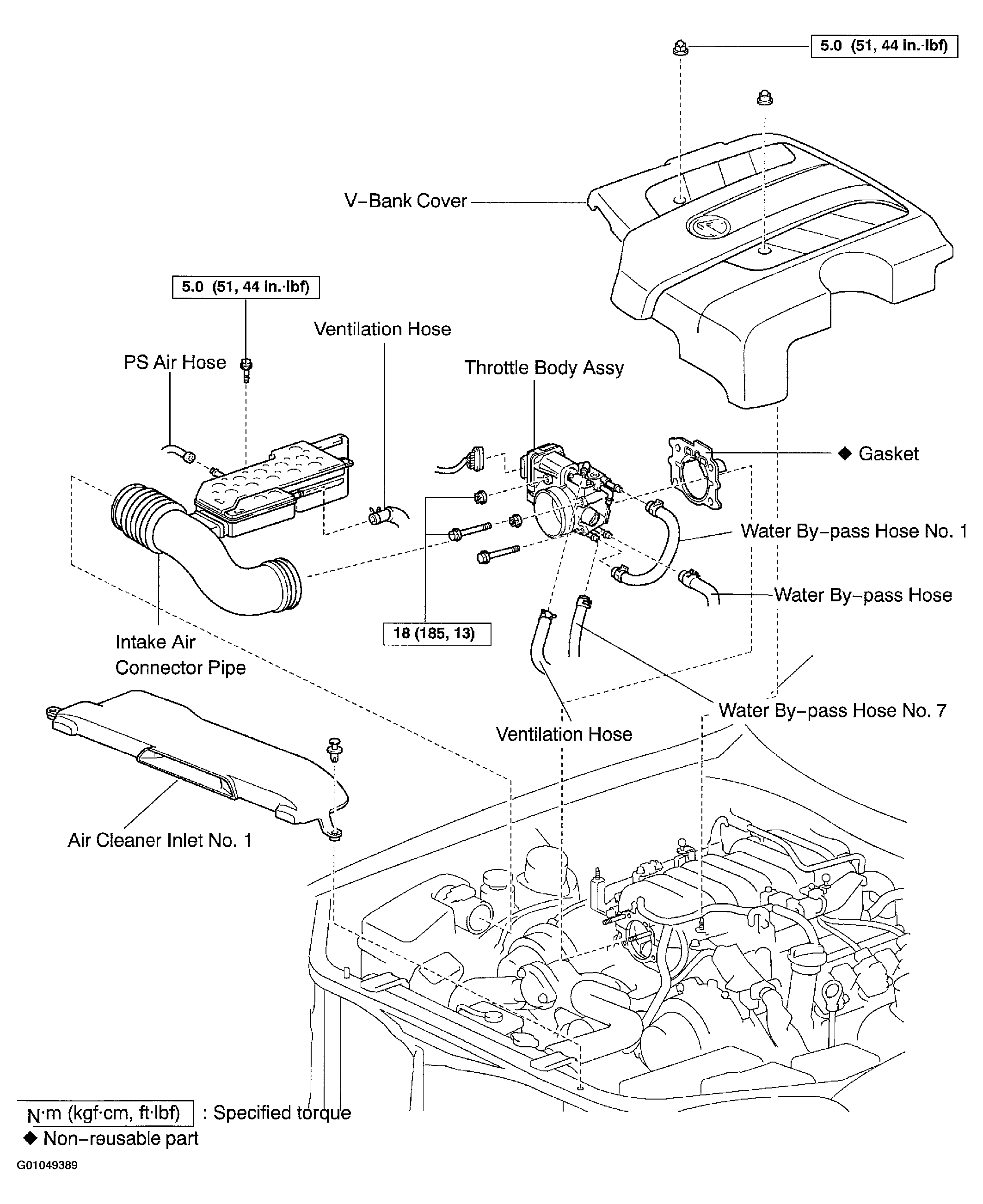

Fig 1: Identifying Throttle Body Assy Components Location
G01049389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
