Diagnostic Trouble Code Chart

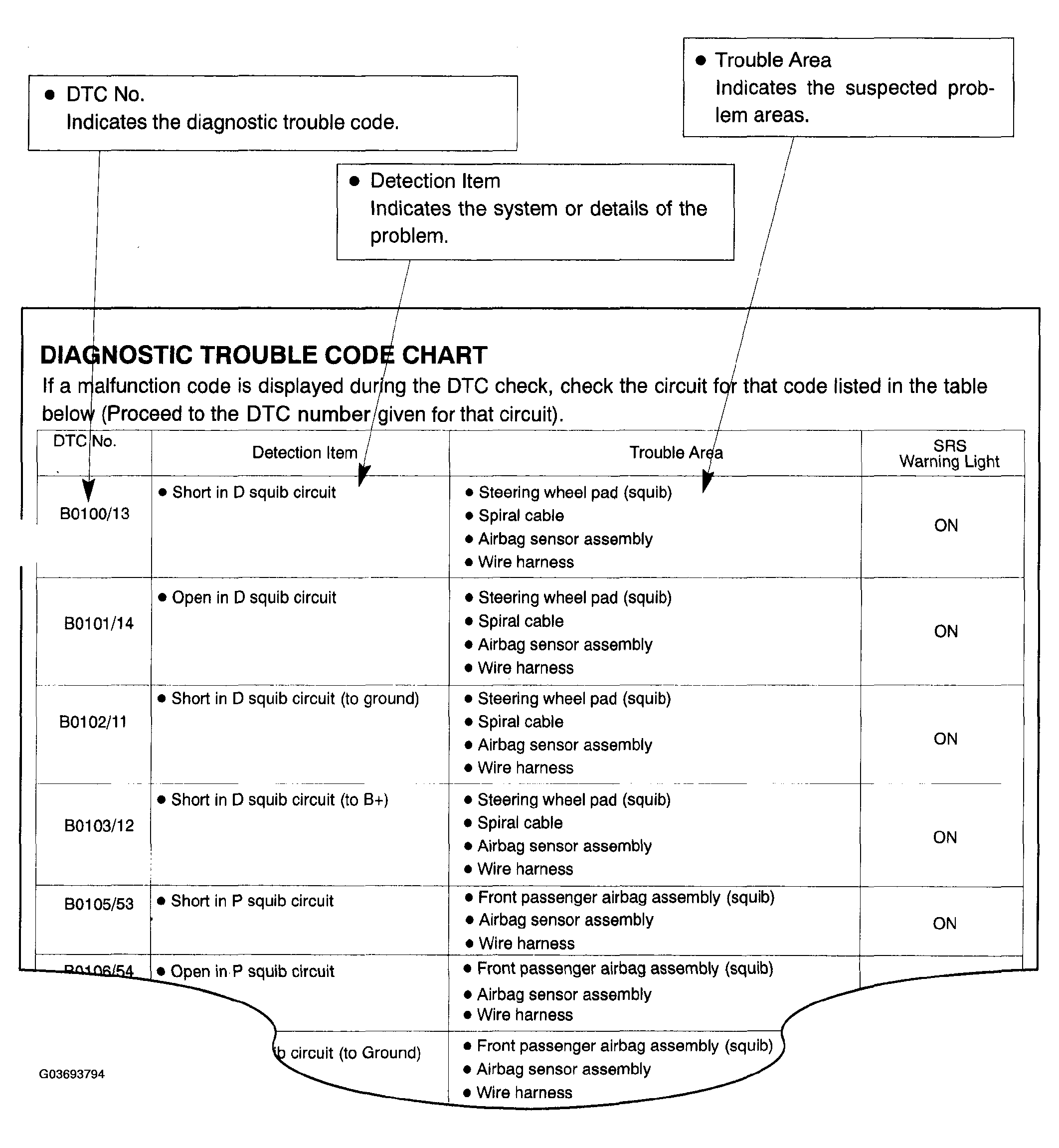

Use Diagnostic Trouble Codes (DTCs) (from the DTC checks) in the table below to determine the trouble a and proper inspection procedure. The Supplemental Restraint System (SRS) diagnostic trouble code chart is shown below as an example.
