Repair Procedures

1. A component illustration is placed under the title where necessary.
2. Non-reusable parts, grease application areas, precoated parts and torque specifications are noted in the component illustrations.

   Example:

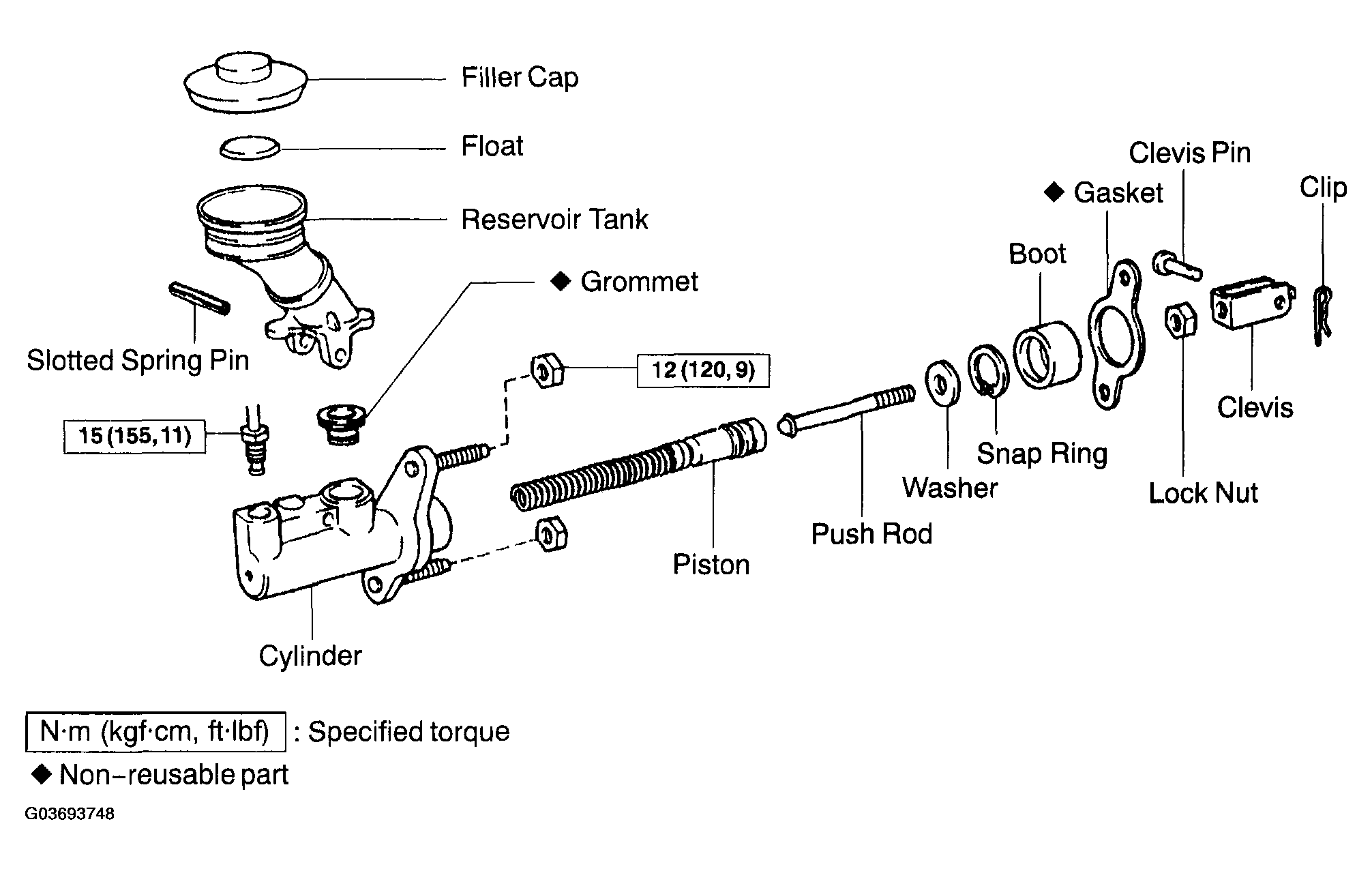

   Fig 1: Disassembling View Of Master Cylinder

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Torque specifications, grease application areas, and non-reusable parts are emphasized in the procedures.
   NOTE: There are cases where such information can only be explained by using an illustration.In these cases, all the information such as torque, oil, etc. are described in the illustration.
4. The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
5. Only items with key points are described in the text. What to do and other details are placed in illustrations next to the text. Both the text and illustrations are accompanied by standard values and notices.
6. Illustrations of similar vehicle models are sometimes used. In those cases, specific details may be different from the actual vehicle.
7. Procedures are presented in a step-by-step format:
   1. The illustration shows what to do and where to do it.
   2. The task heading tells what to do.
   3. The explanation text tells how to perform the task. It also has information such as specifications and warnings.

   Example:

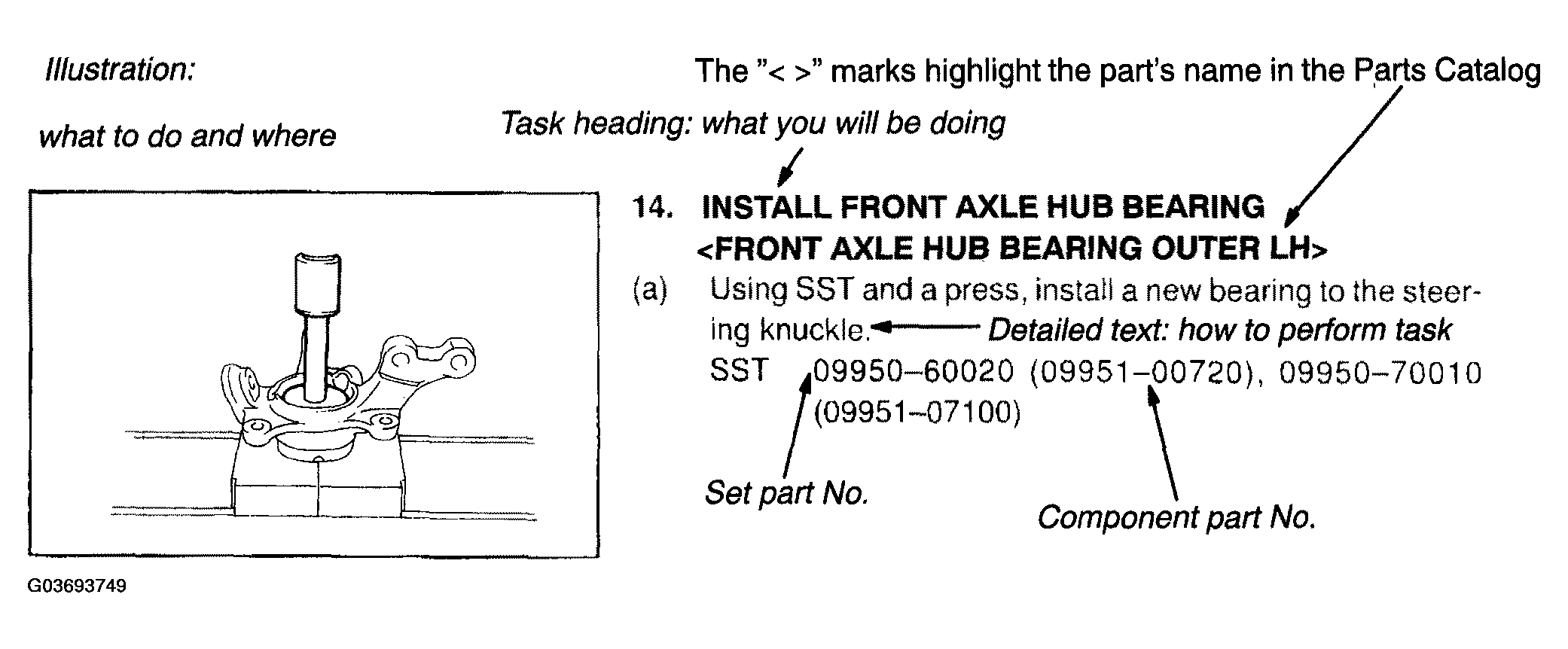

   Fig 2: [Identifying Specifications And Warnings]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

This format provides an experienced technician with a FAST TRACK to the necessary information. The task headings are easy to read and the text below the task heading provides detailed information. Important specifications and warnings are always written in bold type.
