Illustration of

ILLUSTRATION OF NO 1 REFERENCE

Brightness of the surrounding when lighting Lighting delay Delay of turning light off (2)
OLD Old logic 6 sec. 6 sec. 3 sec.
CURRENT New logic (1) ('97/8-) 15 sec. 15 sec. 15 sec.
(1) The new one has the logic to light up two times brighter than the old logic.
(2) Delay time until the headlight is turned on when it suddenly gets dark.

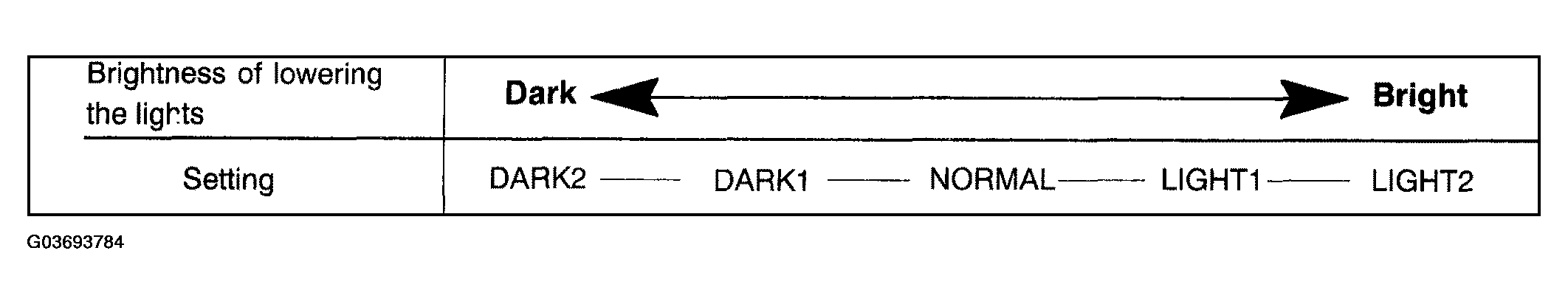

Fig 1: Illustration Of No 2 Reference Chart
G03693784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

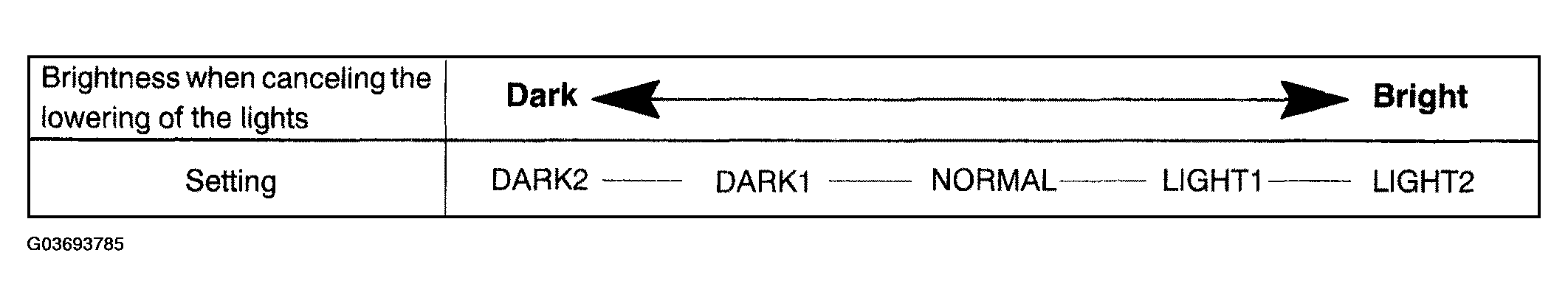

Fig 1: Illustration Of No 3 Reference Chart
G03693785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
