Vehicle Lift And Support Locations

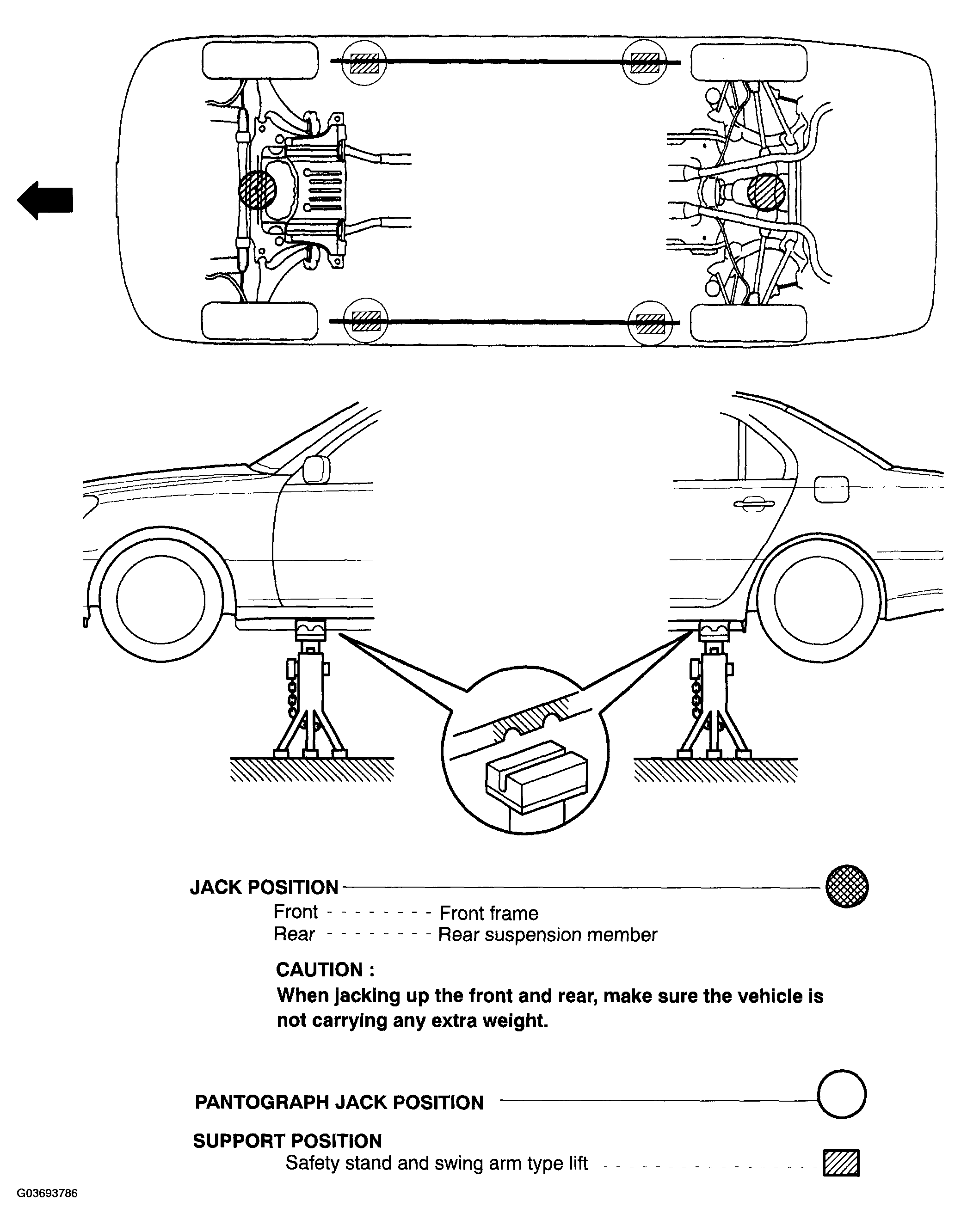

Fig 1: Identifying Vehicle Lifting And Supporting Locations (Jack Type Lift)
G03693786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

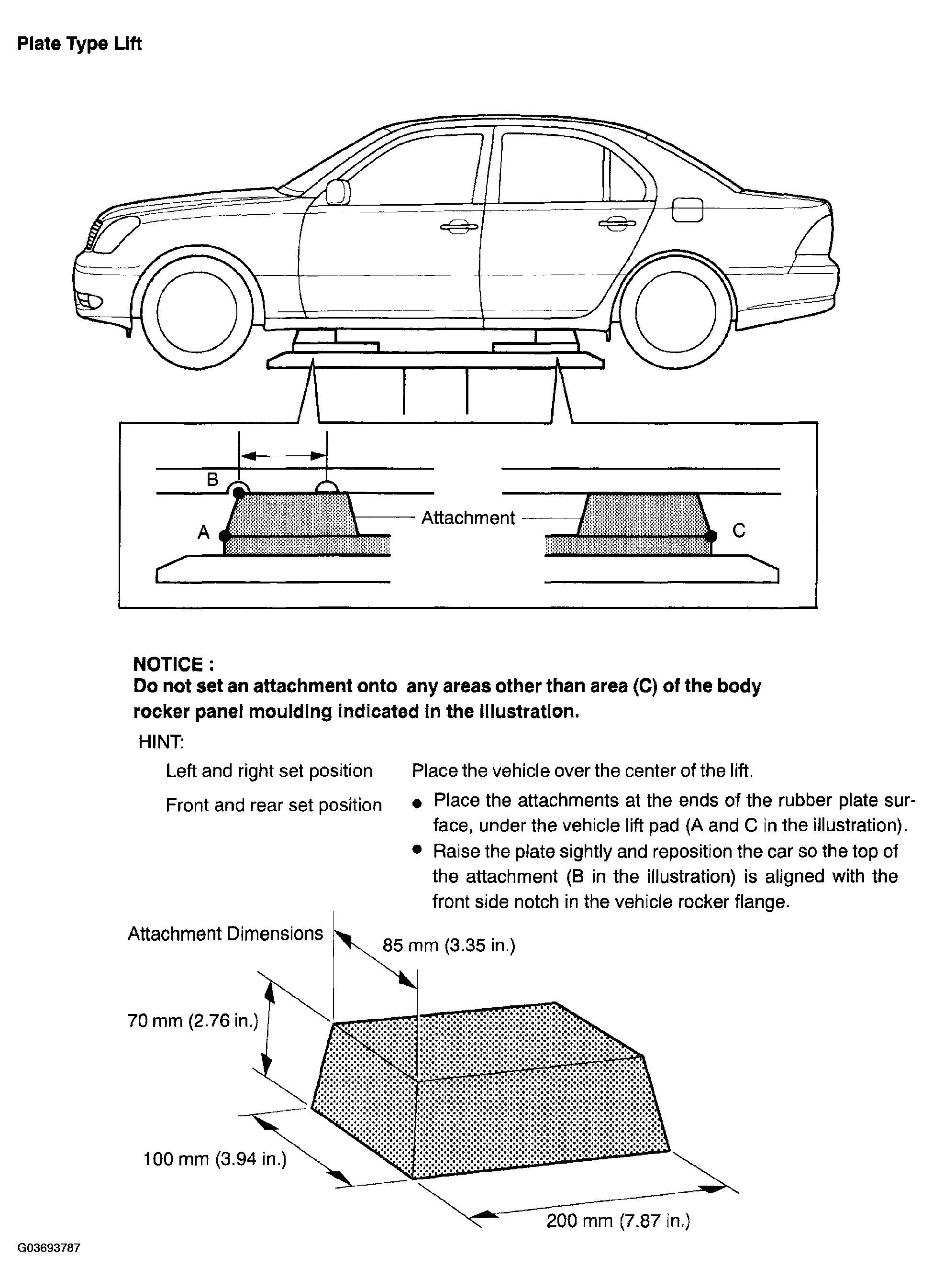

Fig 2: Identifying Vehicle Lifting And Supporting Locations (Plate Type Lift)
G03693787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
