Steering Column ASSY: Components

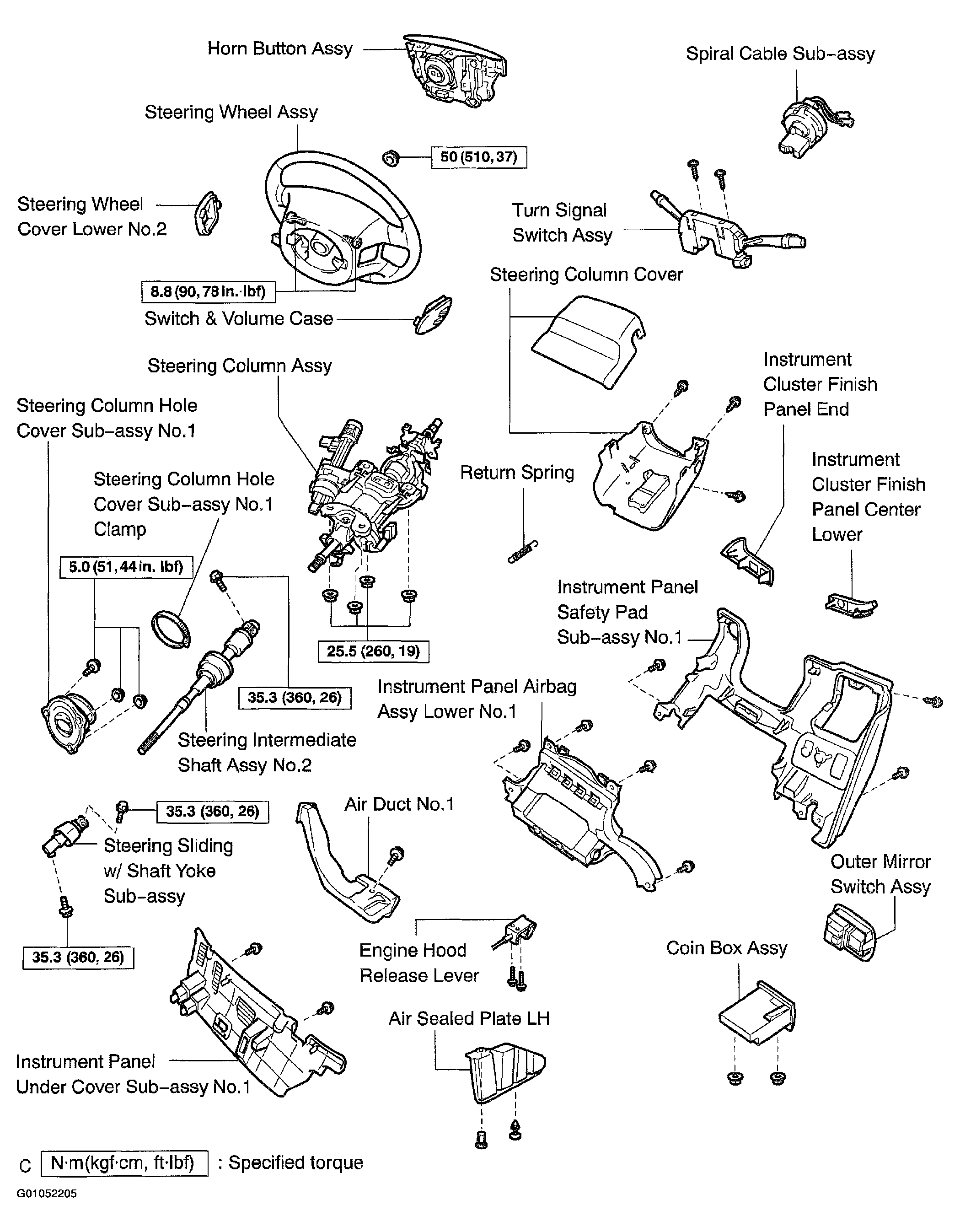

Fig 1: Exploded View Of Steering Column Assy Components (1 Of 4)
G01052205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Steering Column Assy Components (2 Of 4)
G01052206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Exploded View Of Steering Column Assy Components (3 Of 4)
G01052207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

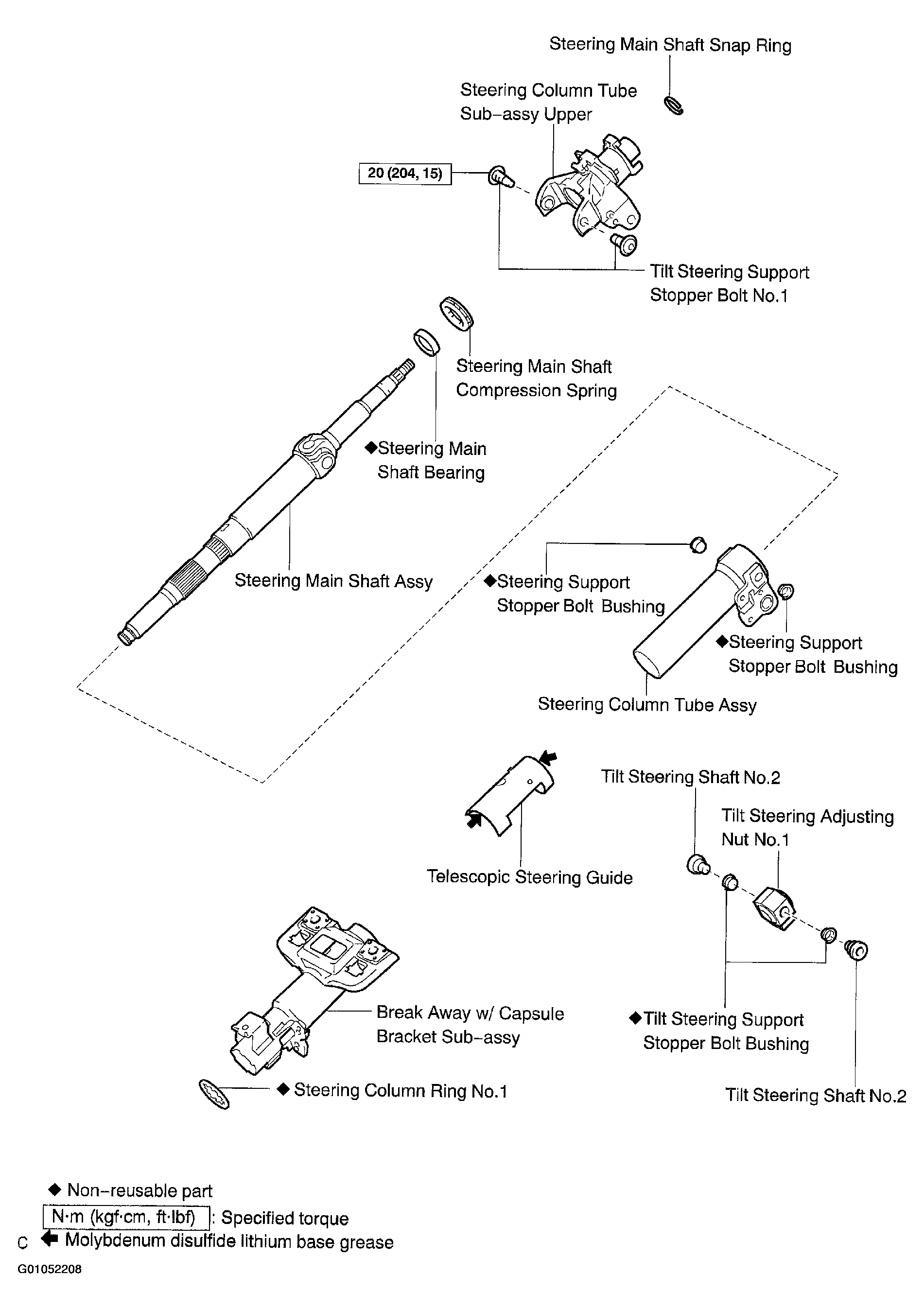

Fig 4: Exploded View Of Steering Column Assy Components (4 Of 4)
G01052208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
