Problem Symptoms Table

HINT:

Use the figure Fig 1 below to help determine the cause of the problem. The numbers indicate the priority of the likely causes of the problem. Check each part in order. If necessary, repair or replace these parts.

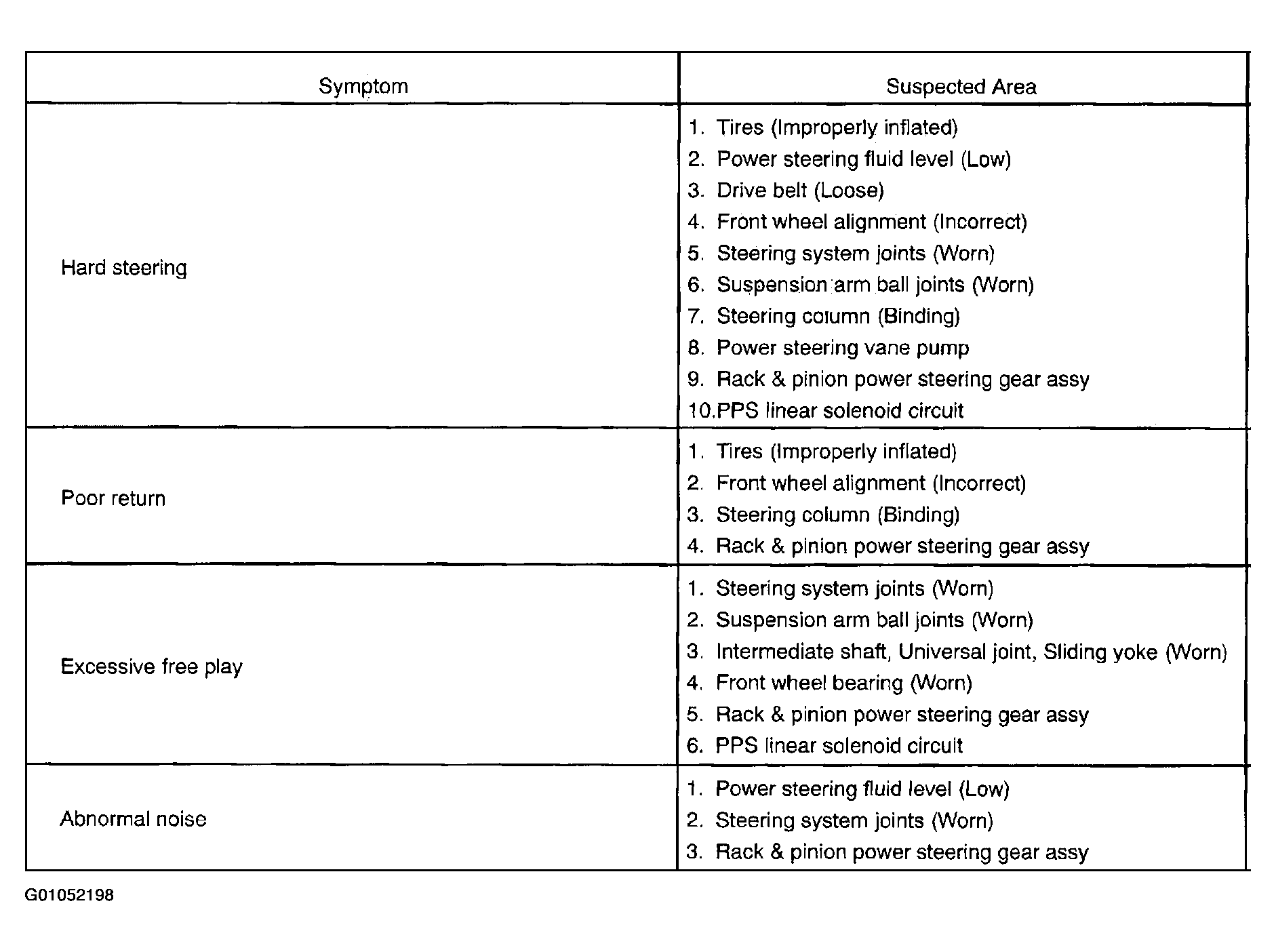

Fig 1: Symptoms Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When the problem occurs in the power tilt and telescopic steering system, refer to the DI section (see HOW TO PROCEED WITH TROUBLESHOOTING ).
