Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

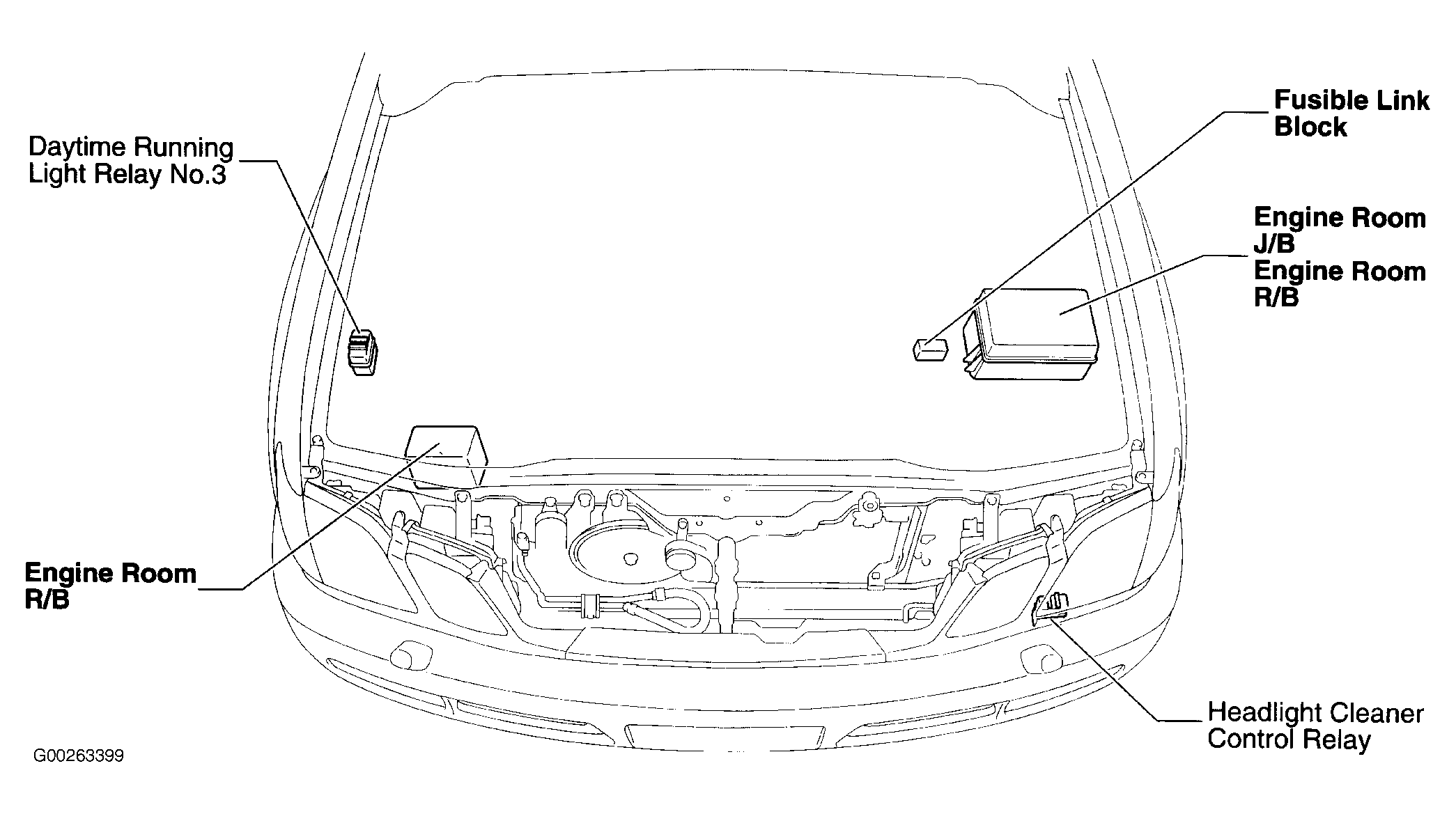

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM RELAY IDENTIFICATION

RELAY DESCRIPTION
Daytime Running Light Relay No.3
Headlight Cleaner Control Relay

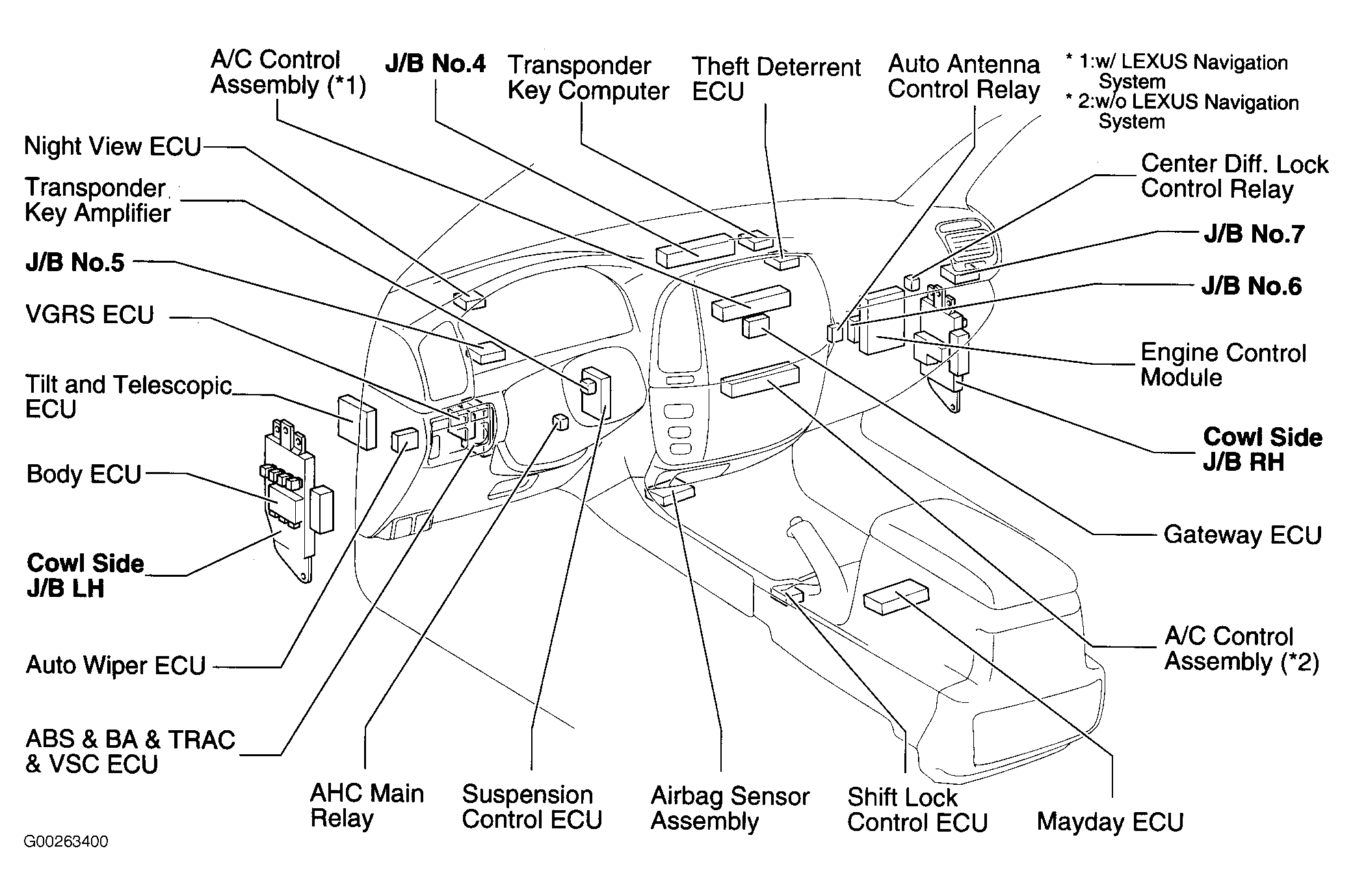

Fig 2: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
Auto Antenna Control Relay
Center Diff. Lock Control Relay
AHC Main Relay

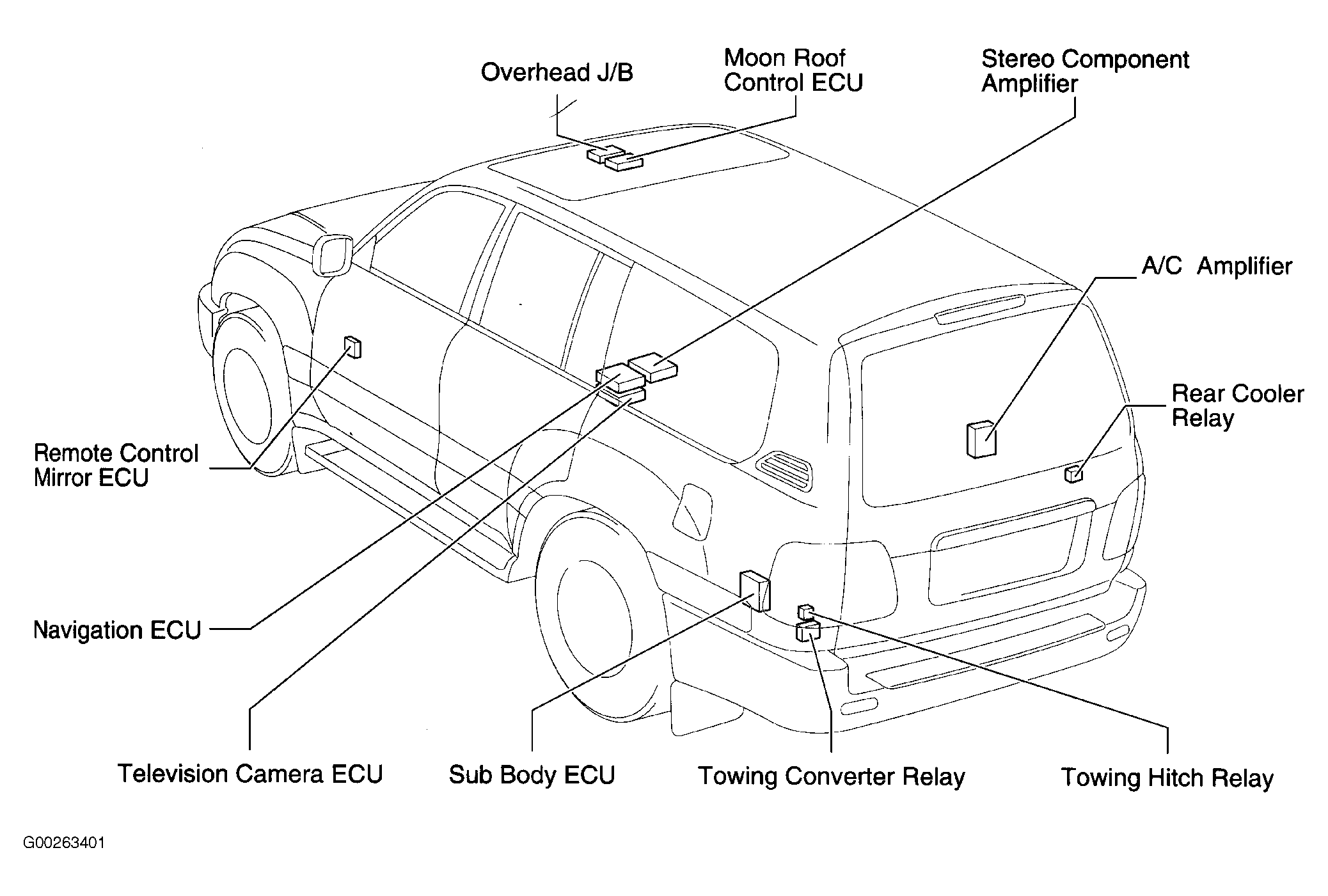

Fig 3: Left Side Of Vehicle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PASSENGER AREA RELAY IDENTIFICATION

RELAY DESCRIPTION
Rear Cooler Relay
Towing Hitch Relay
Towing Converter Relay

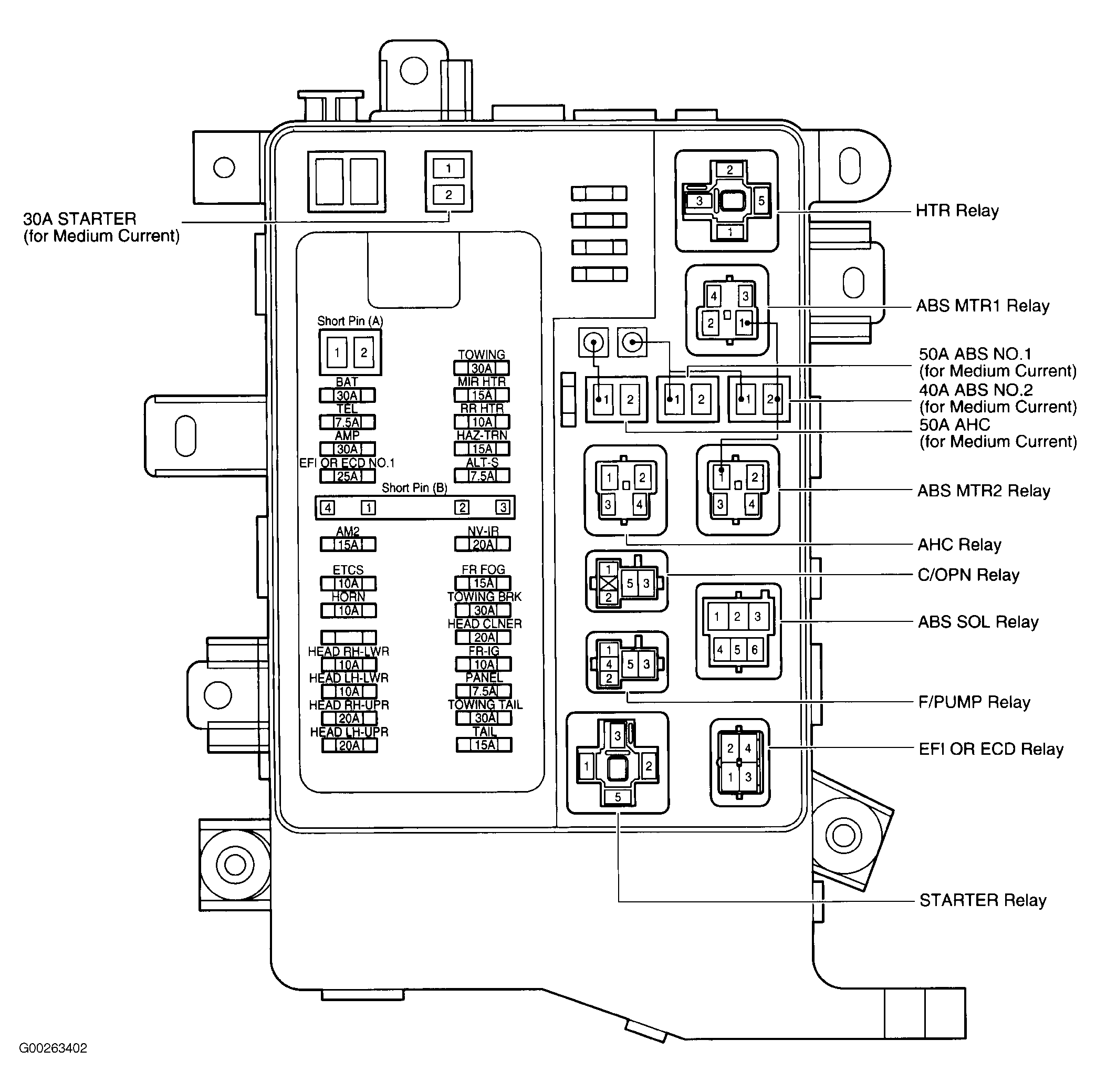

Fig 4: Engine Room R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM JUNCTION/RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
HTR Relay
ABS MTR1 Relay
ABS MTR2 Relay
AHC Relay
C/OPN Relay
ABS SOL Relay
F/Pump Relay
EFI OR ECD Relay
Starter Relay

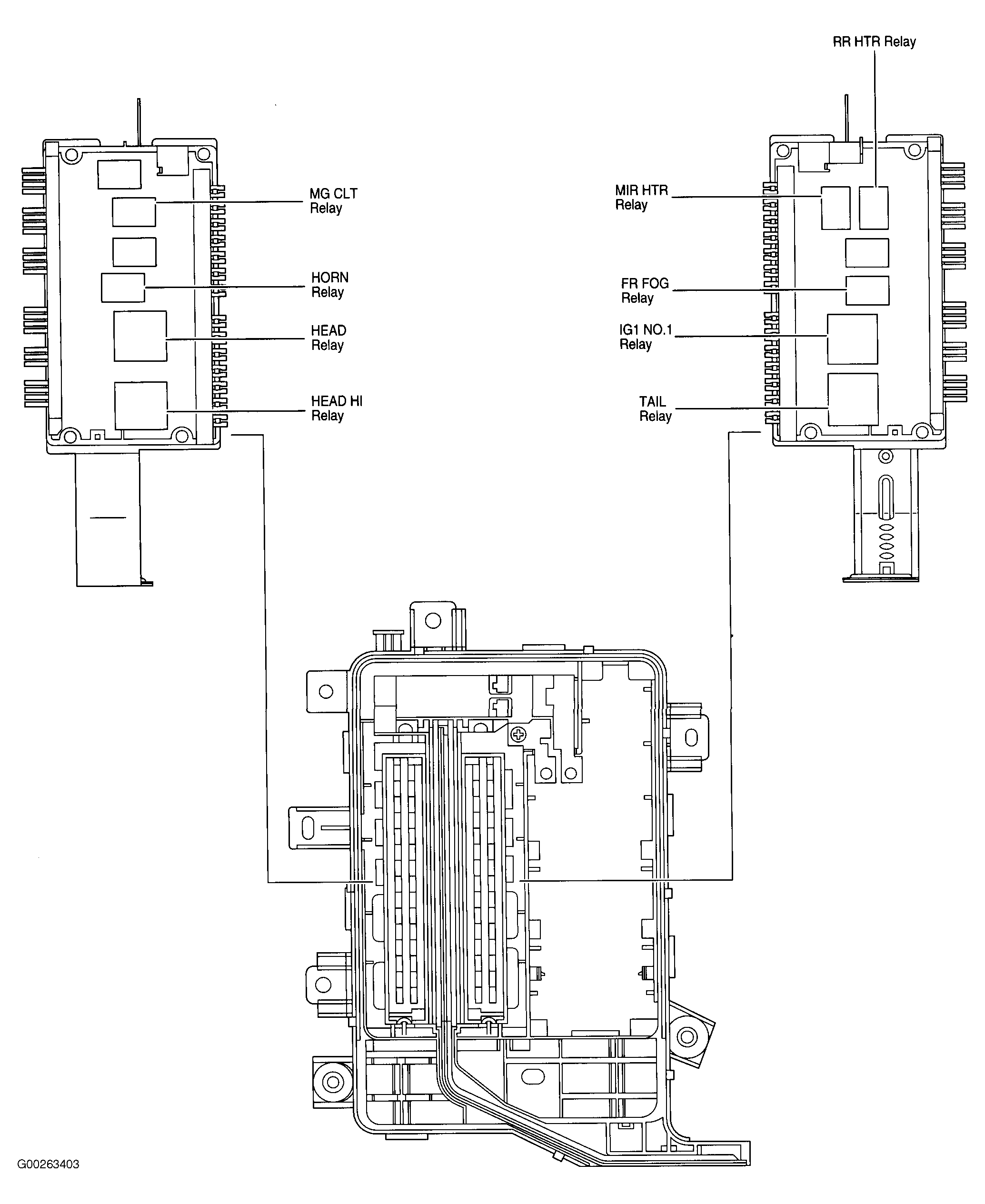

Fig 5: Engine Room R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM JUNCTION/RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Head HI Relay
Head Relay
Horn Relay
MG CLT Relay
RR HTR Relay
MIR HTR Relay
FR Fog Relay
IG1 No.1 Relay
Tail Relay

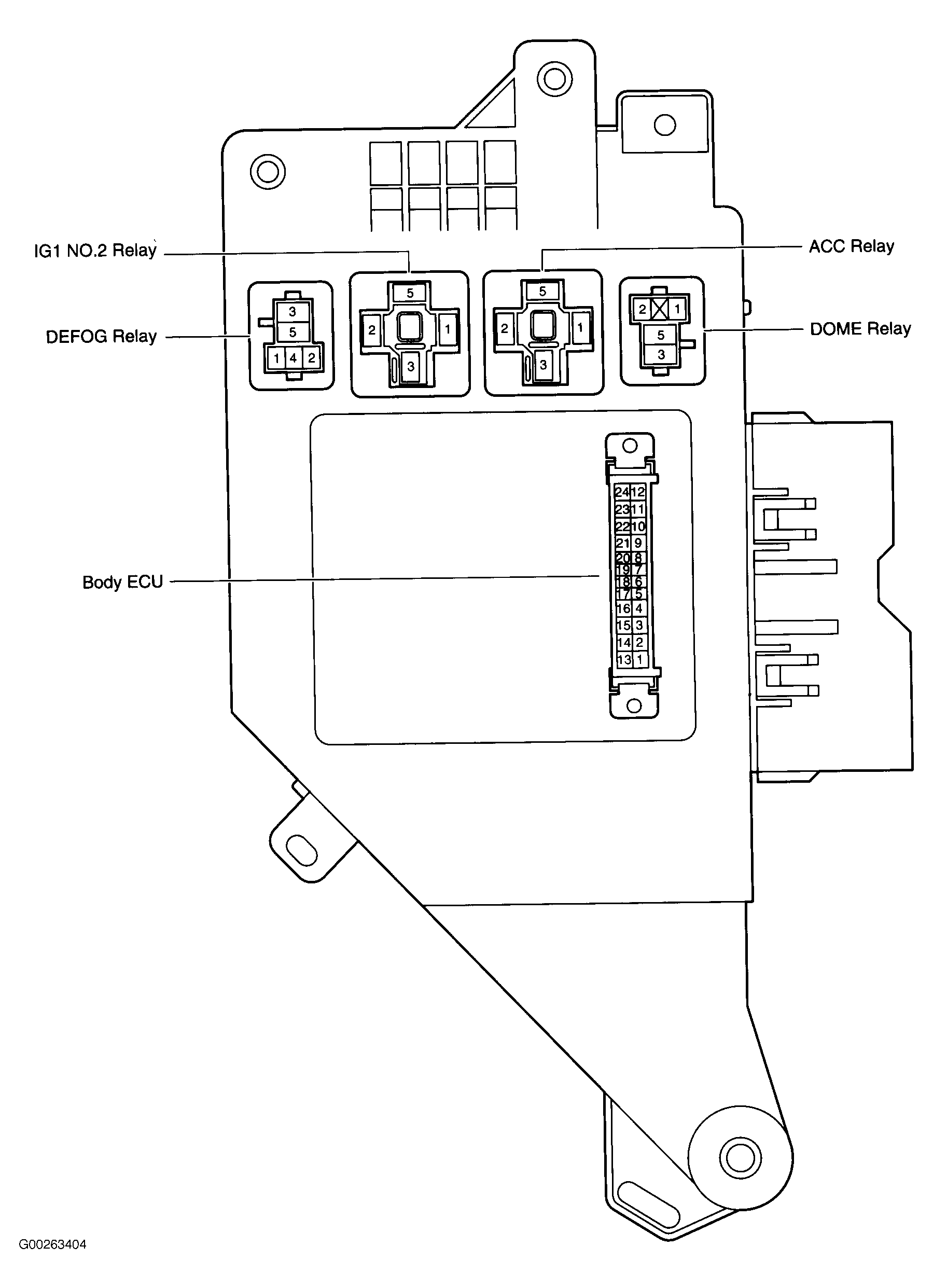

Fig 6: Cowl Side J/B (Left)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

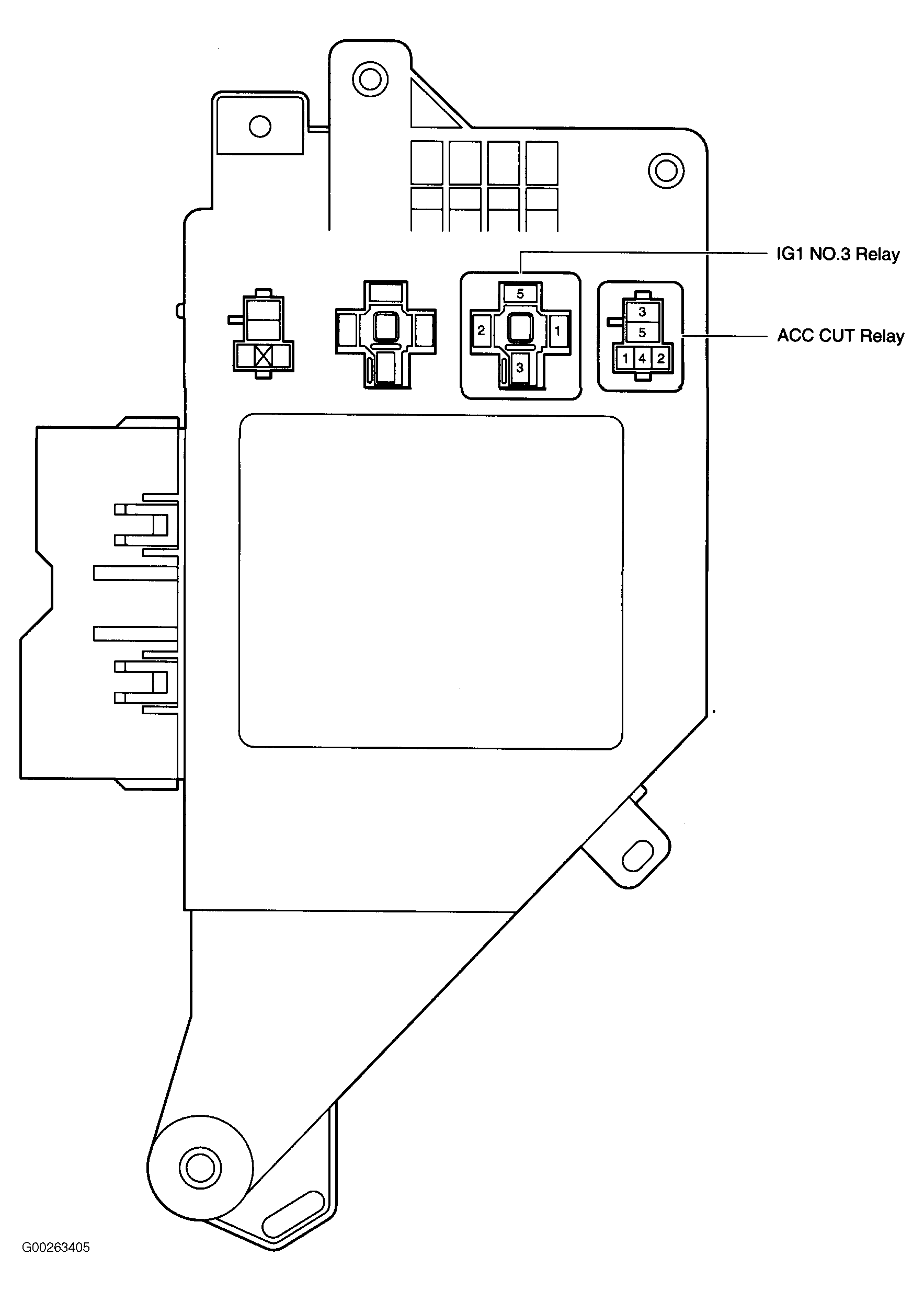

Fig 7: Cowl Side J/B (Right)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

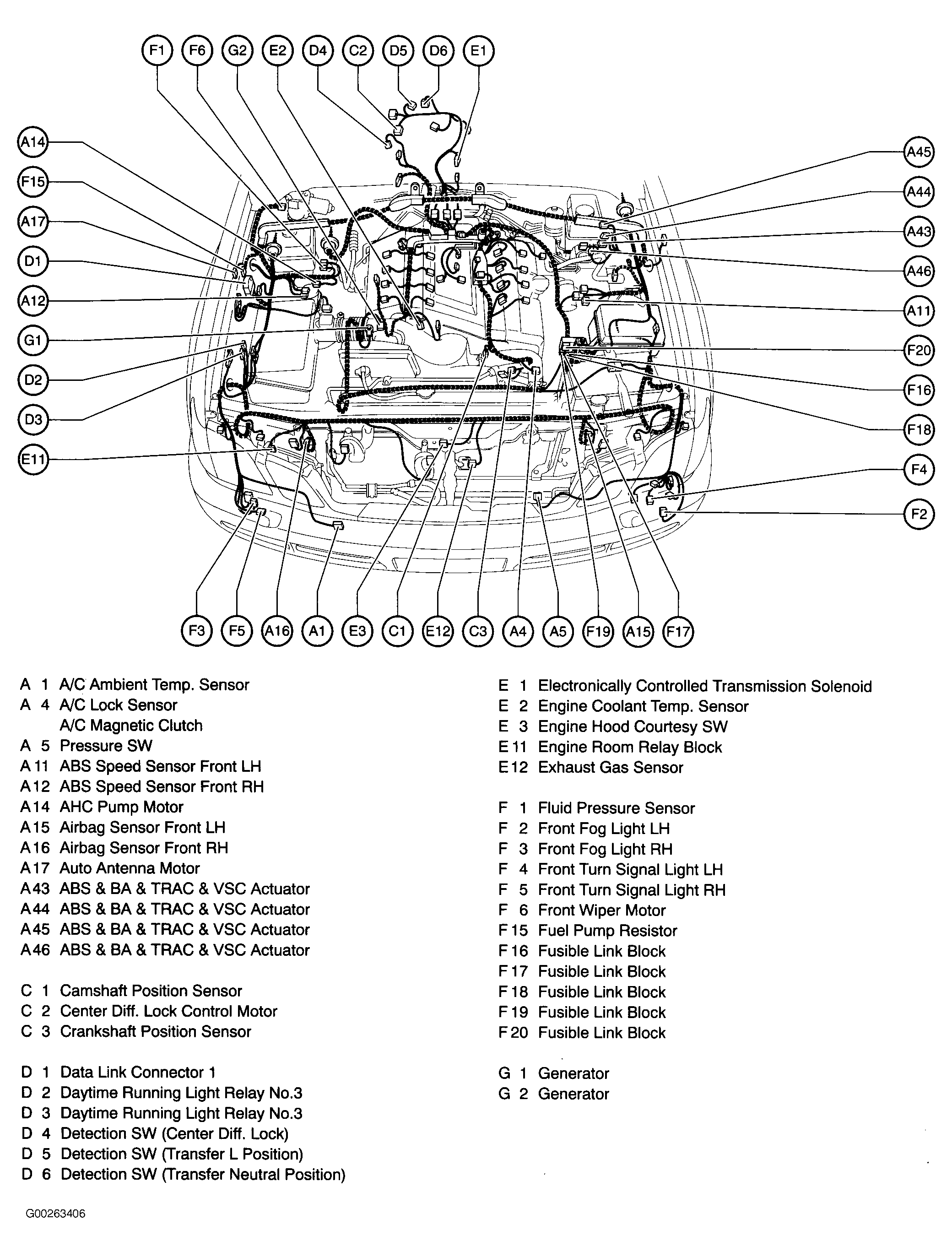

Fig 8: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

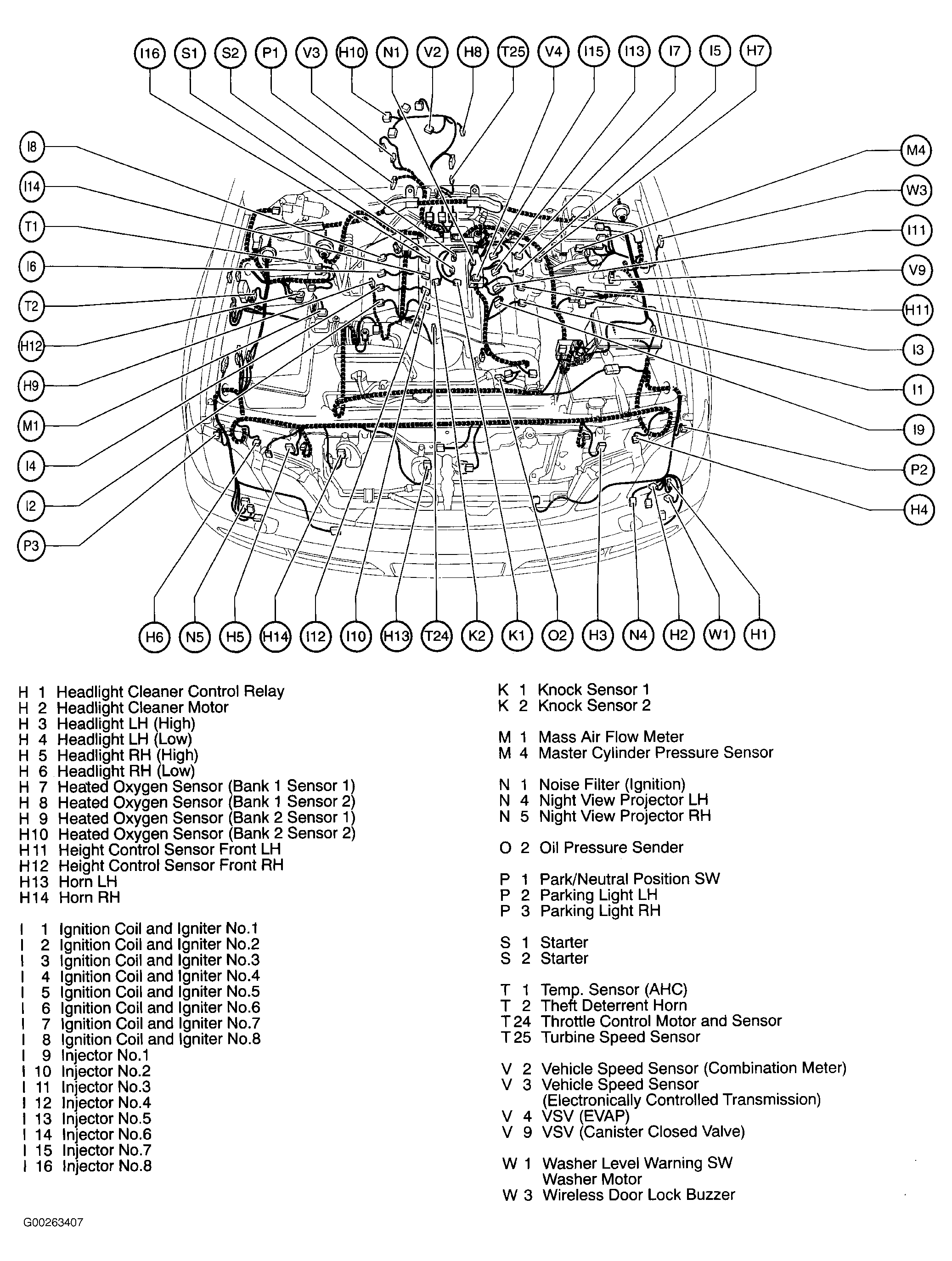

Fig 9: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

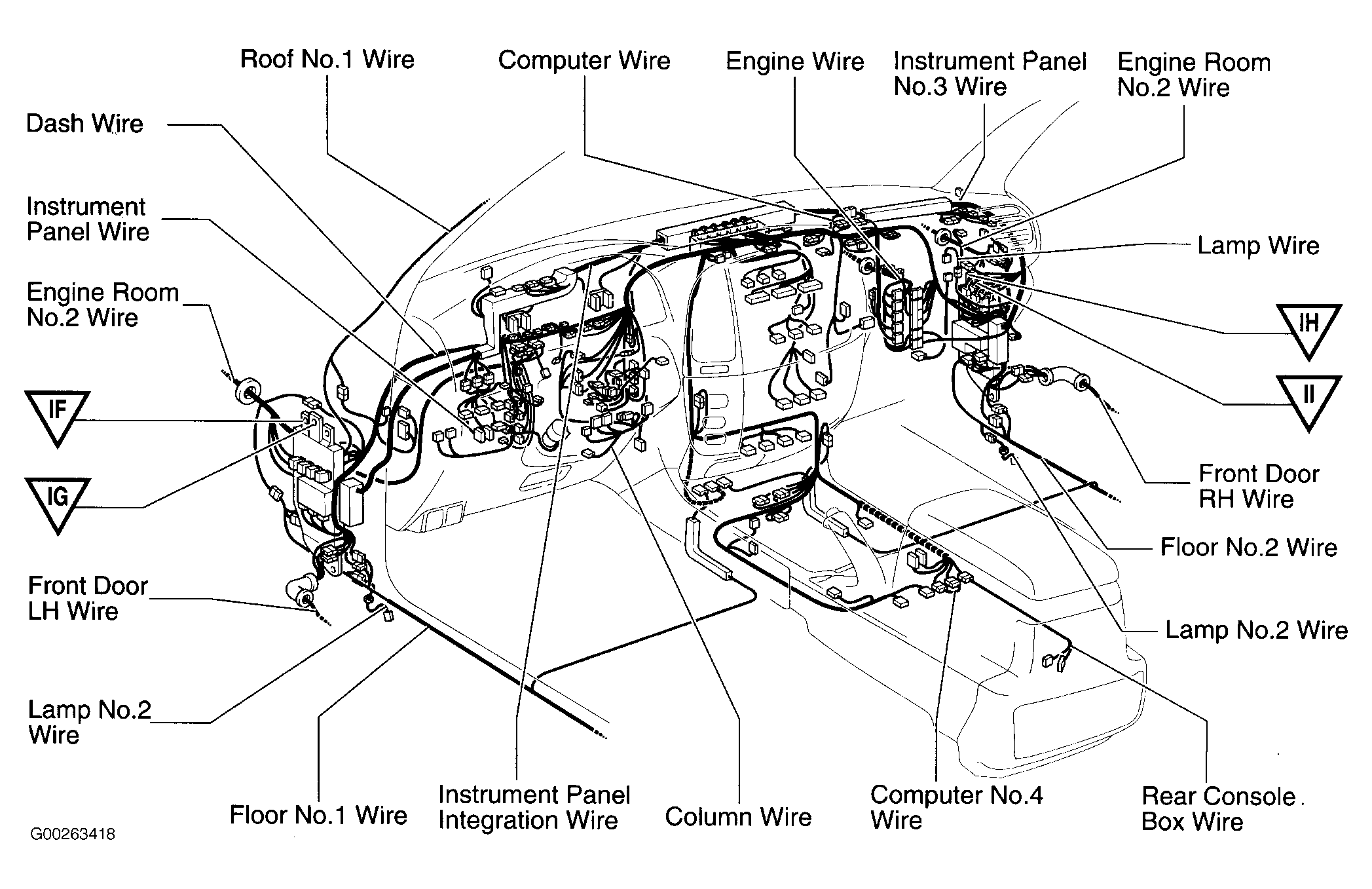

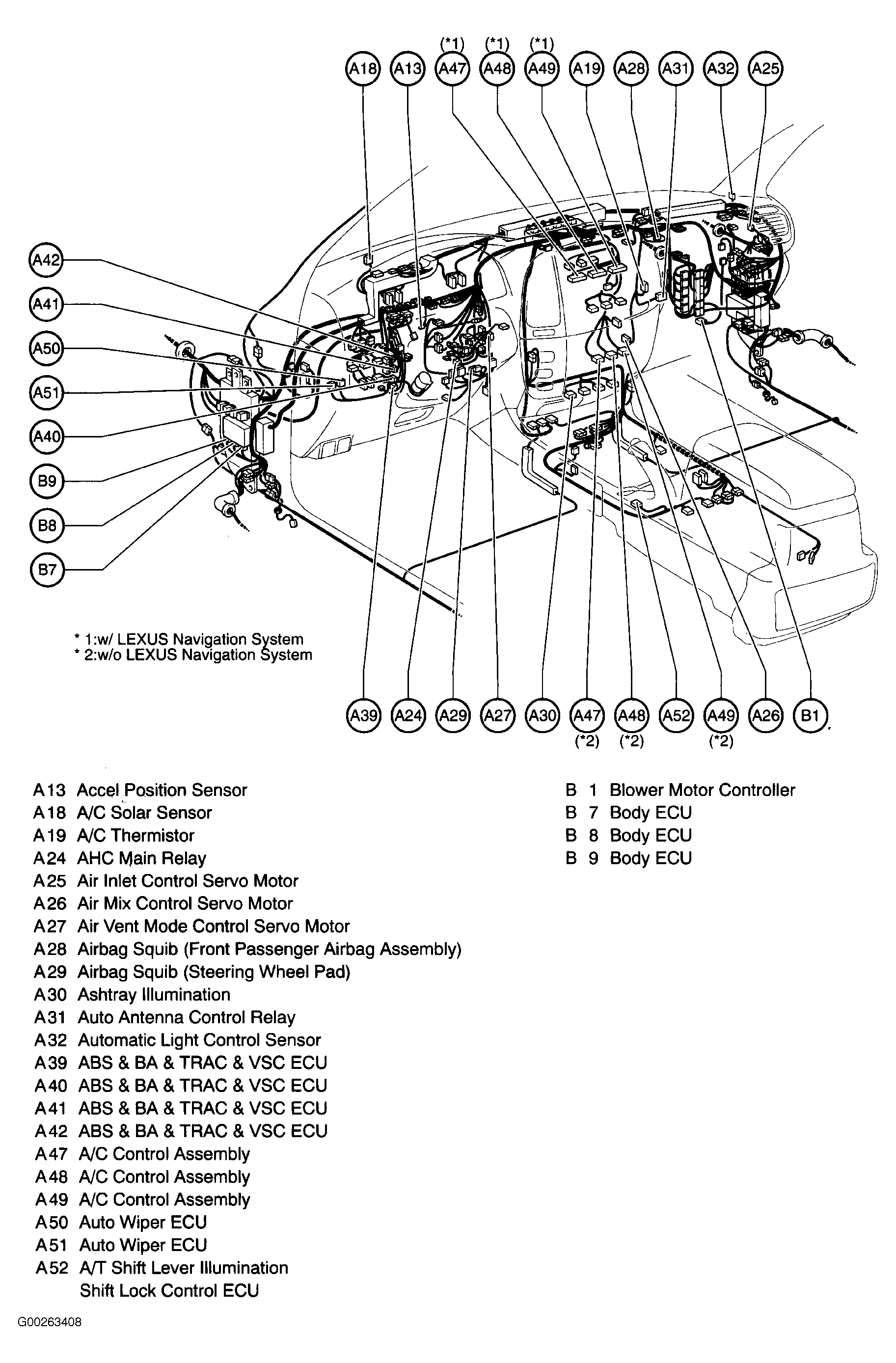

Fig 10: Dashboard

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

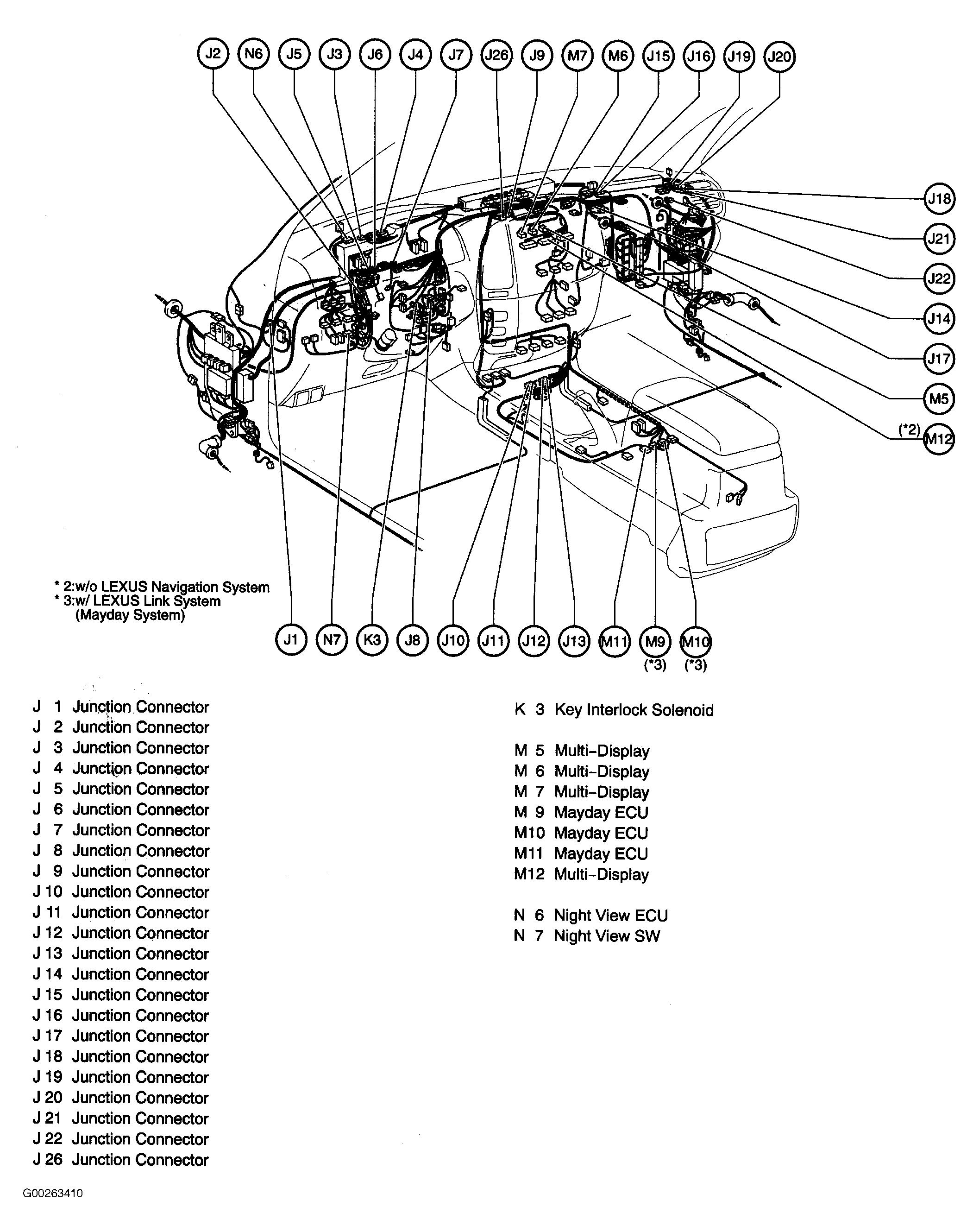

Fig 11: Dashboard

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Dashboard

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

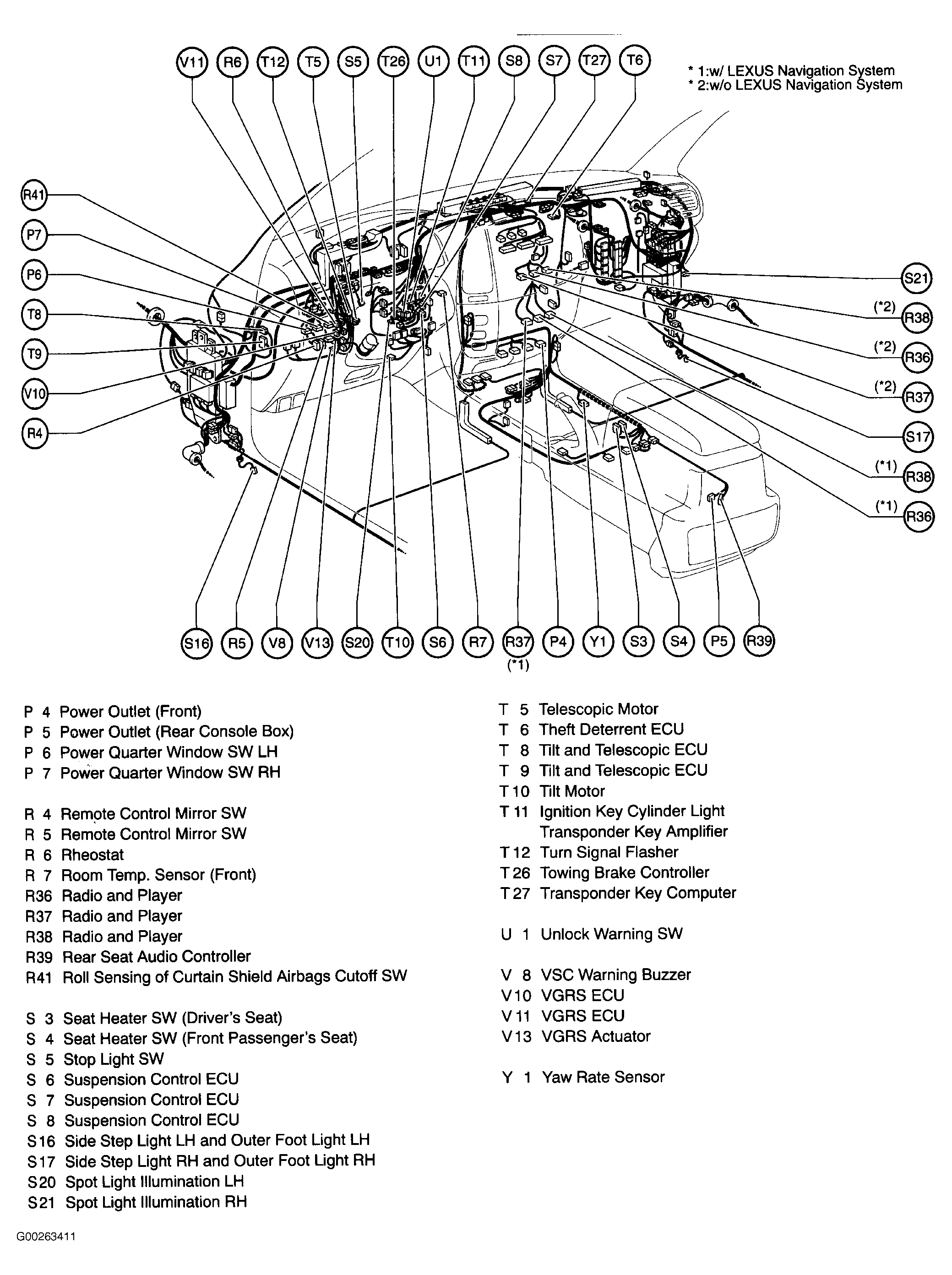

Fig 13: Dashboard

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

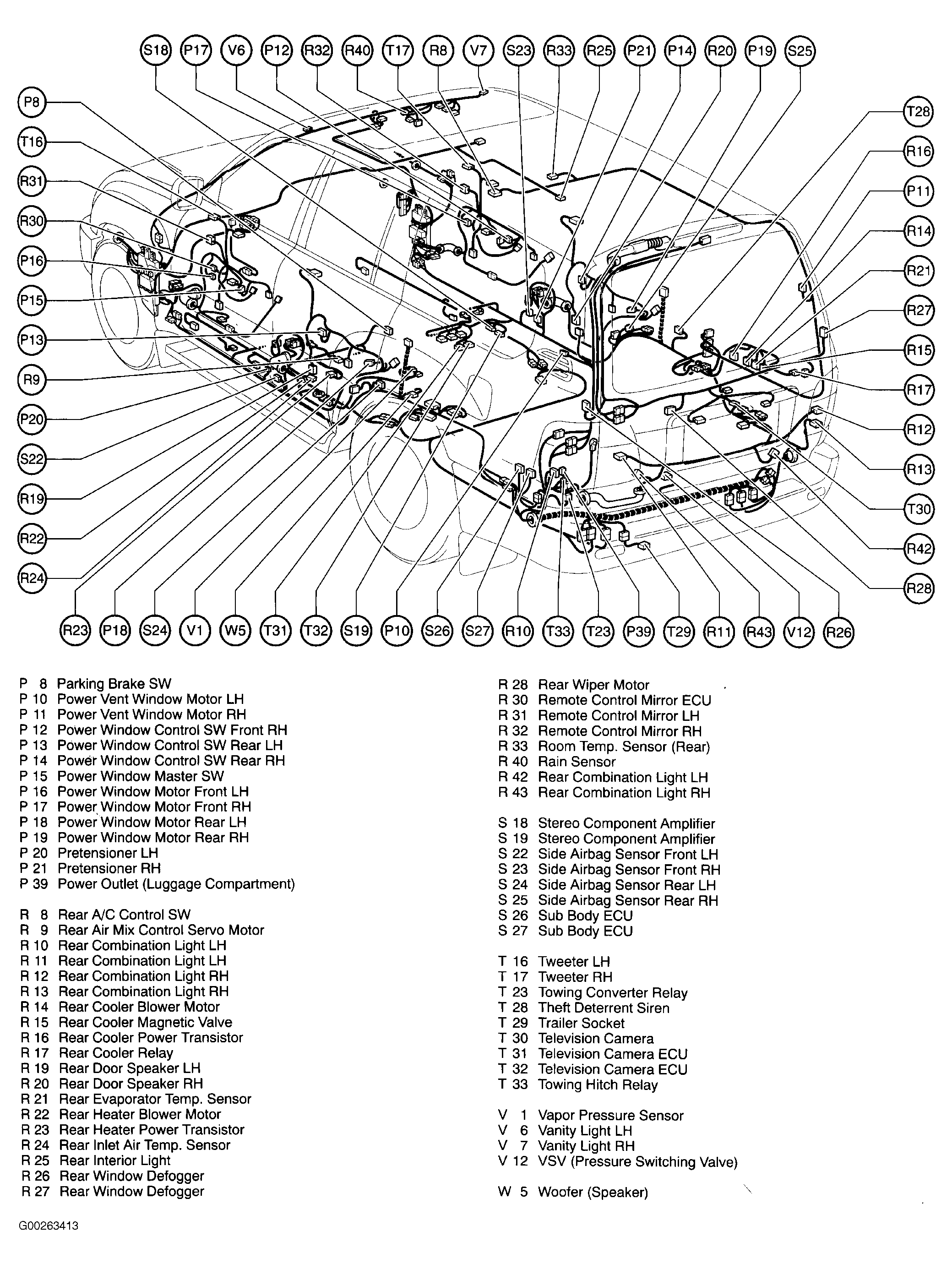

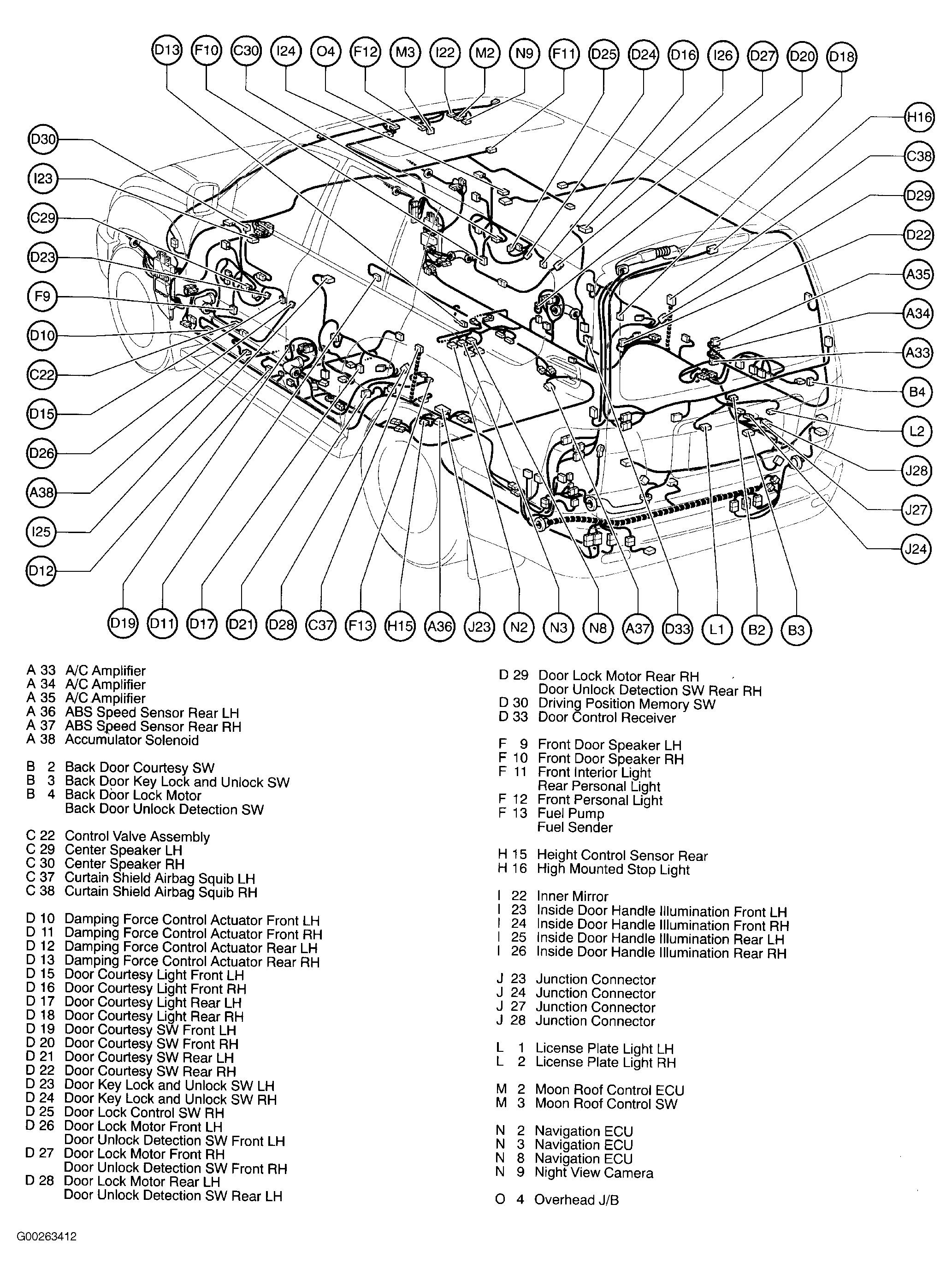

Fig 14: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Power Seats

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

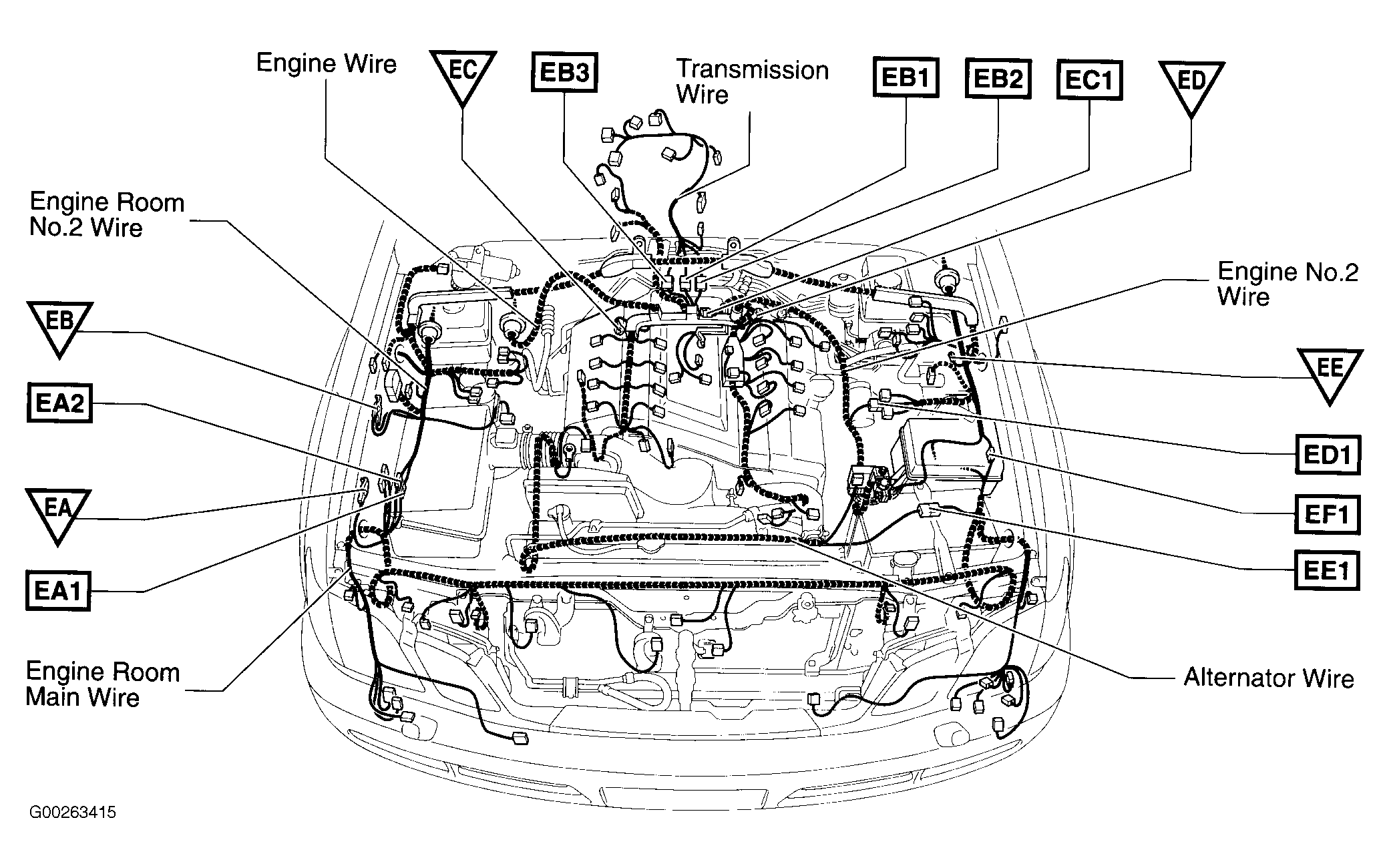

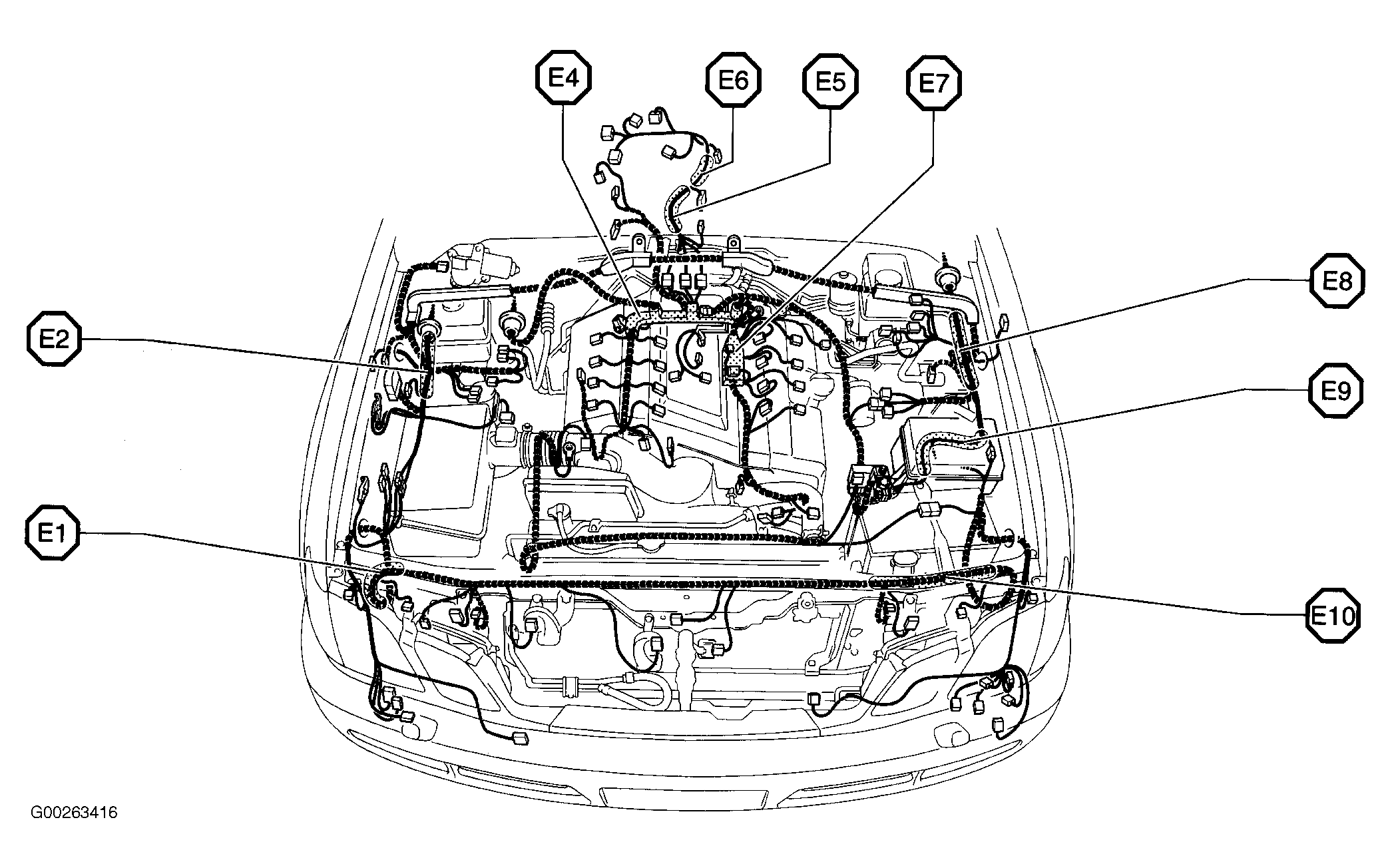

Fig 17: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

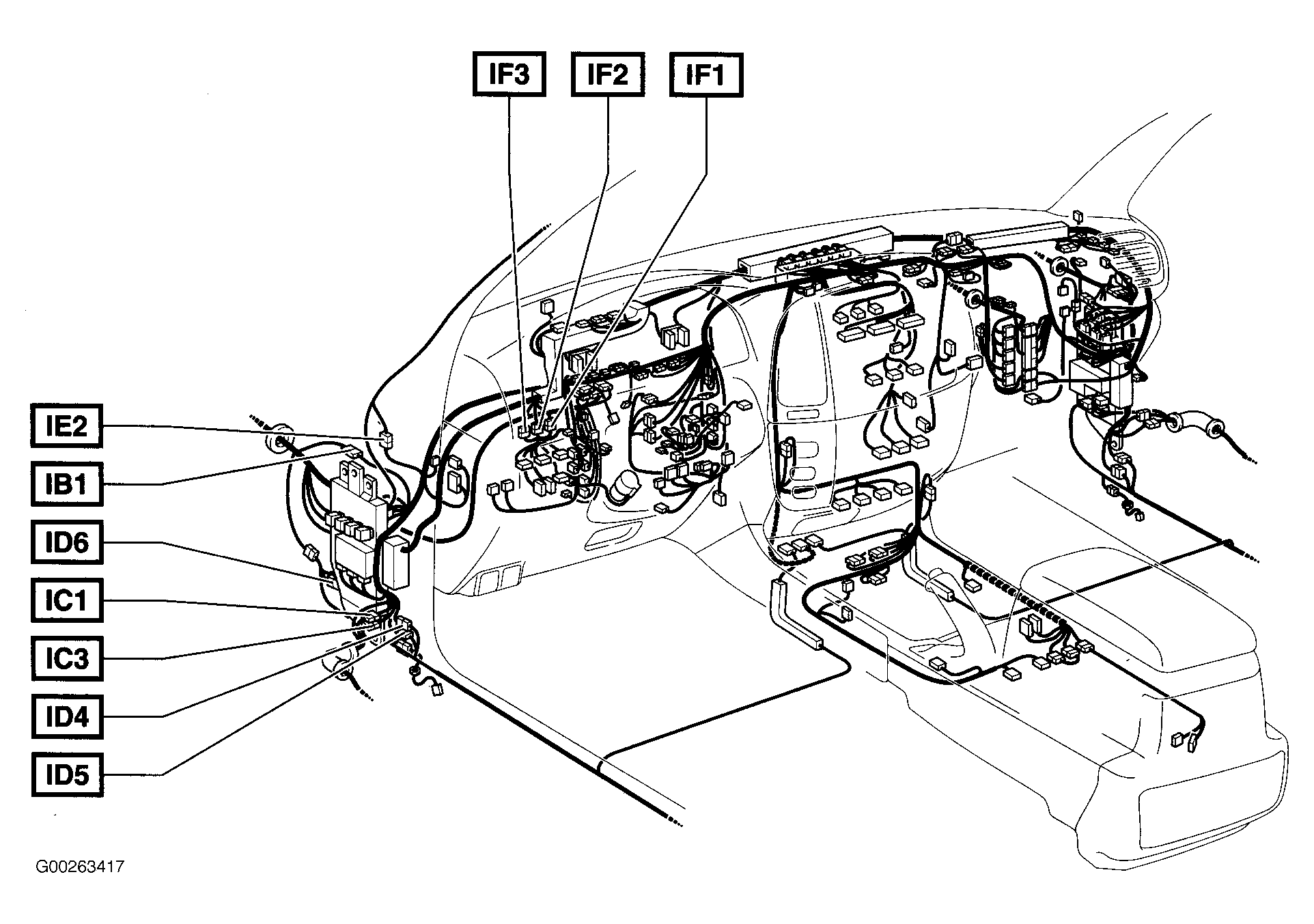

Fig 19: Dashboard Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

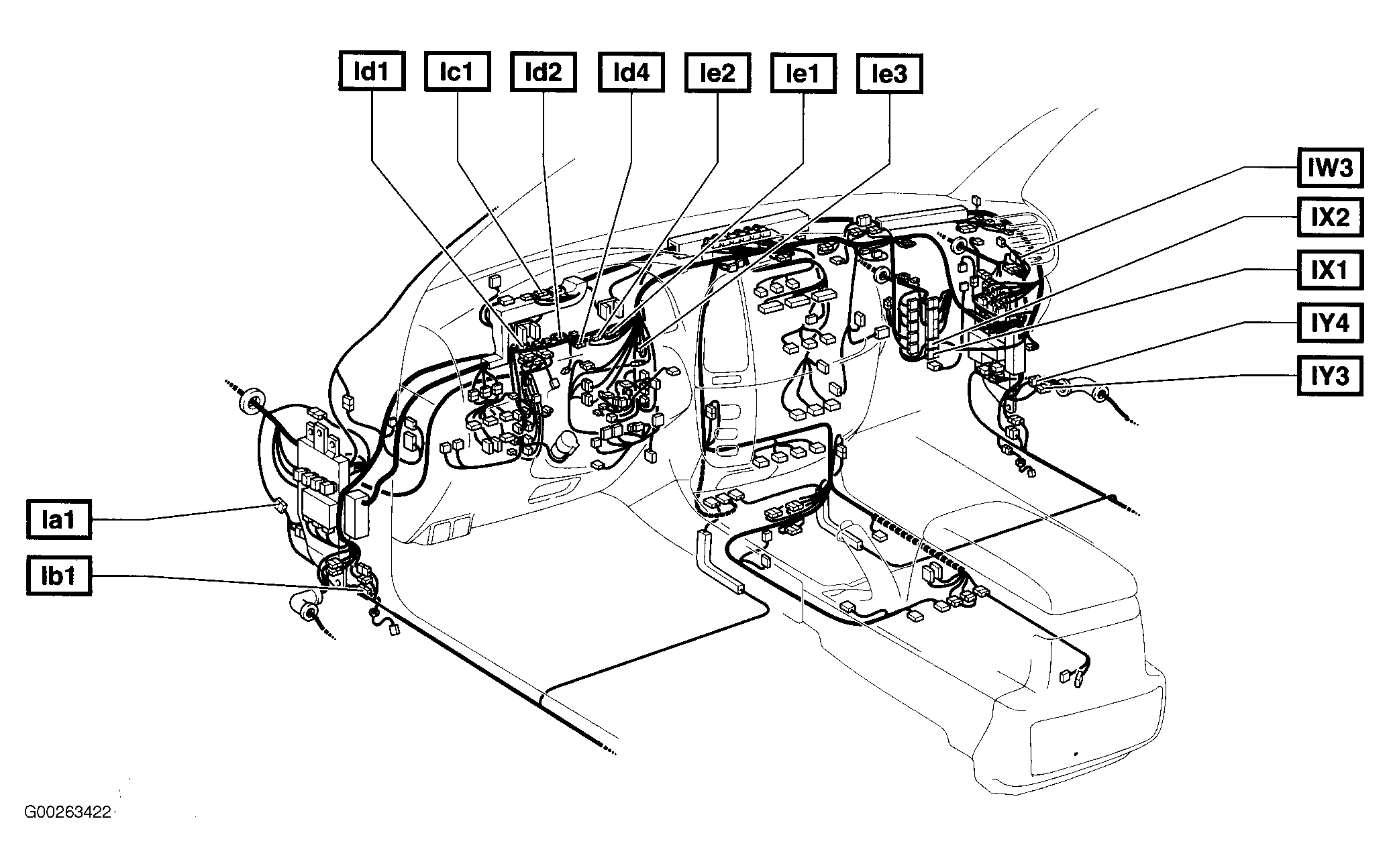

Fig 20: Dashboard Grounds

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

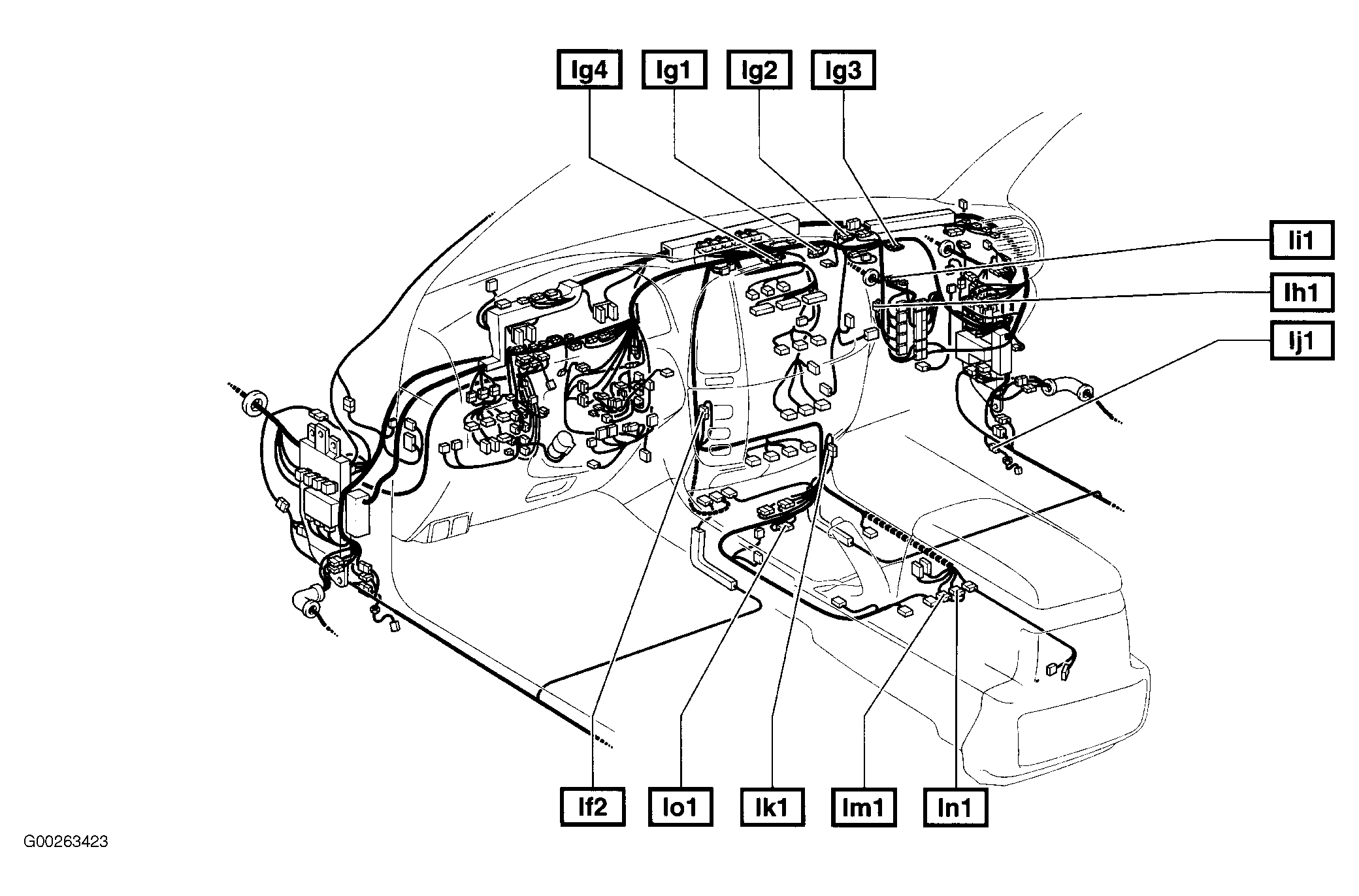

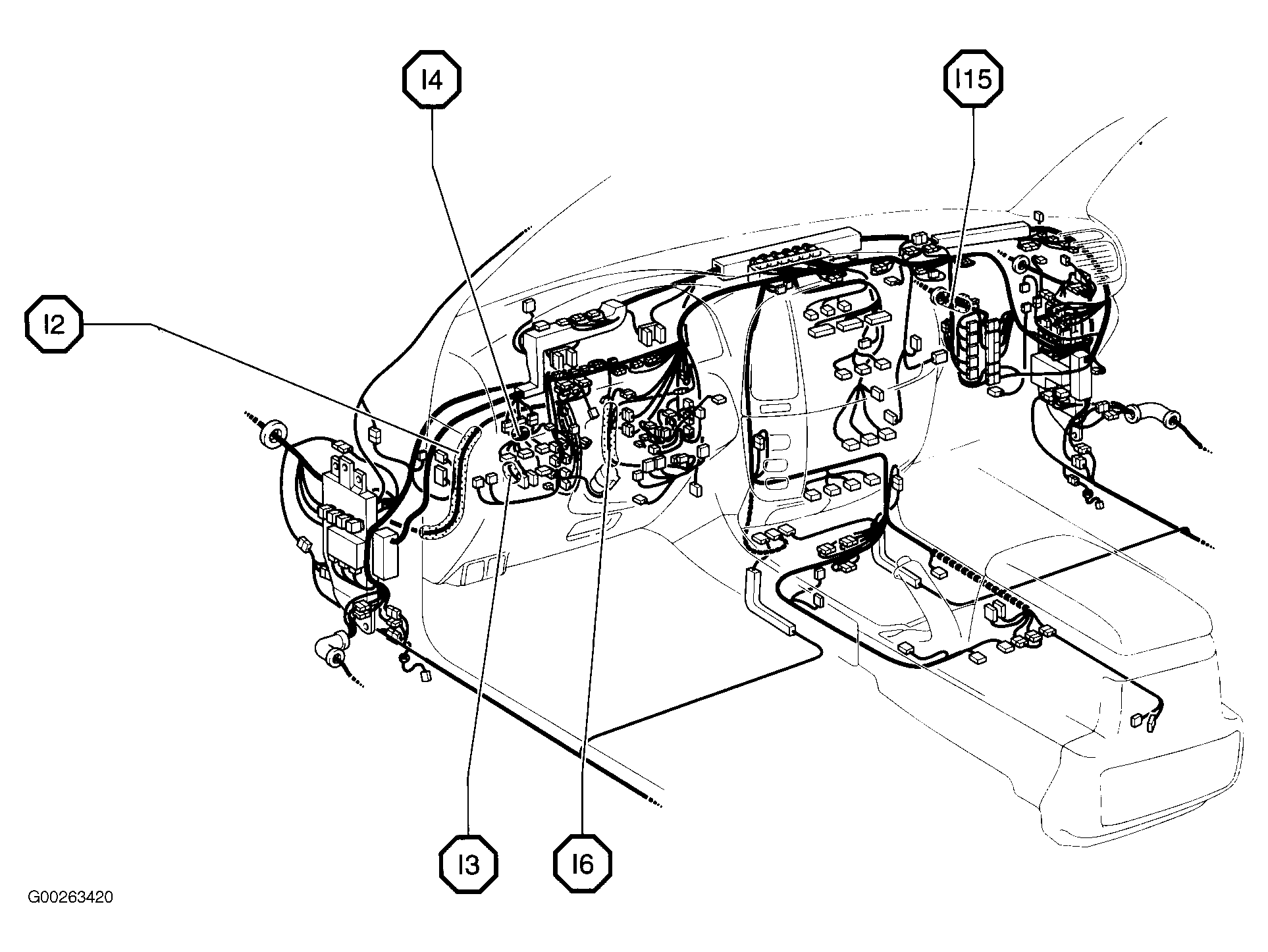

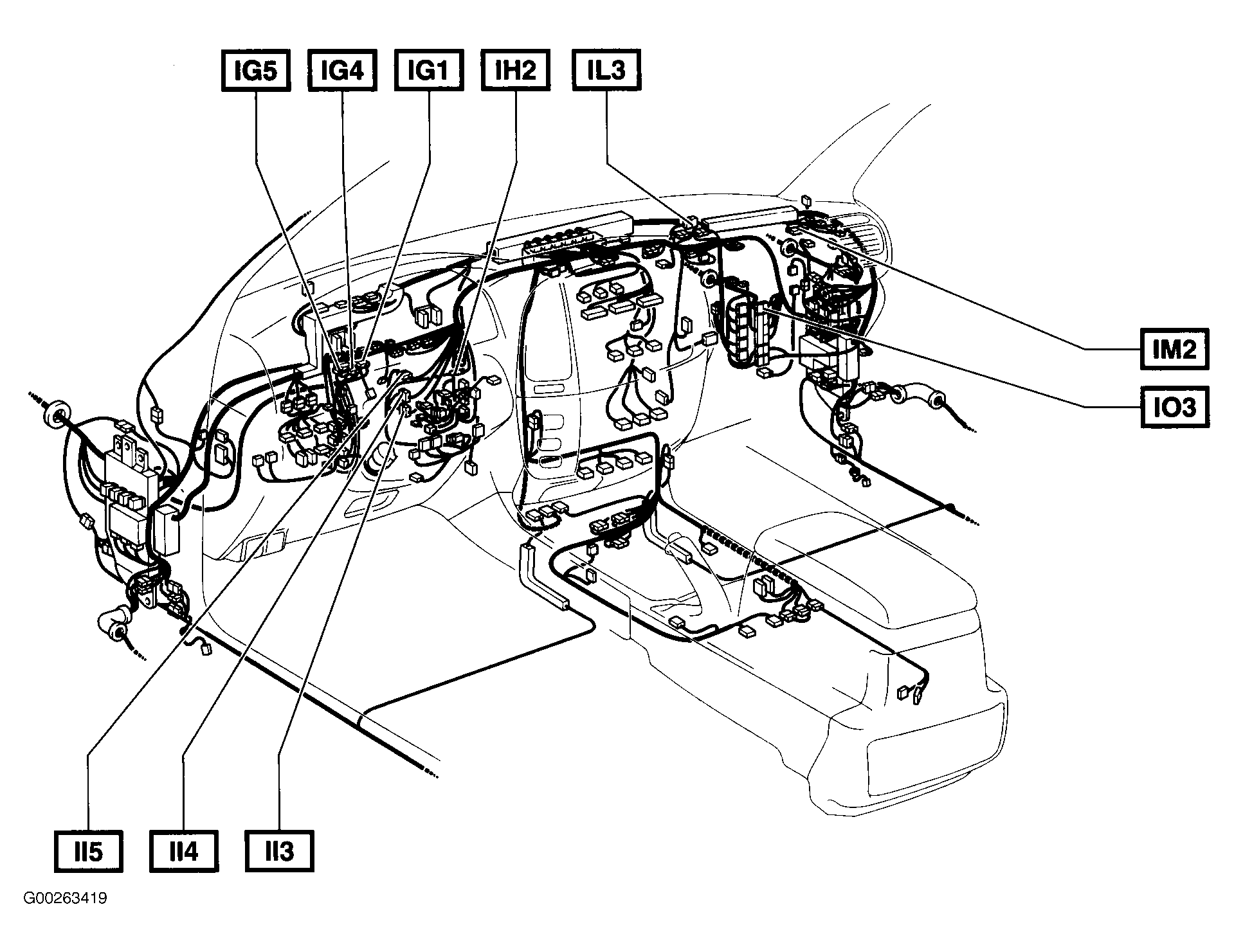

Fig 21: Dashboard Connectors

Fig 22: Dashboard Splices

Fig 23: Dashboard Connectors (Right)

Fig 24: Dashboard Connectors

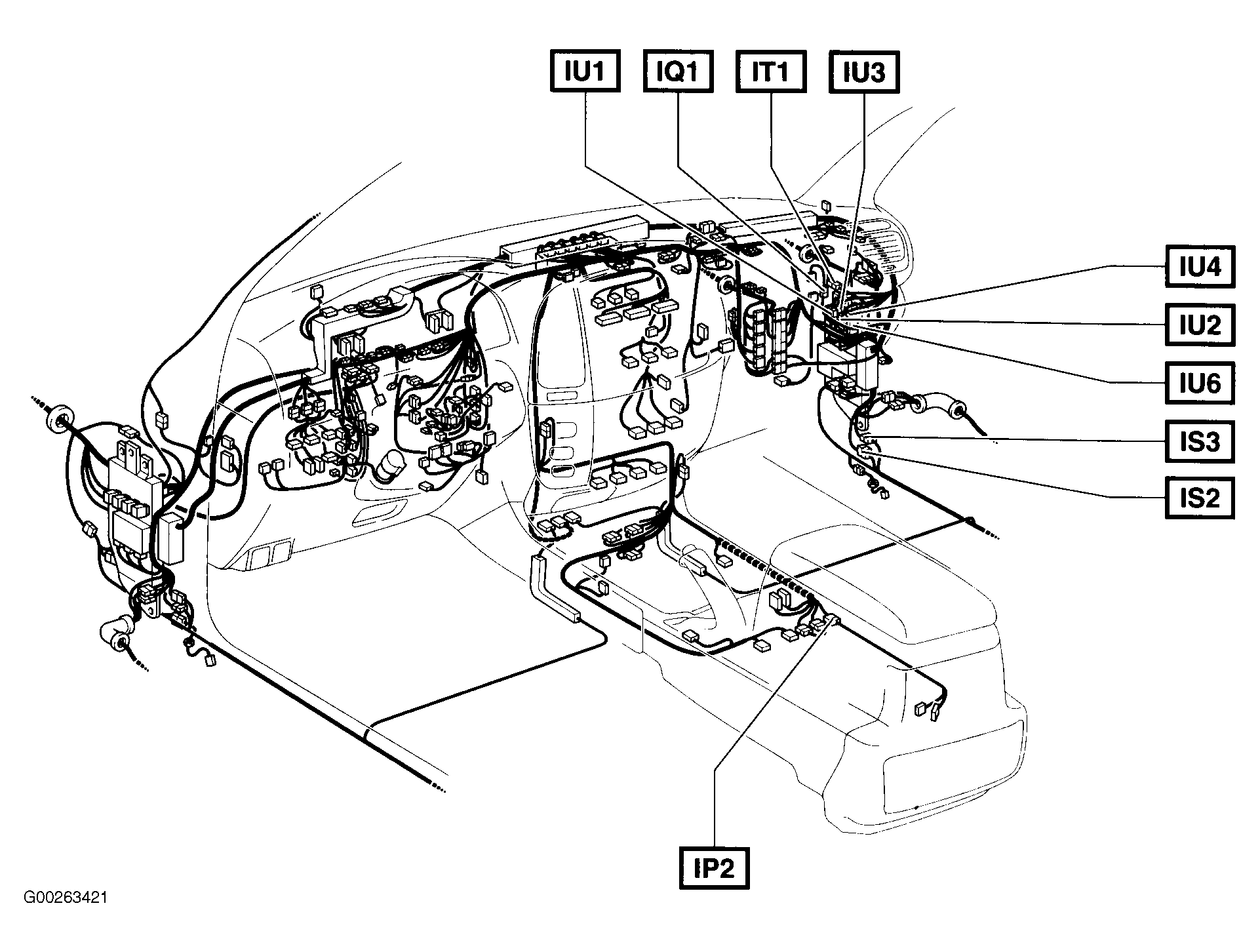

Fig 25: Dashboard Connectors

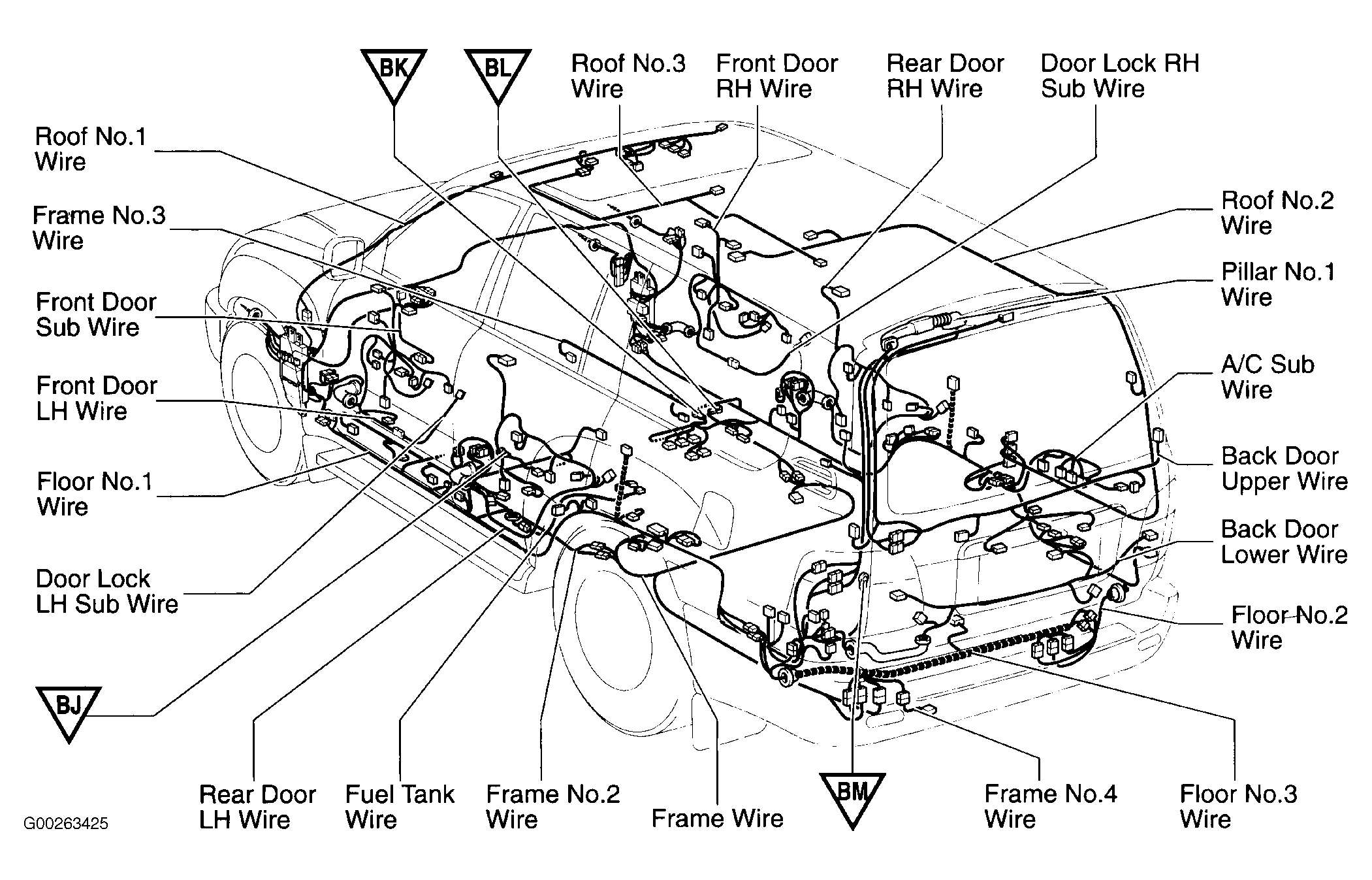

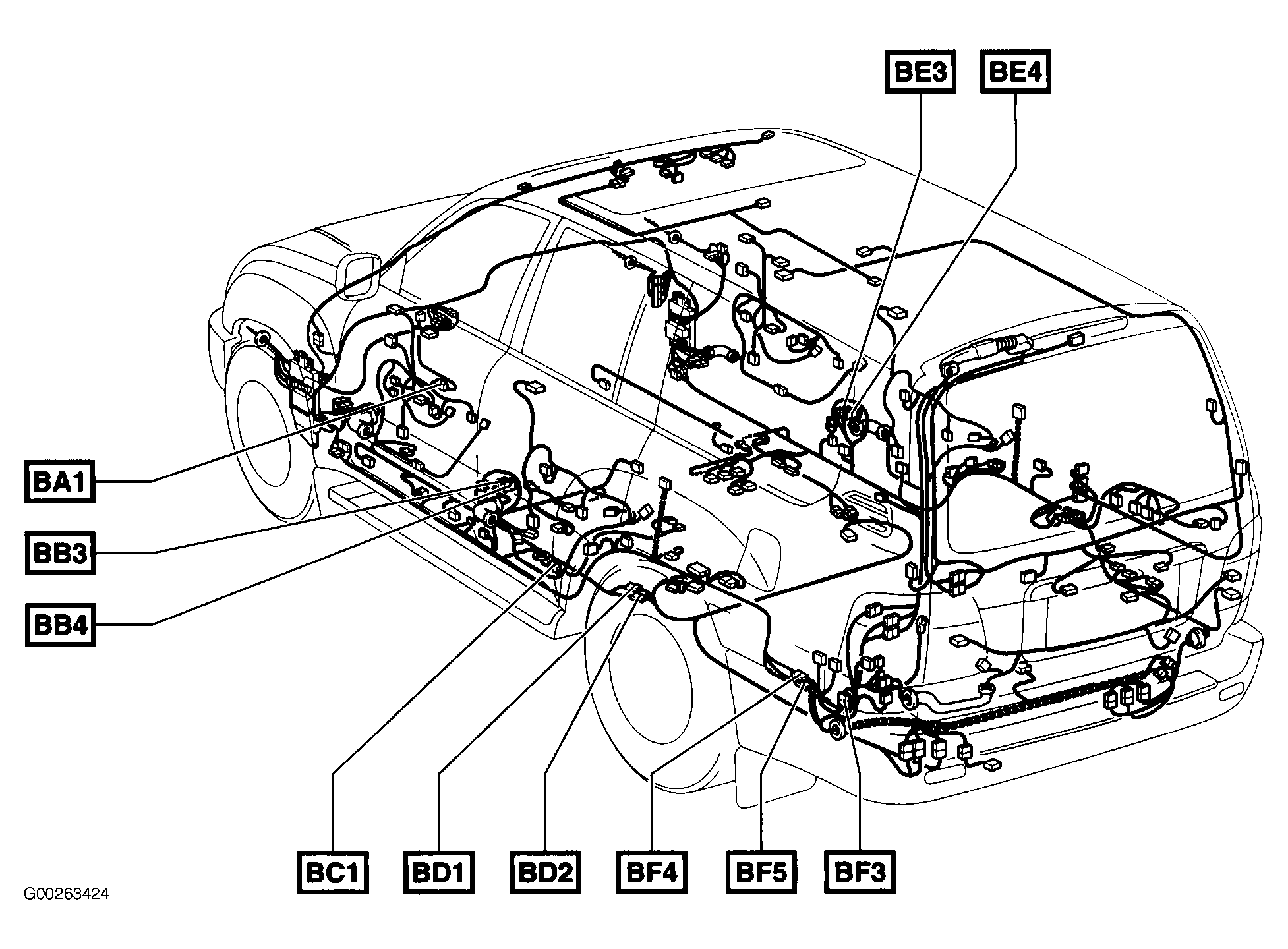

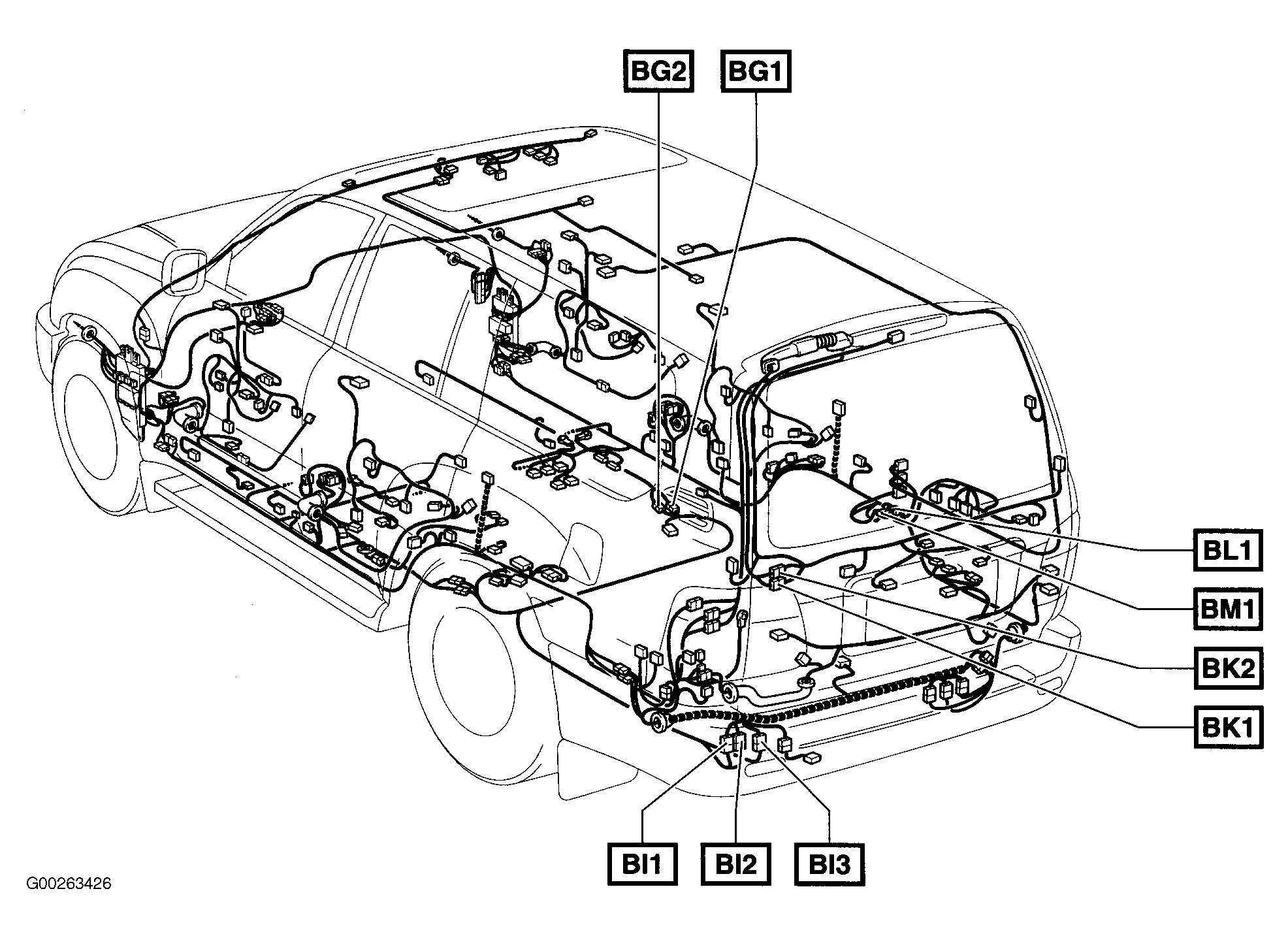

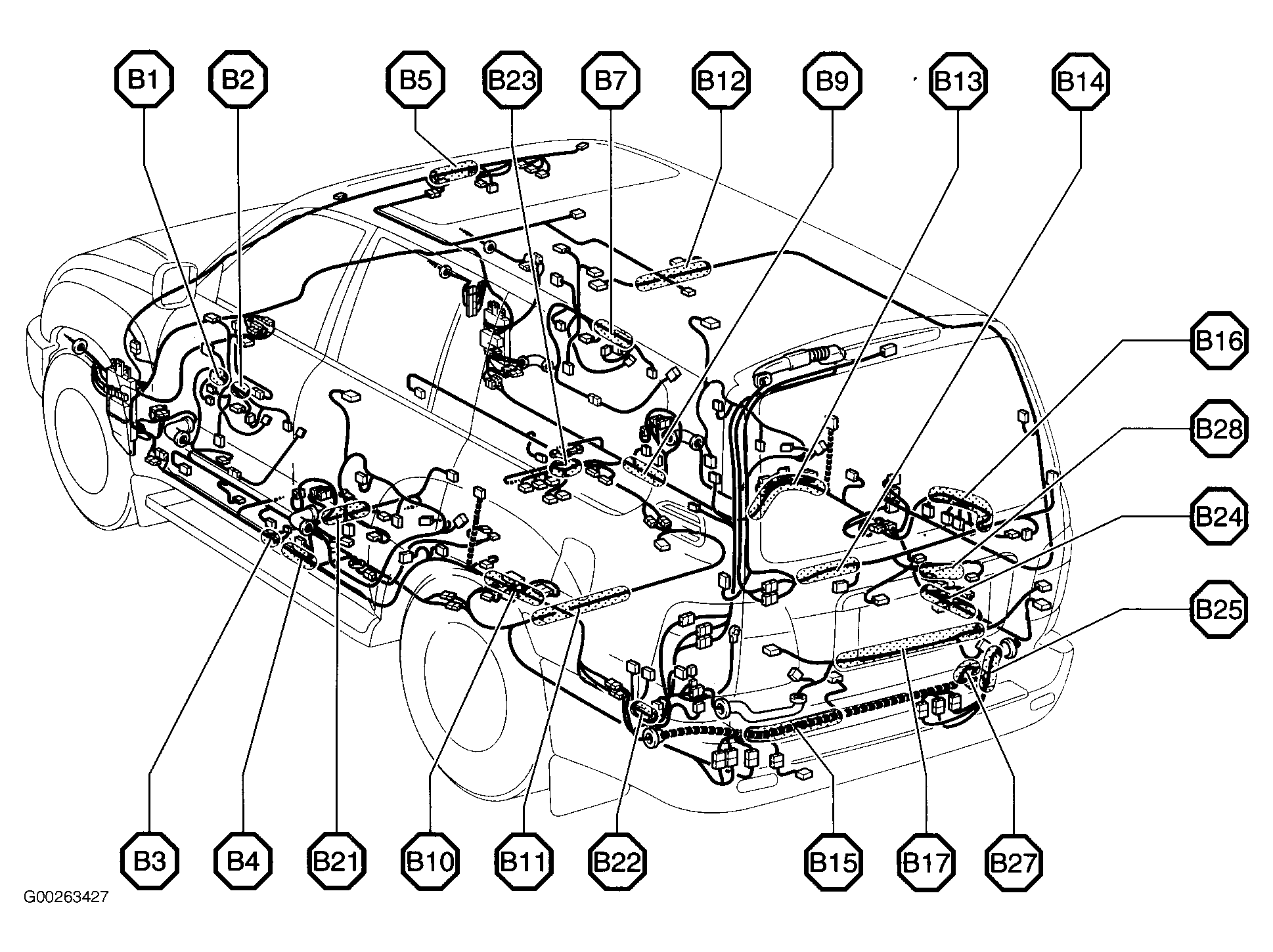

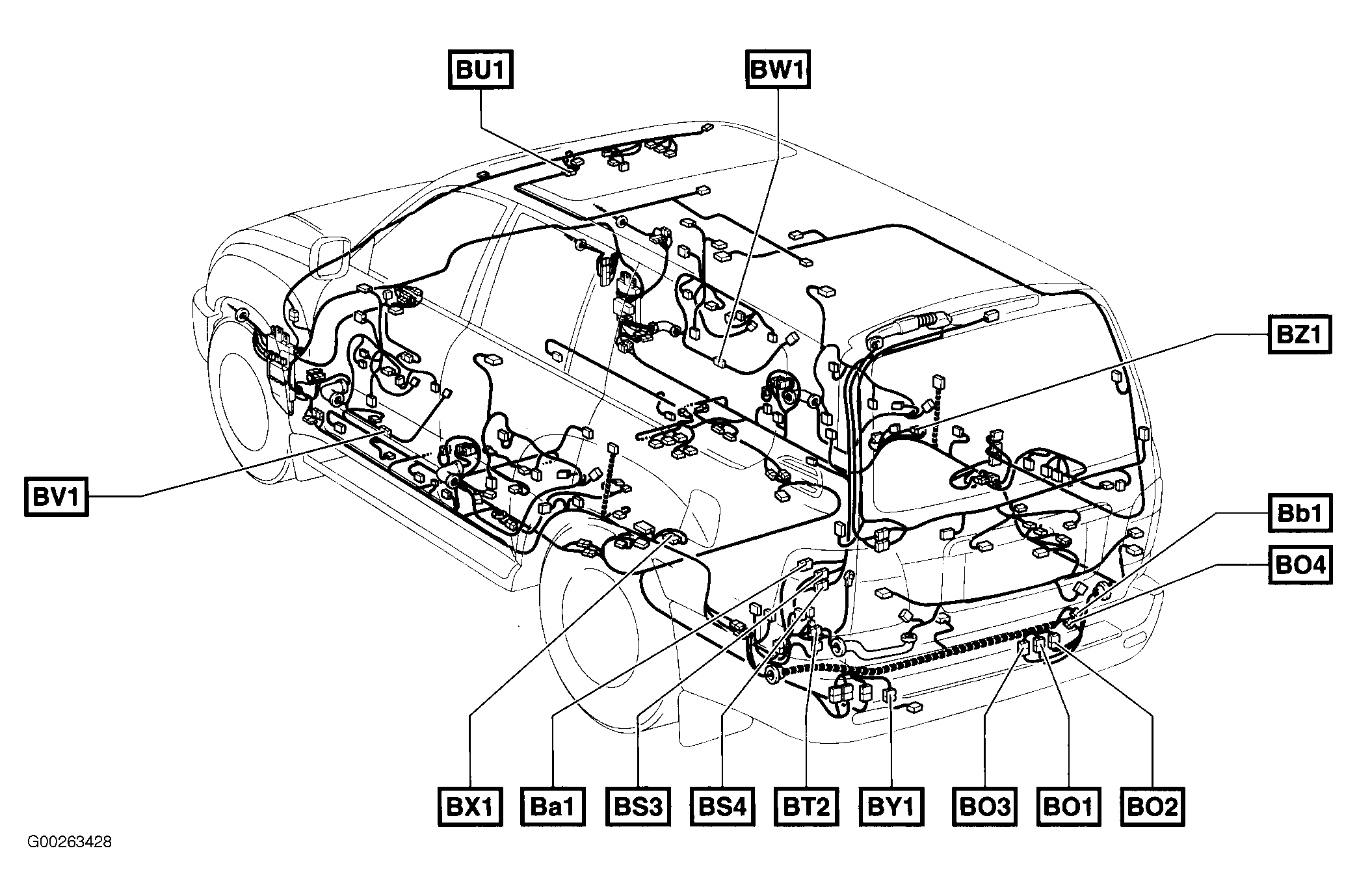

Fig 26: Vehicle Overview

Fig 27: Vehicle Overview

Fig 28: Vehicle Overview

Fig 29: Vehicle Overview

Fig 30: Vehicle Overview

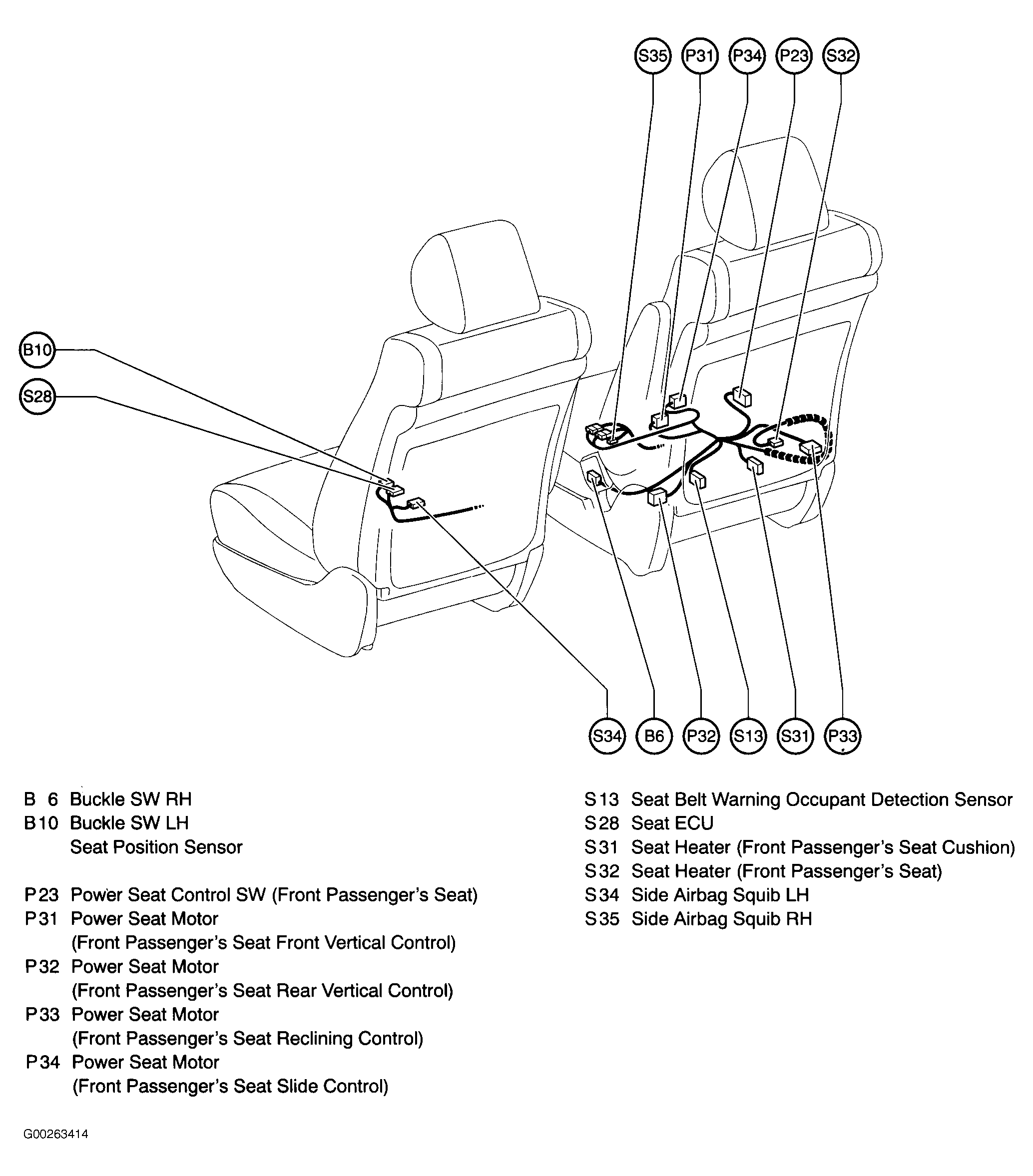

Fig 31: Front Seat Connectors

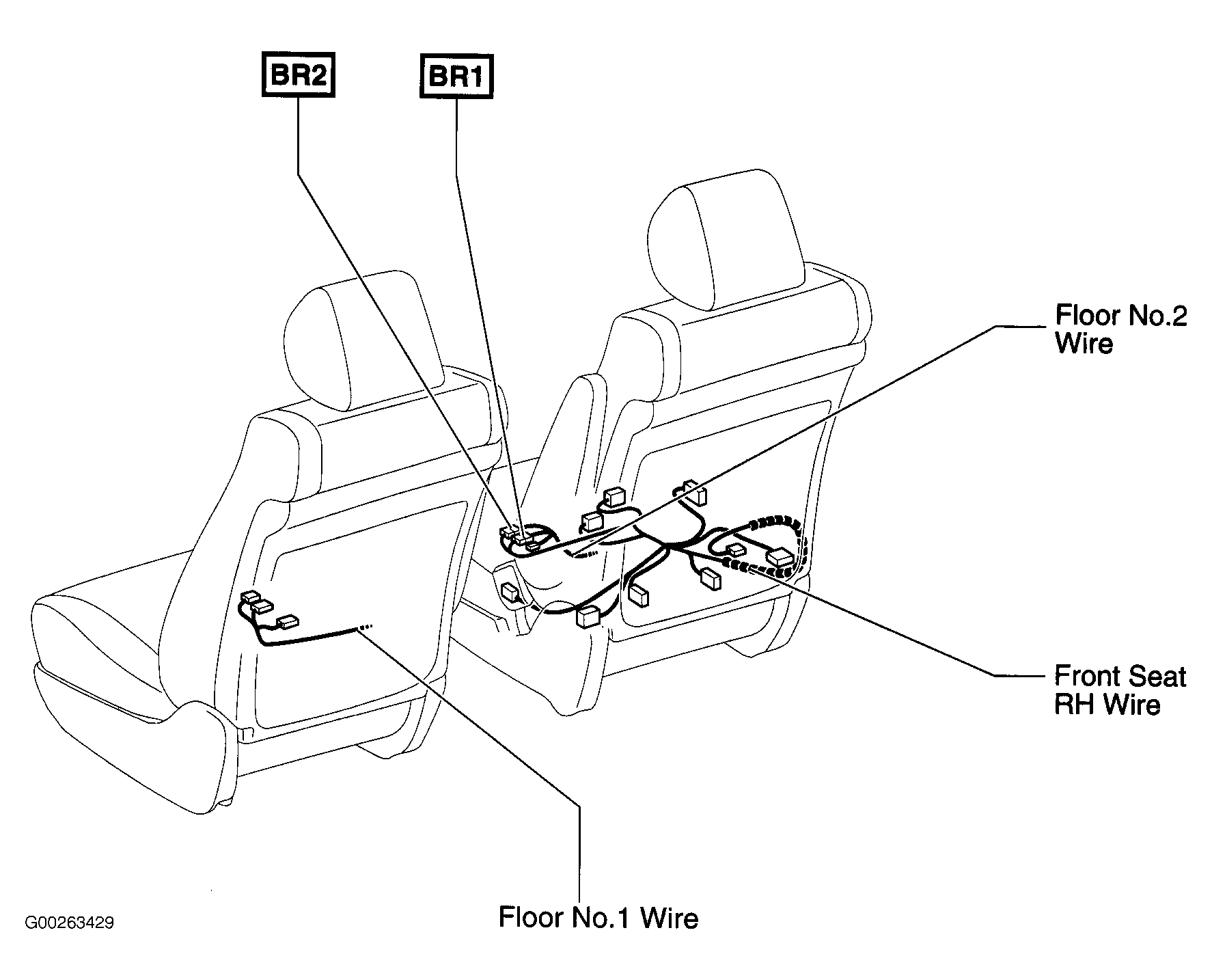

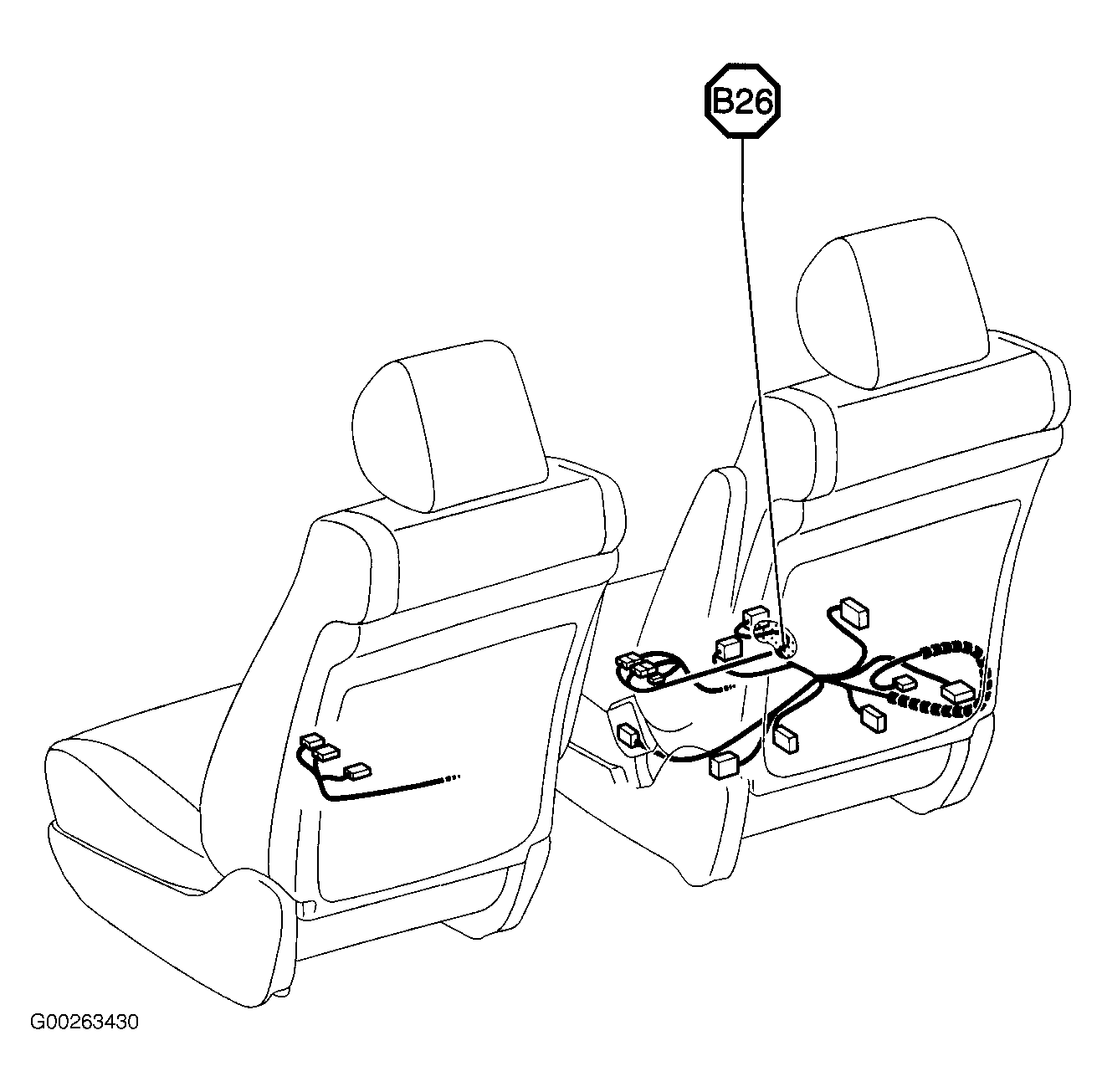

Fig 32: Front Seat Splice
