Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|
| B1 | In body harness, in left front door. See Figure. |
| B2 | In body harness, in left front door. See Figure. |
| B3 | In body harness, at kick panel, near middle of left front door. See Figure. |
| B4 | In body harness, at kick panel, at rear of left front door. See Figure. |
| B5 | In body harness, at center of windshield header. See Figure. |
| B7 | In body harness, in right front door. See Figure. |
| B9 | In body harness, at kick panel, at rear of right front door. See Figure. |
| B10 | In body harness, above left rear wheelwell. See Figure. |
| B11 | In body harness, under rear seat. See Figure. |
| B12 | In body harness, at center of roof. See Figure. |
| B13 | In body harness, above right rear wheelwell. See Figure. |
| B14 | In body harness, in tailgate. See Figure. |
| B15 | In body harness, behind middle of rear bumper. See Figure. |
| B16 | In body harness, at right rear of luggage compartment. See Figure. |
| B17 | In body harness, at right rear of luggage compartment. See Figure. |
| B21 | In body harness, below left front seat. See Figure. |
| B22 | In body harness, at left rear quarterpanel. See Figure. |
| B23 | In body harness, below right front seat. See Figure. |
| B24 | In body harness, at right rear quarterpanel. See Figure. |
| B25 | In body harness, at right rear corner of vehicle. See Figure. |

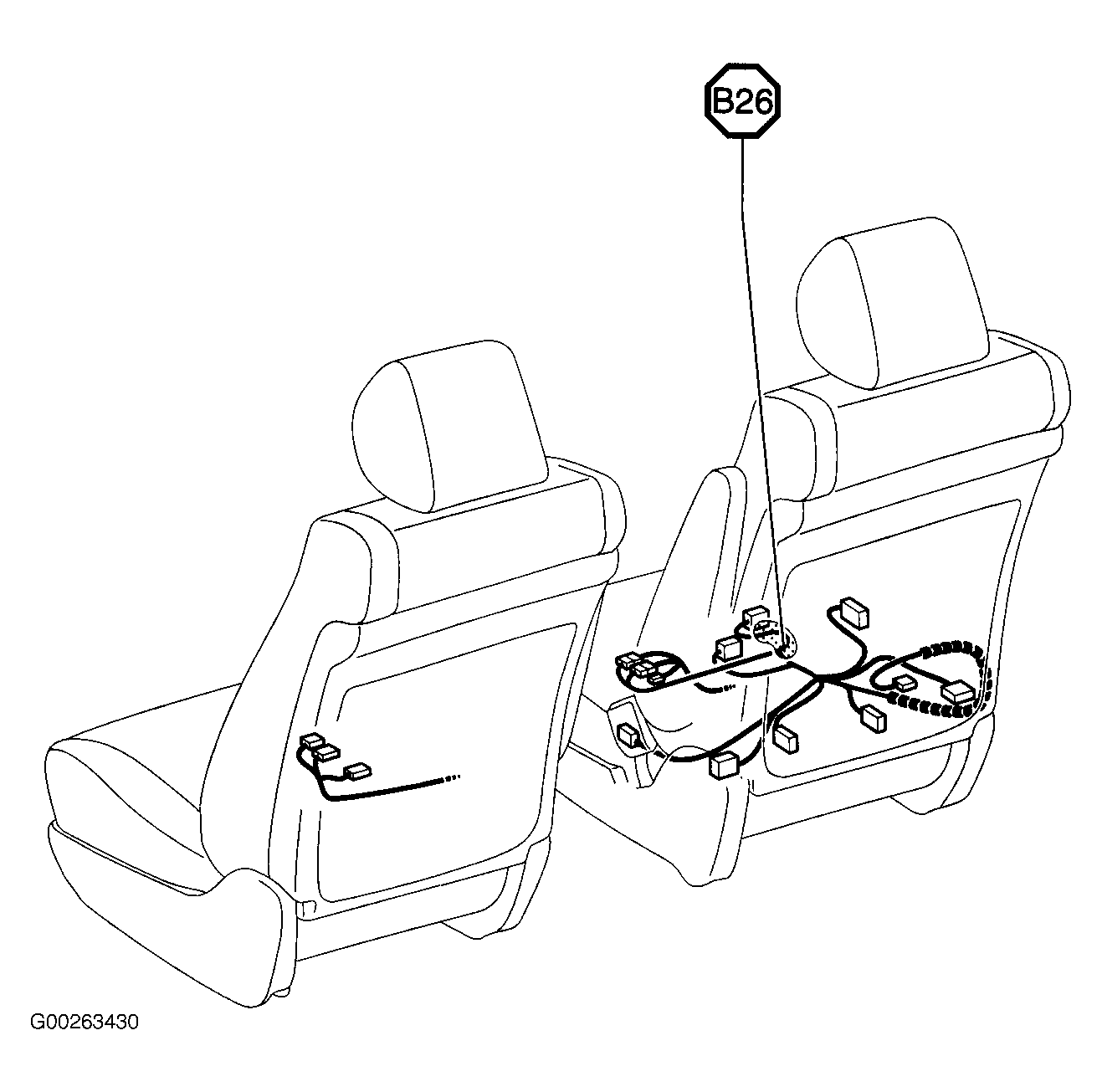

| B26 | In body harness, below right front seat. See Figure. |
| B28 | In body harness, at right rear of luggage compartment. See Figure. |
| E1 | In engine harness, behind right headlight. See Figure. |
| E2 | In engine harness, at right rear of engine compartment. See Figure. |
| E4 | In engine harness, at right rear of engine. See Figure. |
| E5 | In engine harness, on top of transmission. See Figure. |
| E6 | In engine harness, on top of transmission. See Figure. |
| E7 | In engine harness, at top left of engine. See Figure. |
| E8 | In engine harness, at left rear of engine compartment. See Figure. |
| E9 | In engine harness, at left side of engine compartment. See Figure. |
| E10 | In engine harness, behind left headlight. See Figure. |
| I2 | In dash harness, behind left side of dash. See Figure. |
| I3 | In dash harness, behind left side of dash. See Figure. |
| I4 | In dash harness, behind left side of dash. See Figure. |
| I6 | In dash harness, behind left side of dash. See Figure. |
| I15 | In dash harness, behind right side of dash. See Figure. |
