Timing Belt: Components — 2004 Lexus LX 470 Service Manual ~ LEMON Manuals

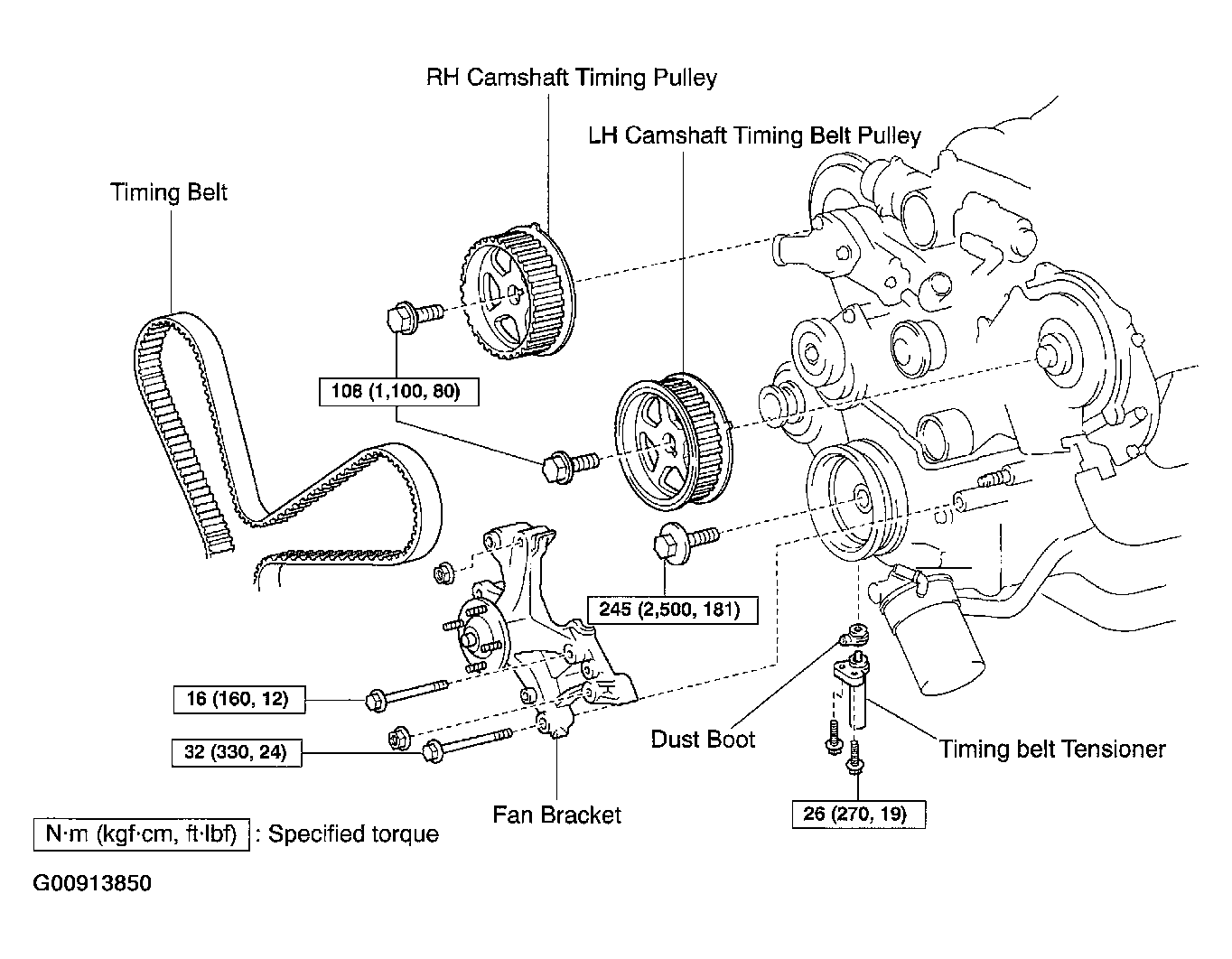

Fig 1: Identifying Timing Belt Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

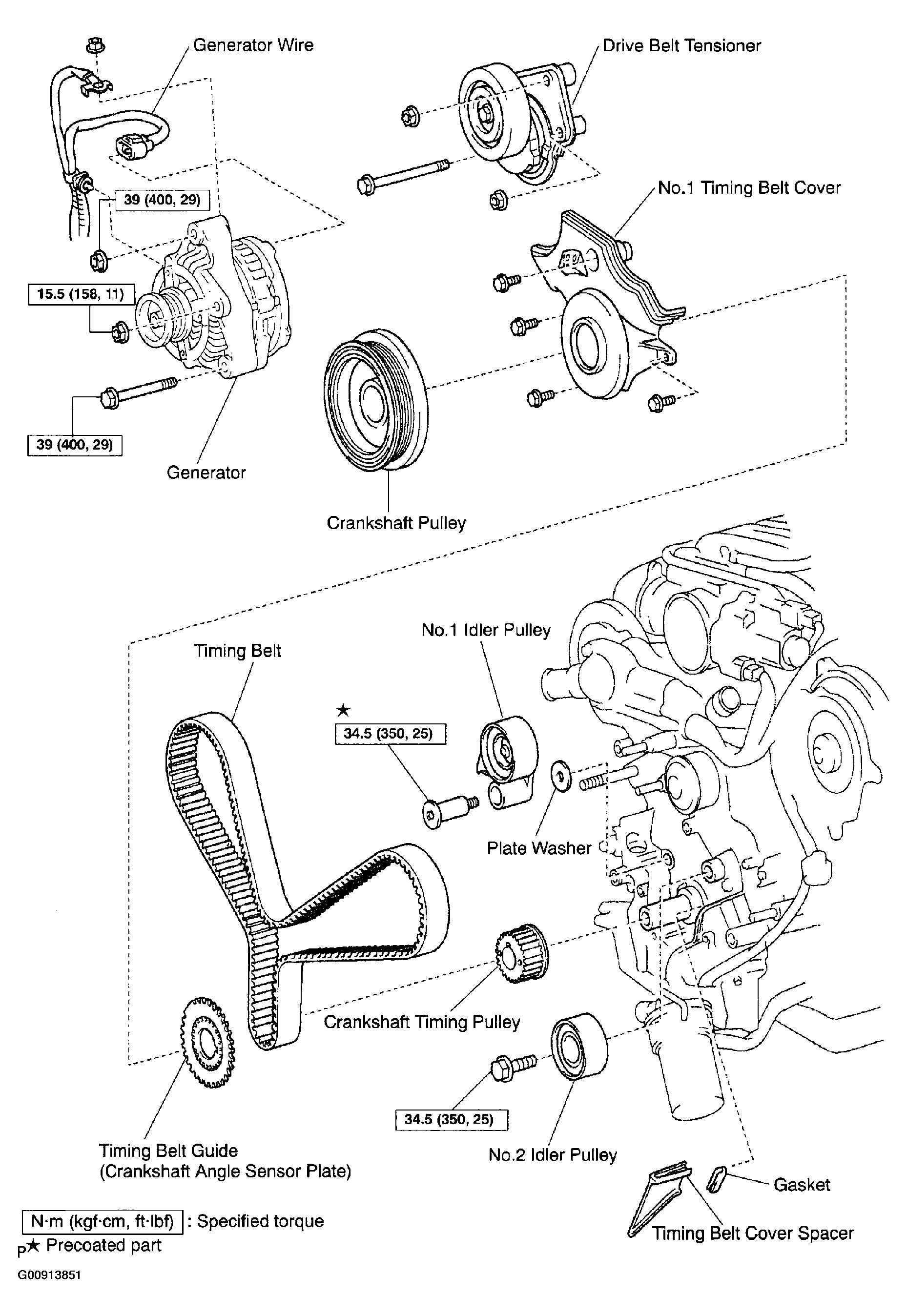

Fig 2: Exploded View Of Timing Belt Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

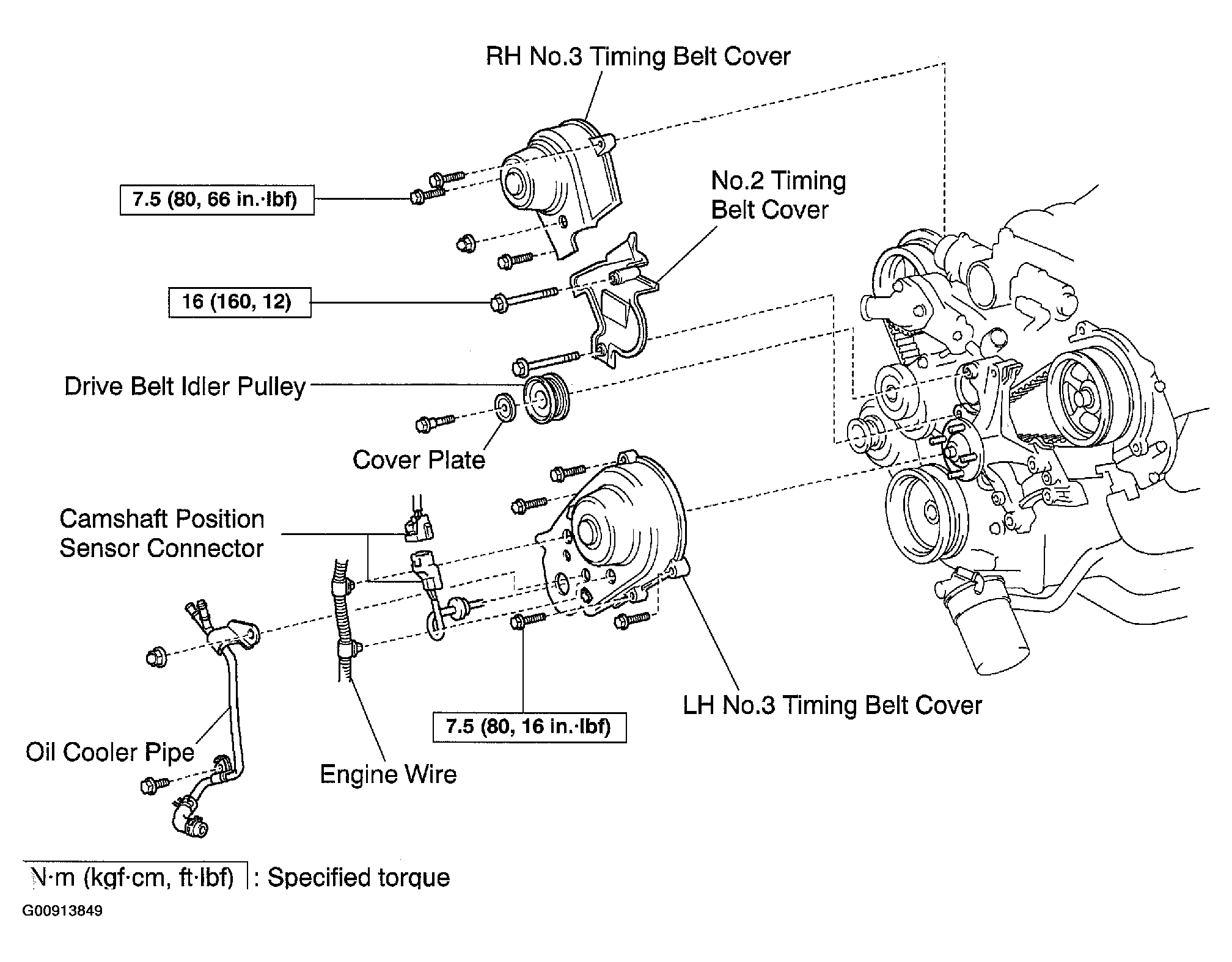

Fig 3: Exploded View Of Timing Belt Components (2 Of 3)

Fig 4: Exploded View Of Timing Belt Components (3 Of 3)
