INSTALL INJECTORS AND DELIVERY PIPES
NOTE:
- Be careful not to drop the injectors when installing the delivery pipes.
- Since the O-ring may be stuck to the injector, do not put a side load on it at the removal.

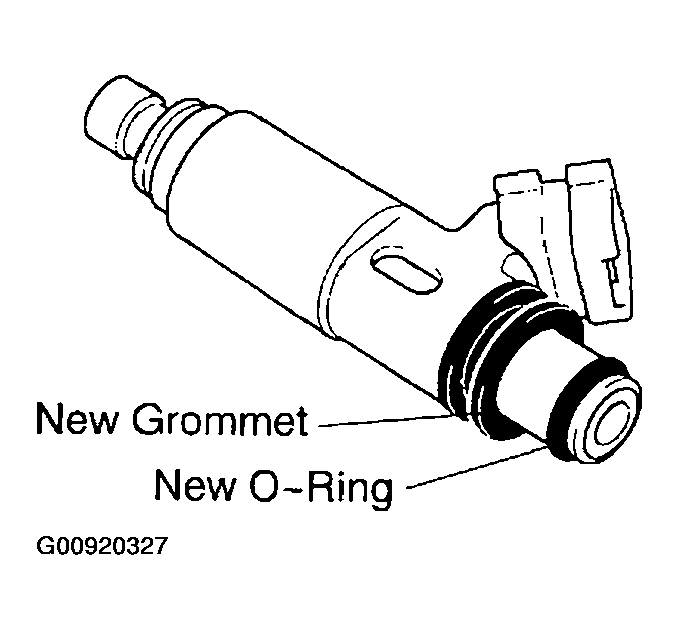

1. Install a new grommet to each injector.
2. Apply a light coat of gasoline to new O-rings and install them to each injector.
3. While turning the injector clockwise and counterclockwise, push it to the delivery pipes. Install the 8 injectors.

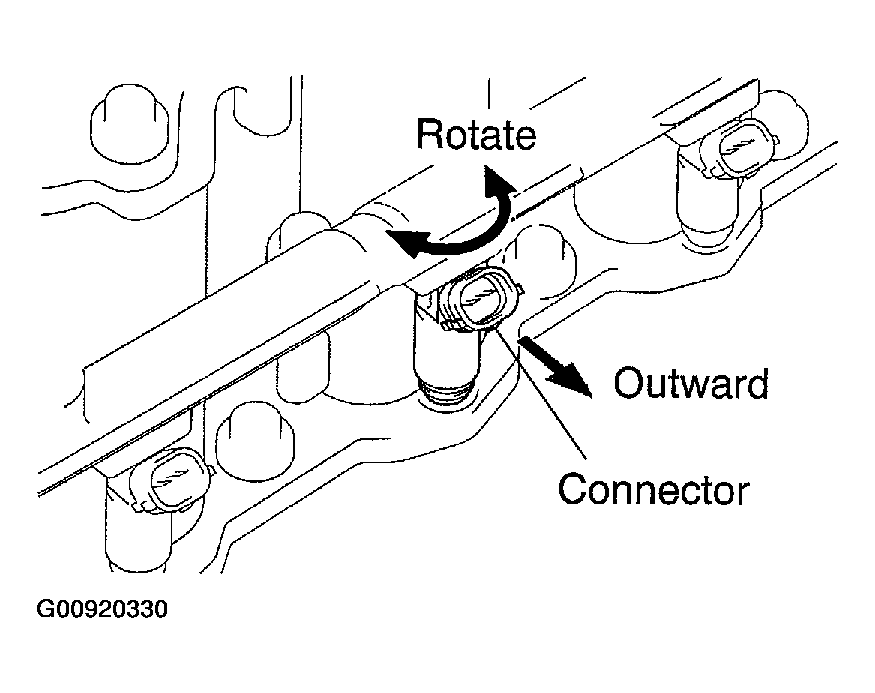

4. Position injector connector outward.
5. Place the 4 spacers and 8 new insulators on the intake manifold.
6. Place the 2 delivery pipes and the injectors assemblies on the lower intake manifold.
7. Temporarily install the 4 nuts.
8. Install the front fuel pipe with the bolt, the 4 new gaskets and the 2 union bolts.
  1. Torque: 39 N.m (400 kgf.cm, 29 ft.lbf) for union bolts 7.5 N.m (80 kgf.cm, 66 in.lbf) for bolt

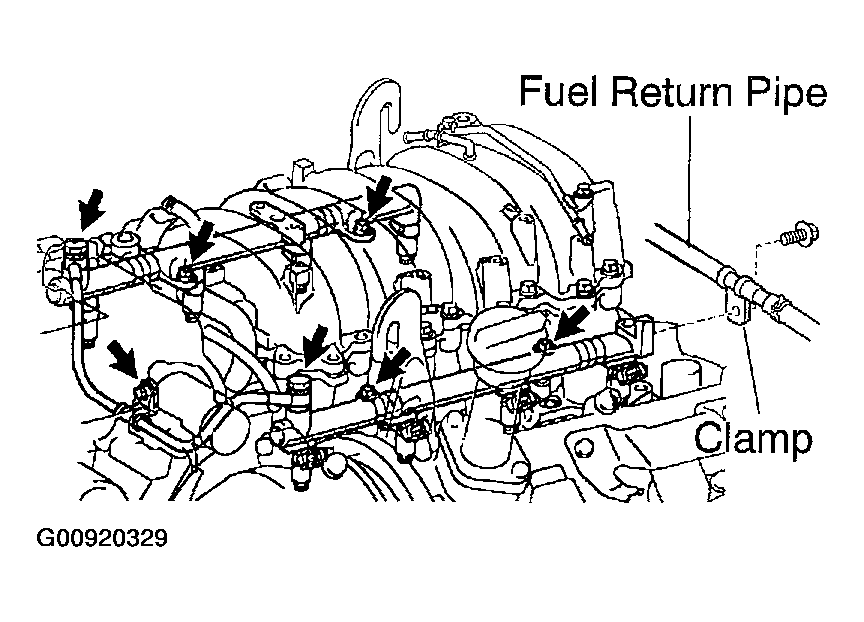

  Fig 3: Identifying Fuel Return Pipe & Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Install the bolt holding the clamp on the fuel return pipe to the LH delivery pipe.
  1. Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)
10. Check that the injectors rotate smoothly.

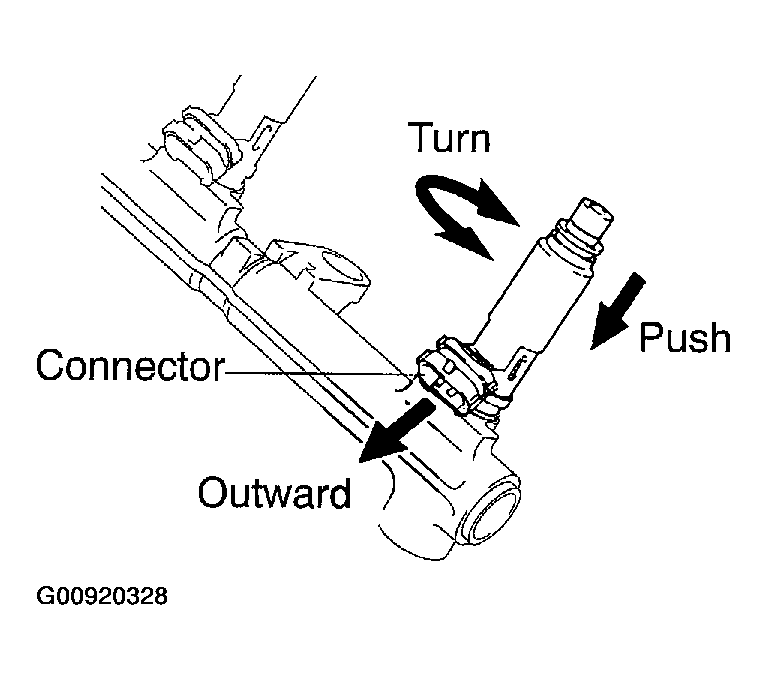

  Fig 4: Checking Injector Rotation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  If injectors do not rotate smoothly, the probable cause is incorrect installation of O-rings. Replace the O-rings in that case.
11. Position the injector connector outward.
12. Tighten the 4 nuts holding the delivery pipes to the lower
13. Intake manifold.
  1. Fig. Torque: 21 N.m (214 kgf.cm, 15 ft.lbf)
14. Connect the 8 injectors connectors.
INSTALL ENGINE WIRE TO LH DELIVERY PIPE
Install the 2 wire clamps on the engine wire to the brackets on the delivery pipe.

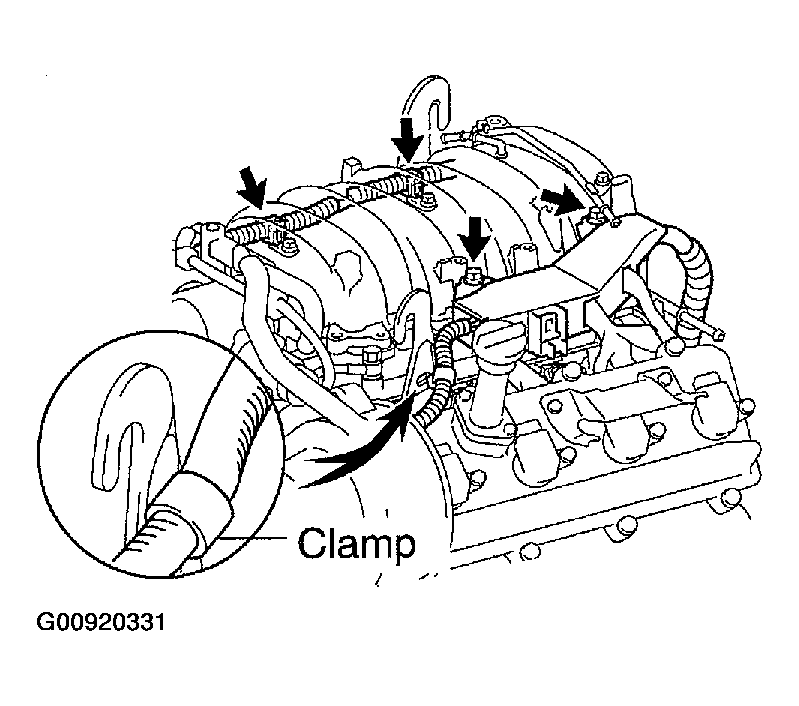

Fig 5: Installing Wire Clamps

INSTALL ENGINE WIRE PROTECTOR
1. Connect the engine wire clamp to the No.1 engine hanger.
2. Install the engine wire protector with the 2 bolts.
3. Connect the PCV hose to the PCV valve.
4. Connect VSV EVAP to the upper intake manifold.
5. Install the No.1 V-bank cover bracket to the upper intake manifold.
6. Install the No.2 V-bank cover bracket to the upper intake manifold.
7. Install the No.3 V-bank cover bracket to the upper intake manifold.
8. Install the No.4 V-bank cover bracket to the upper intake manifold.
INSTALL FUEL PRESSURE PULSATION DAMPER (See PRECAUTION )
INSTALL INTAKE AIR CONNECTOR
INSTALL V-BANK COVER
