Knock Sensor: Components

Fig 1: Identifying Knock Sensor Components (1 Of 2)
G00920382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

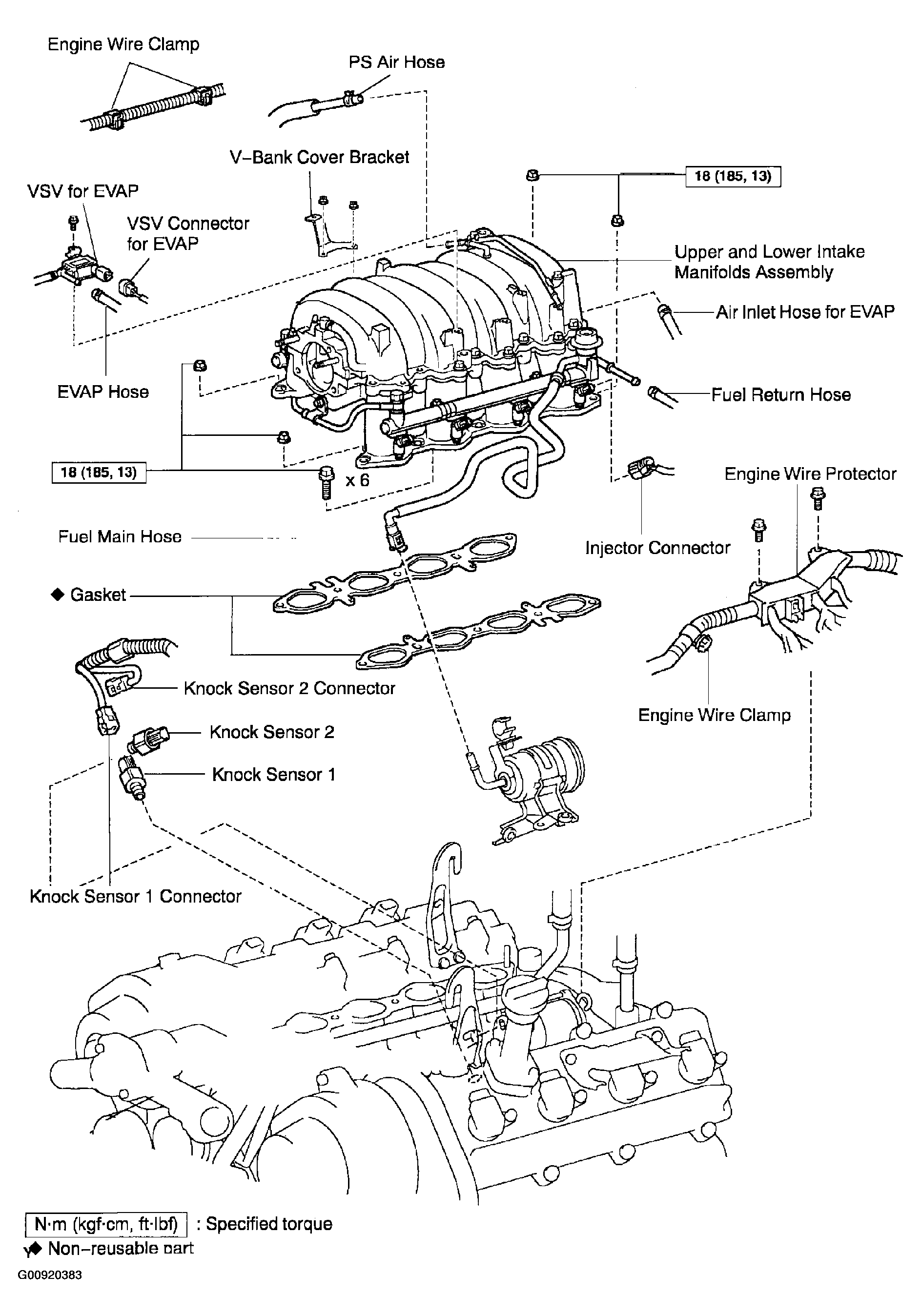

Fig 2: Identifying Knock Sensor Components (2 Of 2)
G00920383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
